What Are EODD Pumps?

What Are EODD Pumps?

Electric diaphragm pumps are engineered for energy efficiency and durability, and can be applied in various industries and specific applications.

Definition

A type of positive displacement pump that uses a reciprocating diaphragm driven by an electric motor to move fluid.

Core Principle

It combines electric motor reliability with the diaphragm's ability to handle sensitive, viscous, or abrasive fluids.

Key Characteristic

The pumped fluid is completely isolated from the pump's mechanical parts in a sealed chamber.

Key Characteristic

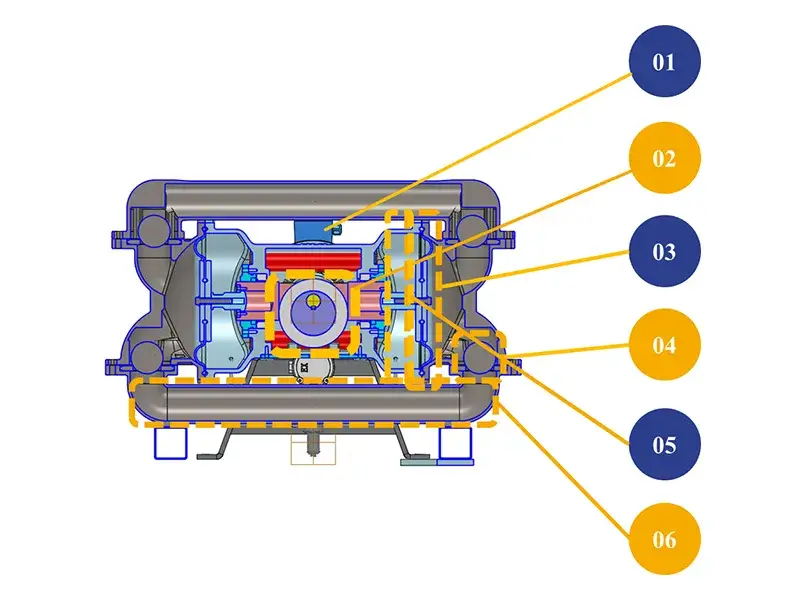

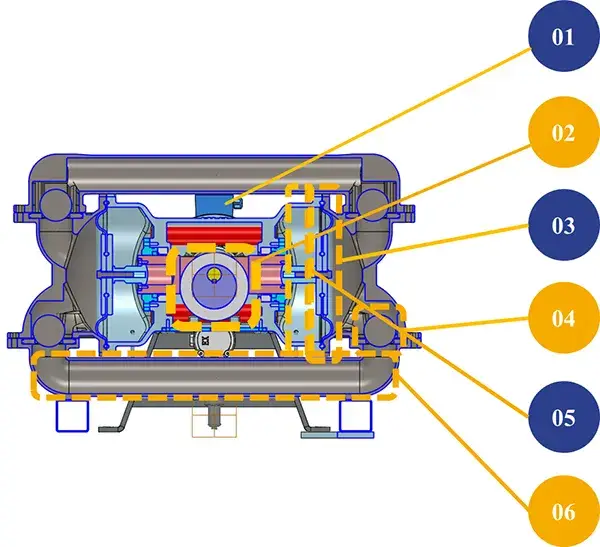

Components & Structure
Components & Structure
  • Electric Motor

    Provide the driving force

  • Drive Mechanism

    Convert rotary motion to reciprocating motion

  • Diaphragms

    The core flexible membrane (Materials: PTFE, Santoprene®, Nitrile, etc.)

  • Valve Balls

    Ensure one-way flow at the inlet and outlet

  • Pump Housing/Chambers

    Contain the fluid

  • Air Vents & Manifolds

    Integrate fluid channels and pressure control

Components & Structure
Components & Structure

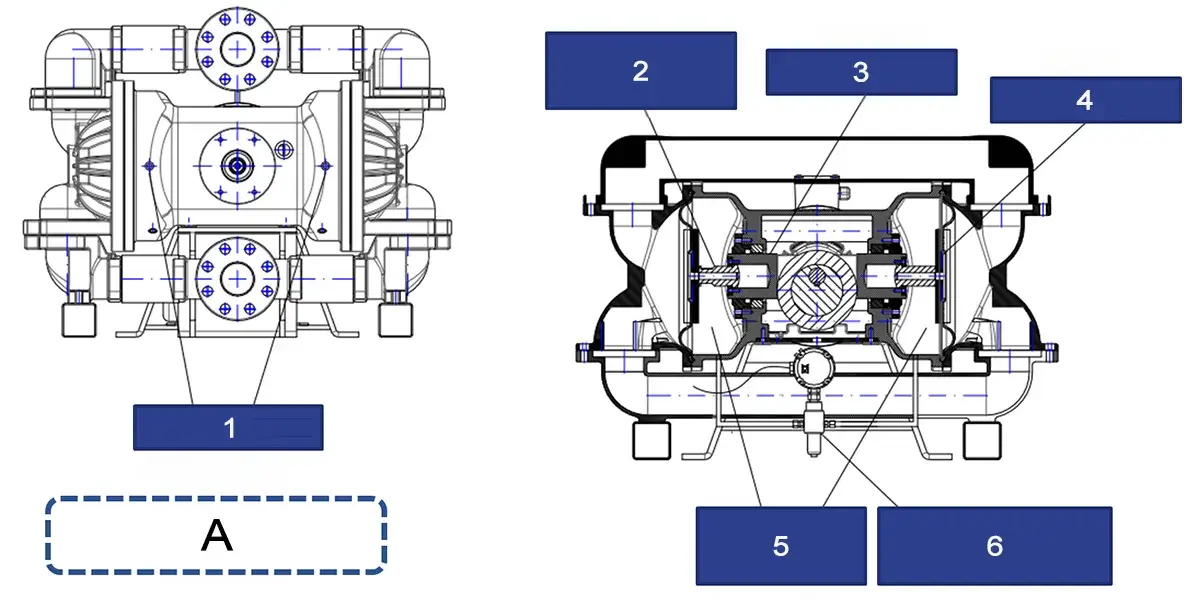

  • A Electric-Pneumatic Hydrid Diaphragm Pump
  • 1 Nitrogen Inlet
  • 2 Diaphragm Shaft
  • 3 Drive Shaft
  • 4 Diaphragm
  • 5 Compressed Nitrogen
  • 6 Leakage Detective Device
