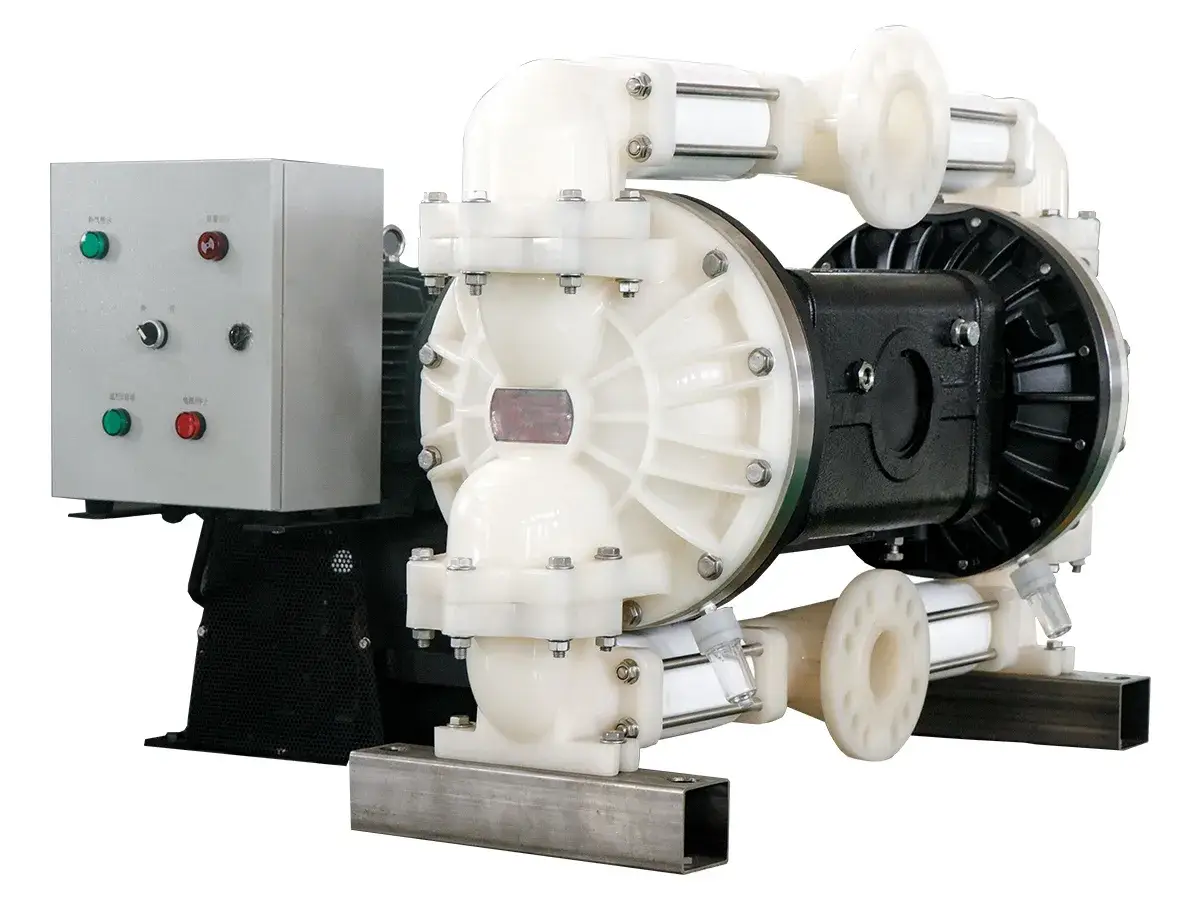

PVDF Electric Diaphragm Pumps
- Max. Outlet Pressure: 0.6-0.7 MPa
- Max. Flow Rate: 10.5-22 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 3-5.5 kW standard, 4-7.5 kW optional
- Motor Speed: 1450 r/min
- Max. Outlet Pressure: 0.6 MPa
- Max. Flow Rate: 10.5 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 3 kW standard, 4 kW optional
- Motor Speed: 1450 r/min
- Fluid Inlet Size: 2"
- Fluid Outlet Size: 2"
- Connection Type: Threaded or flanged
- Max. Outlet Pressure: 0.7 MPa
- Max. Flow Rate: 22 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 5.5 kW standard, 7.5 kW optional
- Motor Speed: 1450 r/min
- Inlet/Outlet Size: 3", flanged connection
