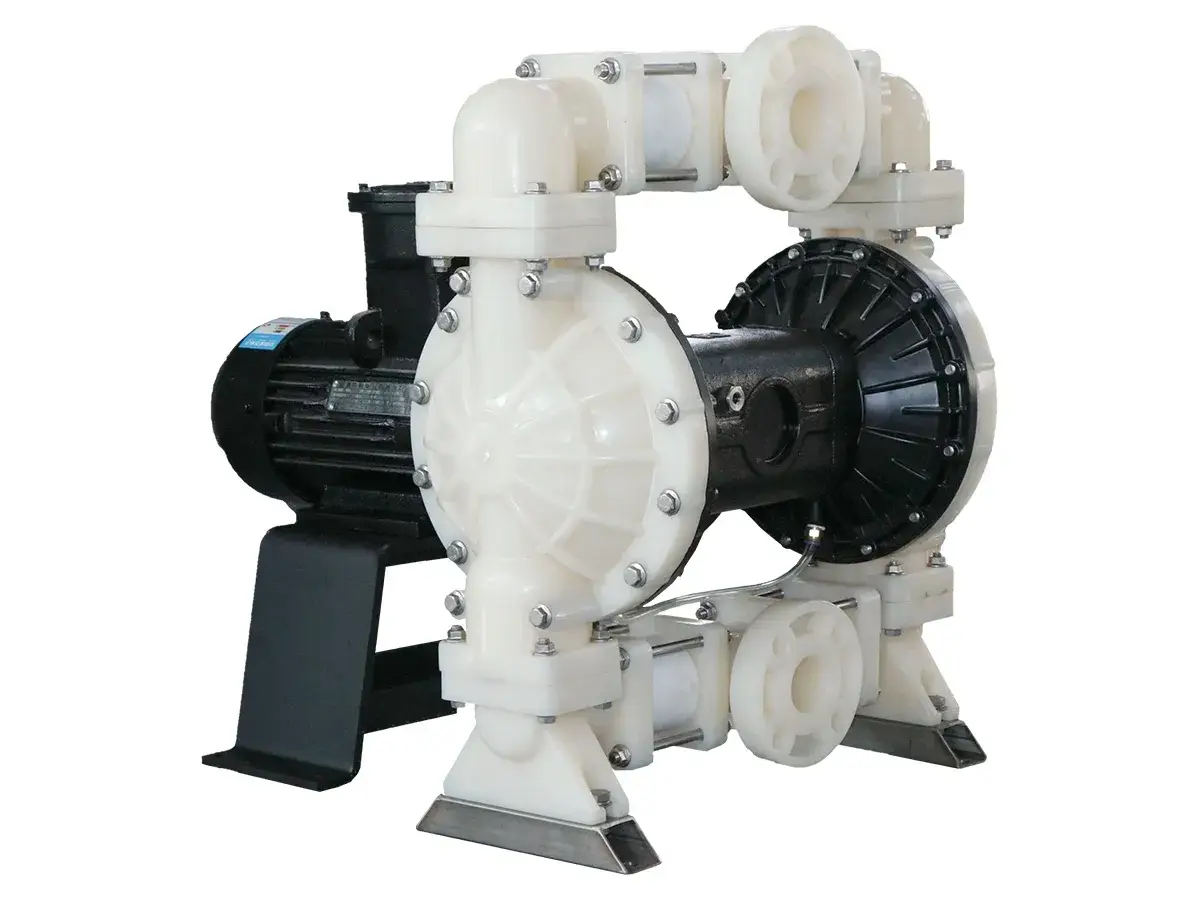

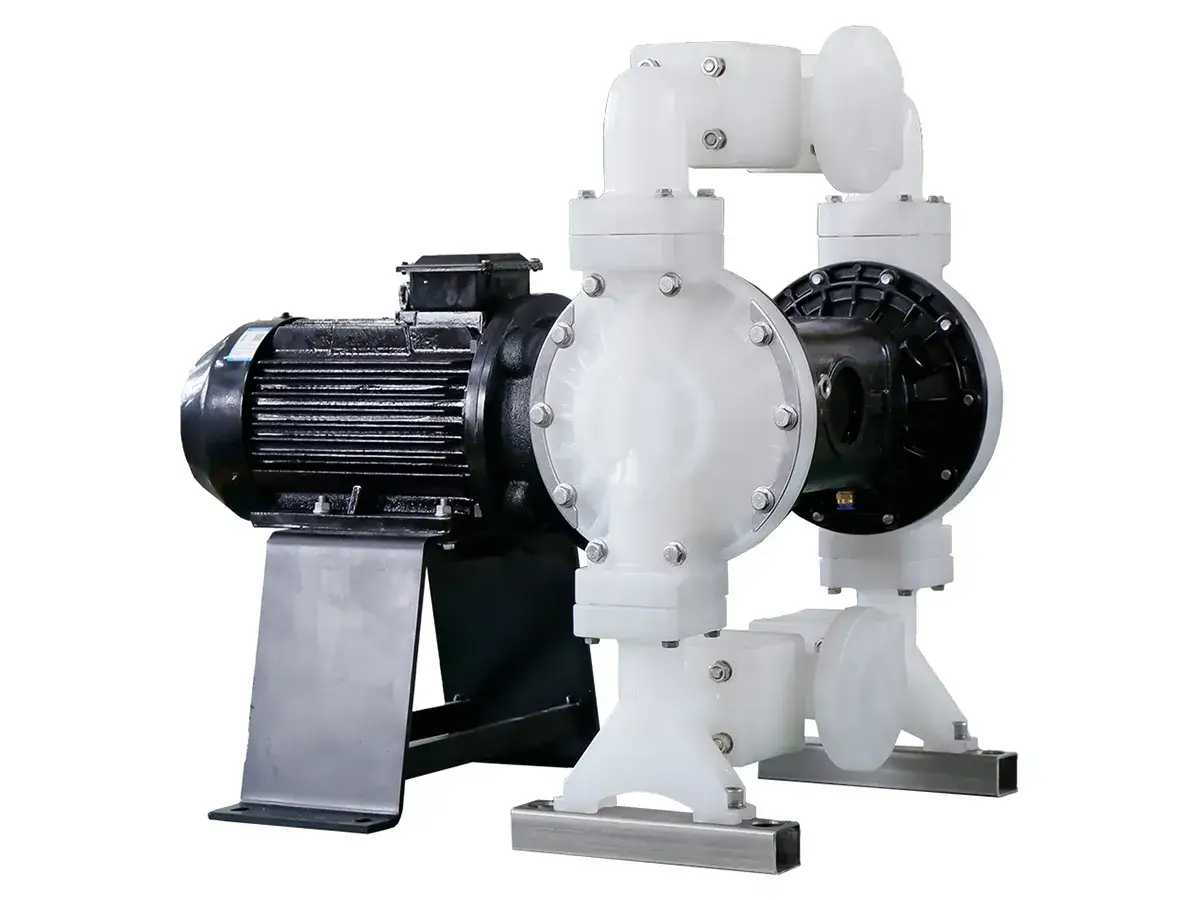

PP Electric Diaphragm Pumps
- Max. Outlet Pressure: 0.6-0.7 MPa
- Max. Flow Rate: 3.5-22 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 1.5-5.5 kW standard, 2.2-4 kW optional
- Motor Speed: 1450 r/min
- Max. Outlet Pressure: 0.6 MPa
- Max. Flow Rate: 3.5 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 1.5 kW standard, 2.2 kW optional
- Motor Speed: 1450 r/min
- Fluid Inlet Size: 1"
- Fluid Outlet Size: 1"
- Connection Type: Threaded or flanged
- Max. Outlet Pressure: 0.6Mpa
- Max. Flow Rate: 6m³
- Suction Lift (Dry): 3m
- Motor Power: 2.2 kW standard, 3.0 kW optional
- Motor Speed: 1450r/min
- Fluid Inlet Size: 1-1/2"
- Fluid Outlet Size: 1-1/2"
- Connection Type: Threaded or flanged
- Max. Outlet Pressure: 0.6Mpa
- Max. Flow Rate: 10.5m³/h
- Suction Lift (Dry): 3m
- Motor Power: 3 kW standard, 4kW optional
- Motor Speed: 1450r/min
- Fluid Inlet Size: 2"
- Fluid Outlet Size: 2"
- Connection Type: Threaded or flanged

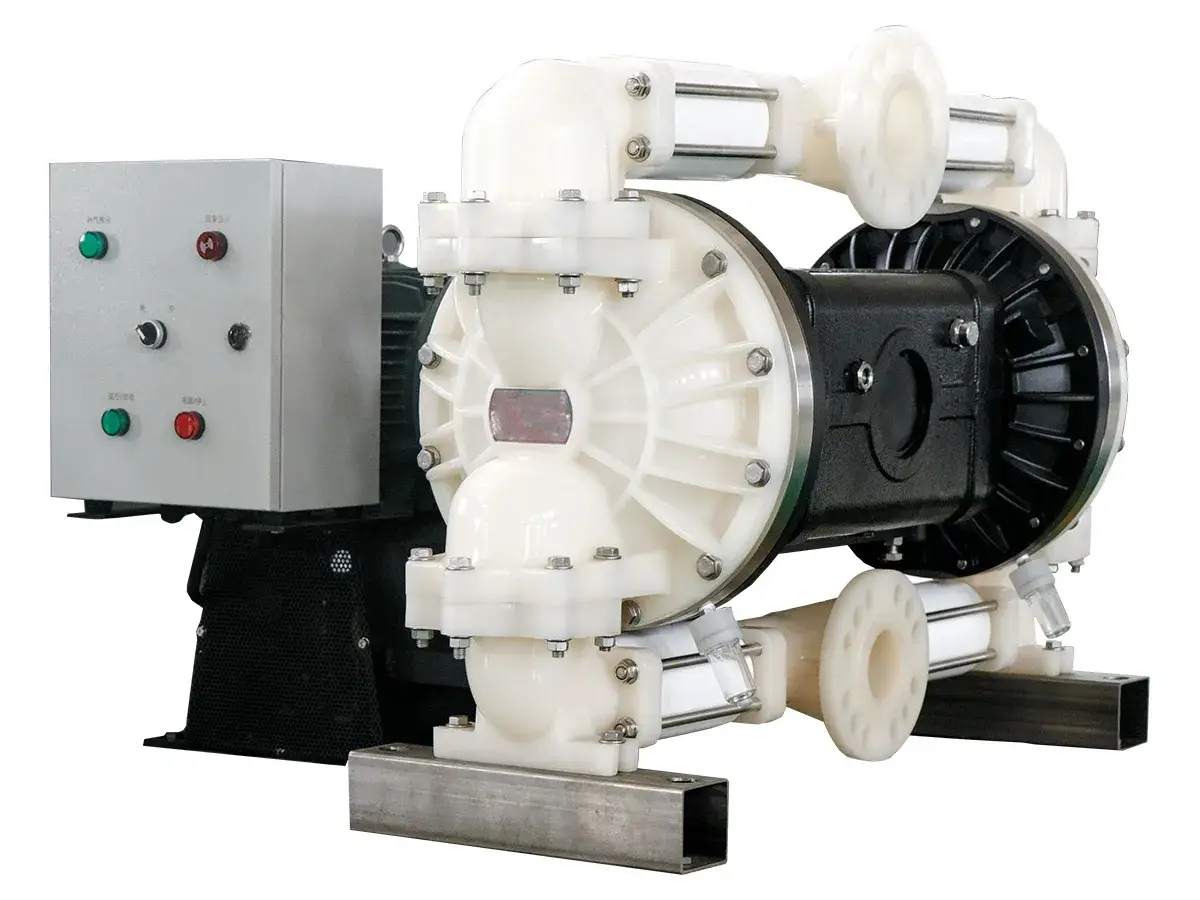

- Fluid Inlet Size: 3"
- Fluid Outlet Size: 3"
- Max. Outlet Pressure: 0.7 MPa / 7.0 bar
- Max. Head: 70 m
- Max. Flow Rate: 22 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 5.5 kW
- Motor Speed: 1450 r/min
- Voltage: 3-phase 380 V
- Material: Pump body: polypropylene; diaphragm: Buna-N, optional materials available
- Connection Type: Flanged
