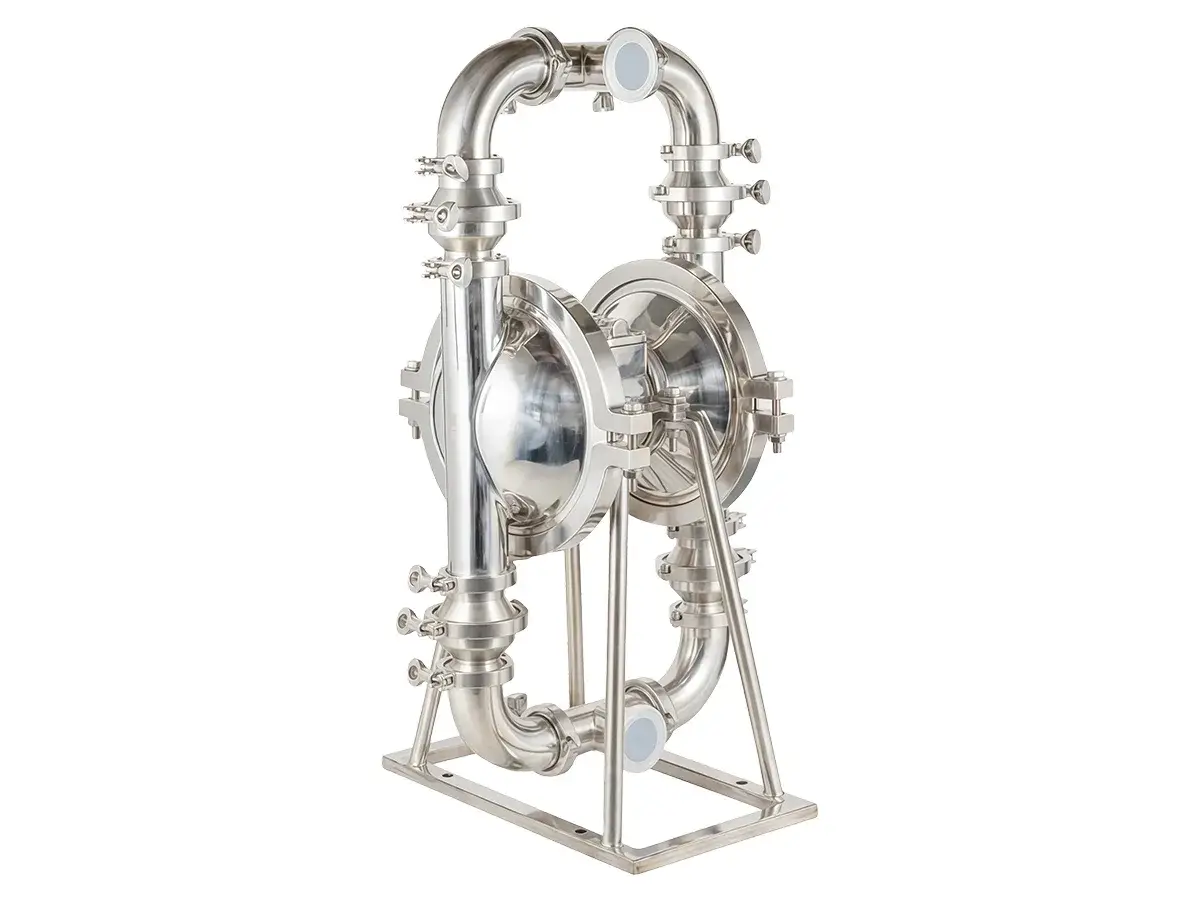

Stainless Steel Sanitary Air Operated Diaphragm Pumps
Stainless steel sanitary air operated diaphragm pumps are positive displacement pumps used in hygiene-sensitive processing applications, such as food, beverage, pharmaceutical, and cosmetic manufacturing. The parts that come into contact with the medium are made from FDA-compliant stainless steel and finished with a 32Ra mirror polish, giving the internal surfaces a smoother finish for easier cleaning, better corrosion resistance, and fewer areas where residue can build up.
Sanitary air operated diaphragm pumps are used in processing areas where cleanliness and product safety are important, especially in food, beverage, pharmaceutical, and cosmetic manufacturing:
- Food and Beverage: Fruit juice, drinks, sauces, syrups, and similar products that need hygienic transfer during processing
- Pharmaceutical Production: Liquid medicine, injectable intermediates, and other pharmaceutical products that require clean handling
- Cosmetics Manufacturing: Skincare creams, alcohol-based products, fragrances, and cosmetic raw materials

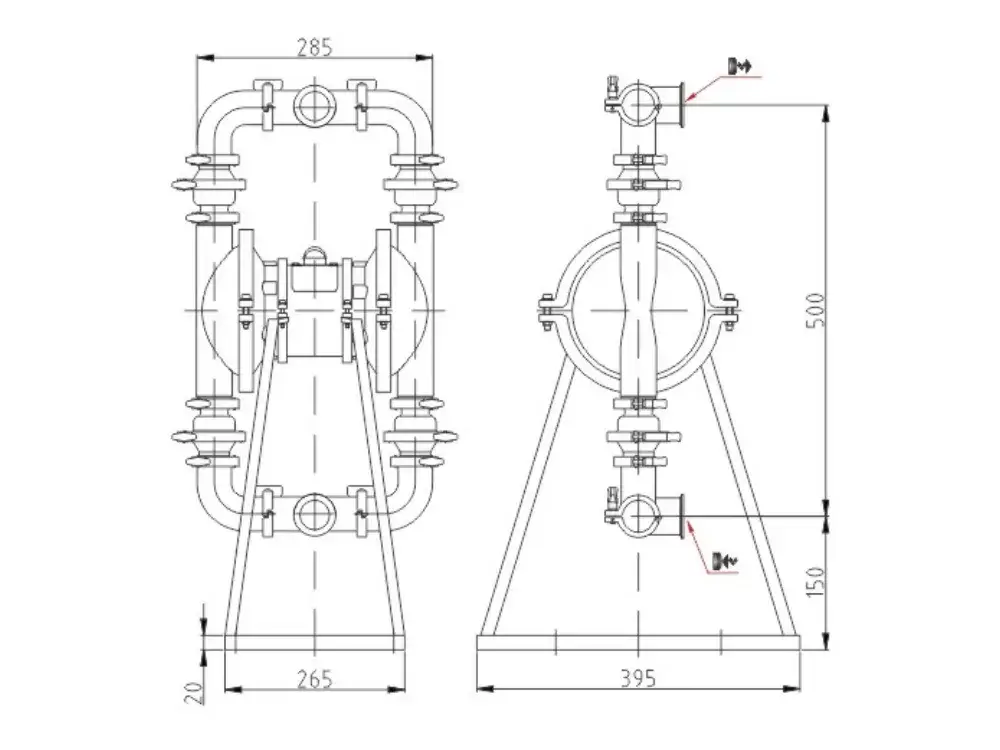

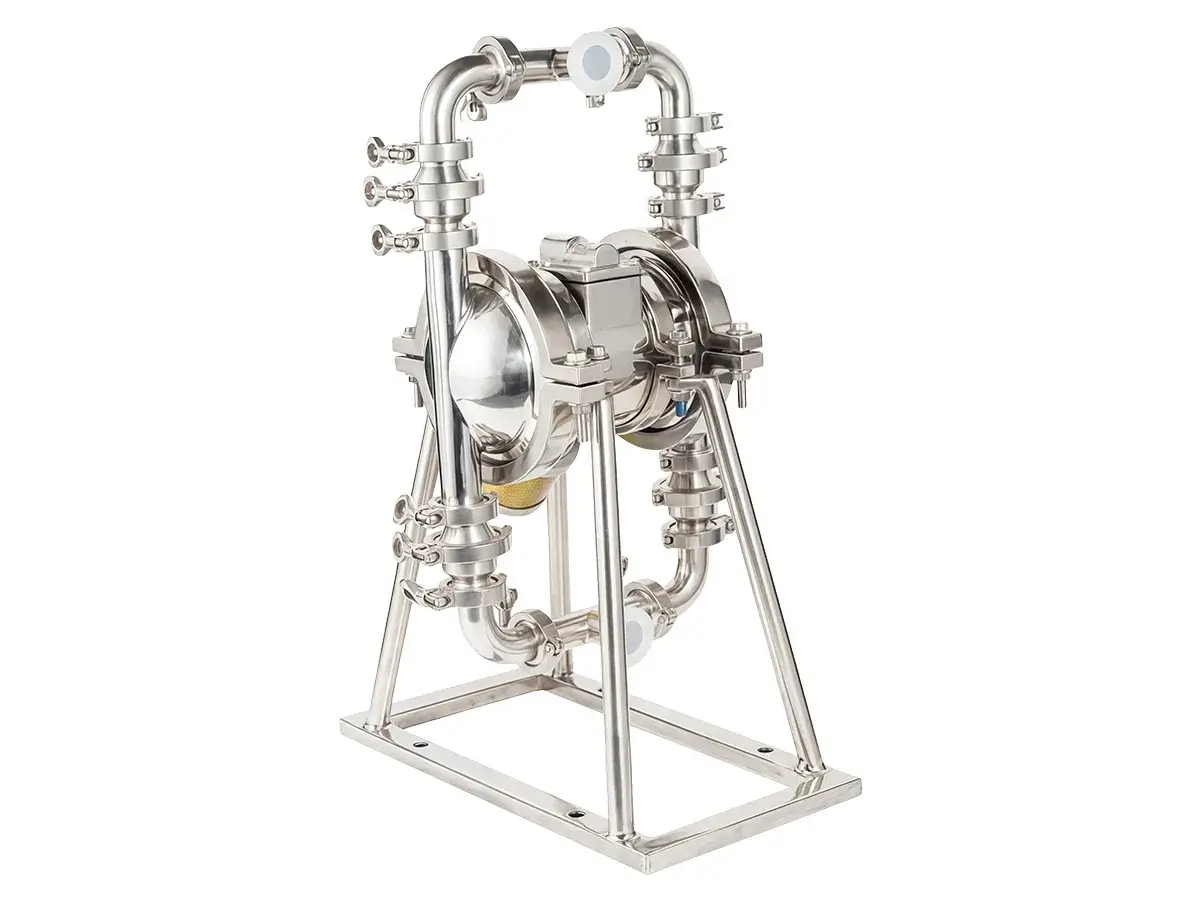

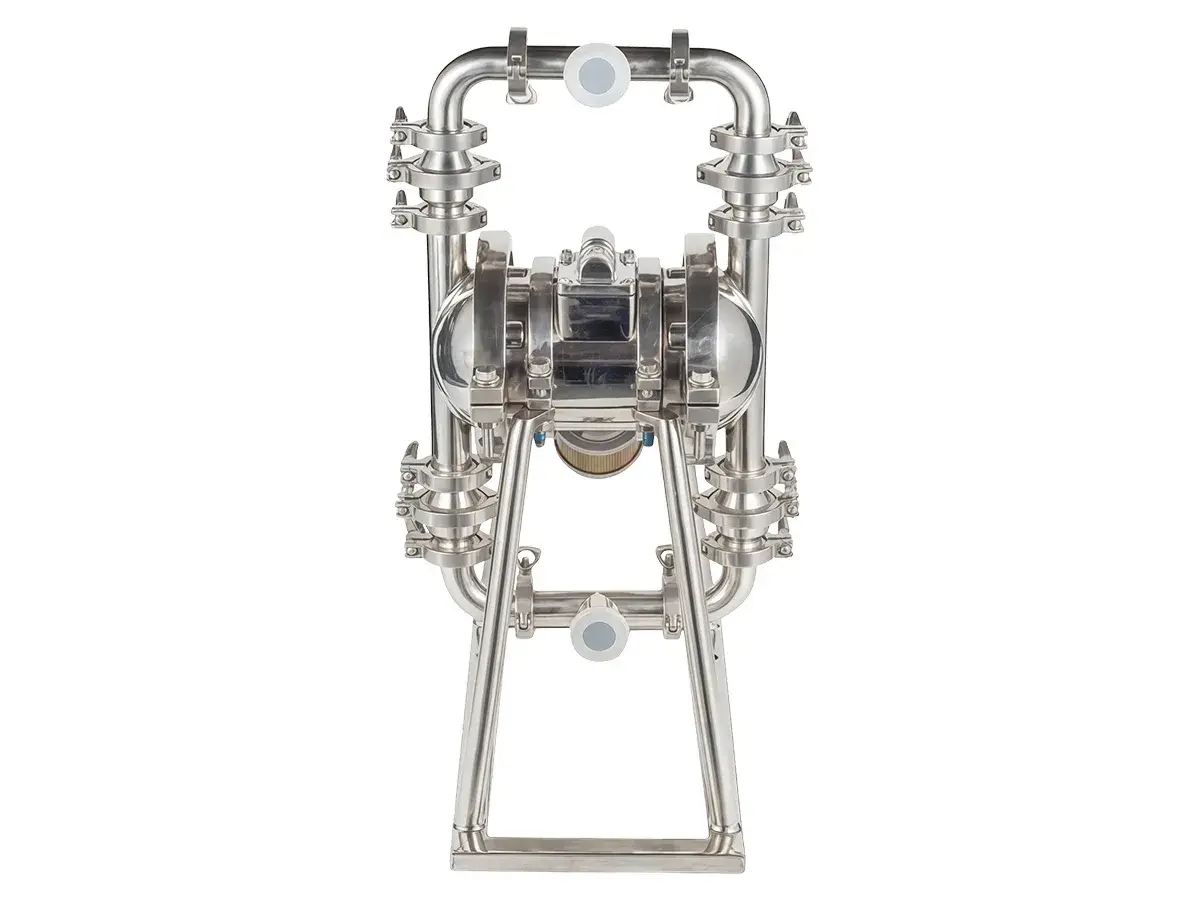

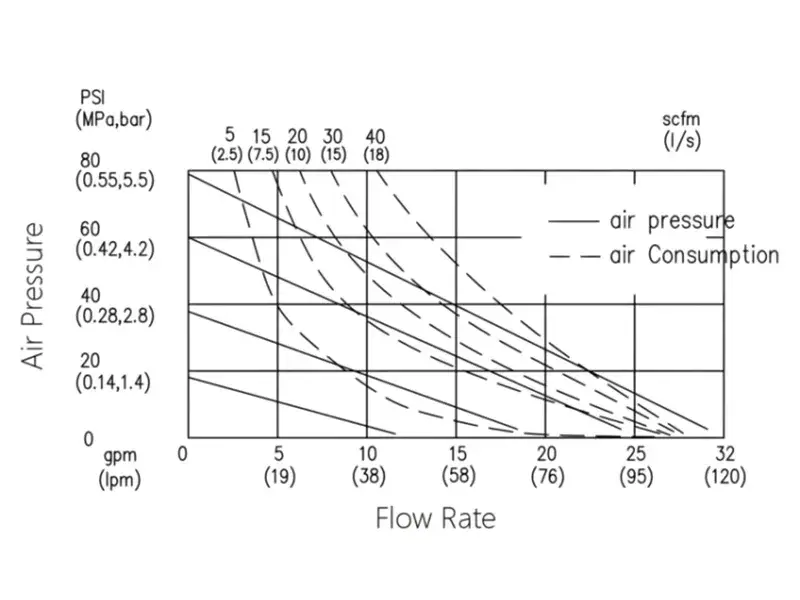

1" Sanitary AODD Pump
- Max. Working Pressure: 72 psi / 0.5 MPa / 5 bar
- Max. Flow Rate: 32 gpm (120 L/min)
- Max. Reciprocating Speed: 276 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 4 mm
- Max. Air Consumption: 18 L/s
- Material: Stainless steel
- Weight: 34 kg

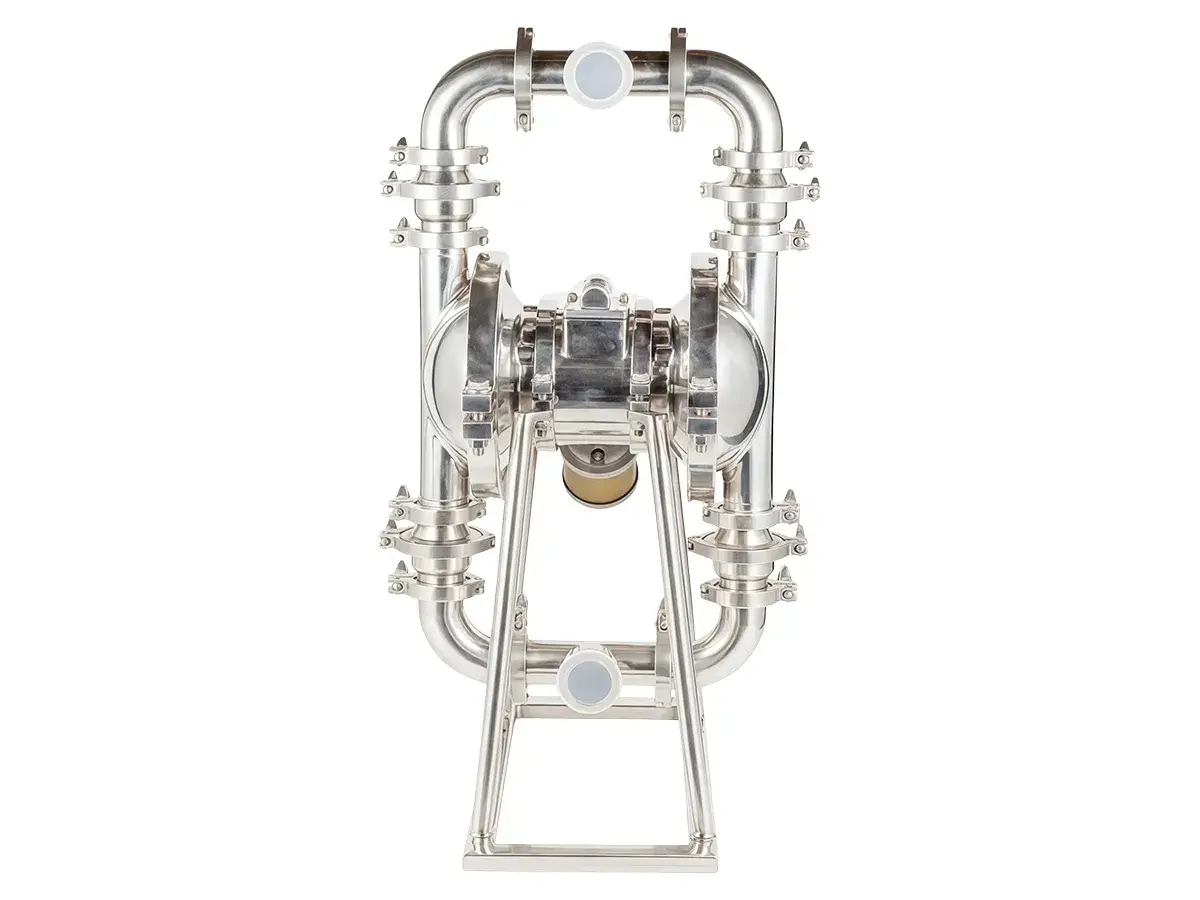

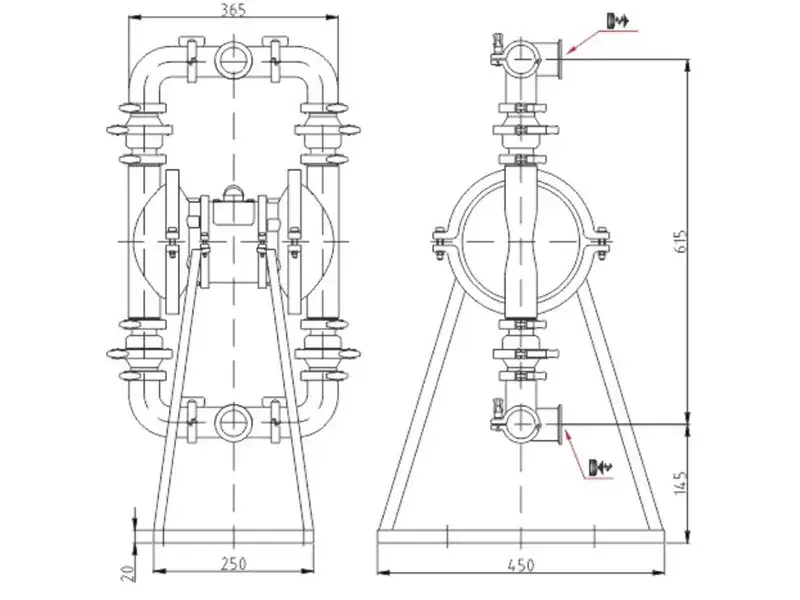

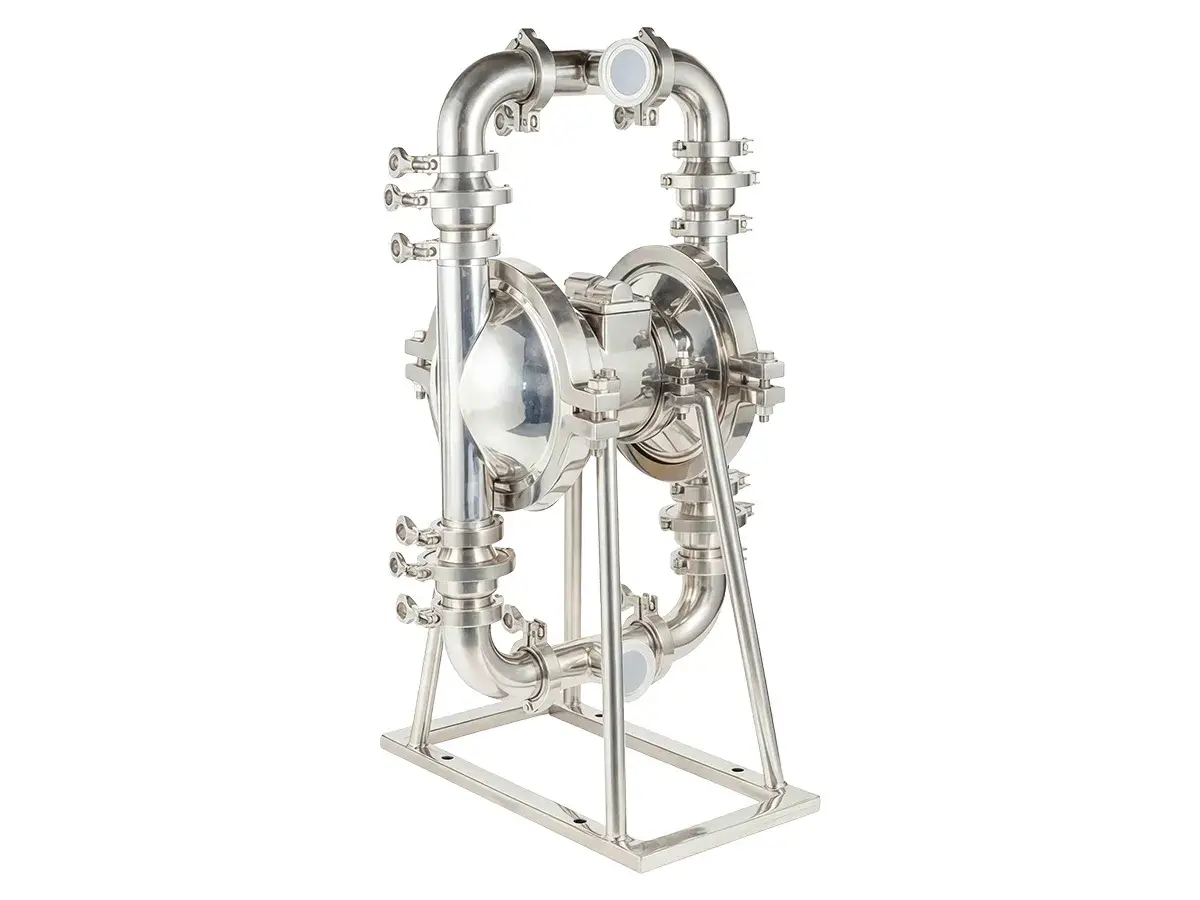

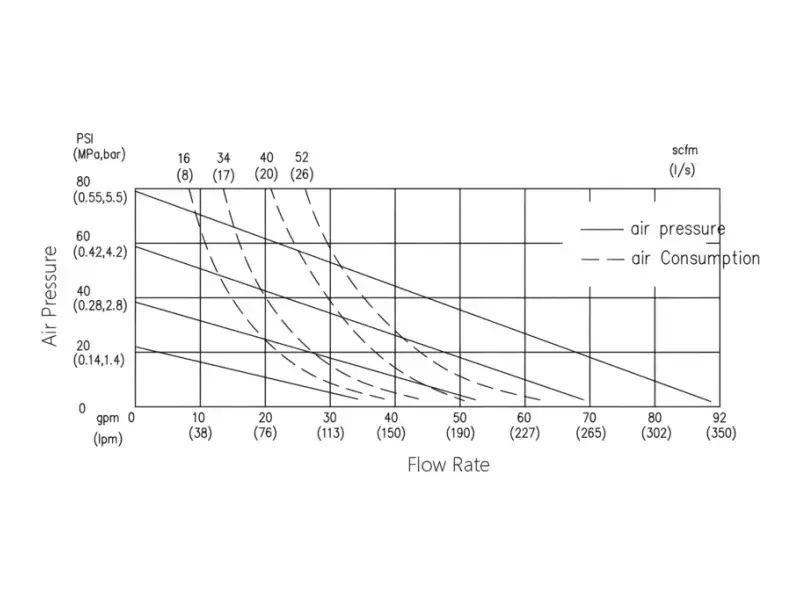

1-1/2" Sanitary Air-Operated Double Diaphragm Pump
- Max. Working Pressure: 72 psi / 0.5 MPa / 5 bar
- Max. Flow Rate: 92 gpm (350 L/min)
- Max. Reciprocating Speed: 200 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 5 mm
- Max. Air Consumption: 28 L/s
- Material: Stainless steel
- Weight: 45 kg

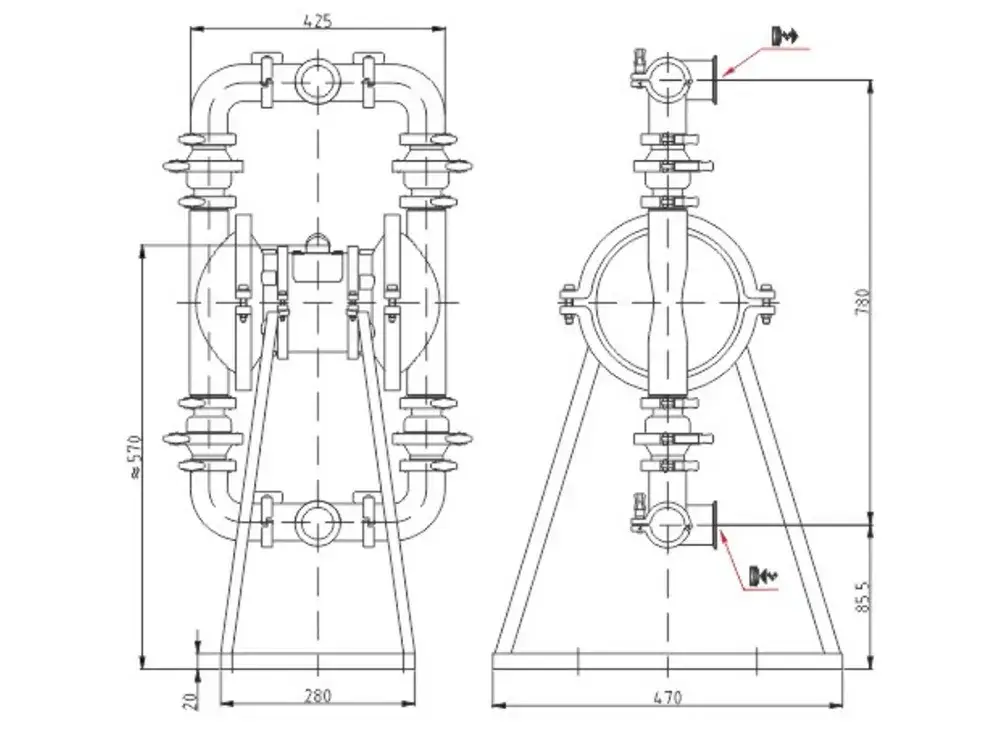

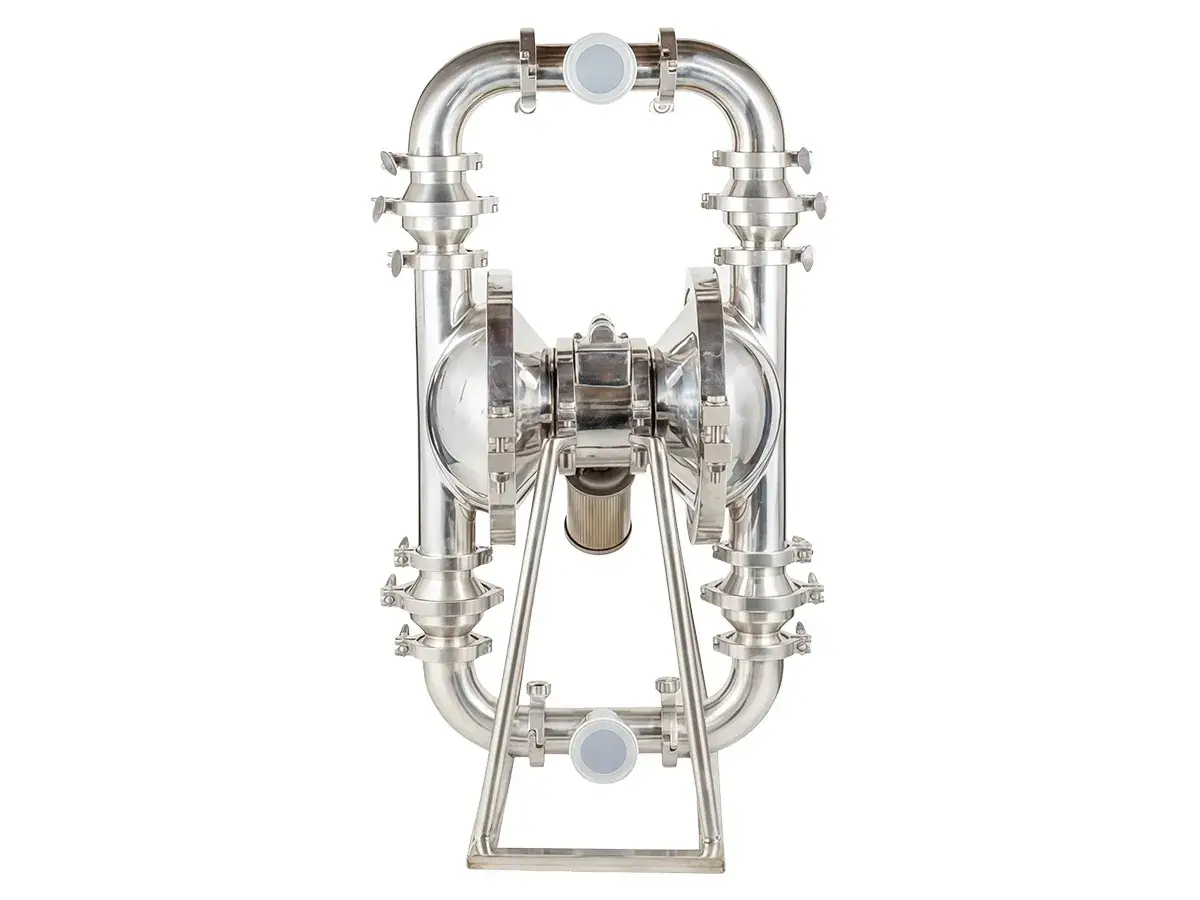

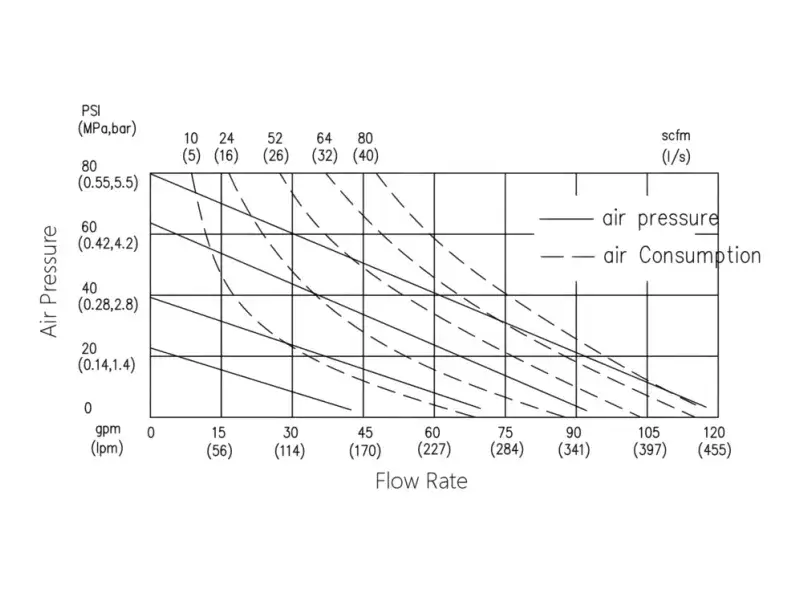

2" Hygienic Pneumatic Diaphragm Pump
- Max. Working Pressure: 72 psi / 0.5 MPa / 5 bar
- Max. Flow Rate: 120 gpm (455 L/min)
- Max. Reciprocating Speed: 135 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 6 mm
- Max. Air Consumption: 40 L/s
- Material: Stainless steel
- Weight: 63 kg
