Aluminum Air Operated Diaphragm Pumps
- Max. Working Pressure: 100-120 psi / 0.7-0.84 MPa / 7-8.4 bar
- Max. Flow Rate: 7-270 gpm (26.5-1022 L/min)
- Max. Reciprocating Speed: 135-330 cpm
- Suction Lift (Dry): 3.7-5 m
- Max. Solid Particle Size: 1/16"-0.37" (1.6-9.4 mm)
- Max. Air Consumption: 18-140 scfm (9-90 L/s)

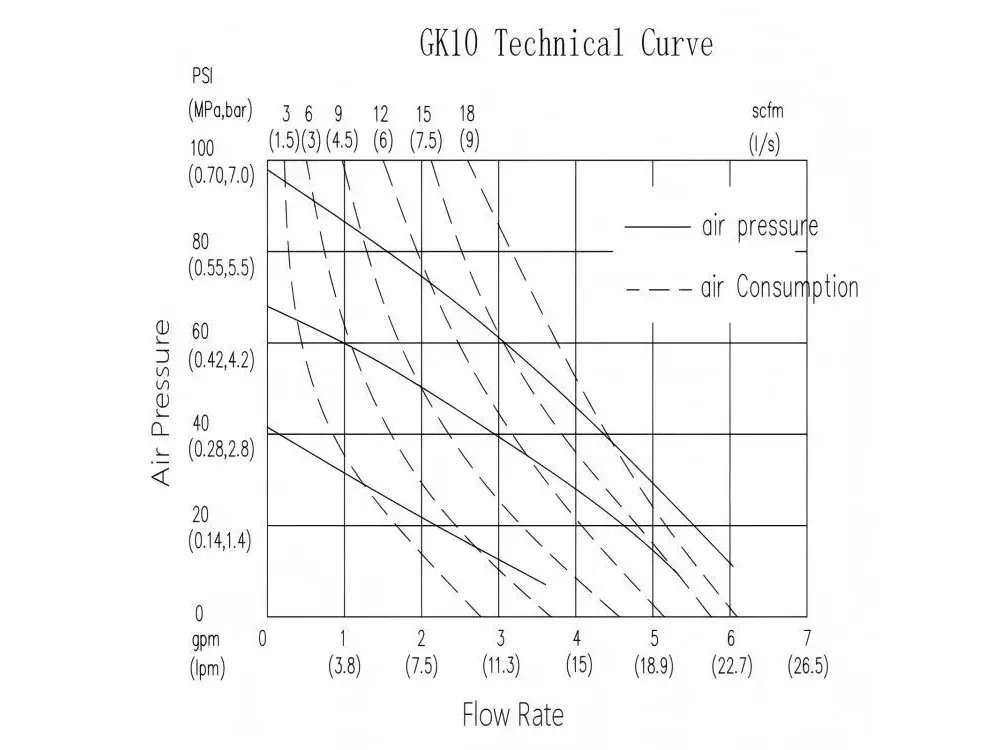

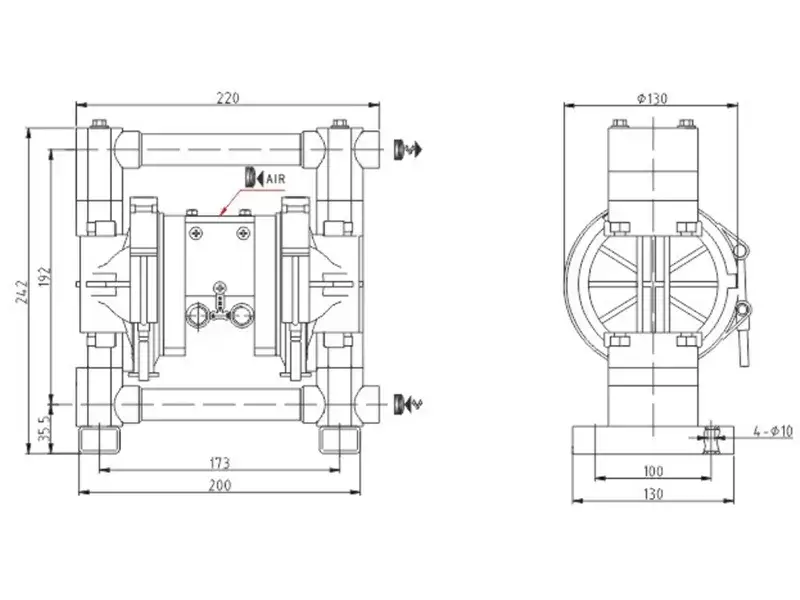

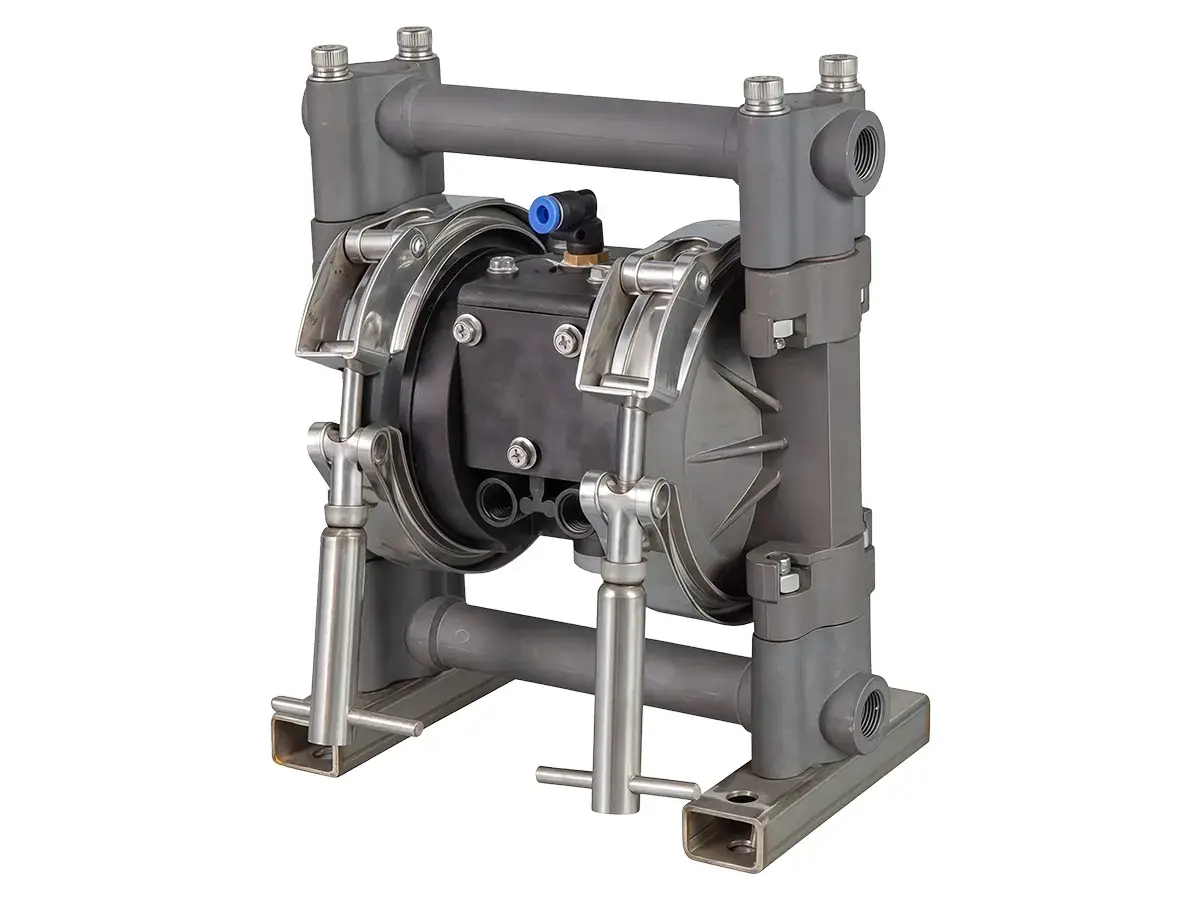

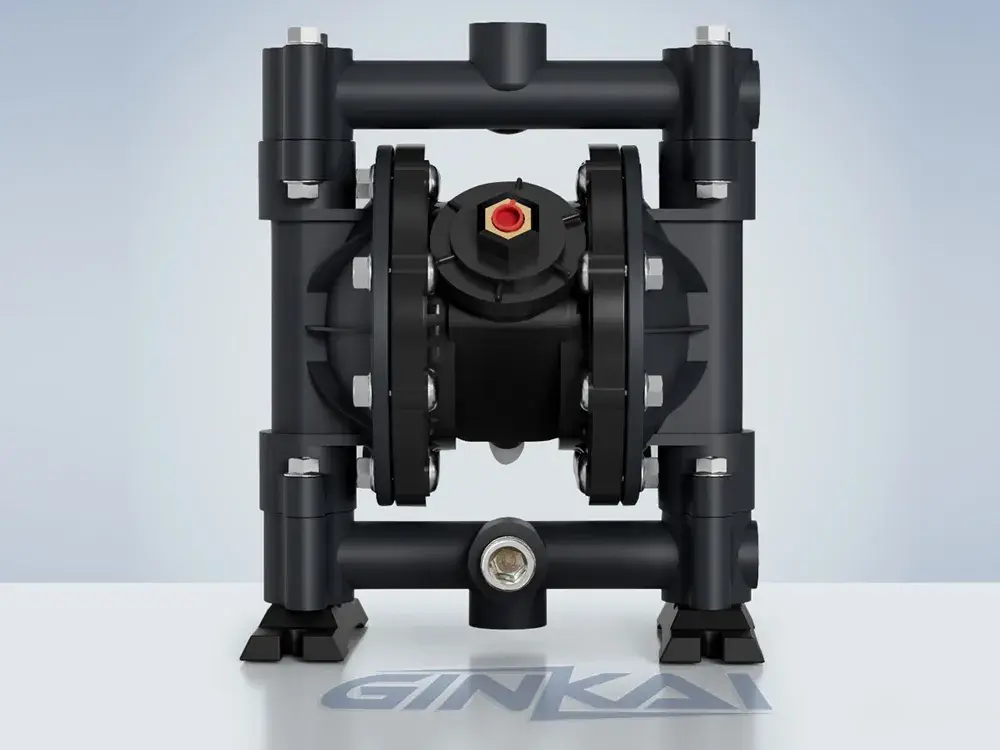

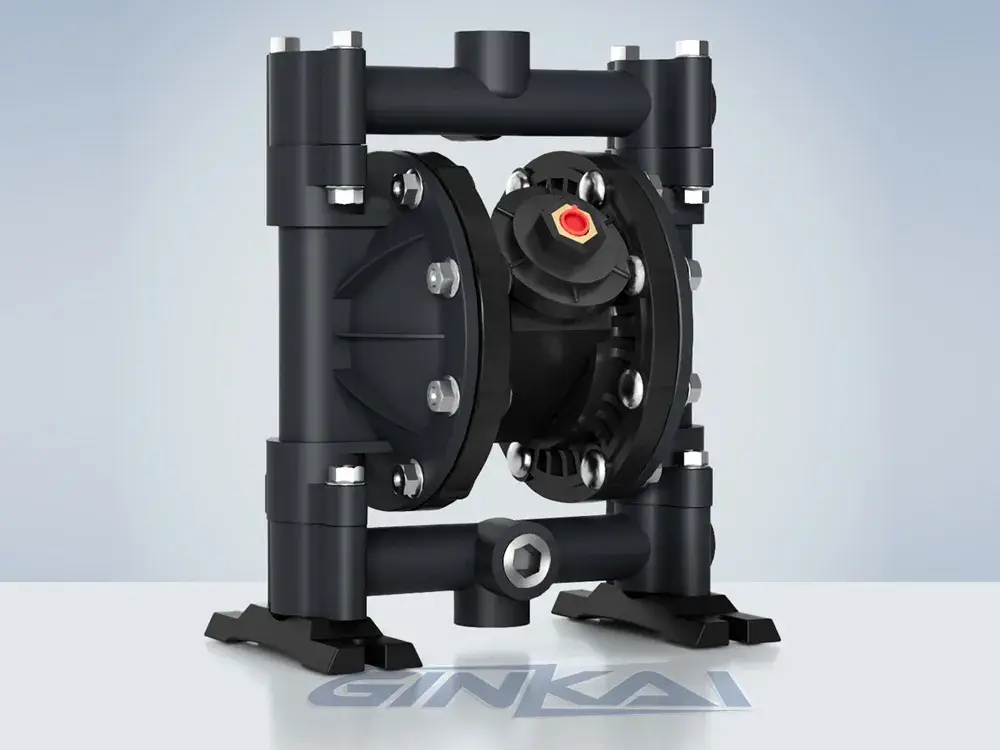

3/8" Aluminum AODD Pump
- Max. Working Pressure: 100 psi / 0.7 MPa / 7 bar
- Max. Flow Rate: 7 gpm (26.5 L/min)
- Max. Reciprocating Speed: 330 cpm
- Suction Lift (Dry): 3.7 m
- Max. Solid Particle Size: 1/16" (1.6 mm)
- Max. Air Consumption: 18 scfm (9 L/s)
- Air Inlet Size: 1/4"
- Air Outlet Size: 1/4"
- Fluid Inlet Size: 3/8"
- Fluid Outlet Size: 3/8"
- Weight: 3.9 kg

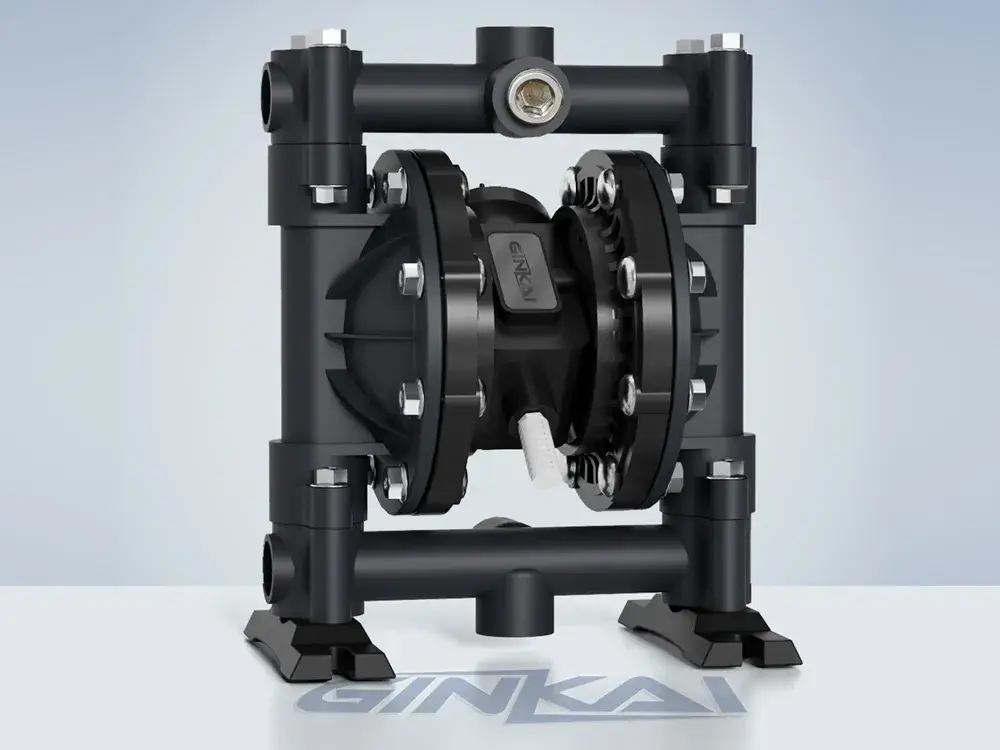

1/2" Aluminum Air Operated Double Diaphragm Pump
1/2" Aluminum Alloy Pump
- Max. Flow Rate: 15 gpm (57 L/min)
- Max. Reciprocating Speed: 400 cpm
- Suction Lift (Dry): 4.5 m
- Max. Solid Particle Size: 3/32" (2.5 mm)
- Max. Air Consumption: 20 scfm (10 L/s)
- Air Inlet Size: 1/4"
- Air Outlet Size: 3/8"
- Fluid Inlet Size: 1/2"
- Fluid Outlet Size: 1/2"
- Weight: 4.5 kg

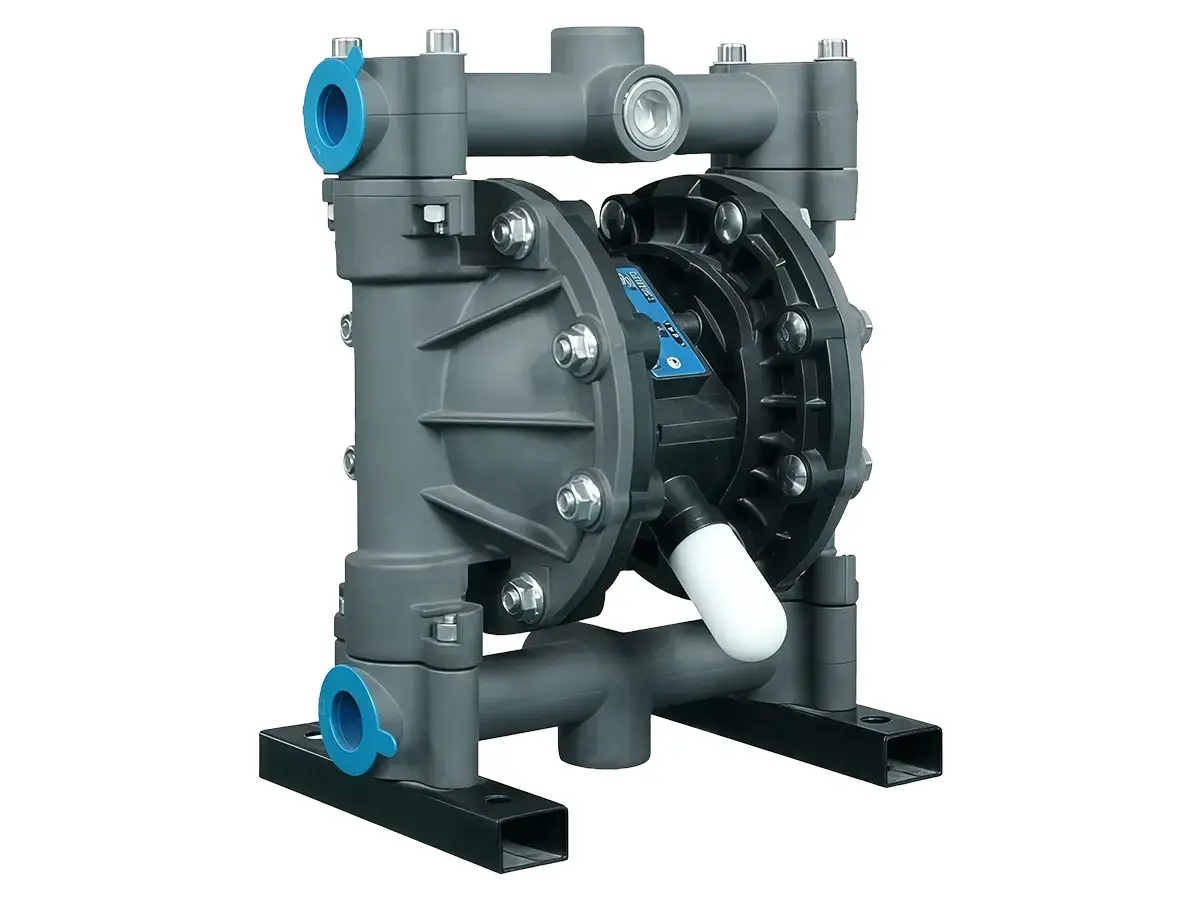

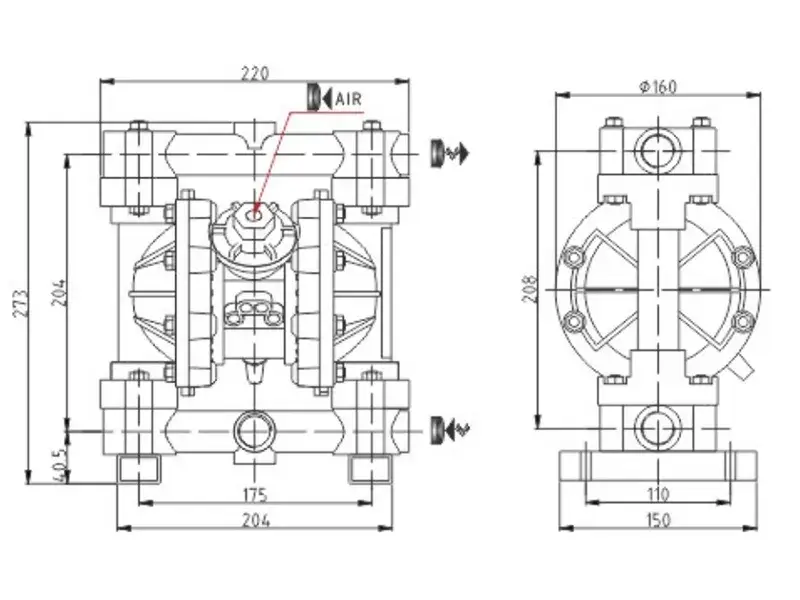

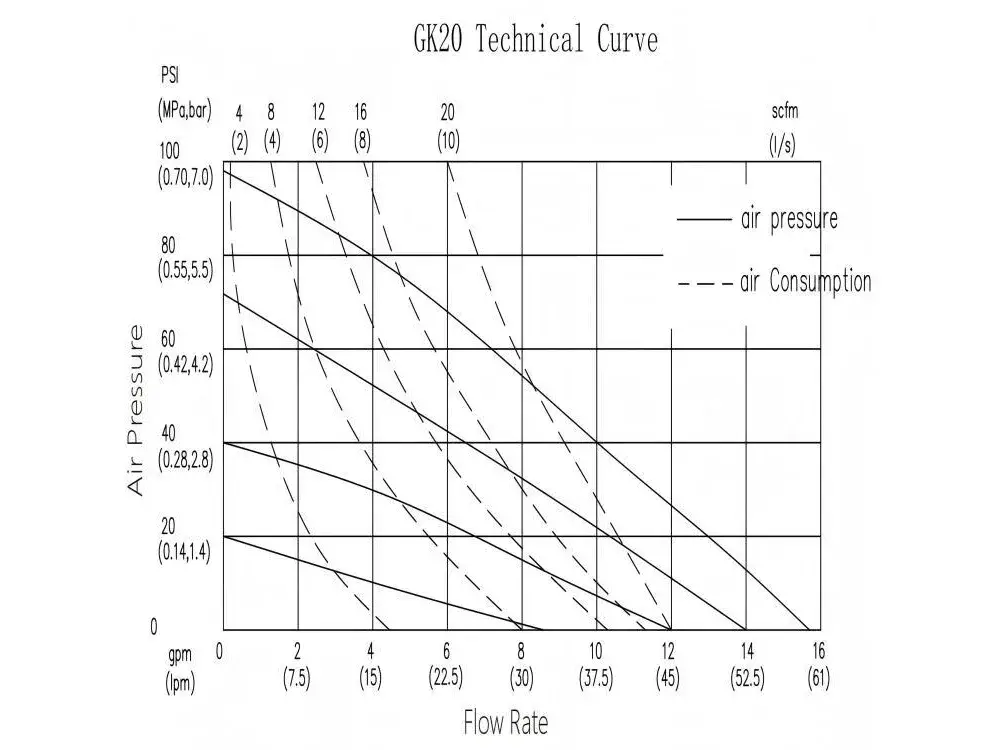

3/4" Aluminum Pneumatic Diaphragm Pump
- Max. Working Pressure: 100 psi / 0.7 MPa / 7 bar
- Max. Flow Rate: 15 gpm (57 L/min)
- Max. Reciprocating Speed: 400 cpm
- Suction Lift (Dry): 4.5 m
- Max. Solid Particle Size: 3/32" (2.5 mm)
- Max. Air Consumption: 20 scfm (10 L/s)
- Air Inlet Size: 1/4"
- Air Outlet Size: 3/8"
- Fluid Inlet Size: 3/4"
- Fluid Outlet Size: 3/4"
- Weight: 4.5 kg

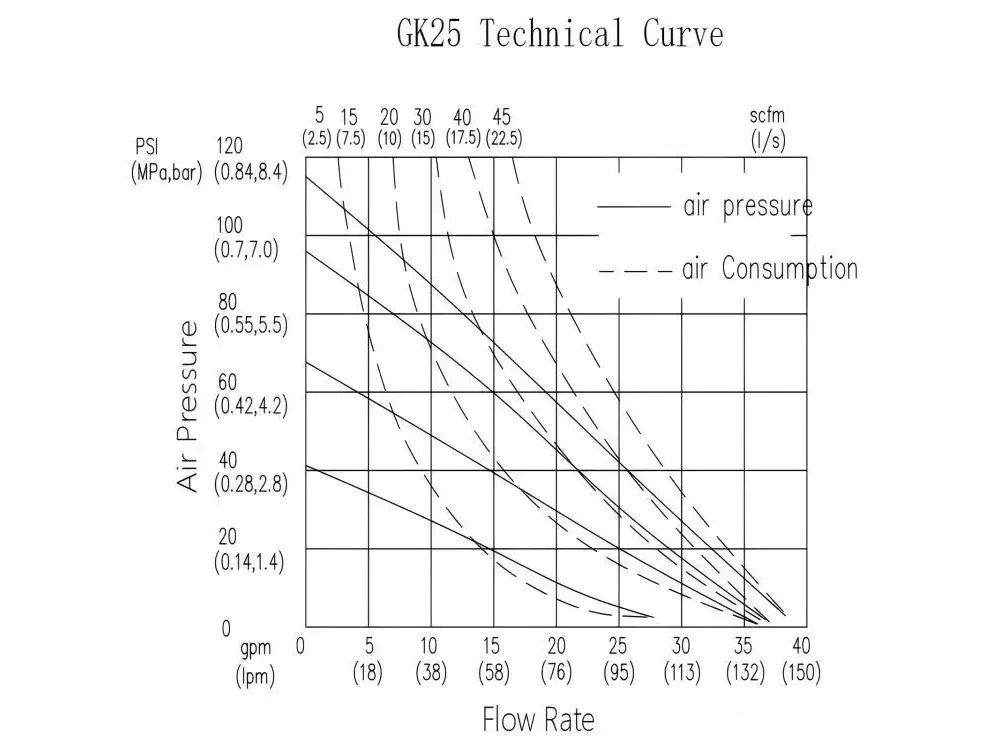

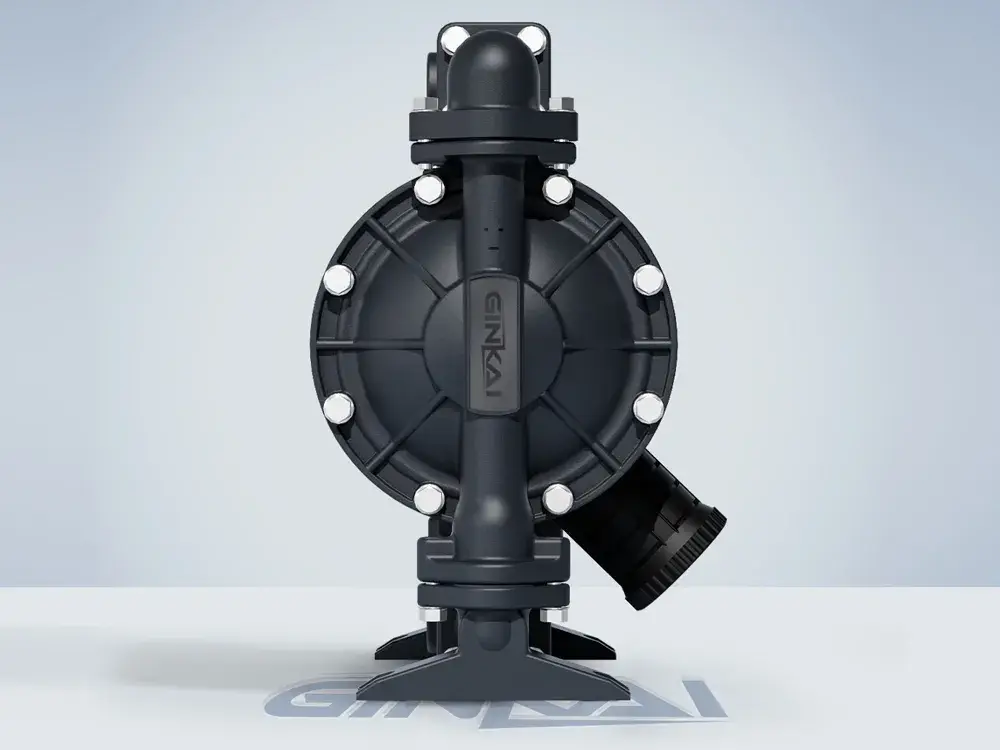

1" Aluminum AODD Pump
1" Aluminum Pump
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 40 gpm (150 L/min)
- Max. Reciprocating Speed: 276 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.16" (4 mm)
- Max. Air Consumption: 45 scfm (22.5 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1"
- Fluid Outlet Size: 1"
- Weight: 8.2 kg
1" Three-Section Aluminum Pump
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 40 gpm (150 L/min)
- Max. Reciprocating Speed: 276 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.16" (4 mm)
- Max. Air Consumption: 45 scfm (22.5 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1"
- Fluid Outlet Size: 1"
- Weight: 8.2 kg

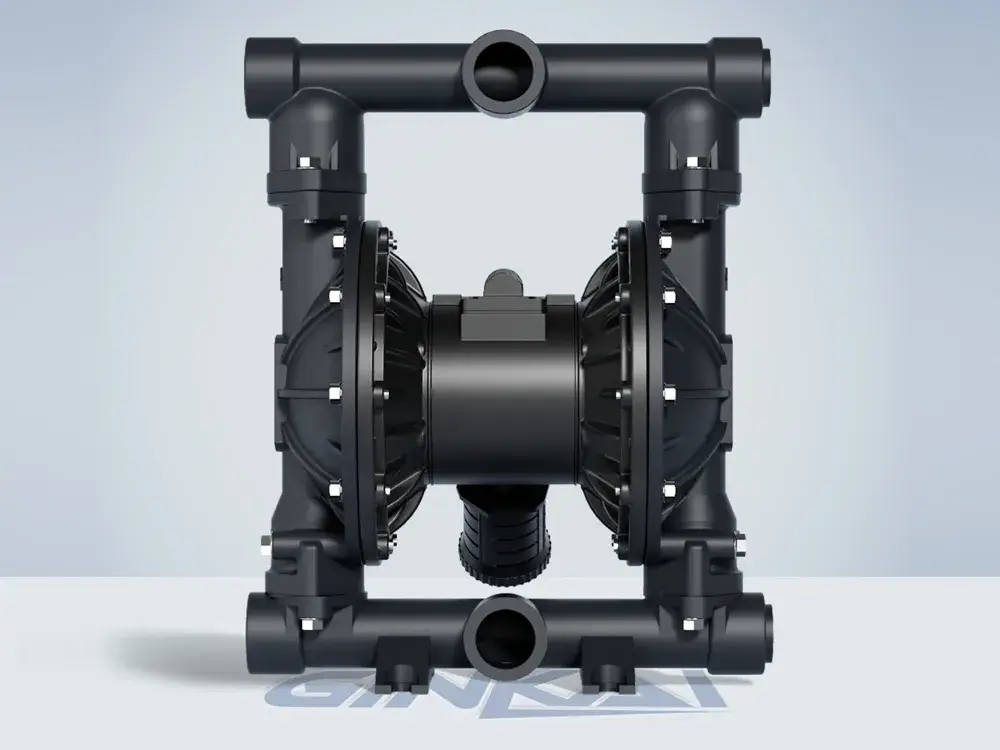

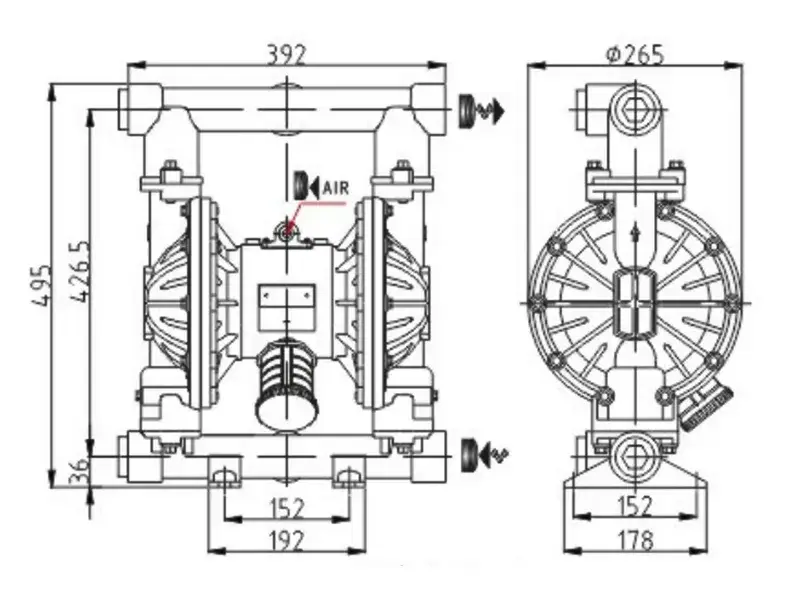

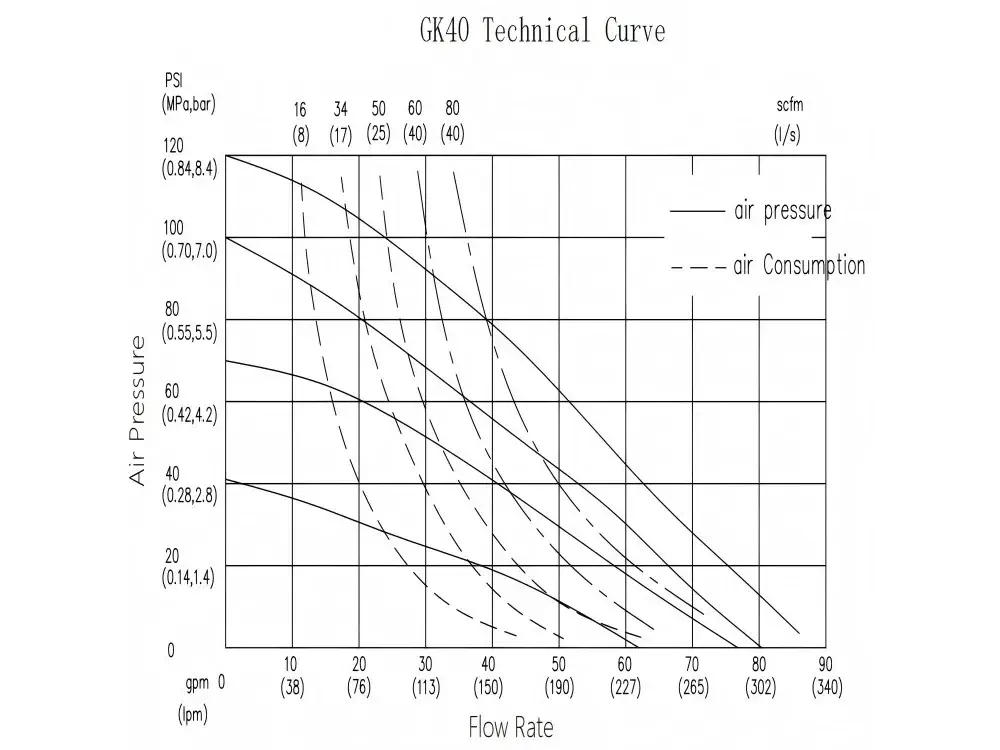

1-1/2" Aluminum Pneumatic Double Diaphragm Pump
1-1/2" Aluminum Pump, Threaded Ports with Aluminum Alloy Intermediate
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 90 gpm (340 L/min)
- Max. Reciprocating Speed: 200 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.2" (5 mm)
- Max. Air Consumption: 80 scfm (40 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1-1/2"
- Fluid Outlet Size: 1-1/2"
- Weight: 16 kg

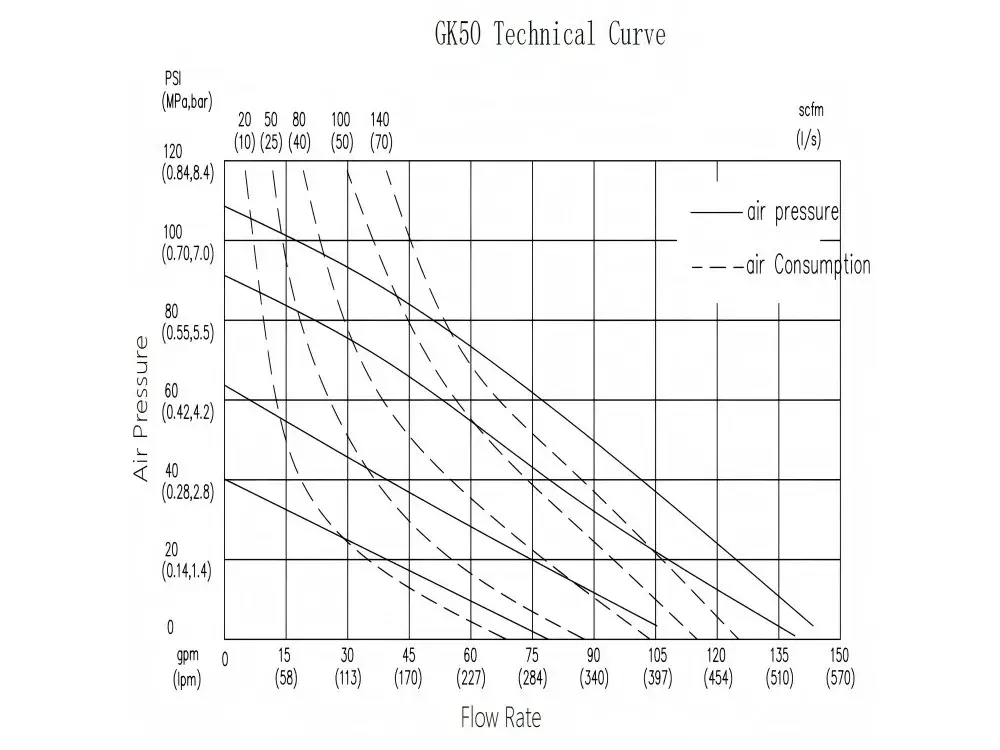

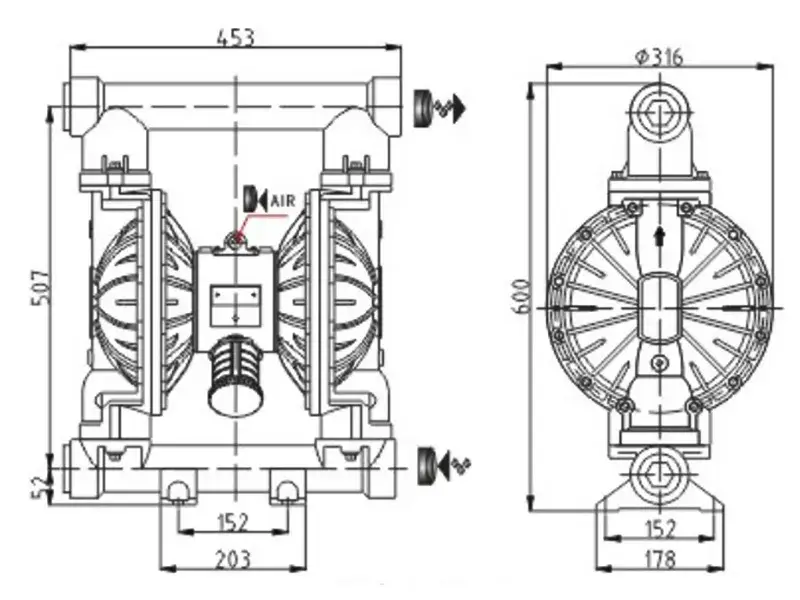

2" AODD Aluminum Pump
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 150 gpm (570 L/min)
- Max. Reciprocating Speed: 145 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.24" (6 mm)
- Max. Air Consumption: 140 scfm (70 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 2"
- Fluid Outlet Size: 2"
- Weight: 27.2 kg

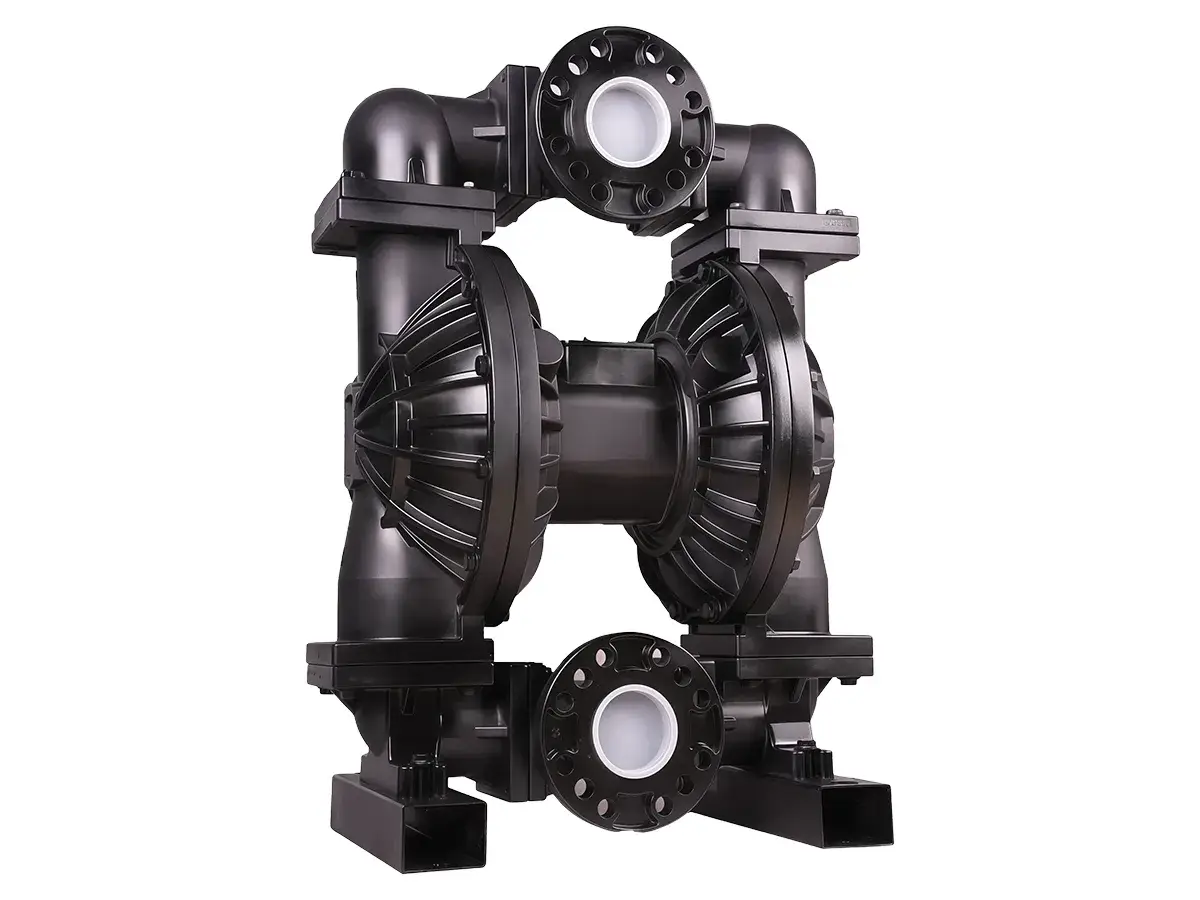

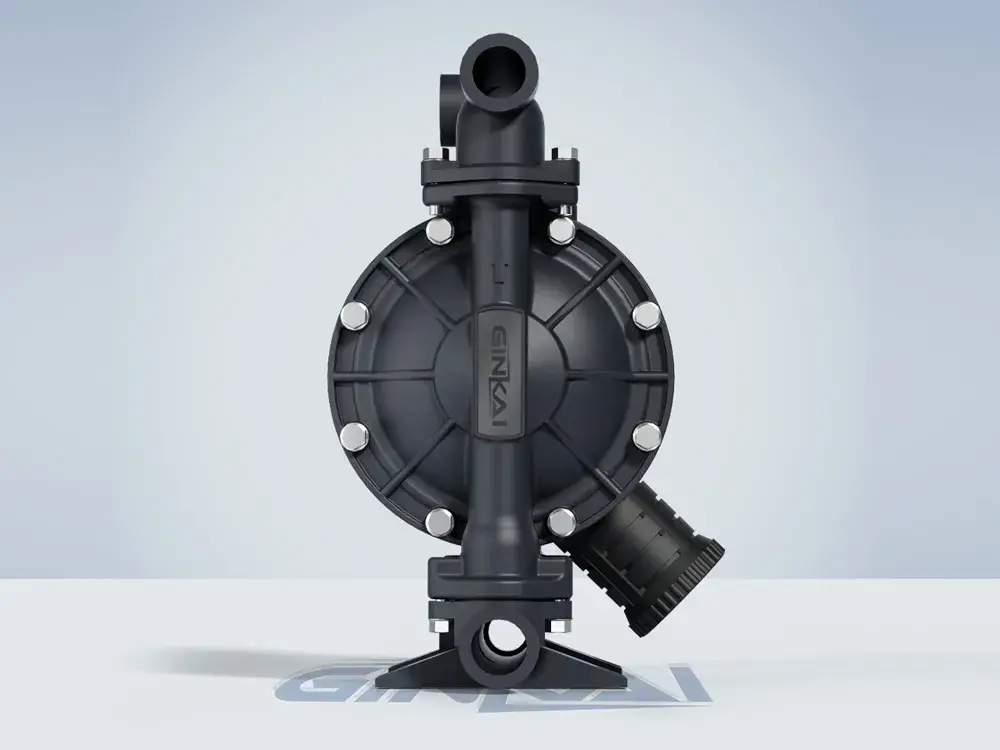

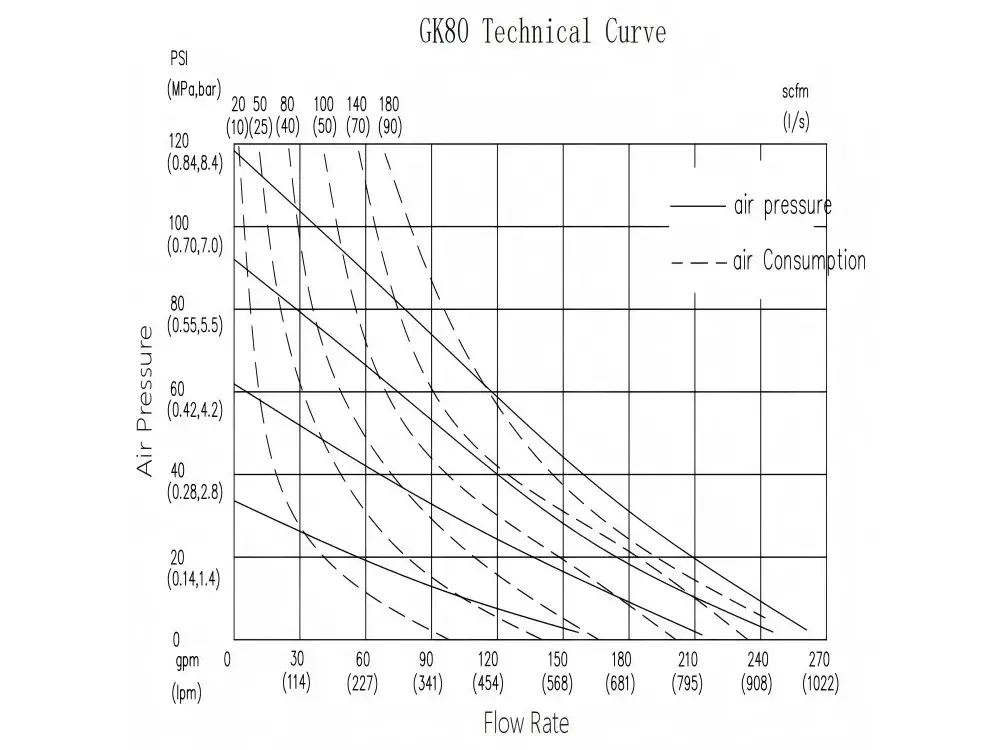

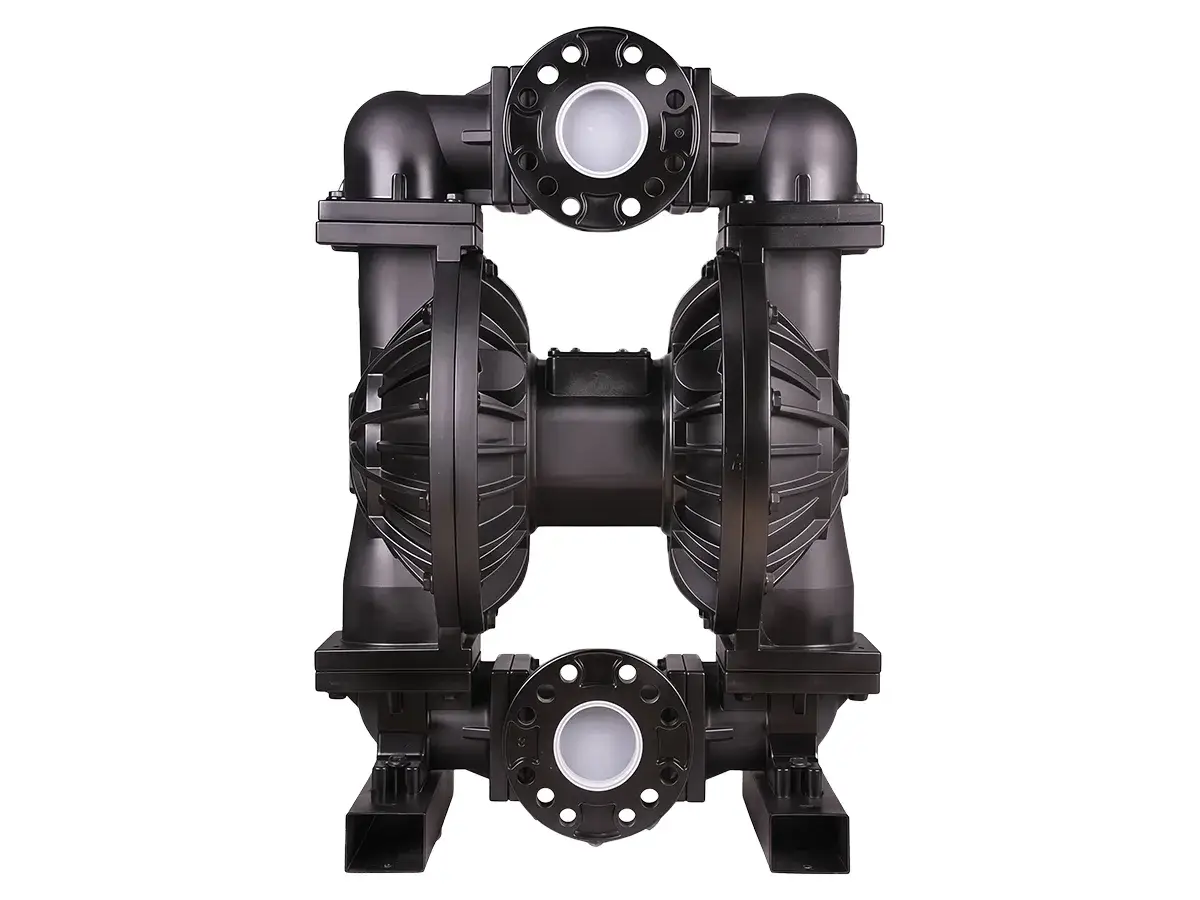

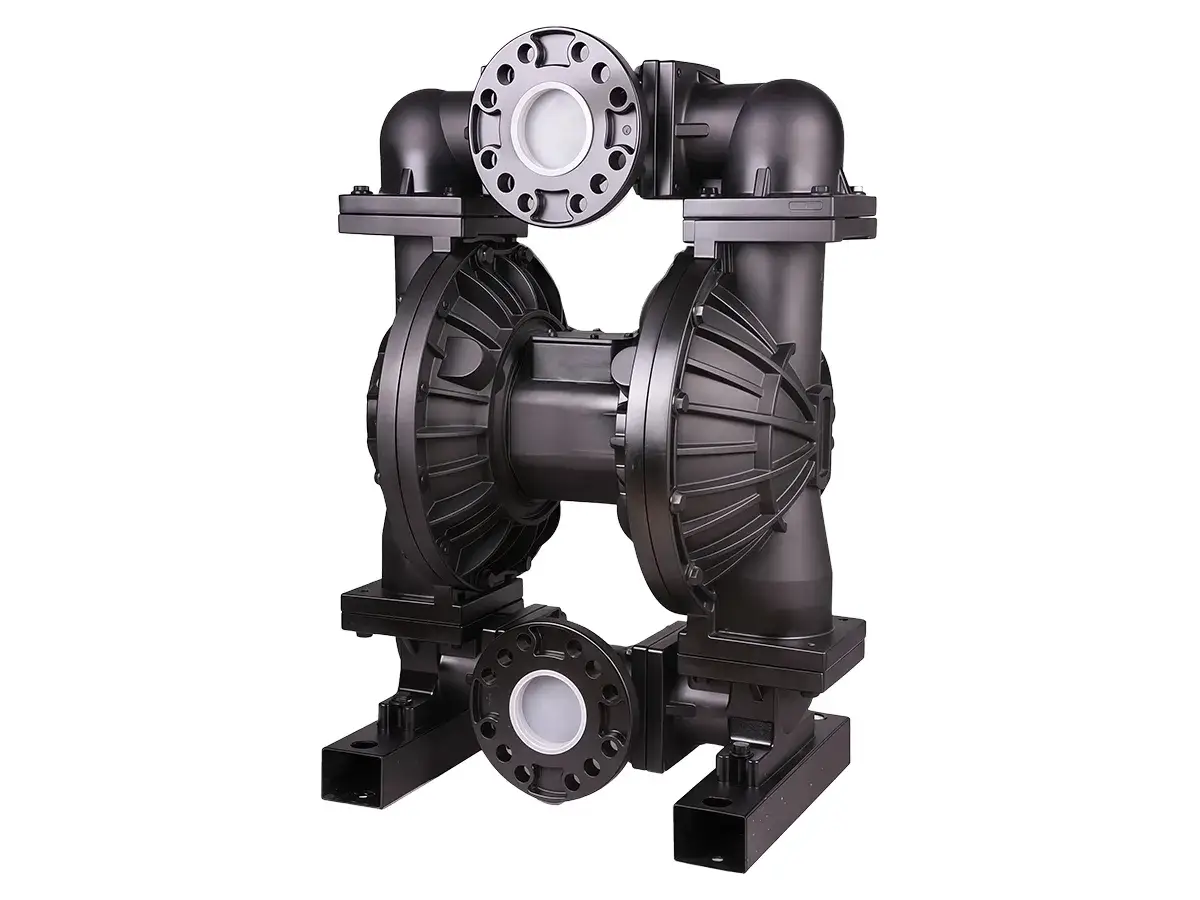

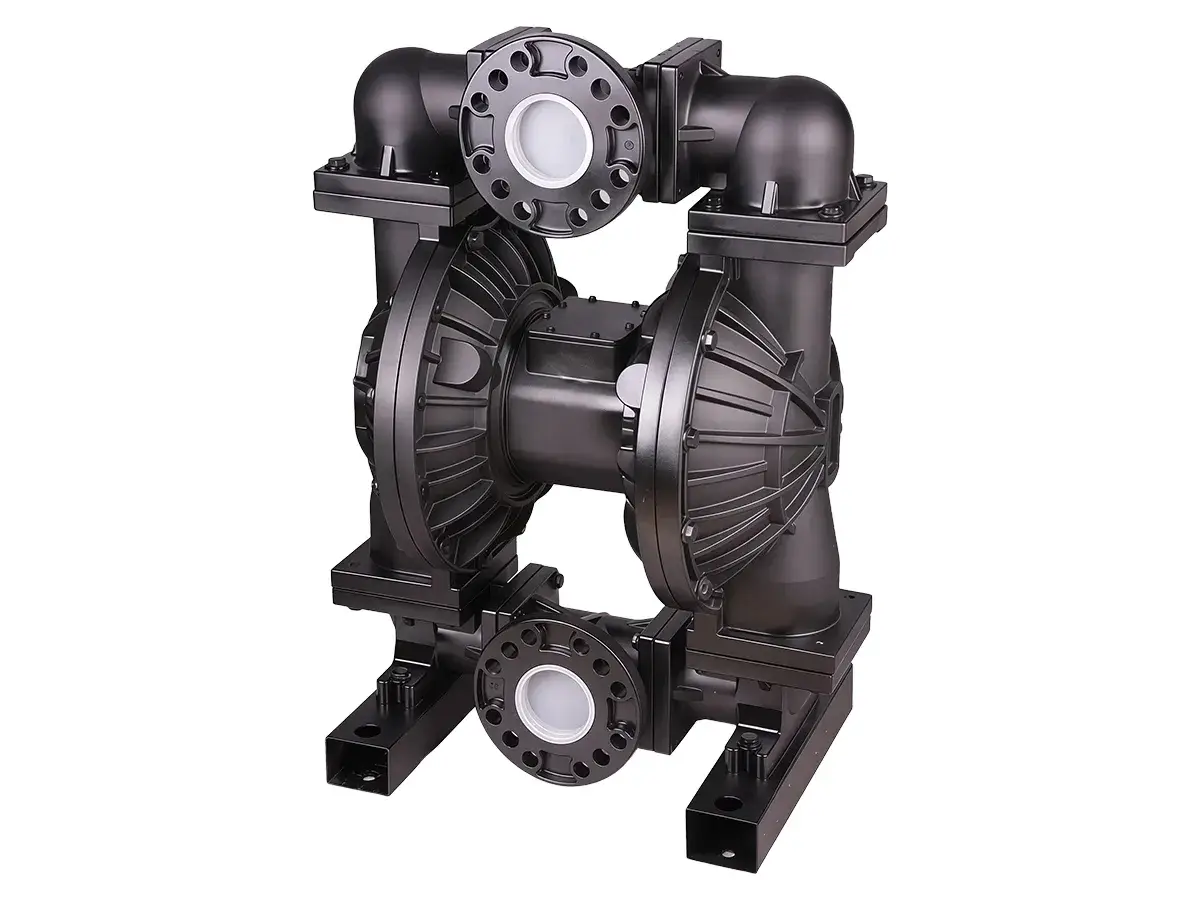

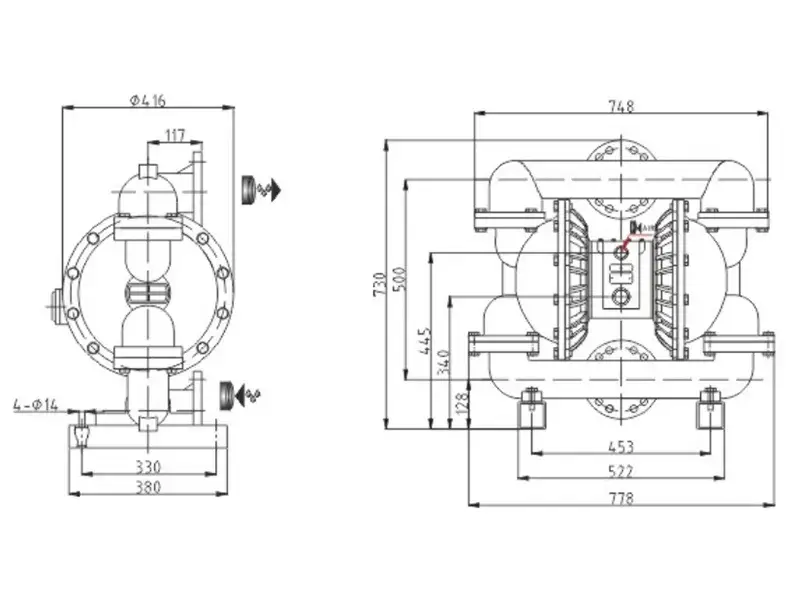

3" Air-Operated Aluminum Diaphragm Pump
3" Air-Operated Aluminum Diaphragm Pump
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 270 gpm (1022 L/min)
- Max. Reciprocating Speed: 135 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.37" (9.4 mm)
- Max. Air Consumption: 90 L/s
- Air Inlet Size: 3/4"
- Air Outlet Size: 1"
- Fluid Inlet Size: 3"
- Fluid Outlet Size: 3"
