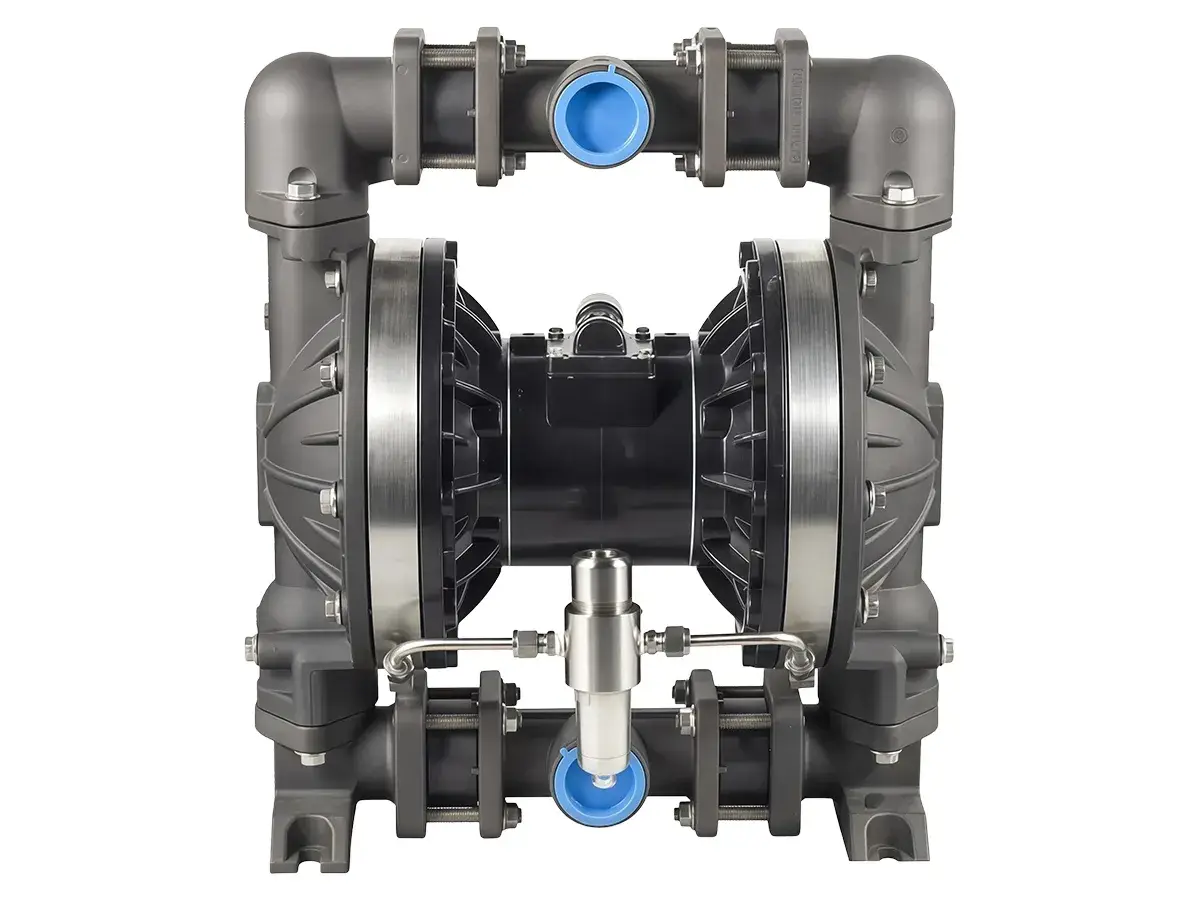

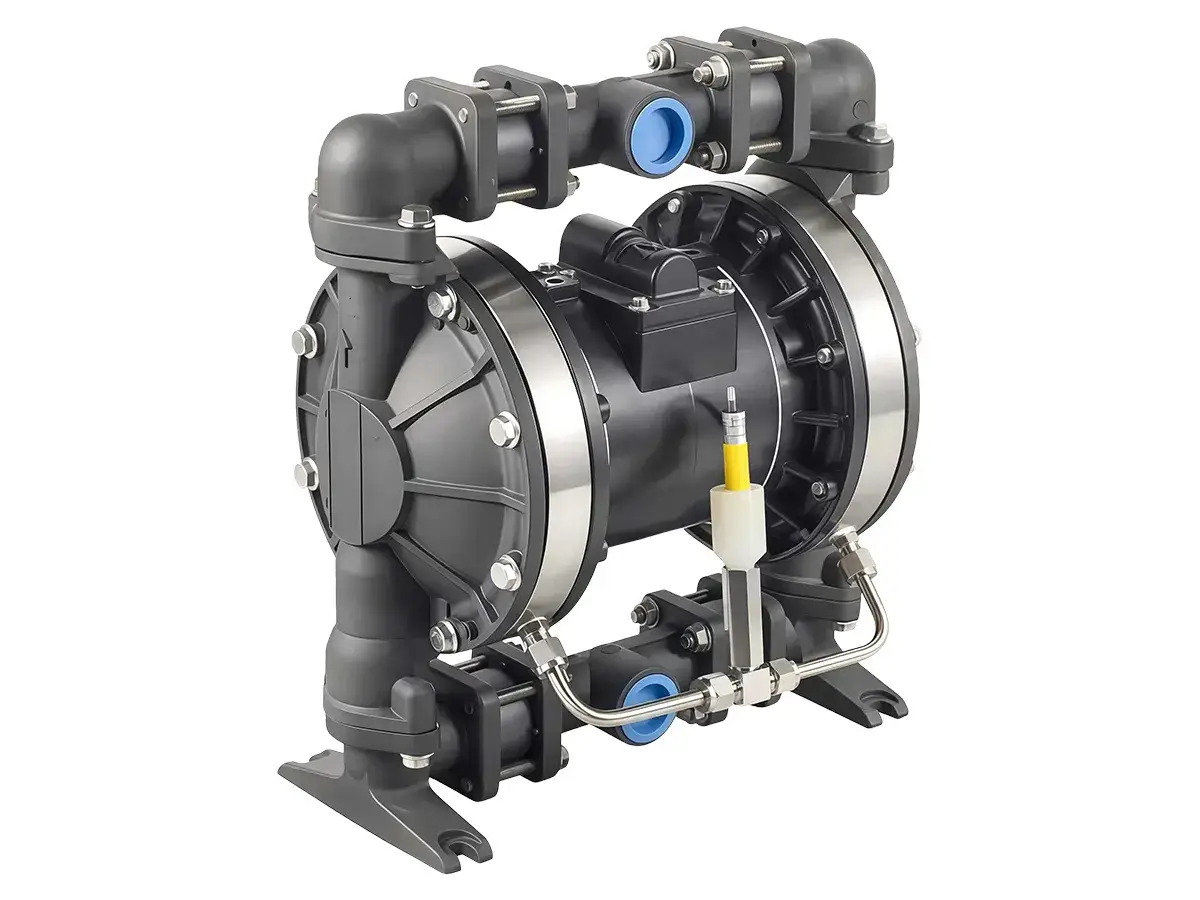

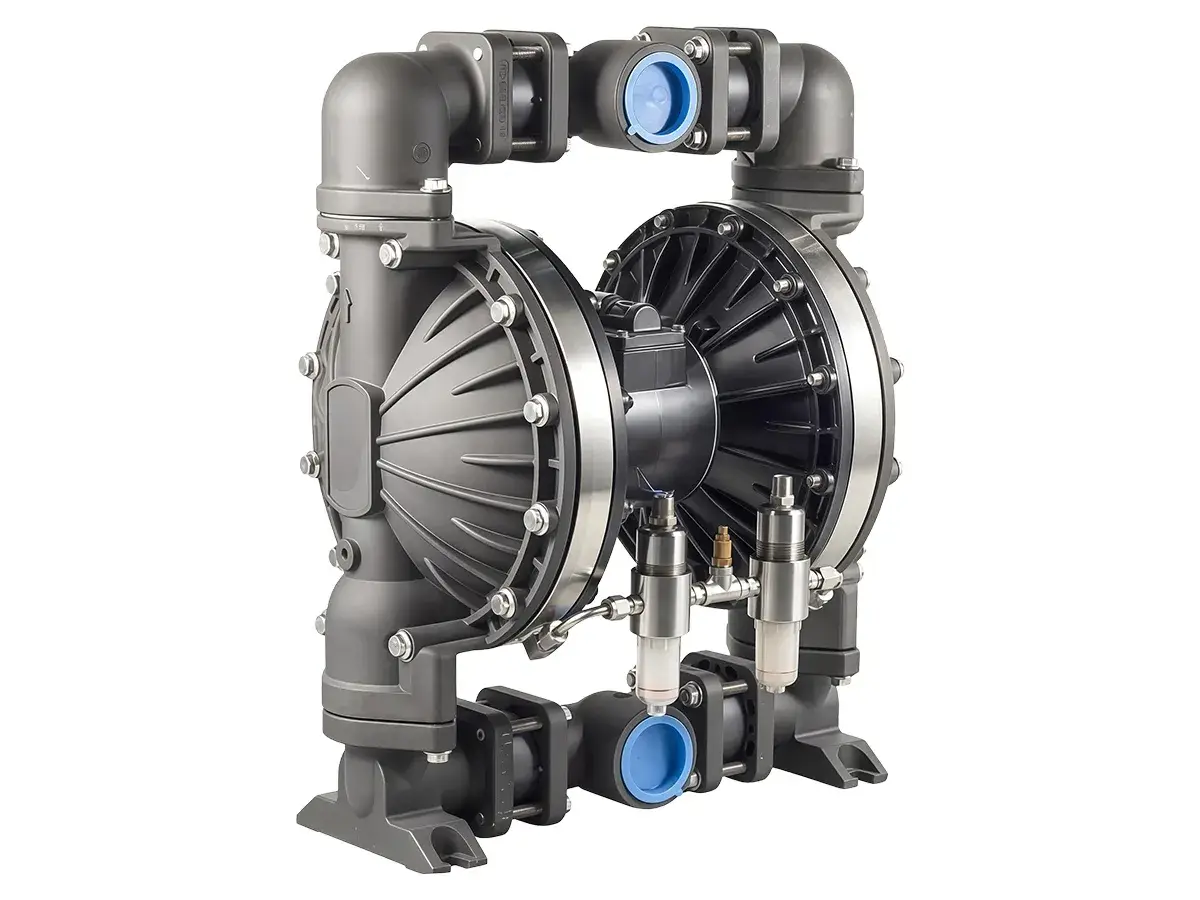

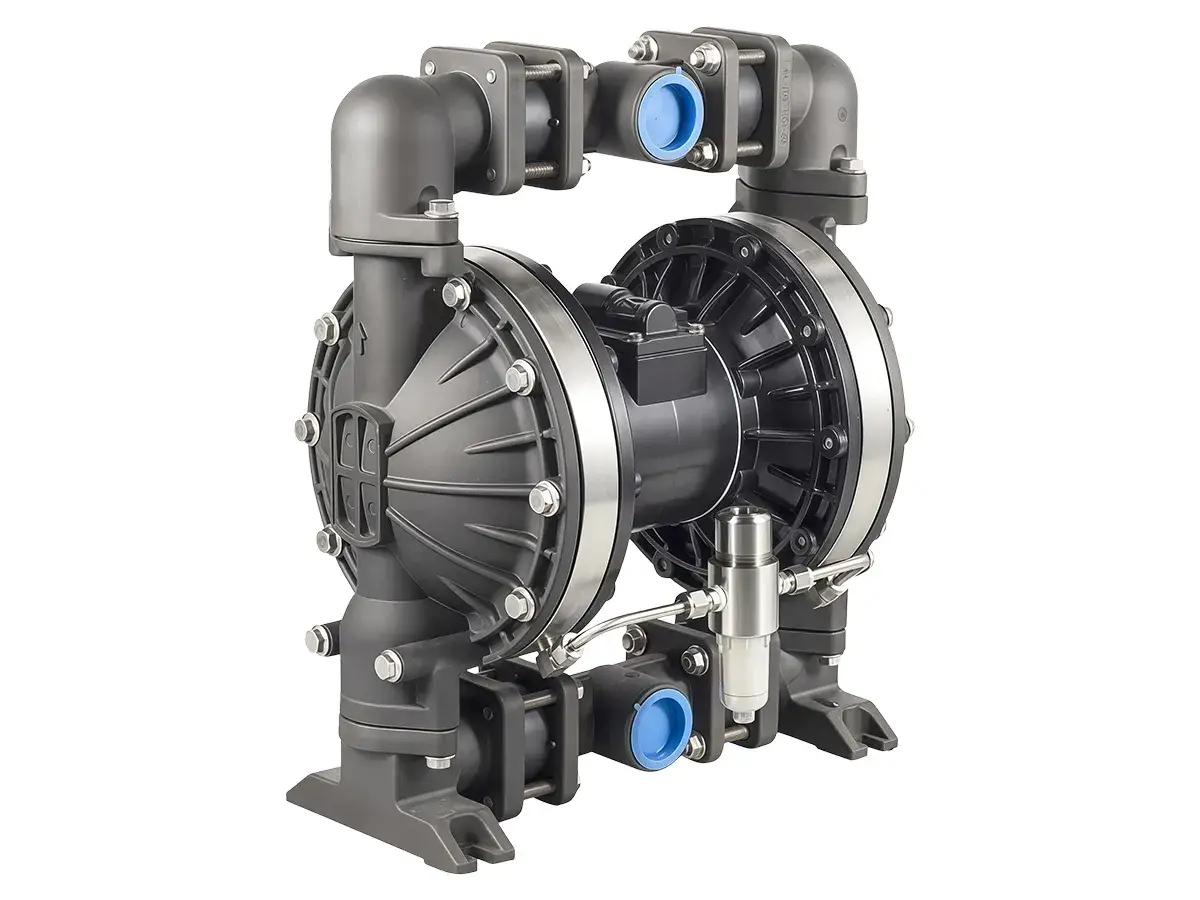

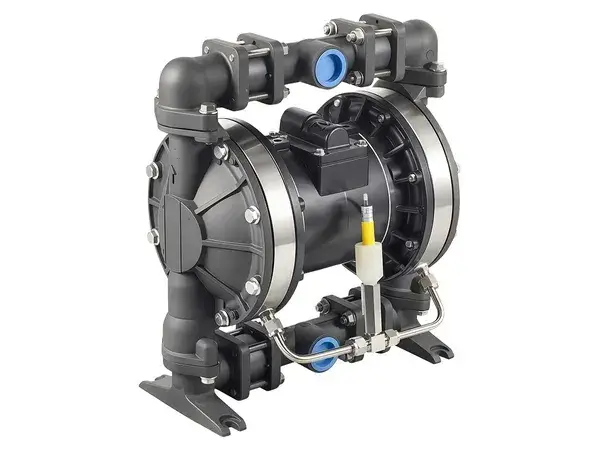

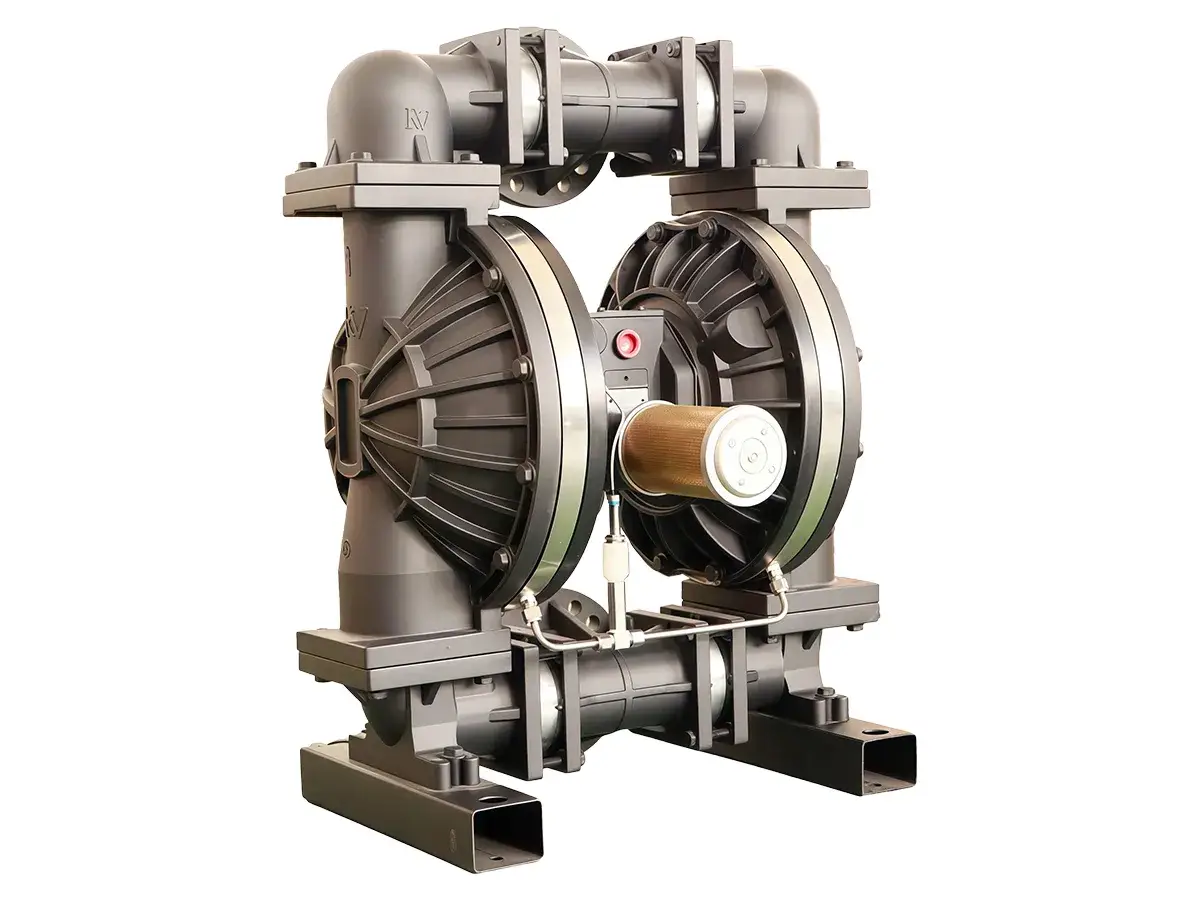

Containment Duty Aluminum AODD Pumps
Diaphragm Pump with Leakage Detection System
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 40-270 gpm (150-1022 L/min)
- Max. Reciprocating Speed: 135-276 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.16-0.37" (4-9.4 mm)
- Max. Air Consumption: 45-180 scfm (22.5-90 L/s)

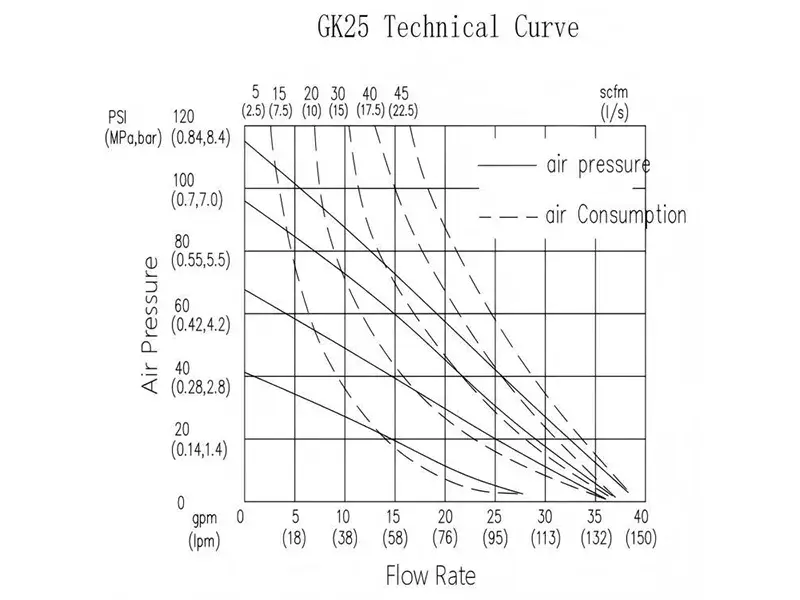

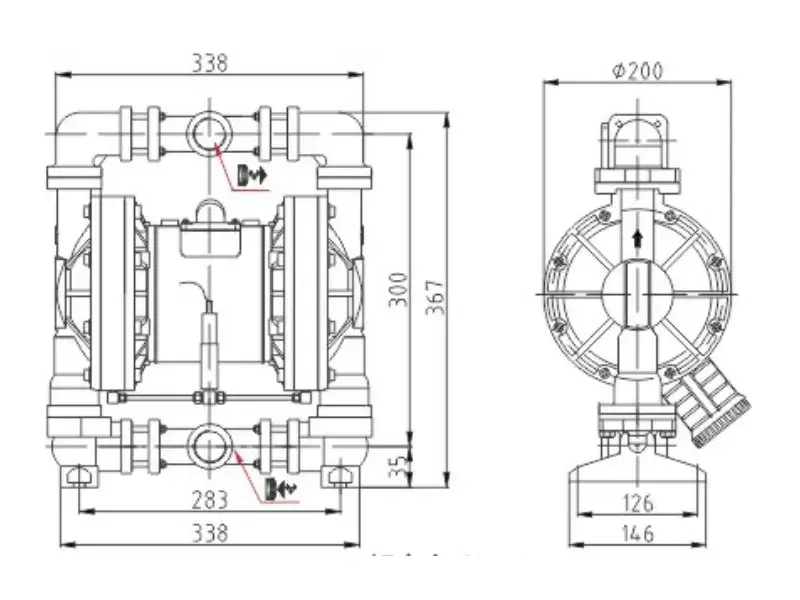

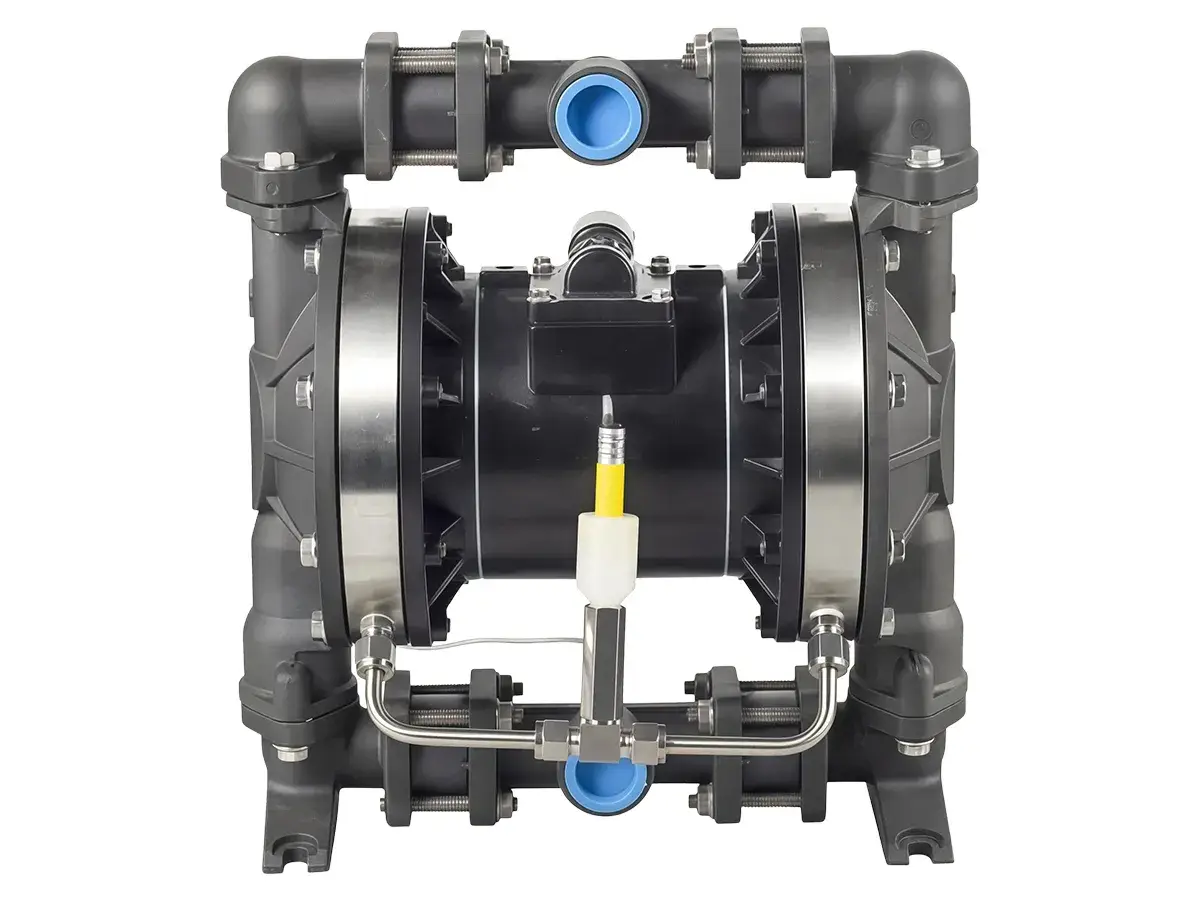

- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 40 gpm (150 L/min)
- Max. Reciprocating Speed: 276 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.16" (4 mm)
- Max. Air Consumption: 45 scfm (22.5 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1"
- Fluid Outlet Size: 1"
- Weight: 13.9 kg

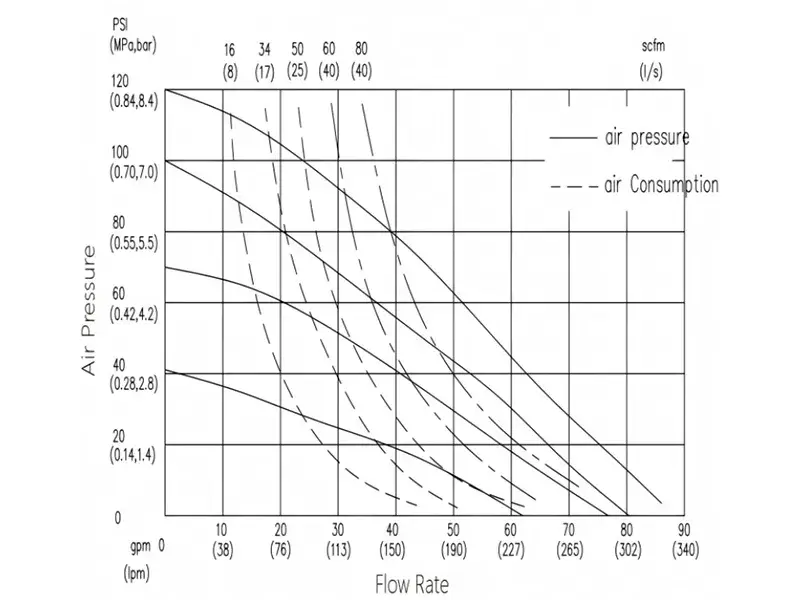

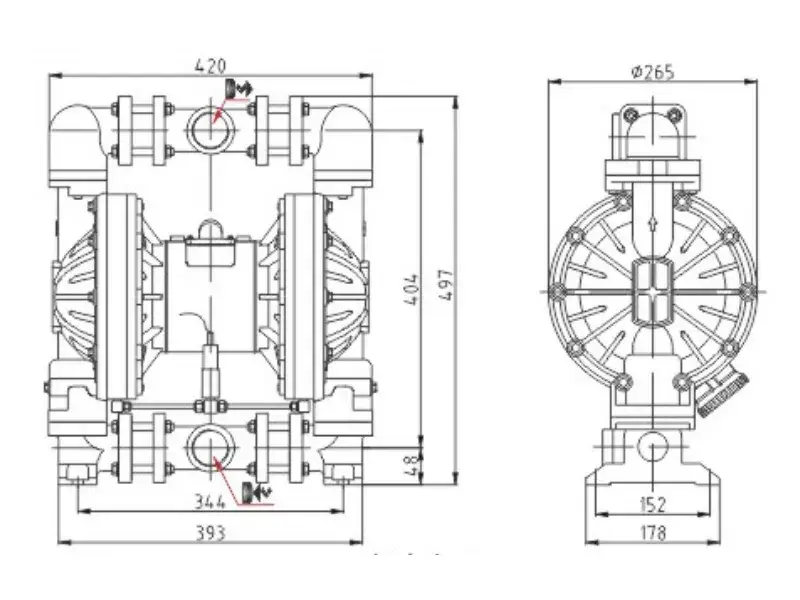

- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 90 gpm (340 L/min)
- Max. Reciprocating Speed: 200 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.2" (5 mm)
- Max. Air Consumption: 80 scfm (40 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1-1/2"
- Fluid Outlet Size: 1-1/2"
- Weight: 29.5 kg

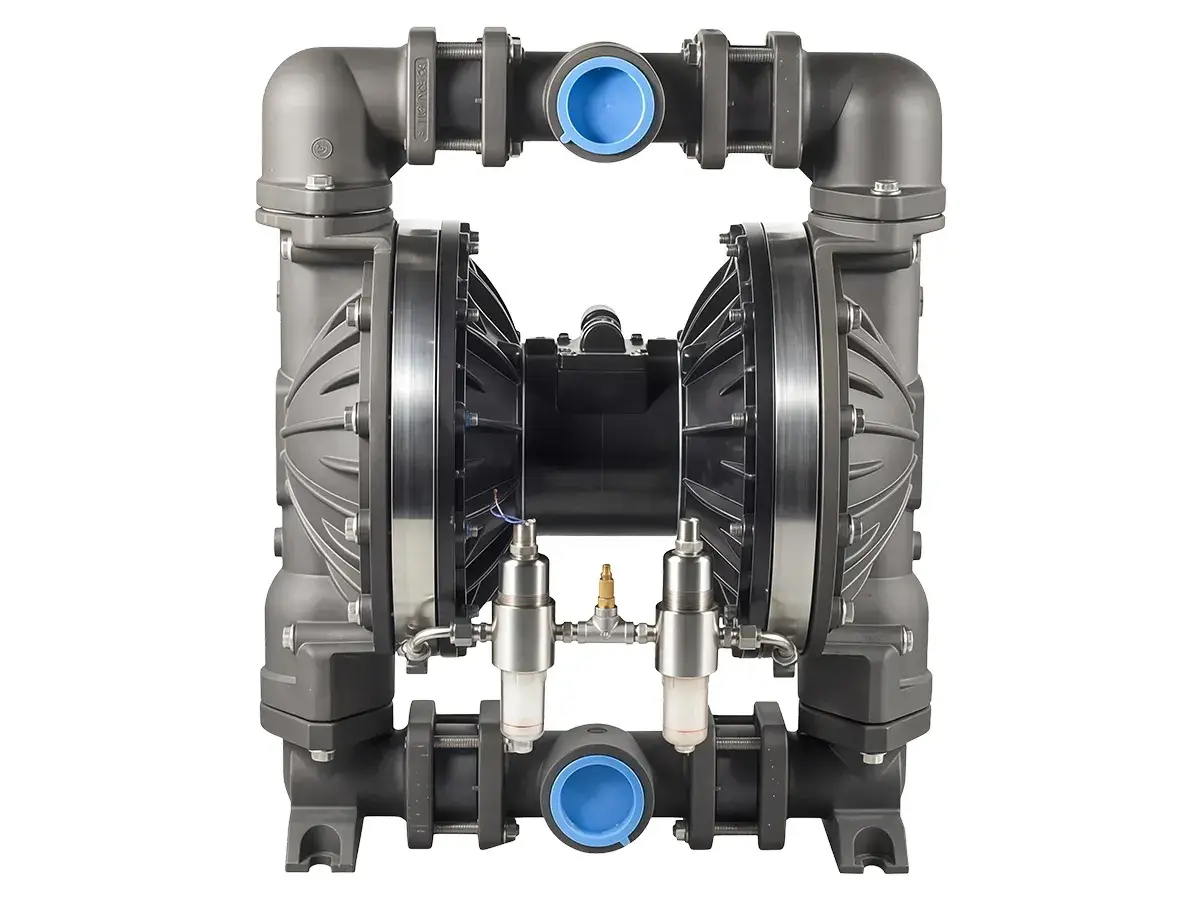

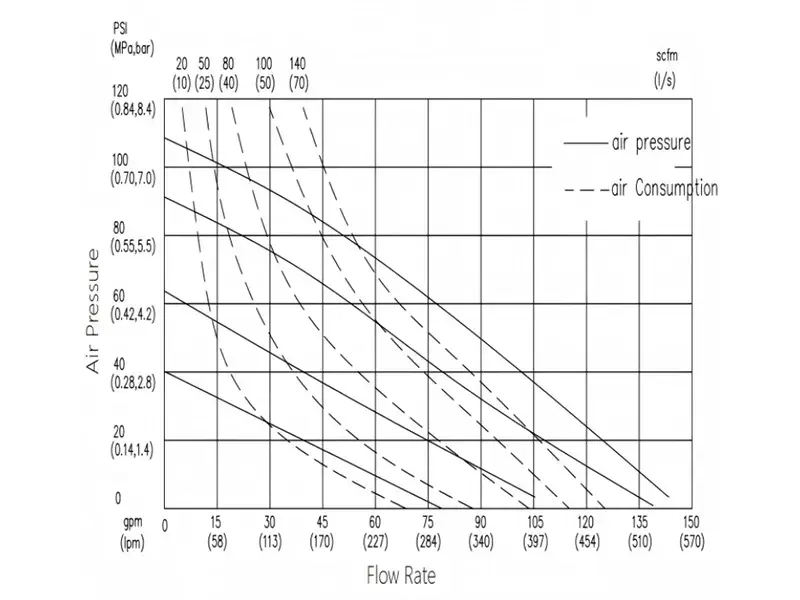

- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 150 gpm (570 L/min)
- Max. Reciprocating Speed: 145 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.24" (6 mm)
- Max. Air Consumption: 140 scfm (70 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 2"
- Fluid Outlet Size: 2"
- Weight: 43.5 kg

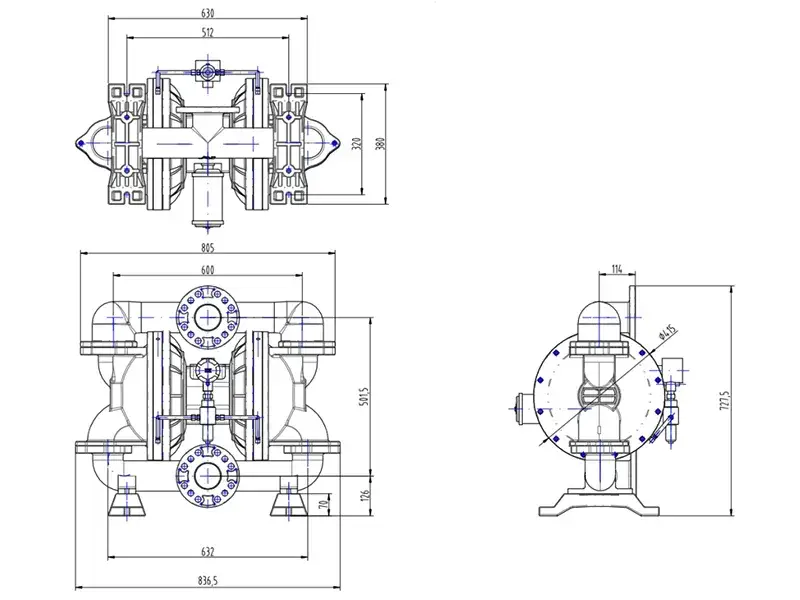

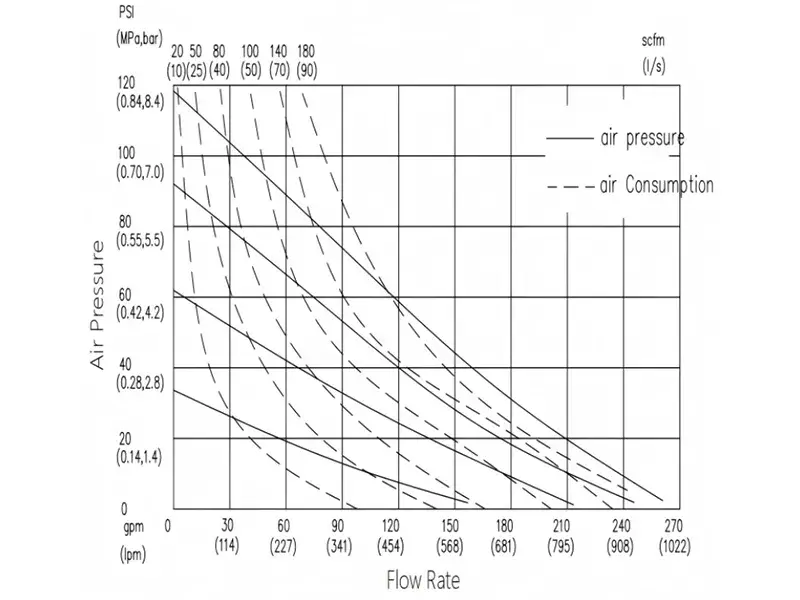

- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 270 gpm (1022 L/min)
- Max. Reciprocating Speed: 135 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.37" (9.4 mm)
- Max. Air Consumption: 180 scfm (90 L/s)
- Air Inlet Size: 3/4"
- Air Outlet Size: 1"
- Fluid Inlet Size: 3"
- Fluid Outlet Size: 3"
- Weight: 97 kg
