Stainless Steel Air Operated Diaphragm Pumps
- Max. Working Pressure: 100-120 psi / 0.7-0.84 MPa / 7-8.4 bar
- Max. Flow Rate: 15-270 gpm (57-1022 L/min)
- Max. Reciprocating Speed: 135-400 cpm
- Suction Lift (Dry): 4.5-5 m
- Max. Solid Particle Size: 3/32-0.37" (2.5-9.4 mm)
- Max. Air Consumption: 20-140 scfm (10-90 L/s)

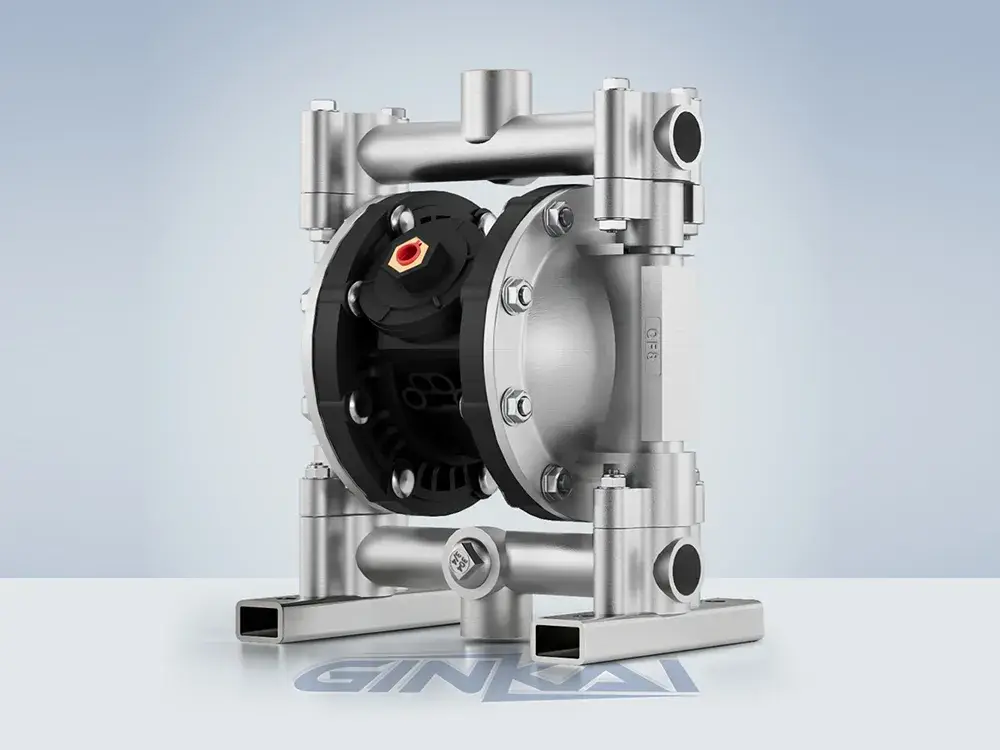

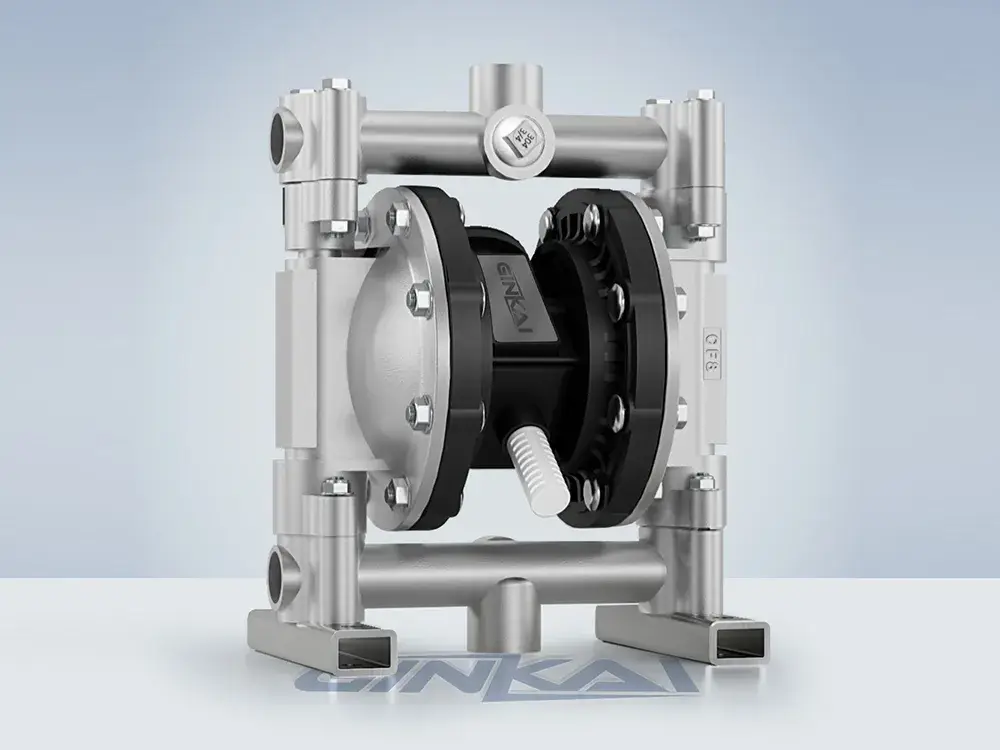

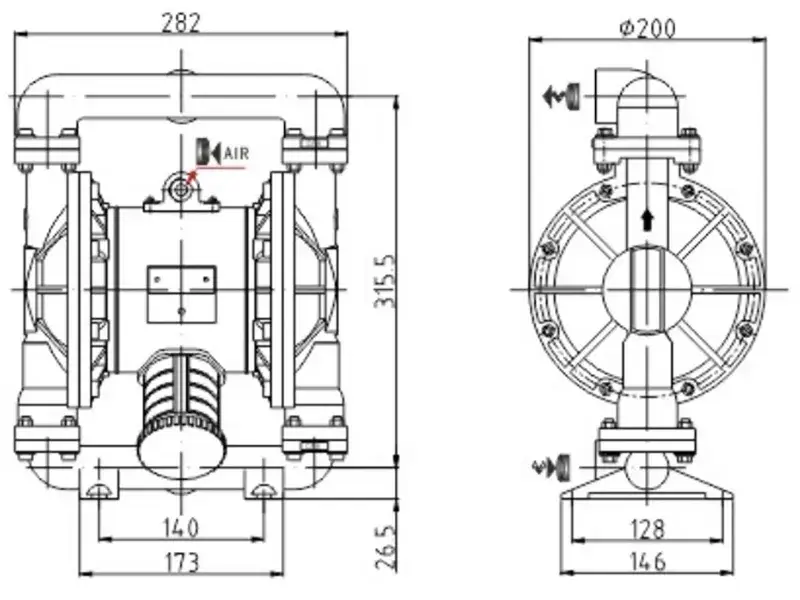

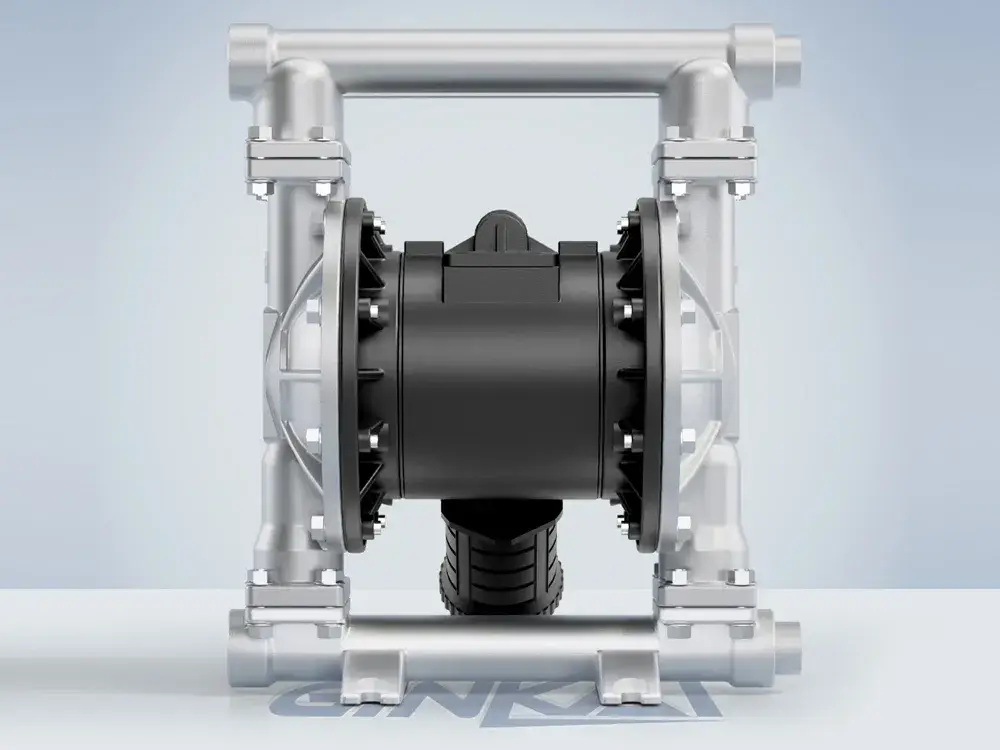

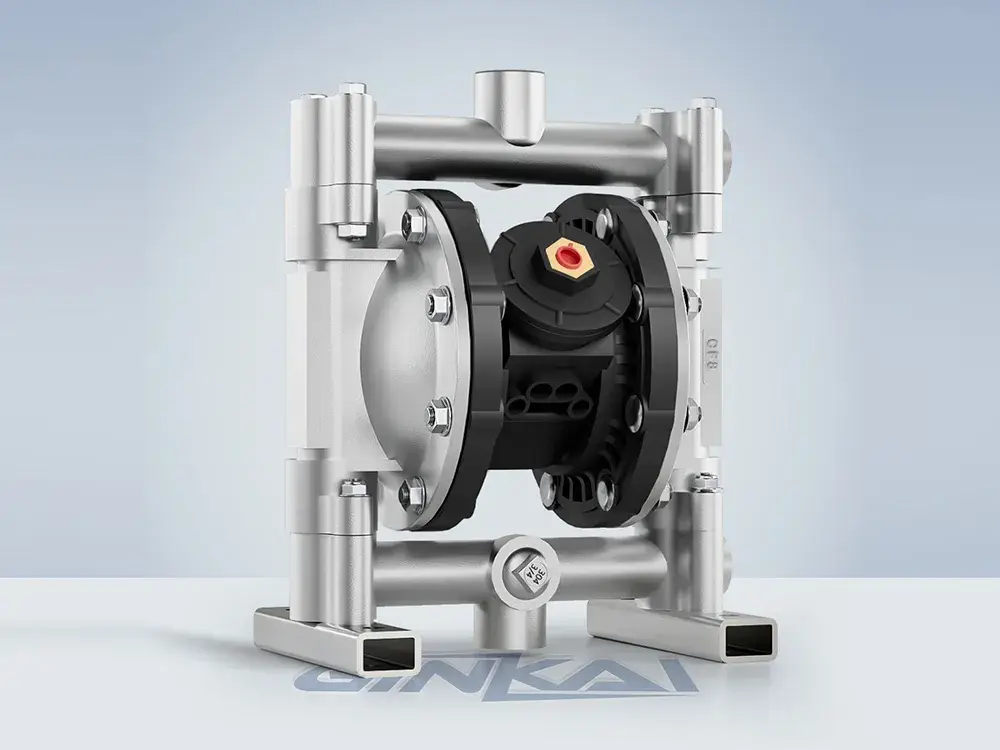

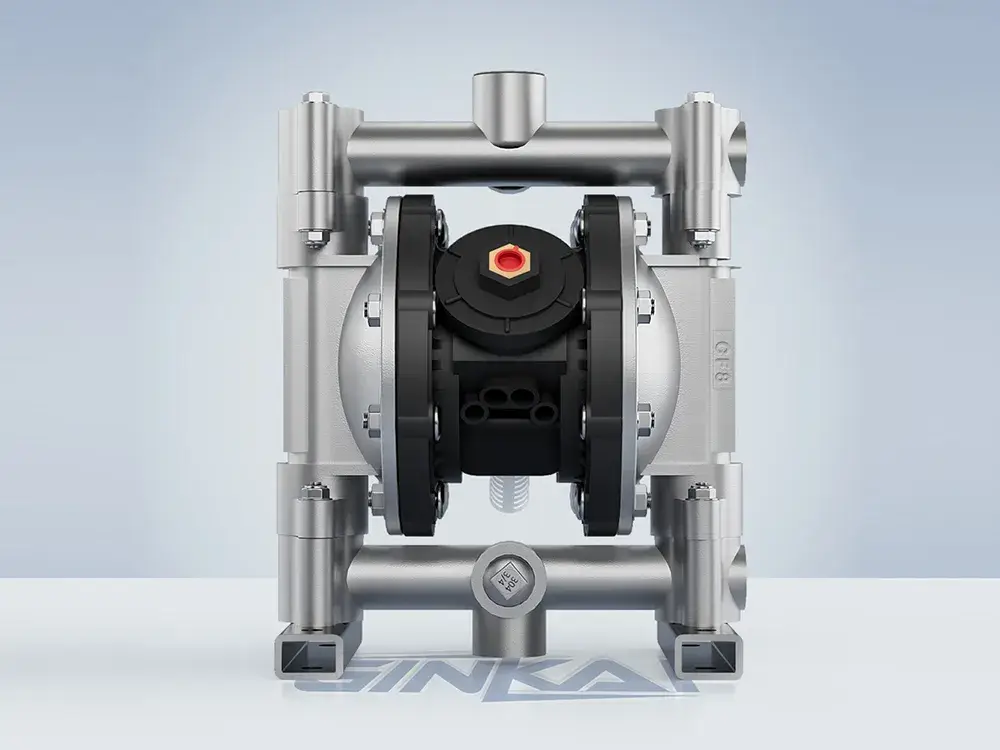

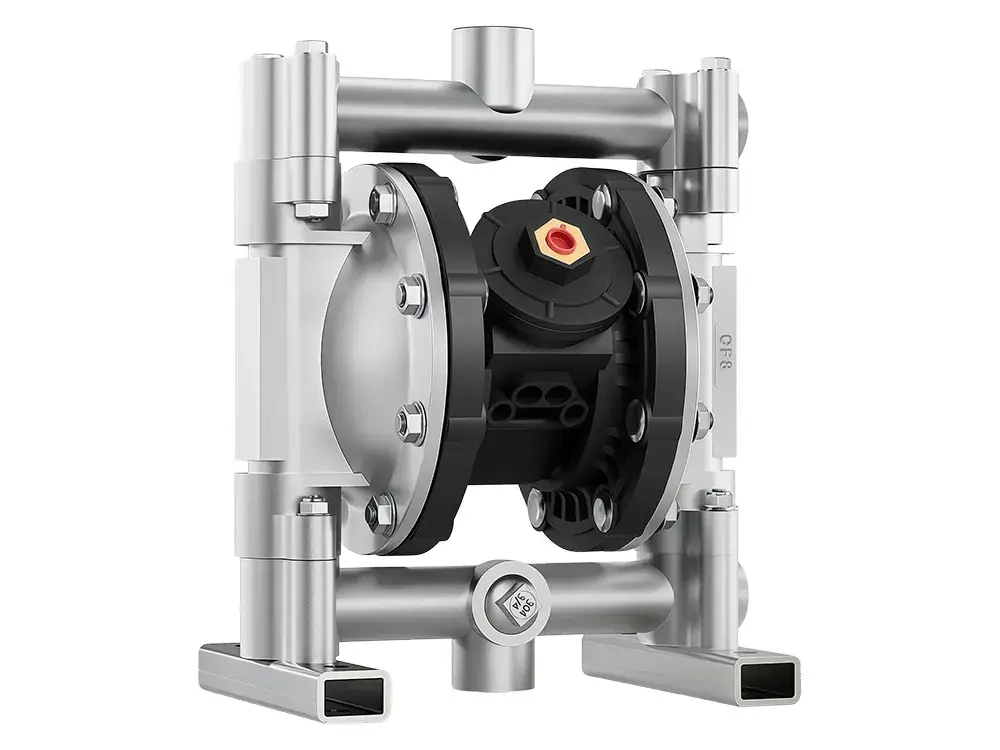

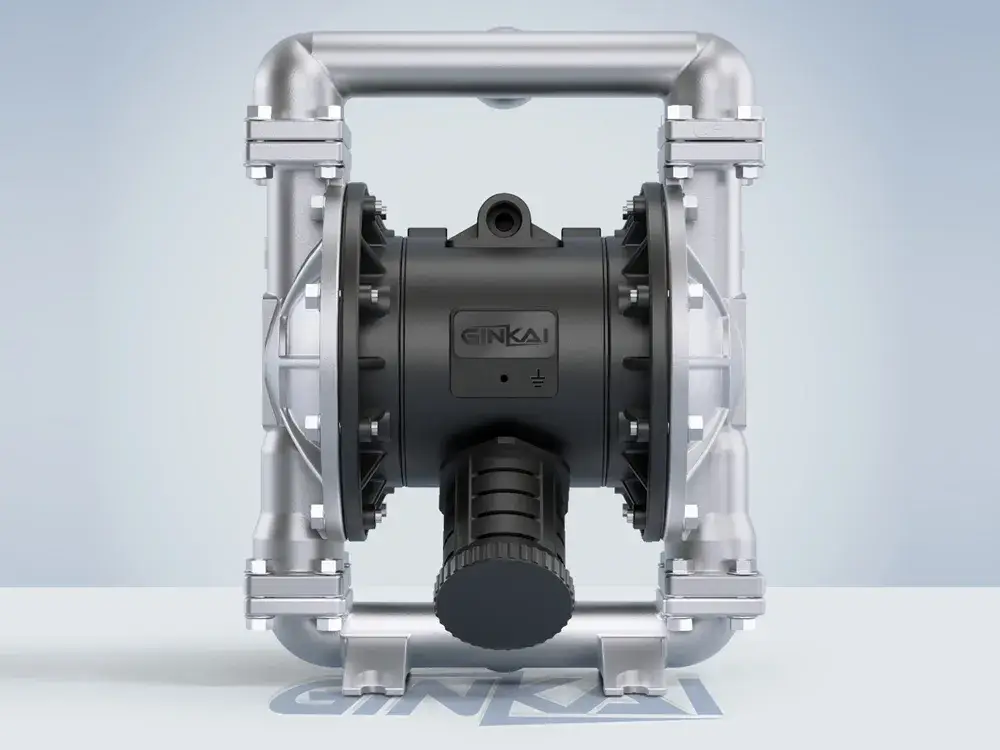

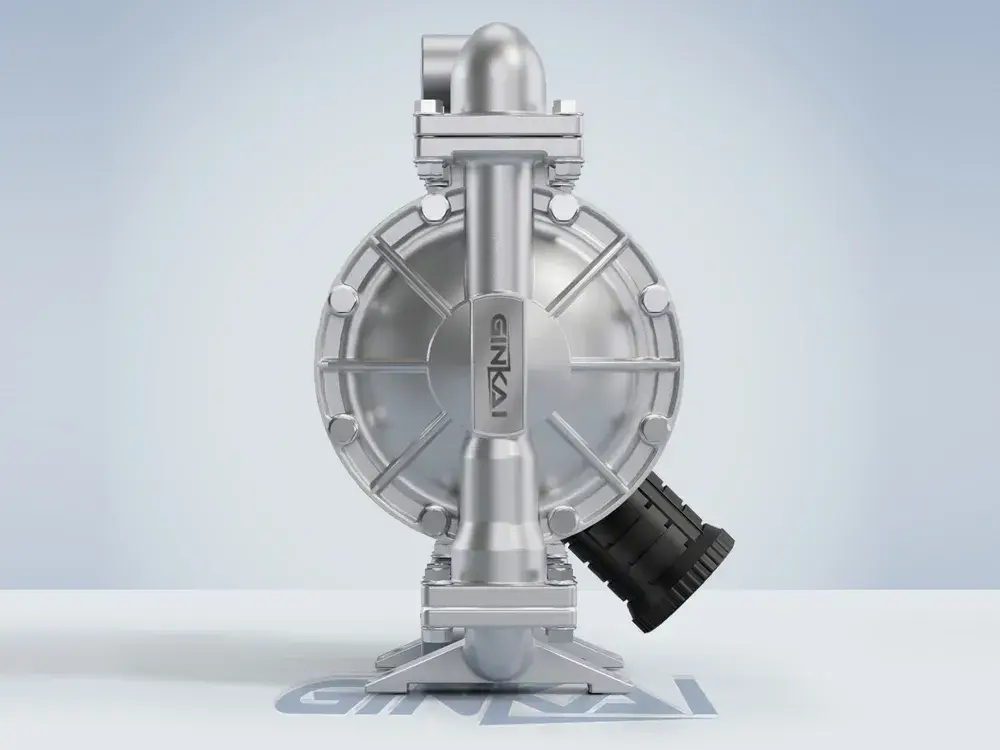

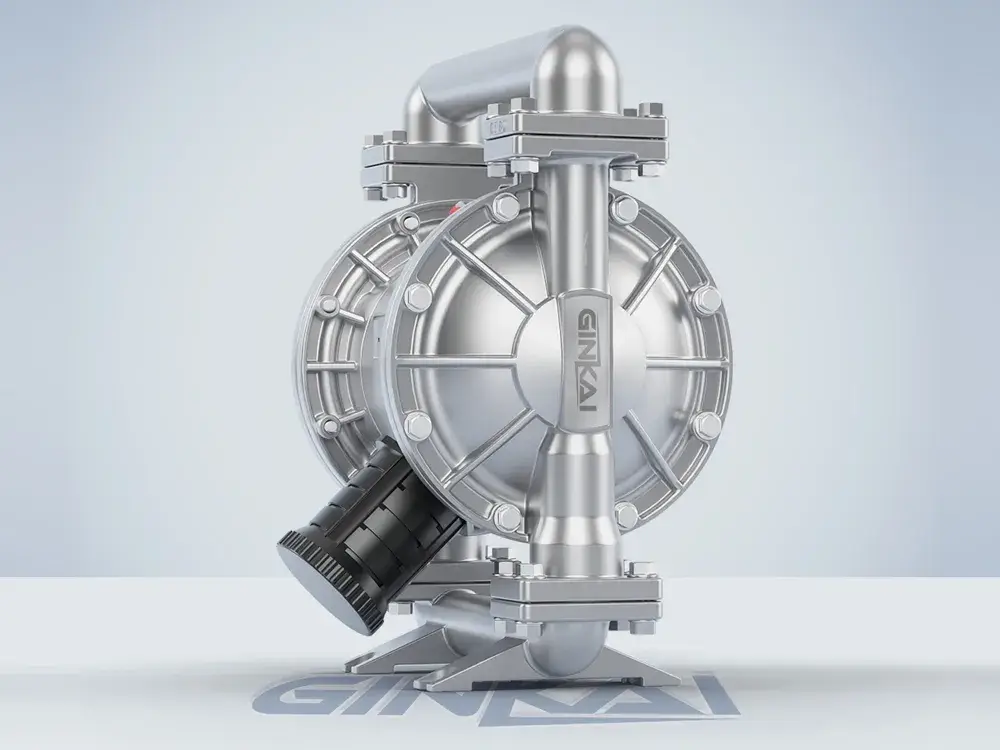

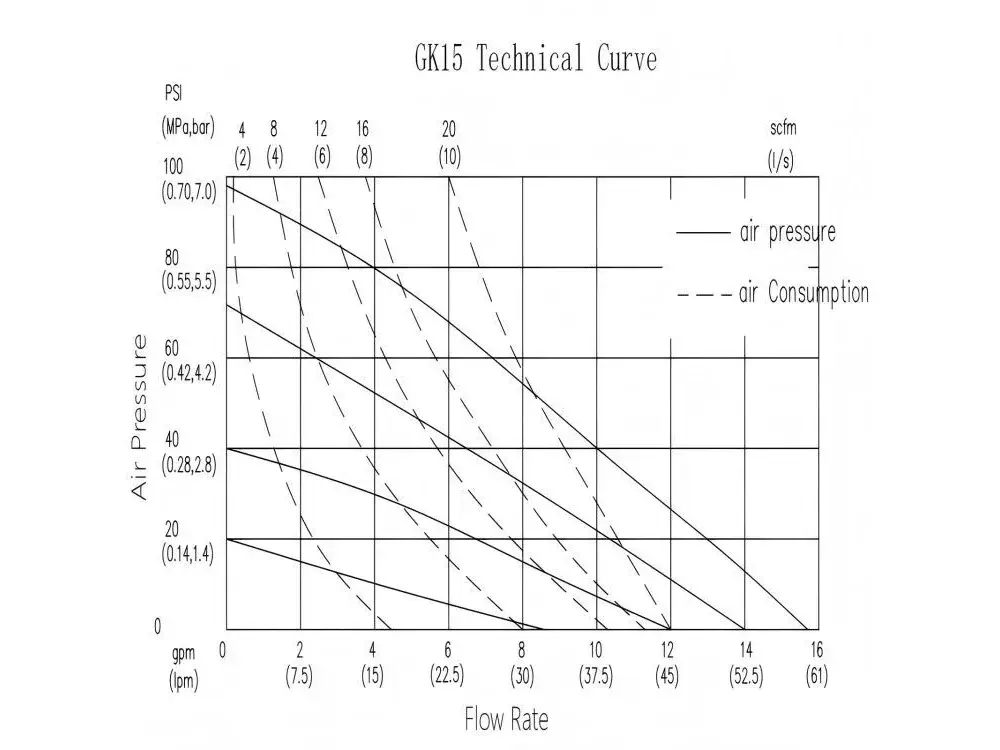

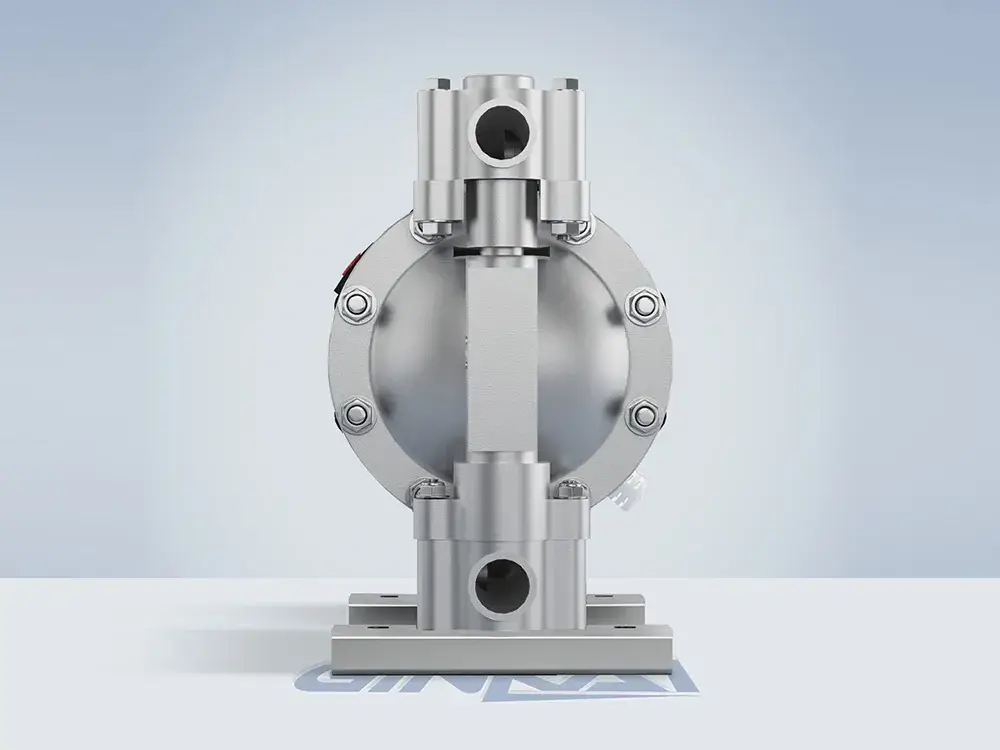

1/2" Stainless Steel AODD Pump
- Max. Working Pressure: 100 psi / 0.7 MPa / 7 bar
- Max. Flow Rate: 15 gpm (57 L/min)
- Max. Reciprocating Speed: 400 cpm
- Suction Lift (Dry): 4.5 m
- Max. Solid Particle Size: 3/32" (2.5 mm)
- Max. Air Consumption: 20 scfm (10 L/s)
- Air Inlet Size: 1/4"
- Air Outlet Size: 3/8"
- Fluid Inlet Size: 1/2"
- Fluid Outlet Size: 1/2"
- Weight: 8.9 kg

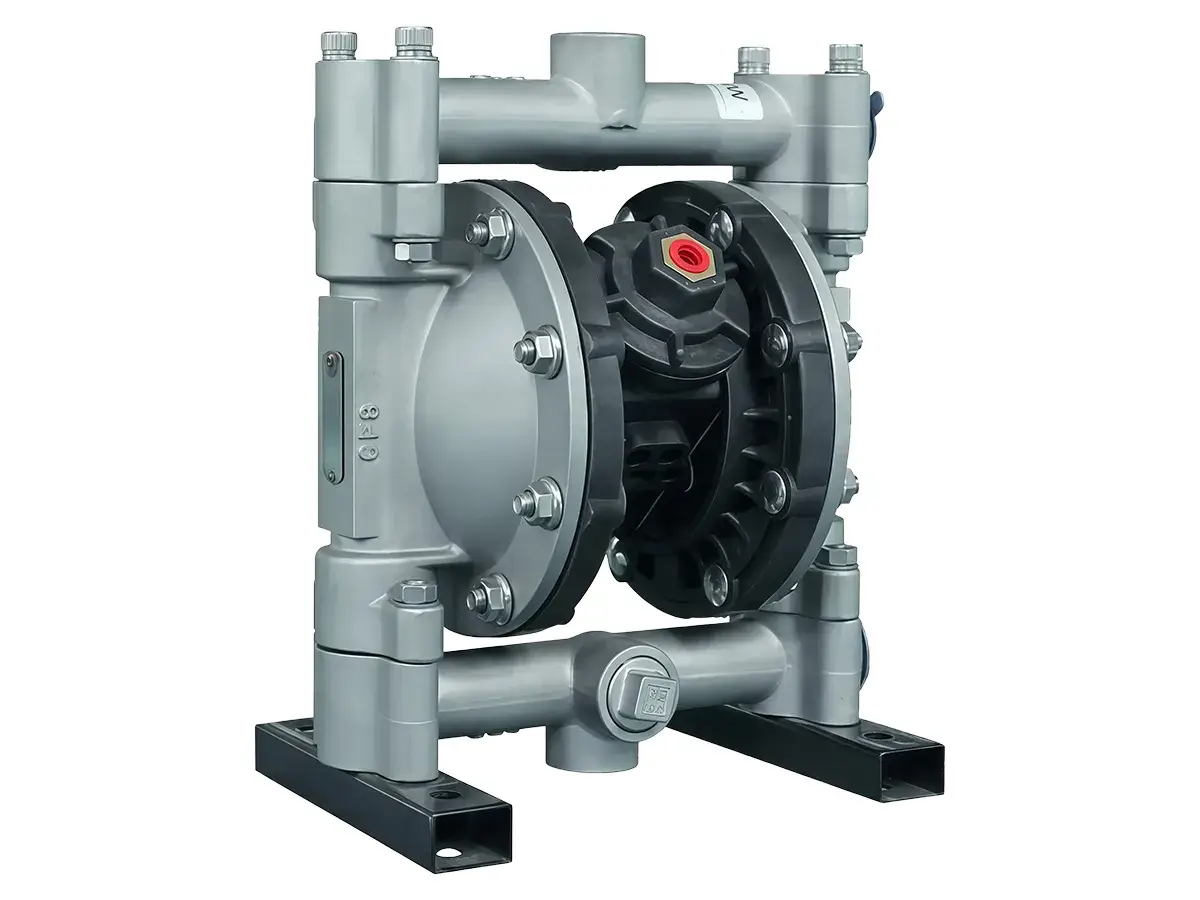

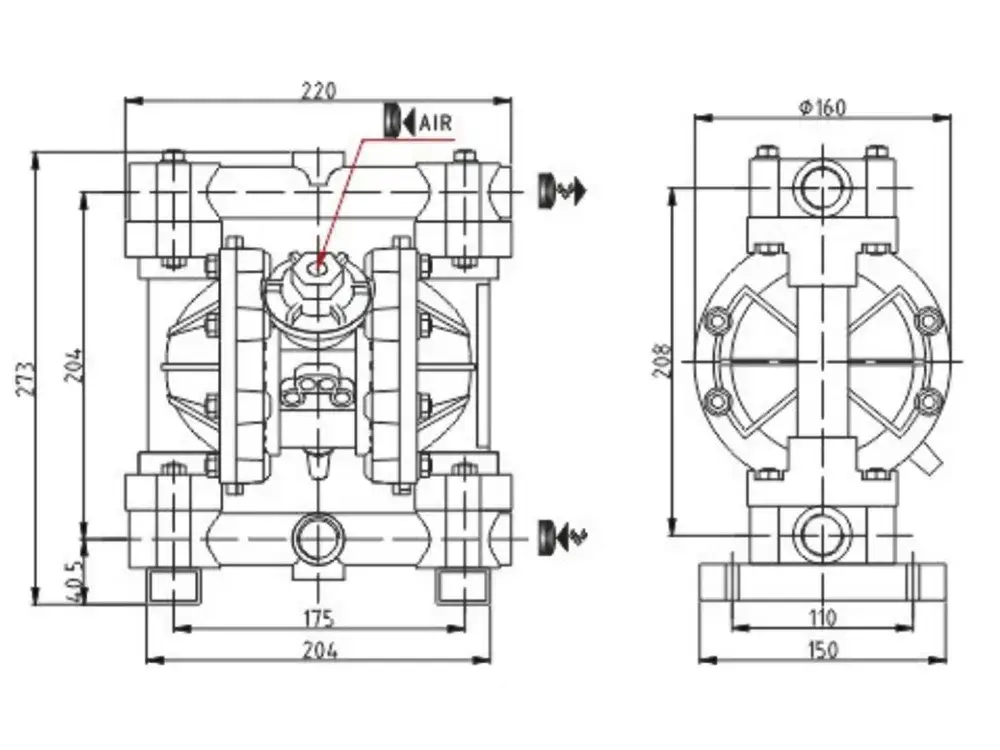

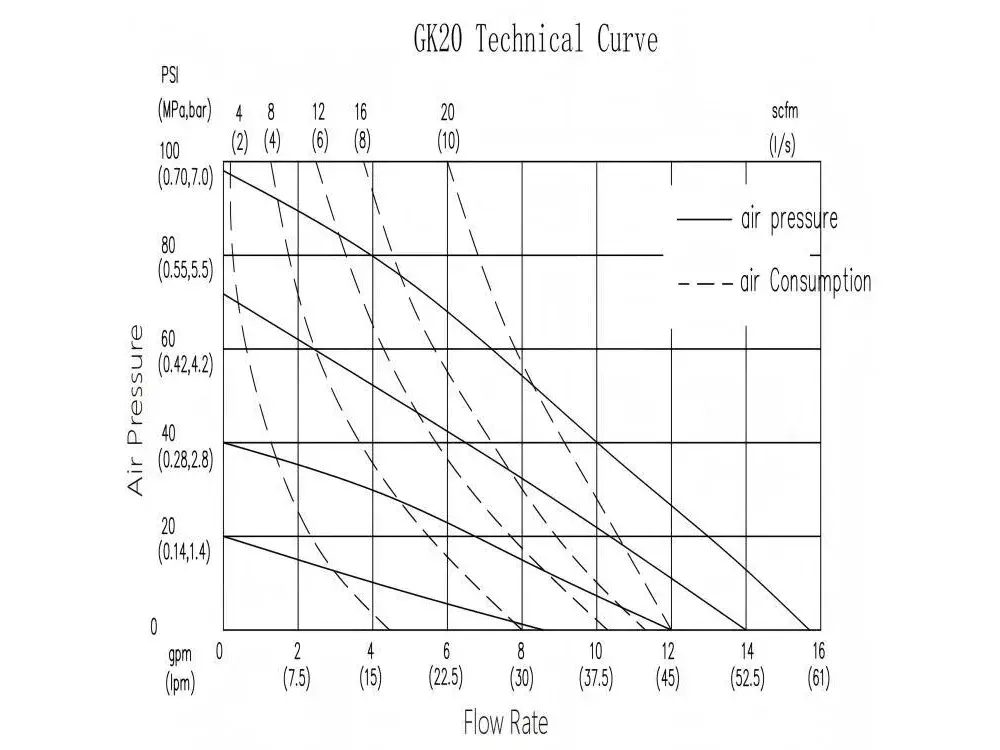

3/4" SS Air-Operated Double Diaphragm Pump
- Max. Working Pressure: 100 psi / 0.7 MPa / 7 bar
- Max. Flow Rate: 15 gpm (57 L/min)
- Max. Reciprocating Speed: 400 cpm
- Suction Lift (Dry): 4.5 m
- Max. Solid Particle Size: 3/32" (2.5 mm)
- Max. Air Consumption: 20 scfm (10 L/s)
- Air Inlet Size: 1/4"
- Air Outlet Size: 3/8"
- Fluid Inlet Size: 3/4"
- Fluid Outlet Size: 3/4"
- Weight: 8.9 kg

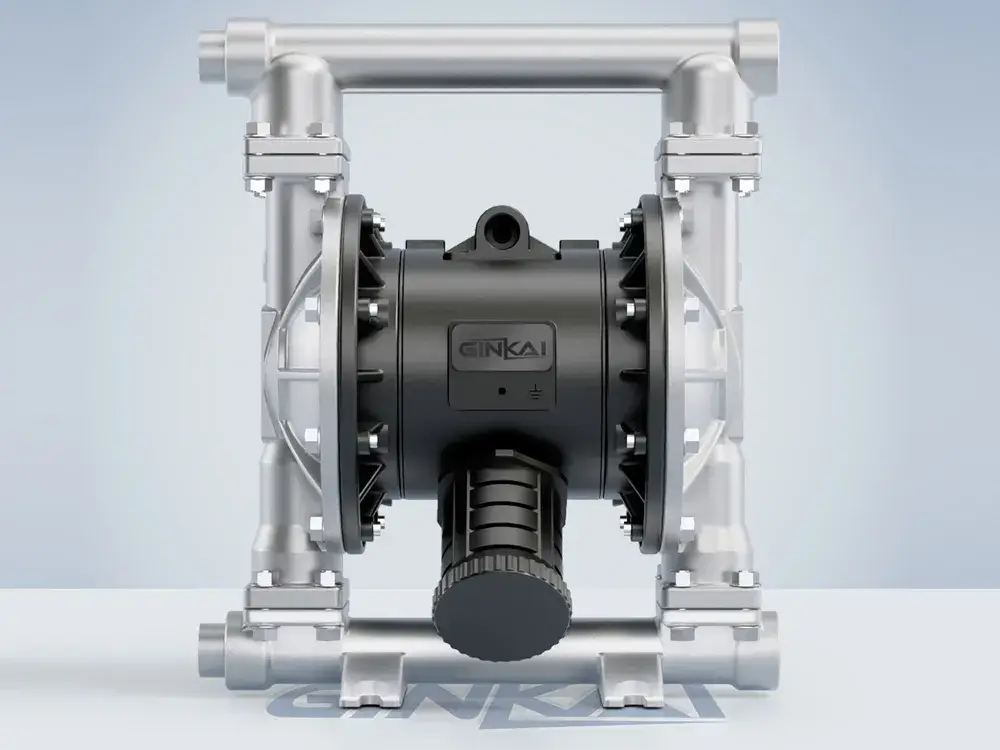

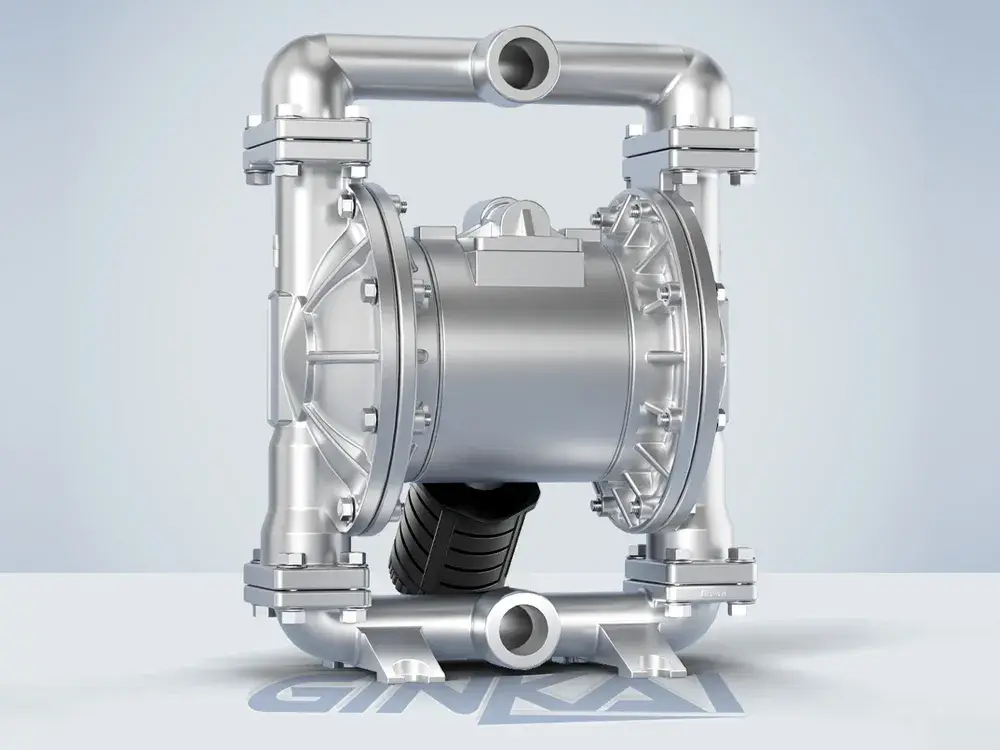

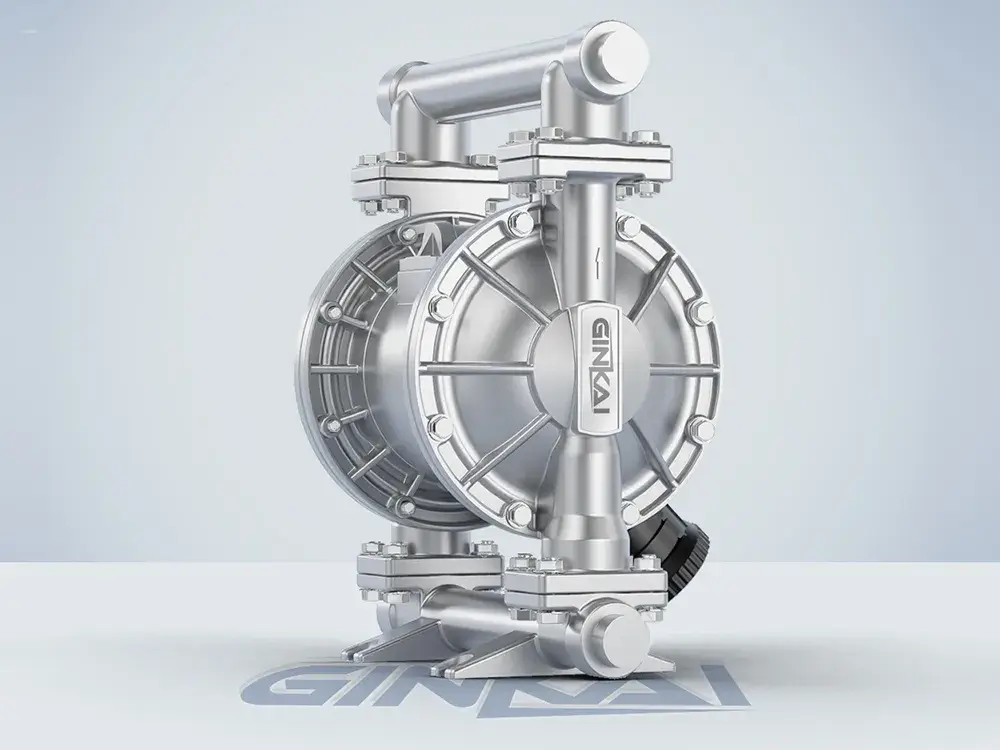

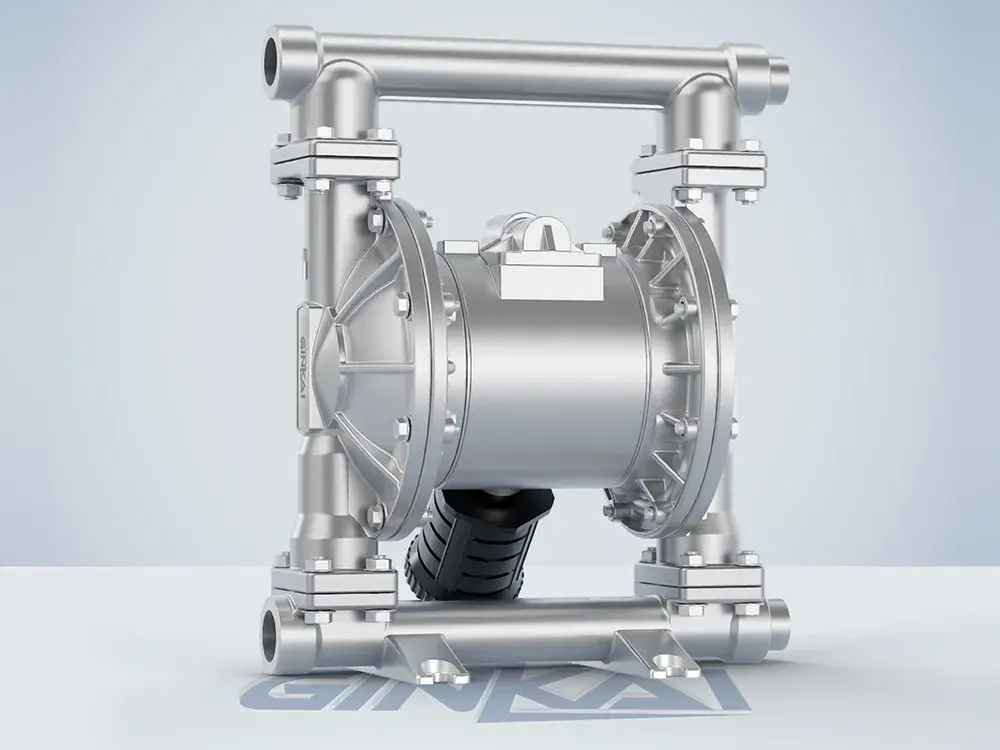

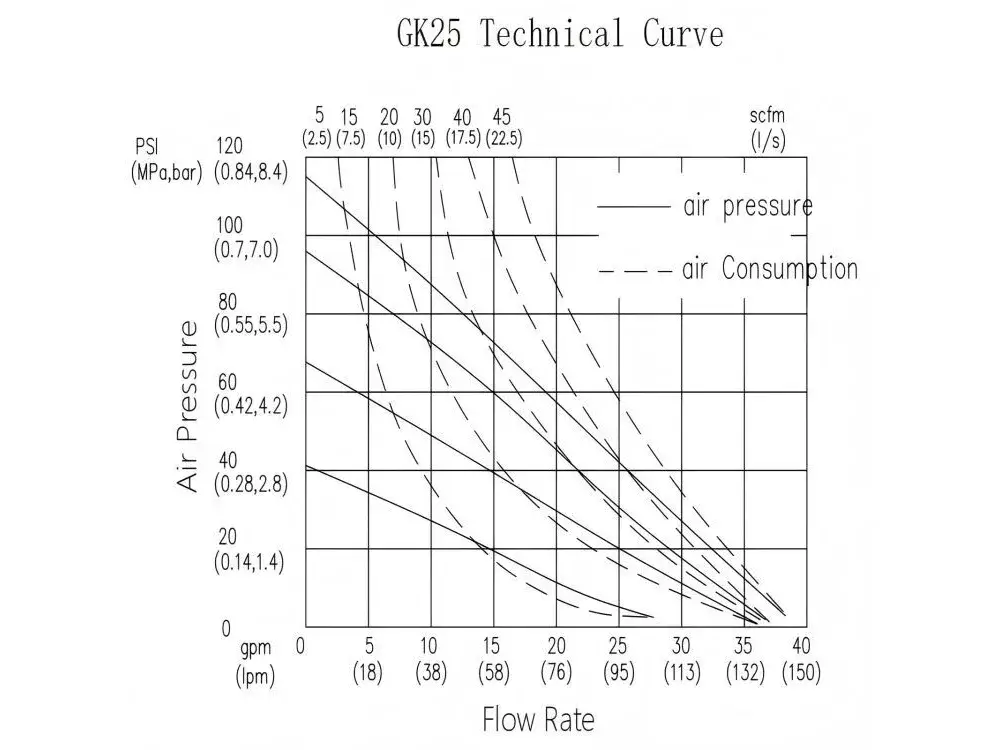

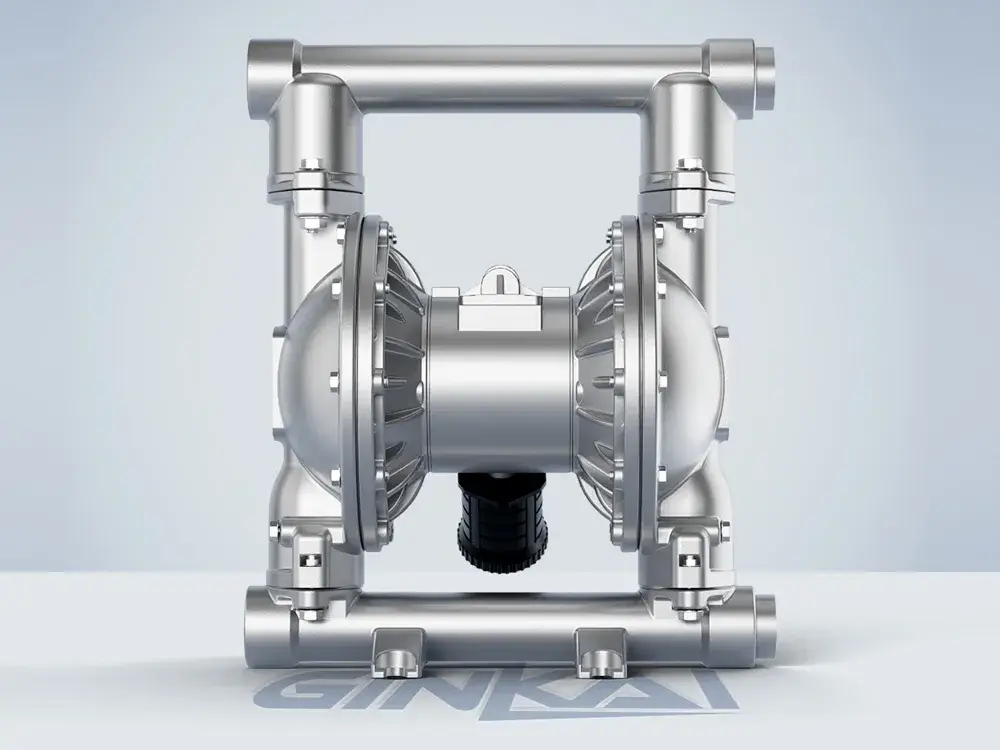

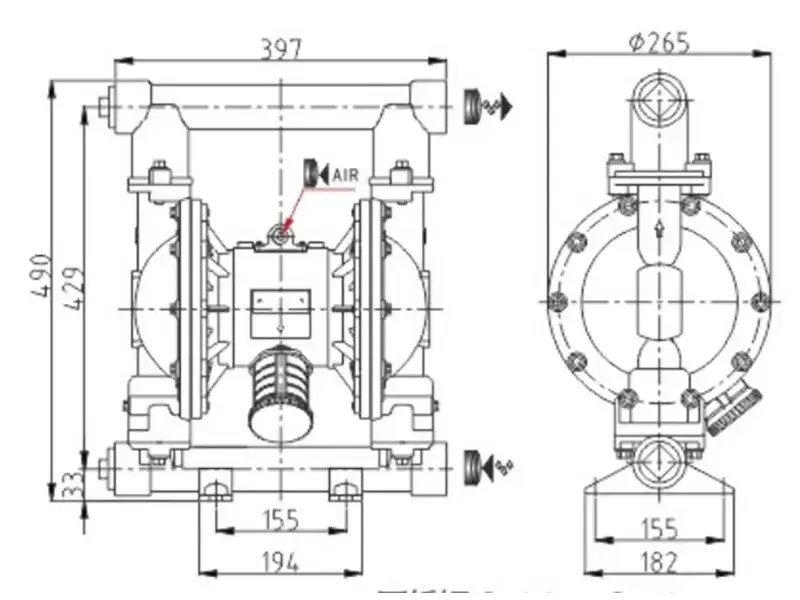

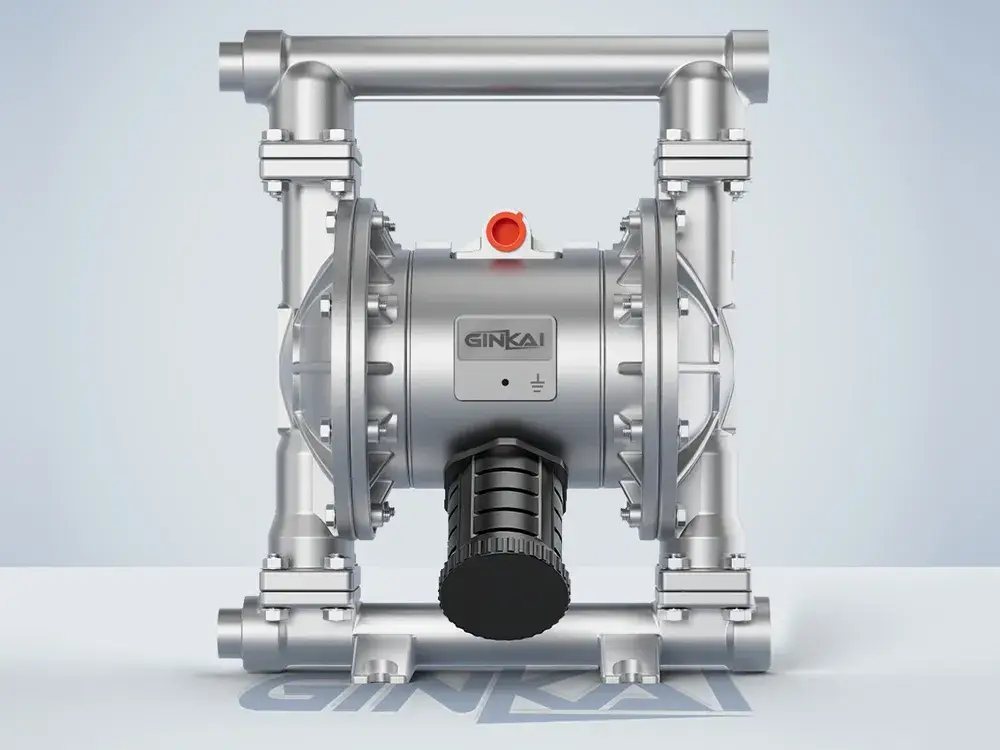

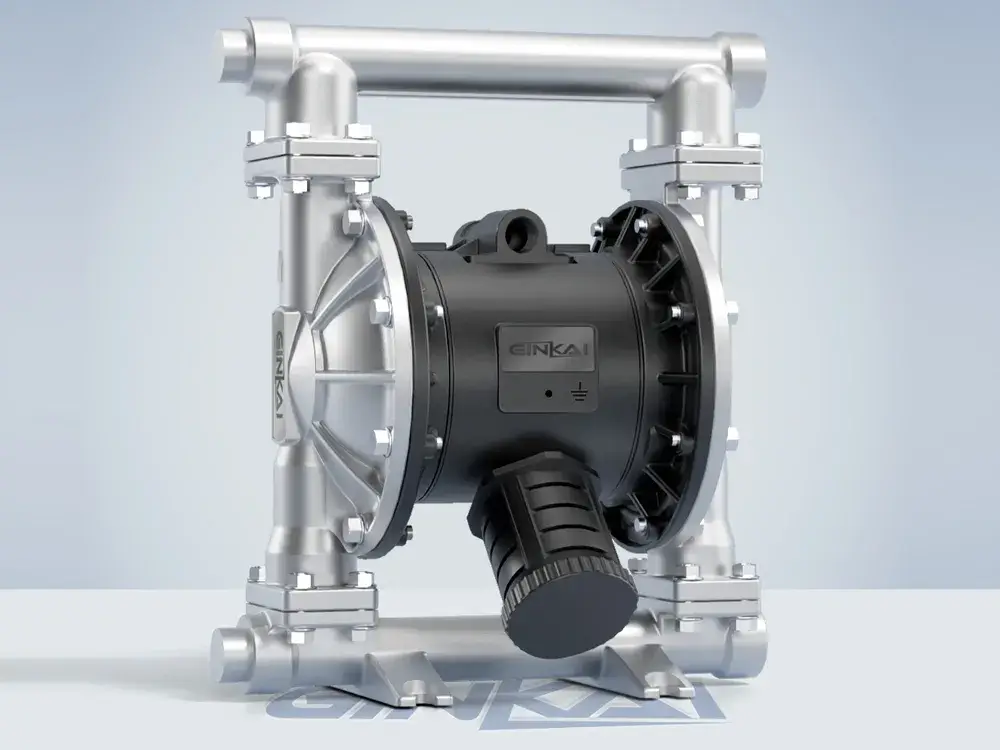

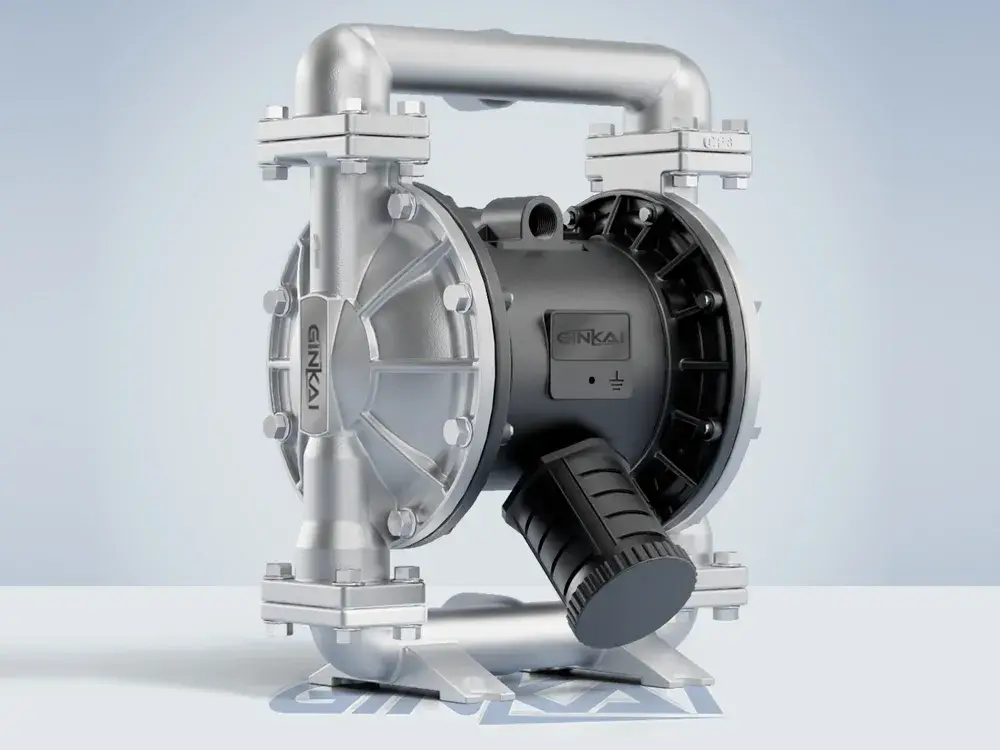

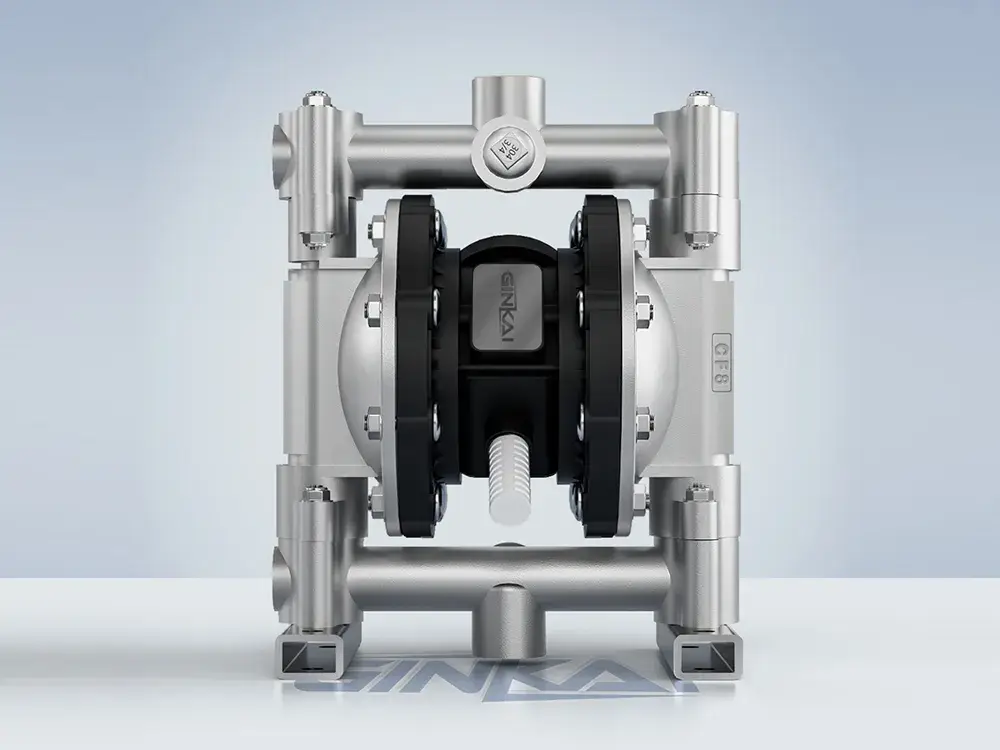

1" Stainless Steel Air Operated Diaphragm Pump
1" Stainless Steel Pump, Center Outlet
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 40 gpm (150 L/min)
- Max. Reciprocating Speed: 276 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.16" (4 mm)
- Max. Air Consumption: 45 scfm (22.5 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1"
- Fluid Outlet Size: 1"
- Weight: 15.7 kg

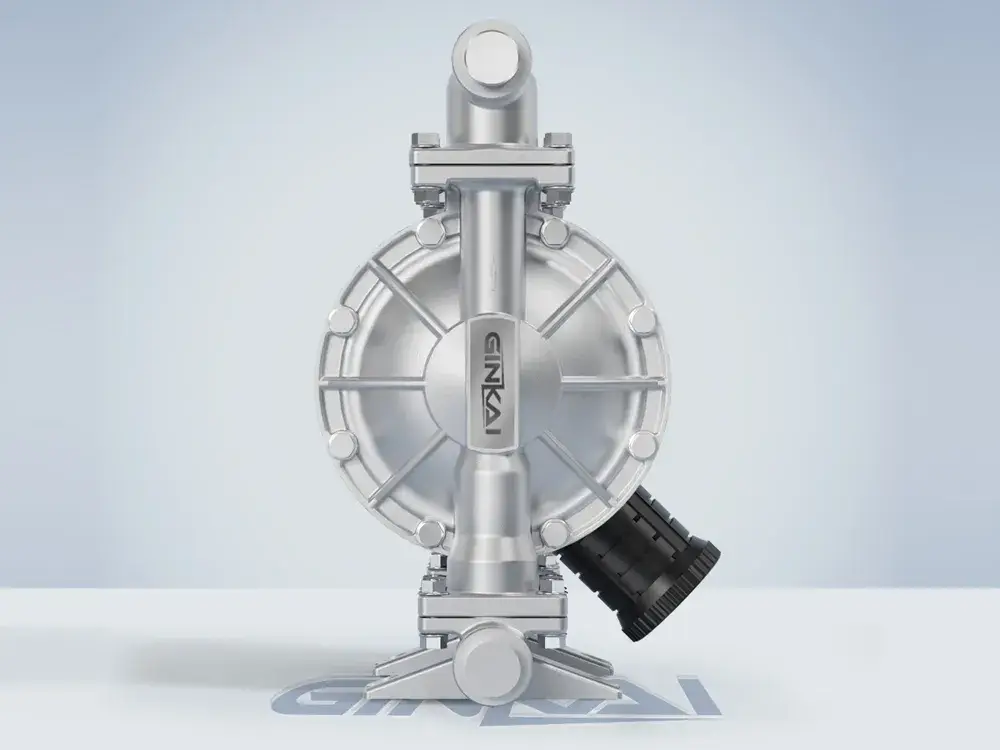

1" Stainless Steel Pump with Side Threaded Connections
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 40 gpm (150 L/min)
- Max. Reciprocating Speed: 276 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.16" (4 mm)
- Max. Air Consumption: 45 scfm (22.5 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1"
- Fluid Outlet Size: 1"
- Weight: 15.7 kg

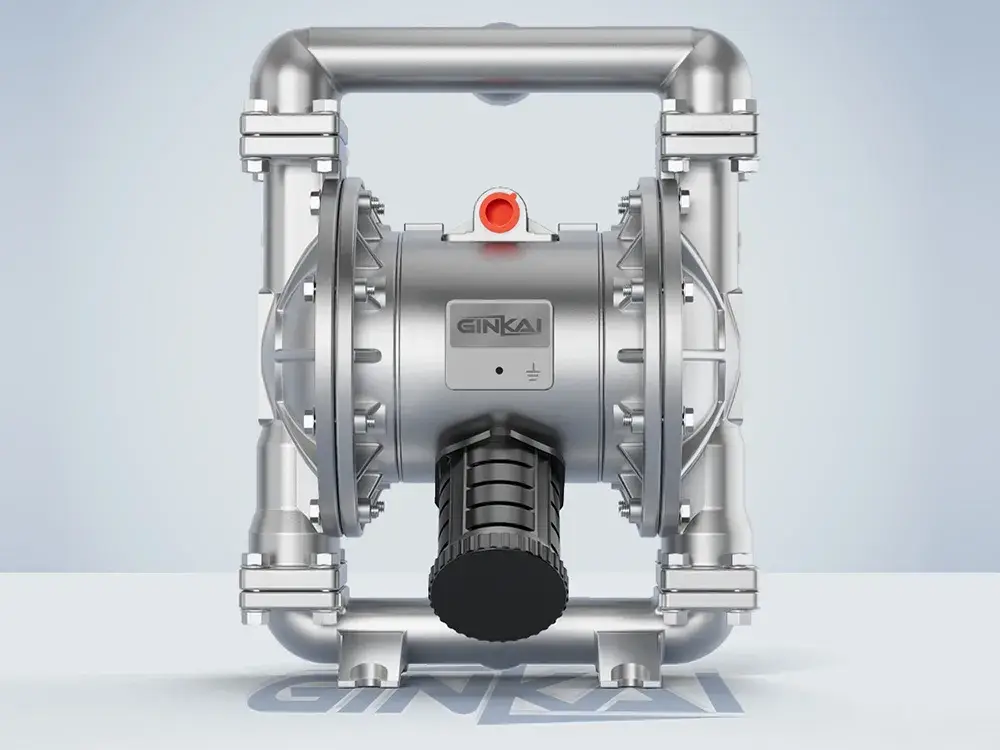

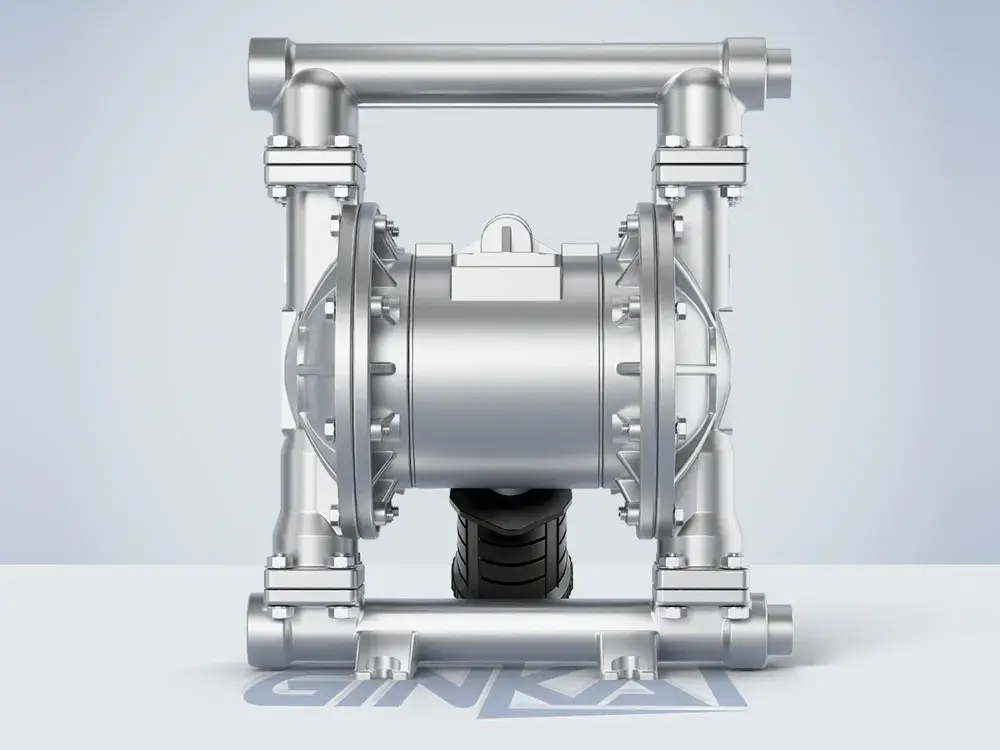

1" All-Stainless Steel Pump with Center Outlet
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 40 gpm (150 L/min)
- Max. Reciprocating Speed: 276 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.16" (4 mm)
- Max. Air Consumption: 45 scfm (22.5 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1"
- Fluid Outlet Size: 1"
- Weight: 15.7 kg
1" All-Stainless Steel Pump with Side Threaded Connections
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 40 gpm (150 L/min)
- Max. Reciprocating Speed: 276 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.16" (4 mm)
- Max. Air Consumption: 45 scfm (22.5 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1"
- Fluid Outlet Size: 1"
- Weight: 15.7 kg

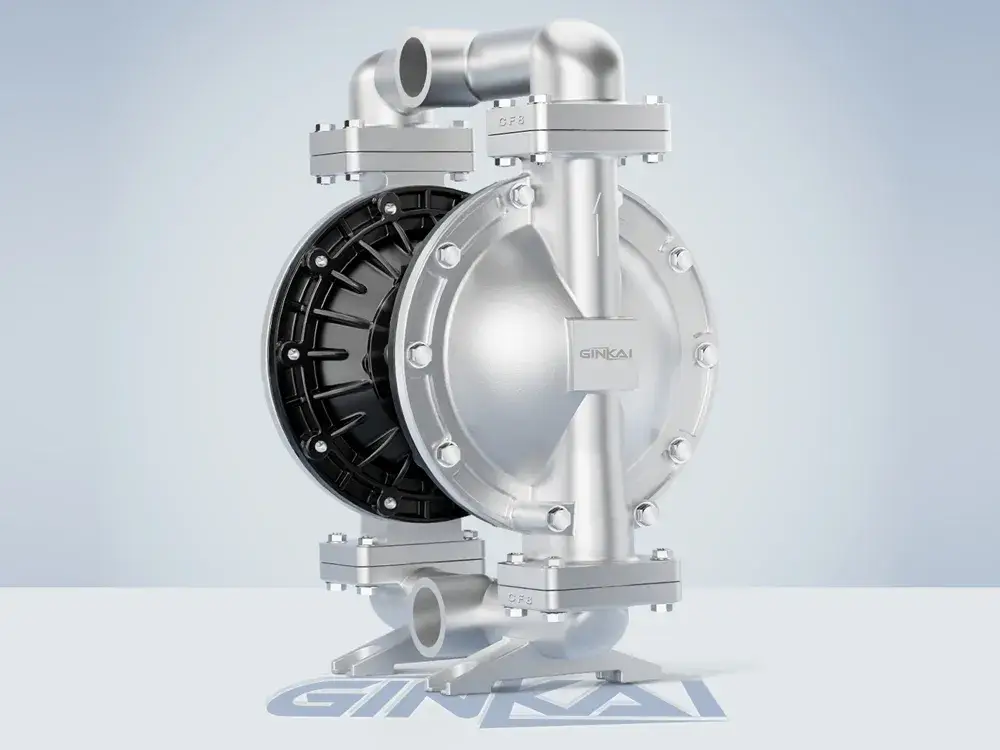

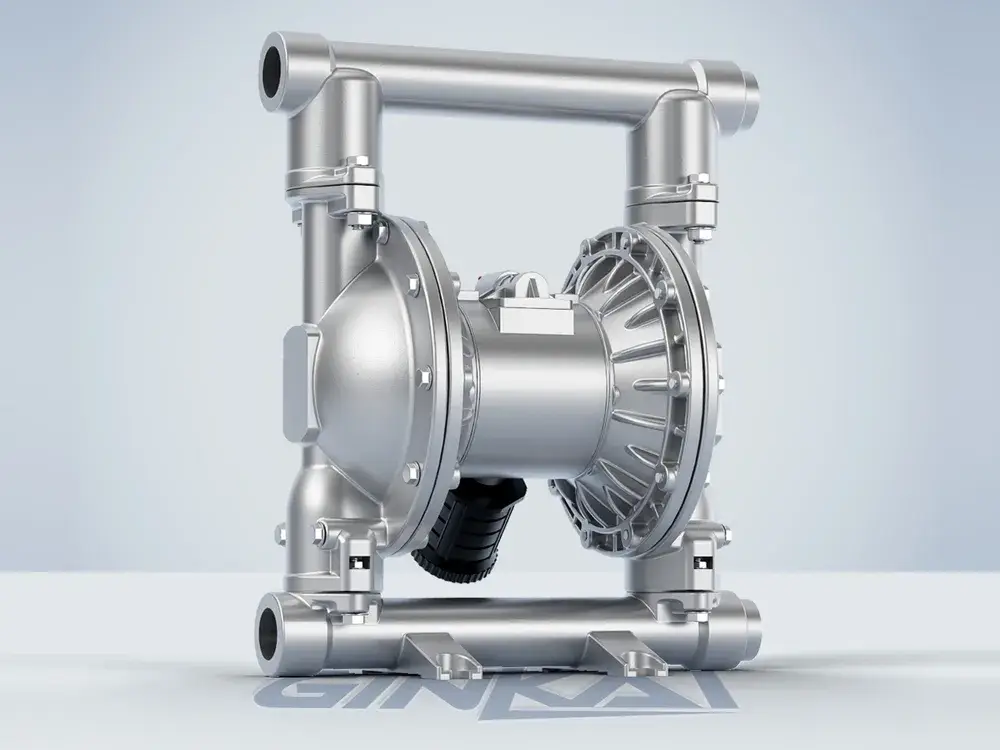

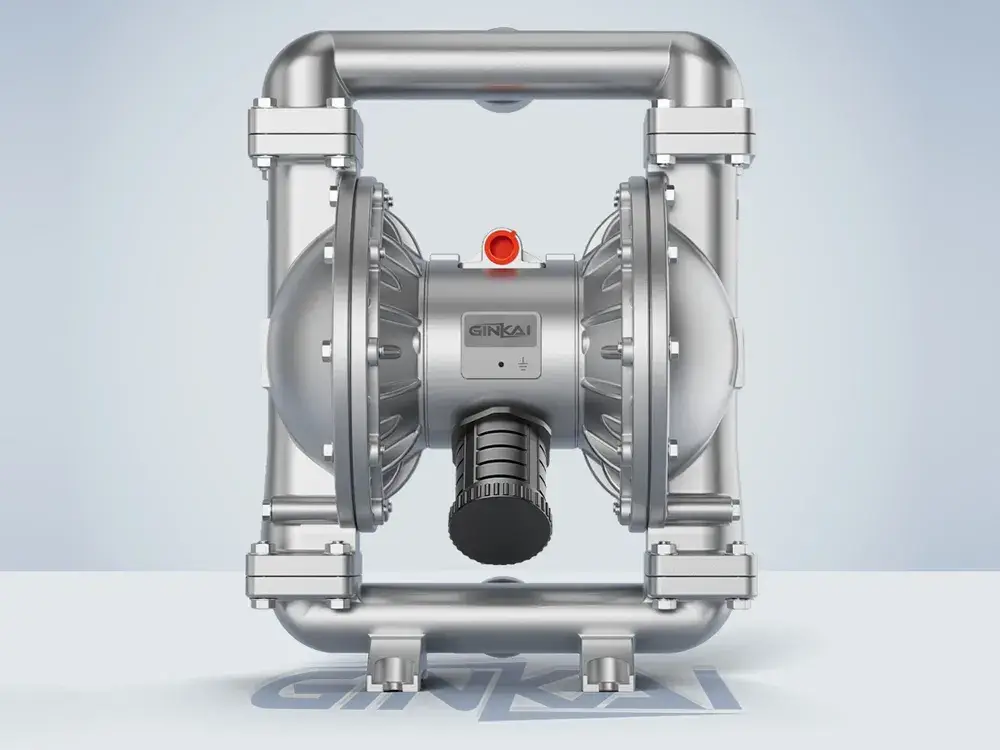

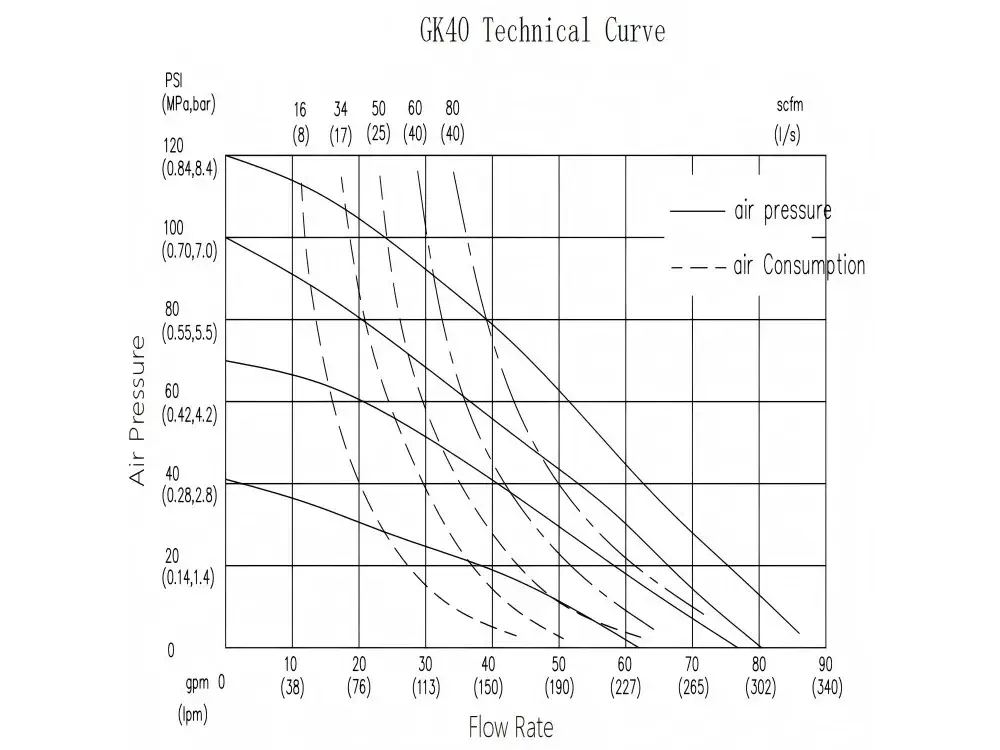

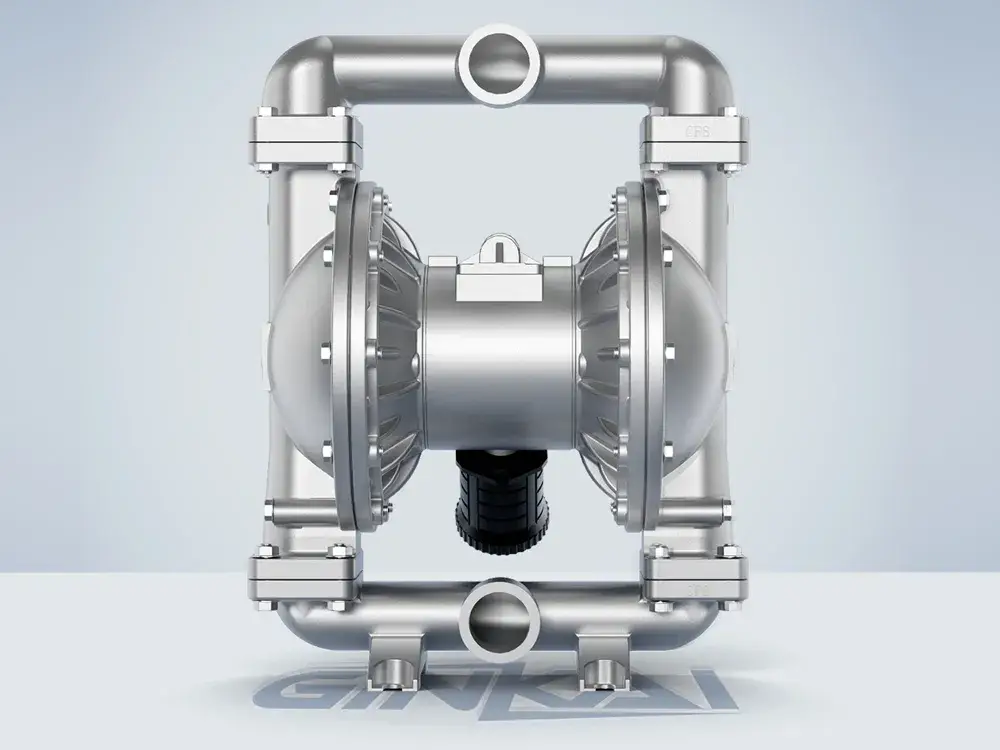

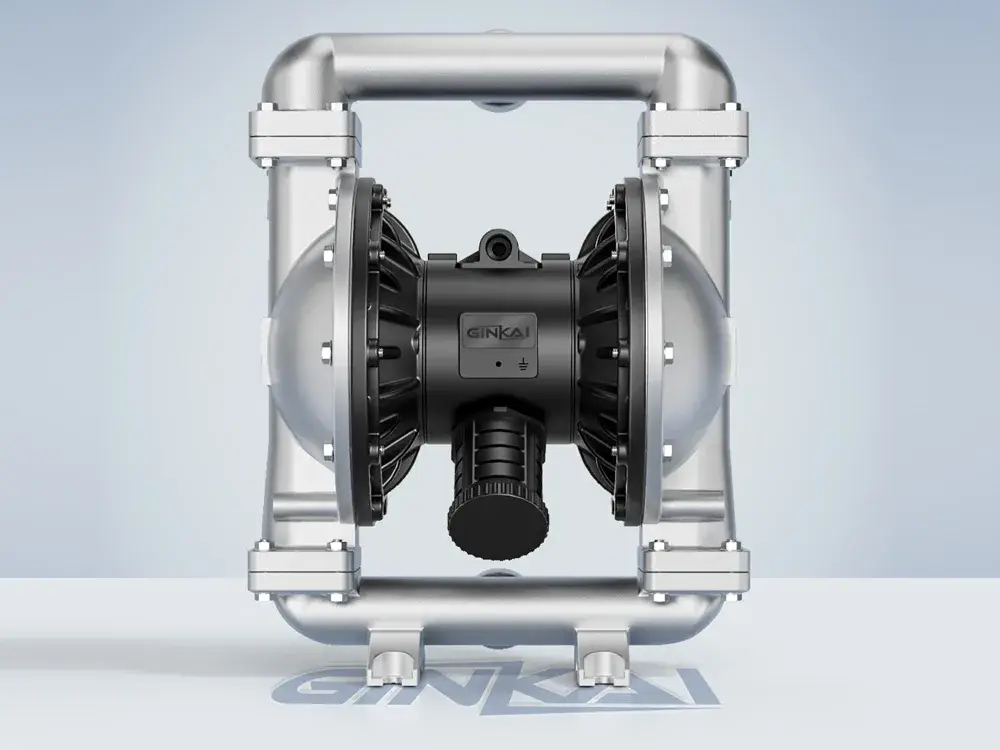

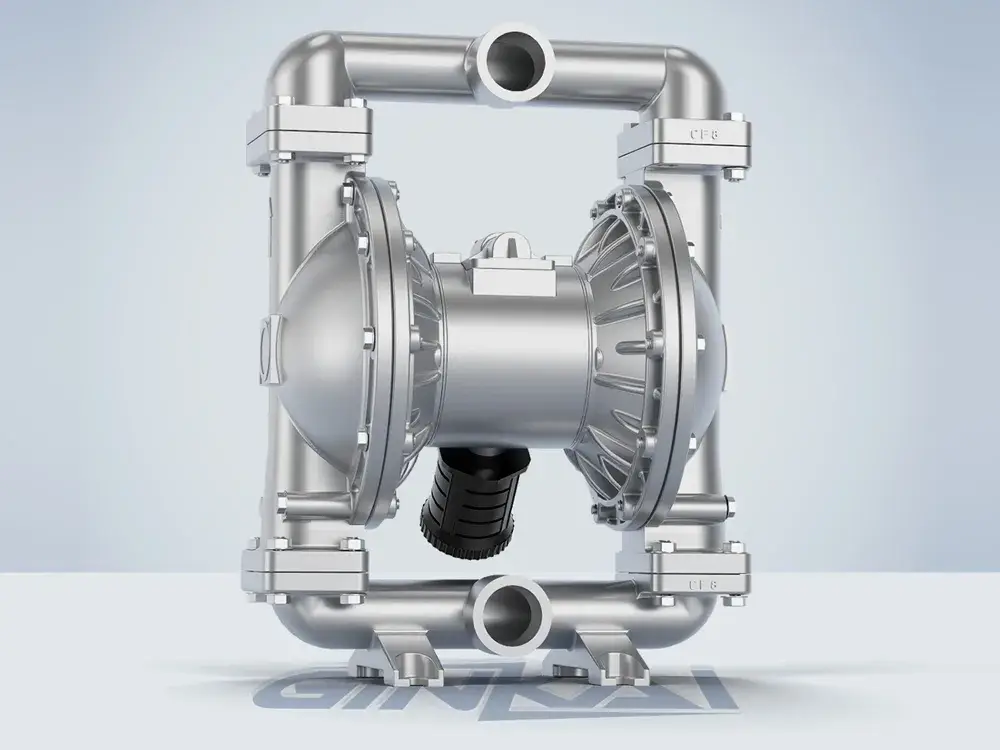

1-1/2" SS Air Operated Diaphragm Pump
1-1/2" All-Stainless Steel Pump, Side Threaded Ports
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 90 gpm (340 L/min)
- Max. Reciprocating Speed: 200 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.2" (5 mm)
- Max. Air Consumption: 80 scfm (40 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1-1/2"
- Fluid Outlet Size: 1-1/2"
- Weight: 30.7 kg
1-1/2" SS Air Operated Diaphragm Pump
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 90 gpm (340 L/min)
- Max. Reciprocating Speed: 200 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.2" (5 mm)
- Max. Air Consumption: 80 scfm (40 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1-1/2"
- Fluid Outlet Size: 1-1/2"
- Weight: 30.7 kg
1-1/2" All-Stainless Steel Pump, Threaded Ports with Center Outlet
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 90 gpm (340 L/min)
- Max. Reciprocating Speed: 200 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.2" (5 mm)
- Max. Air Consumption: 80 scfm (40 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 1-1/2"
- Fluid Outlet Size: 1-1/2"
- Weight: 30.7 kg

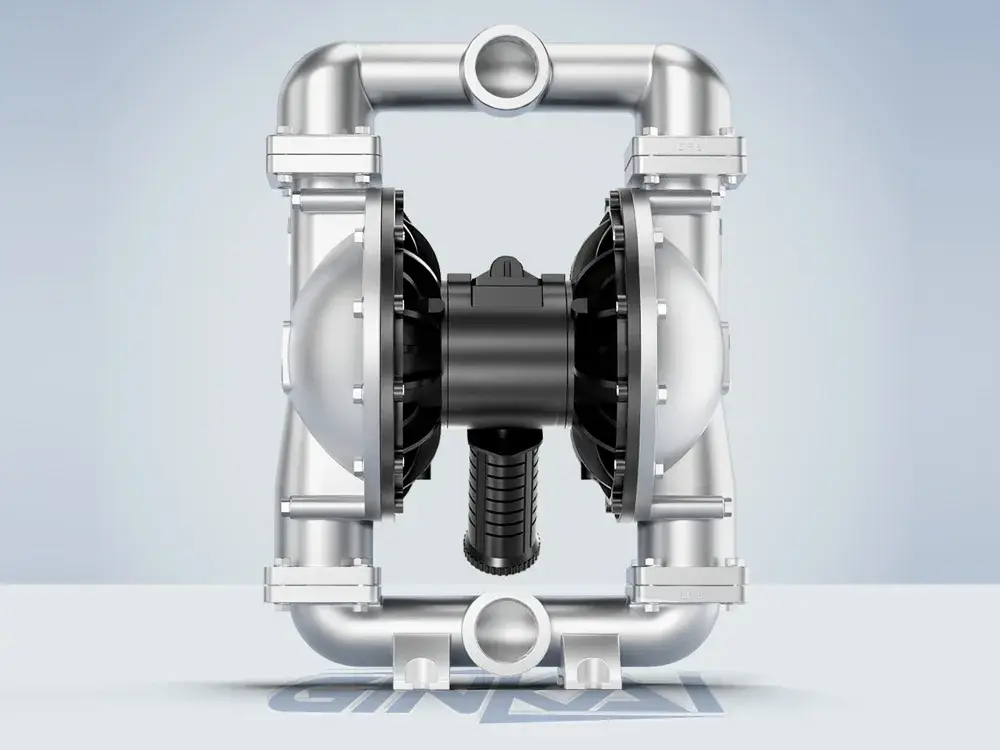

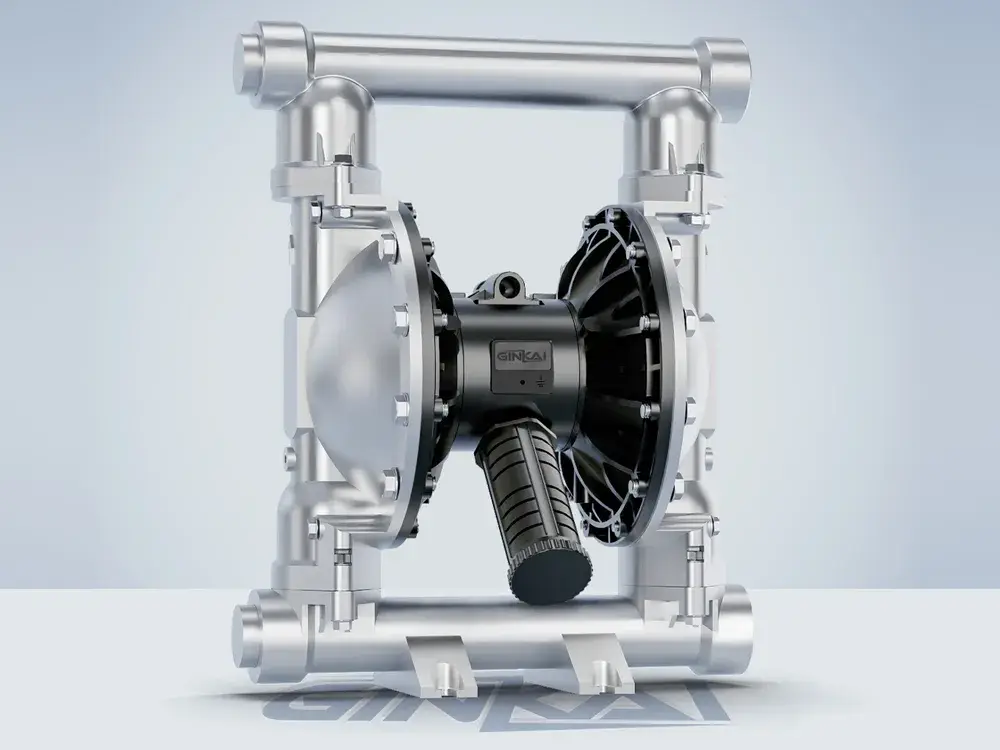

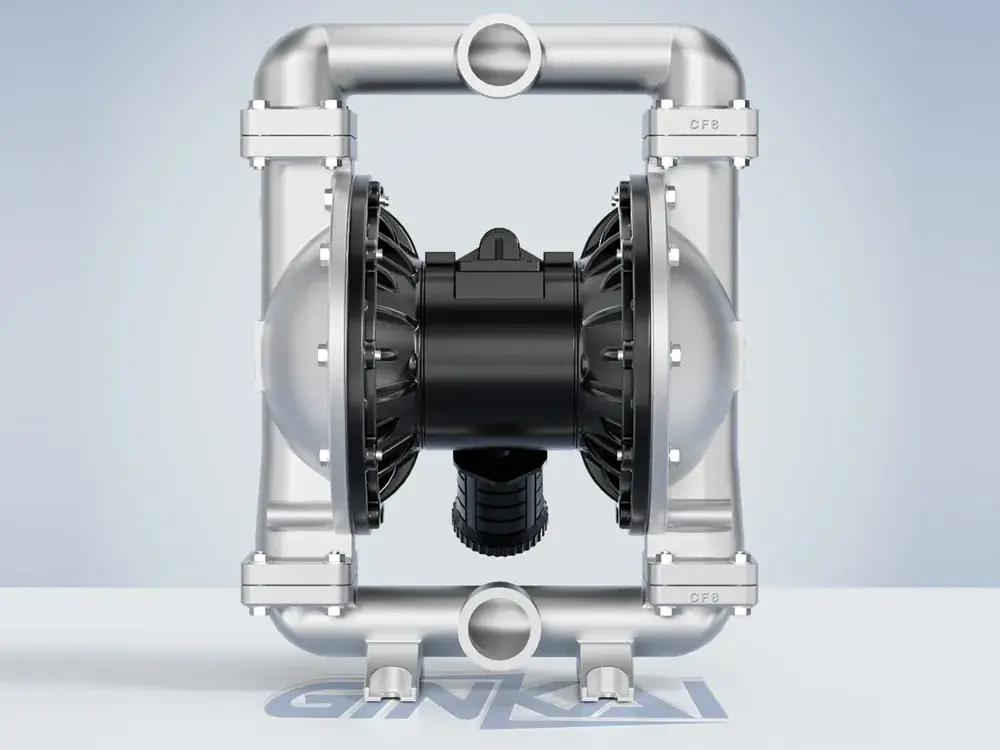

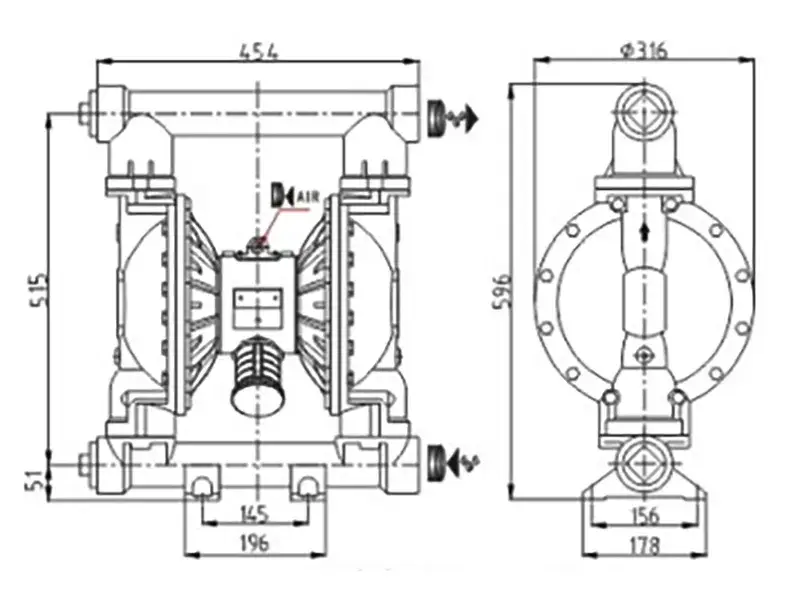

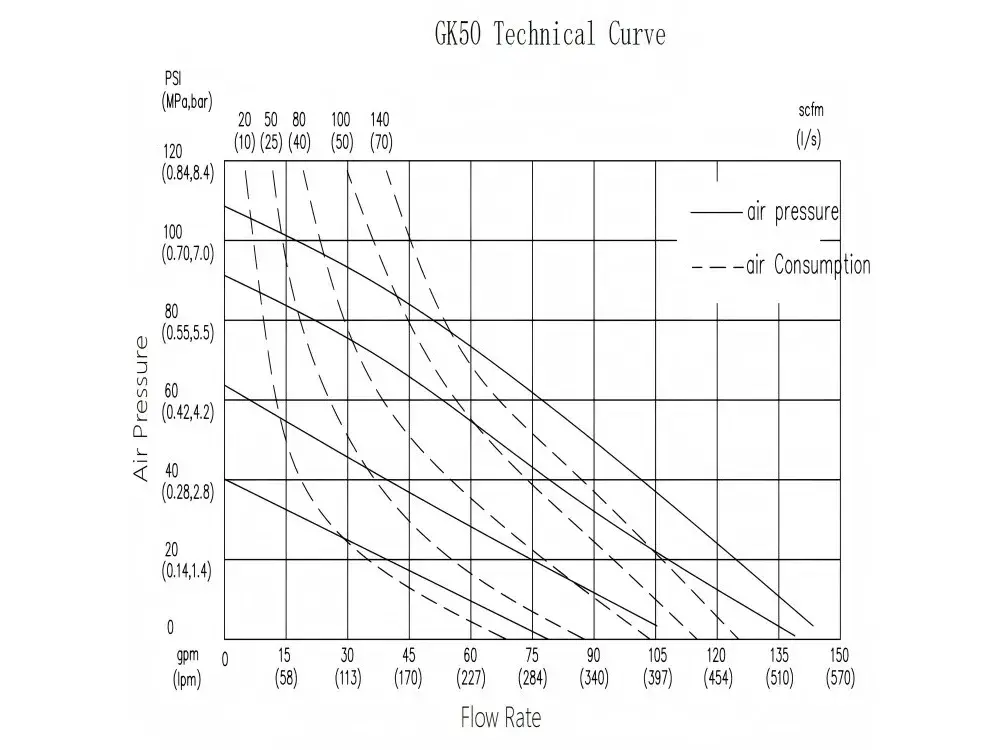

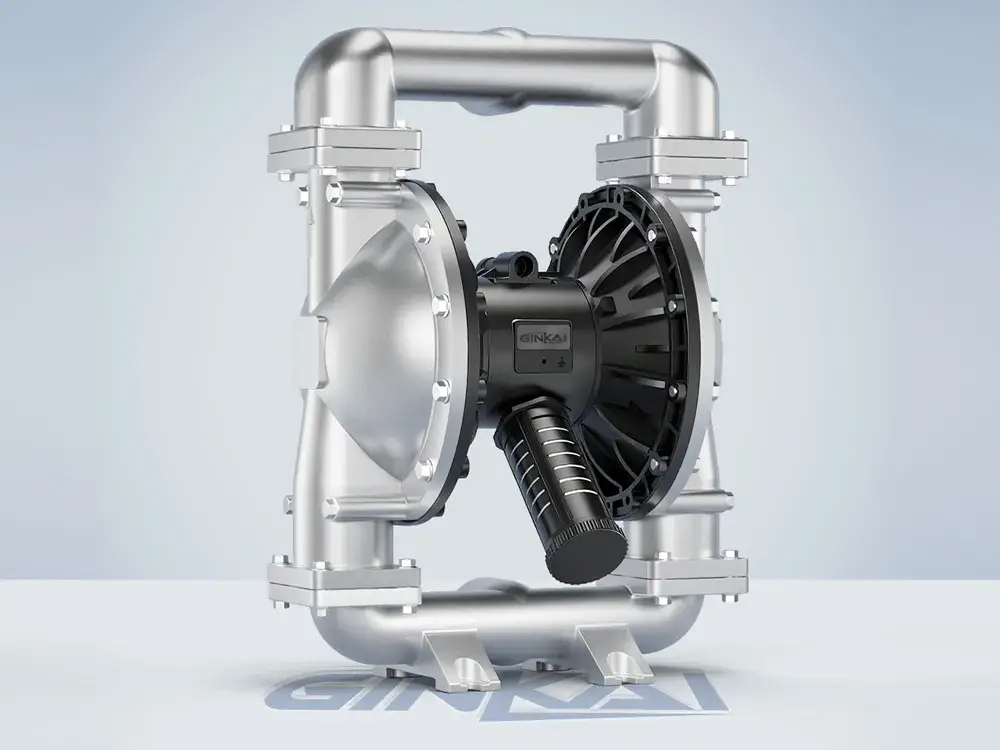

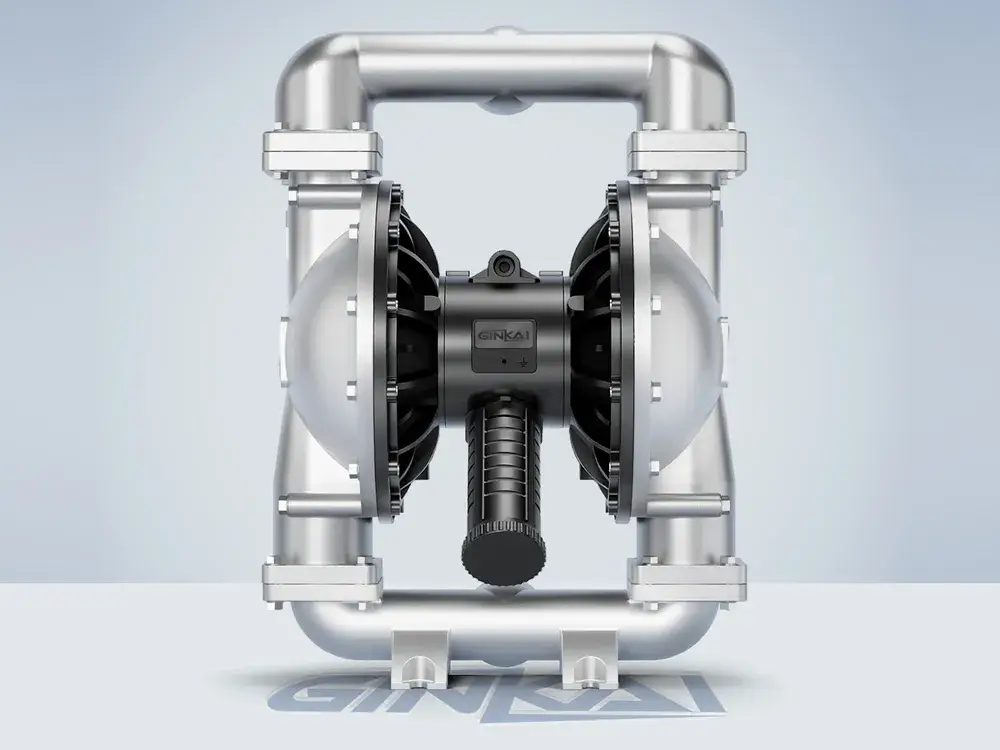

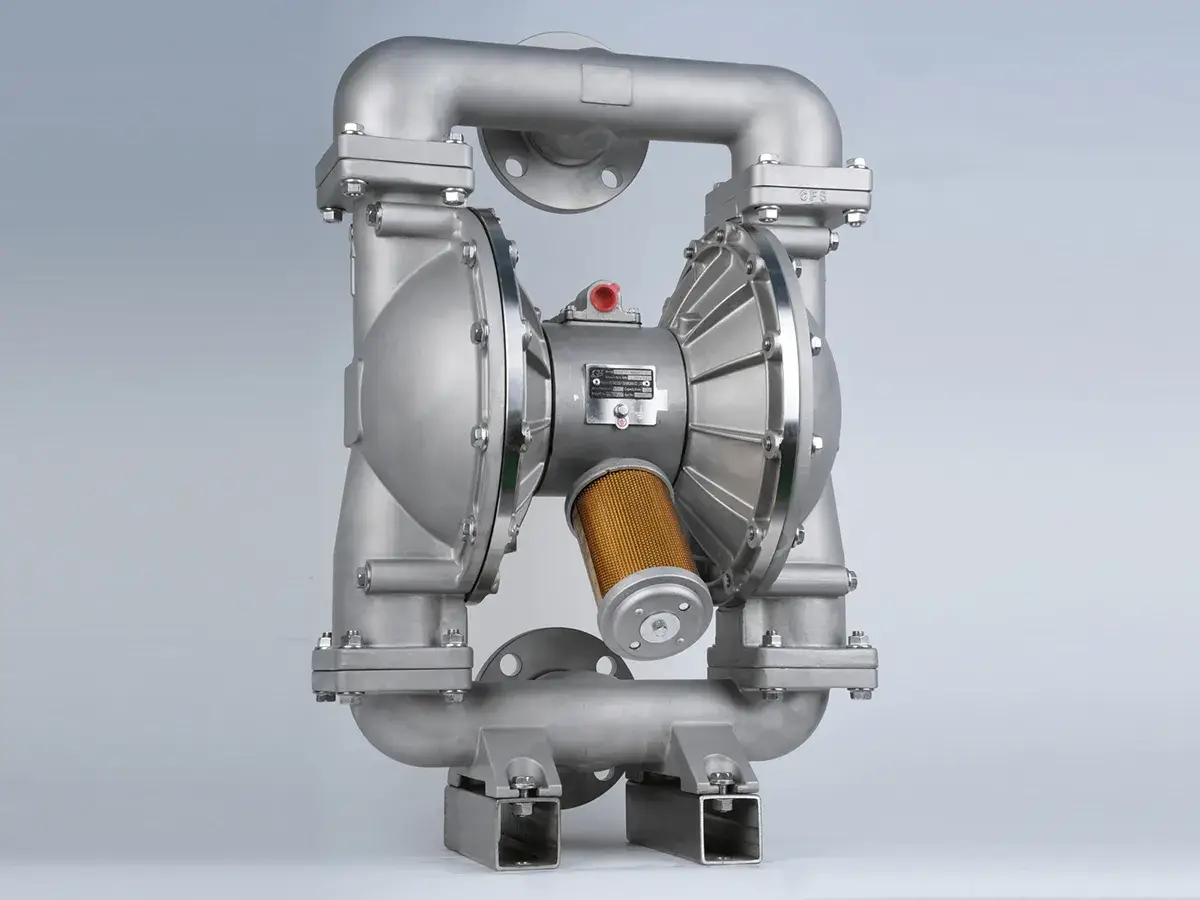

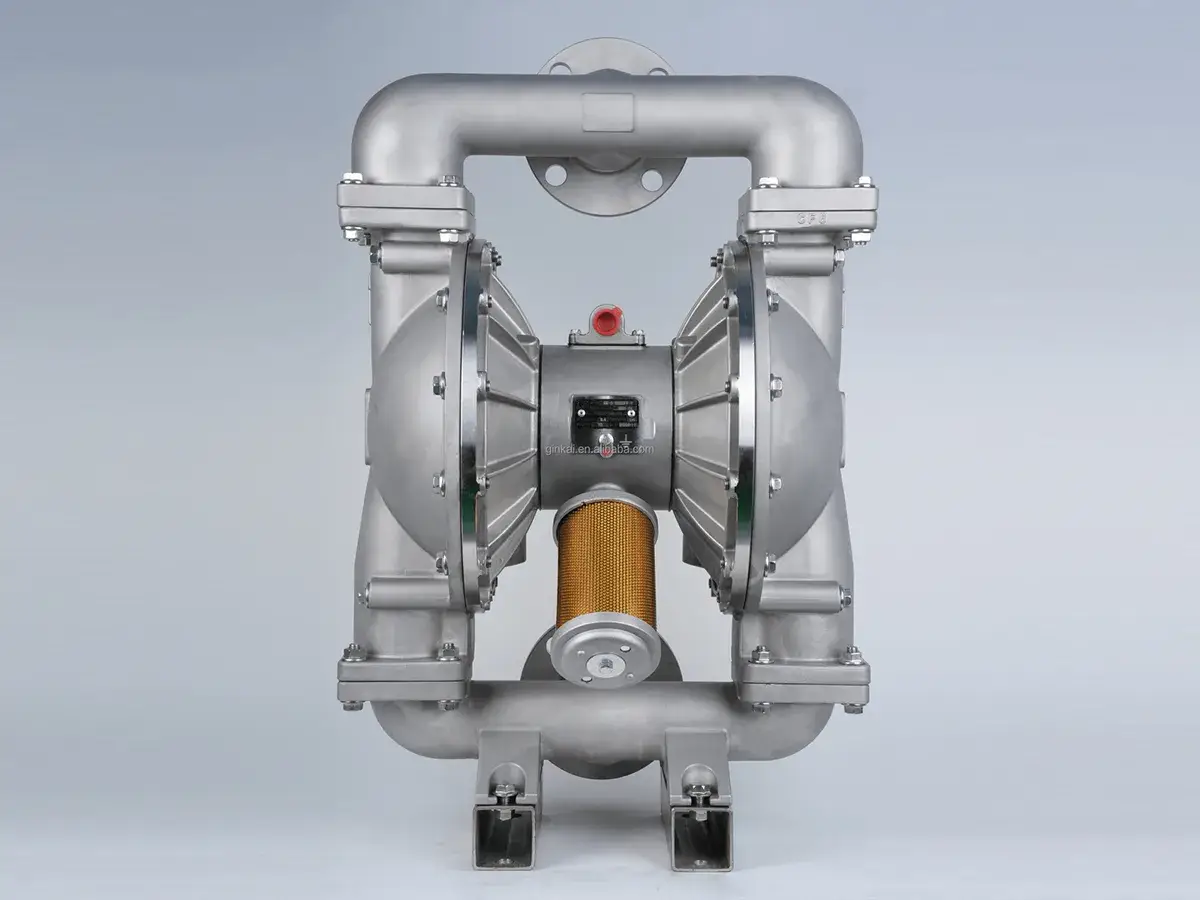

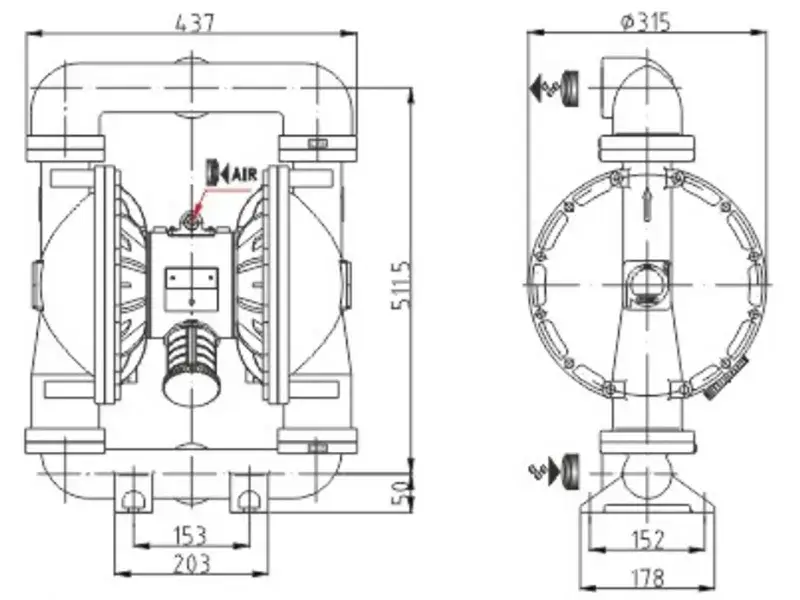

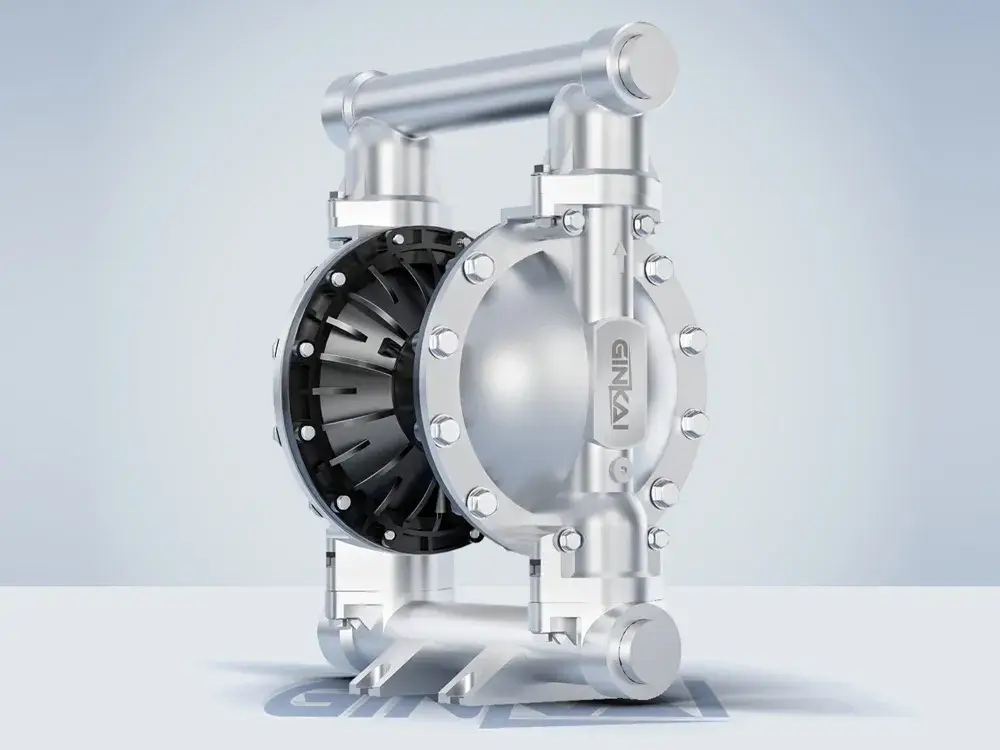

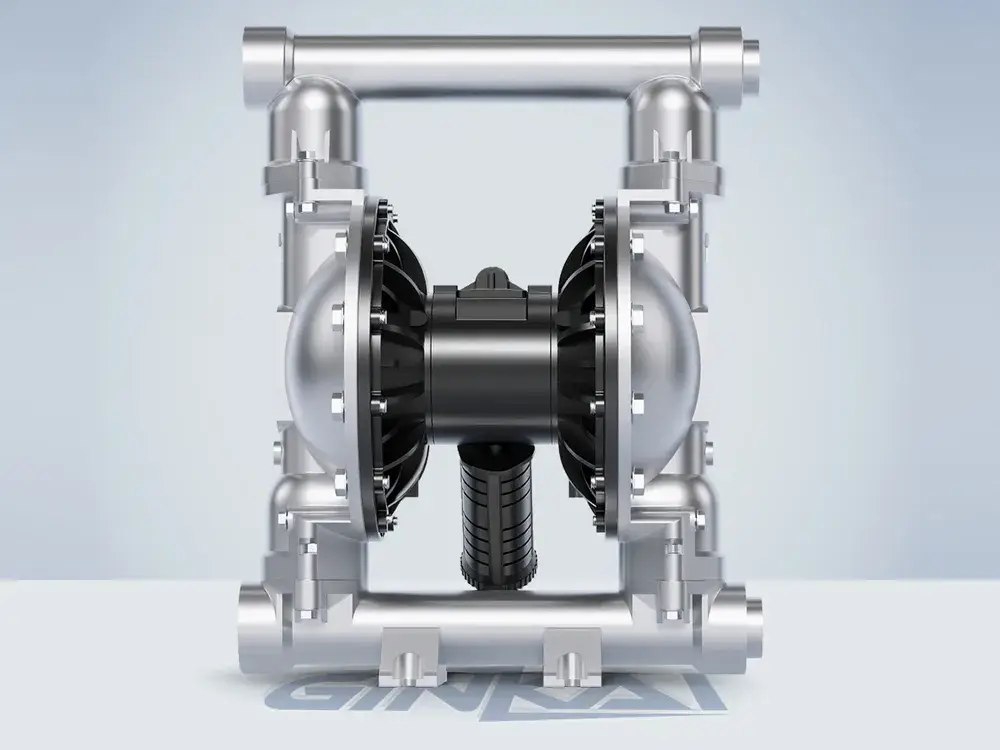

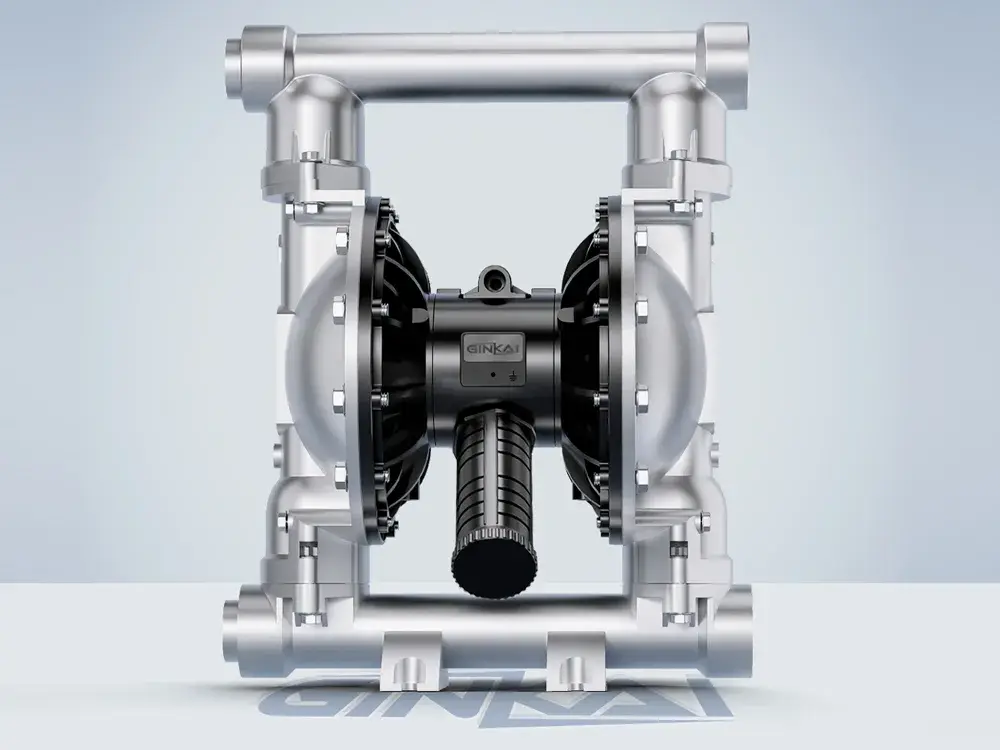

2" Stainless Steel Pneumatic Diaphragm Pump

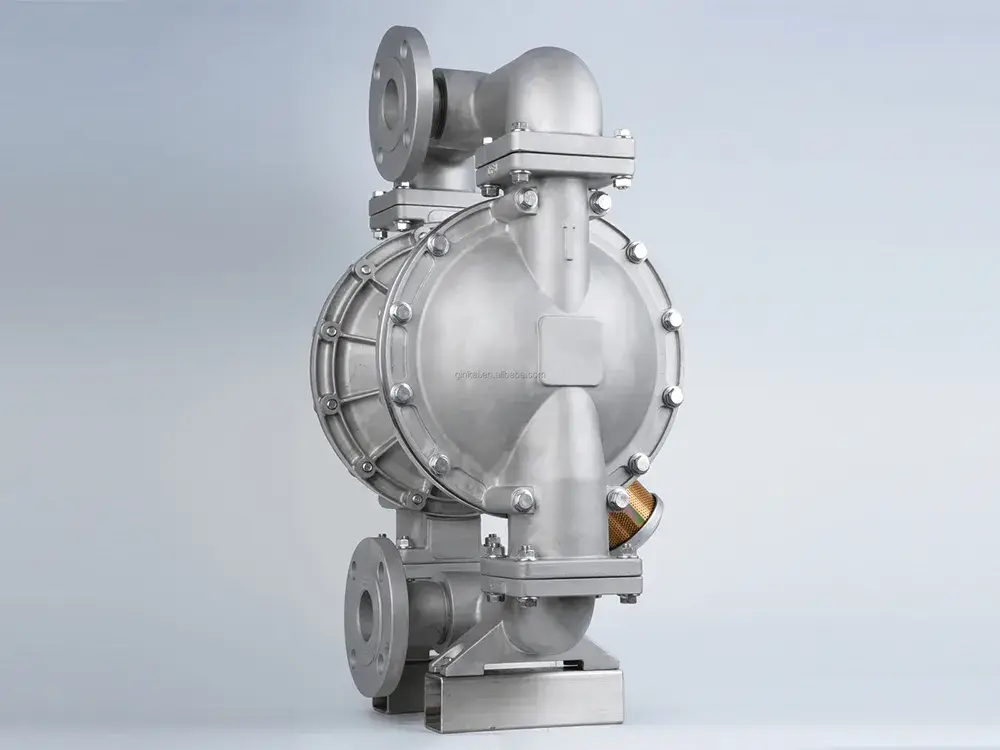

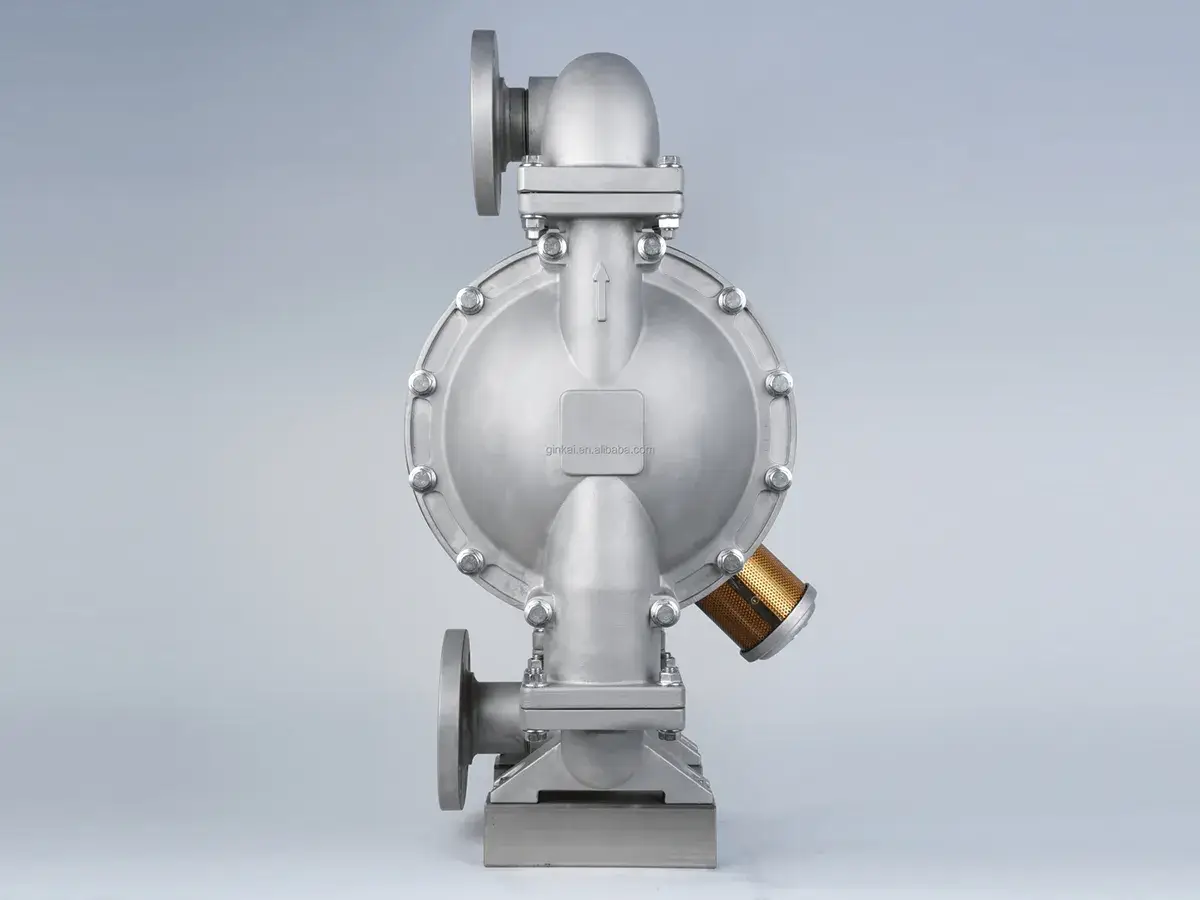

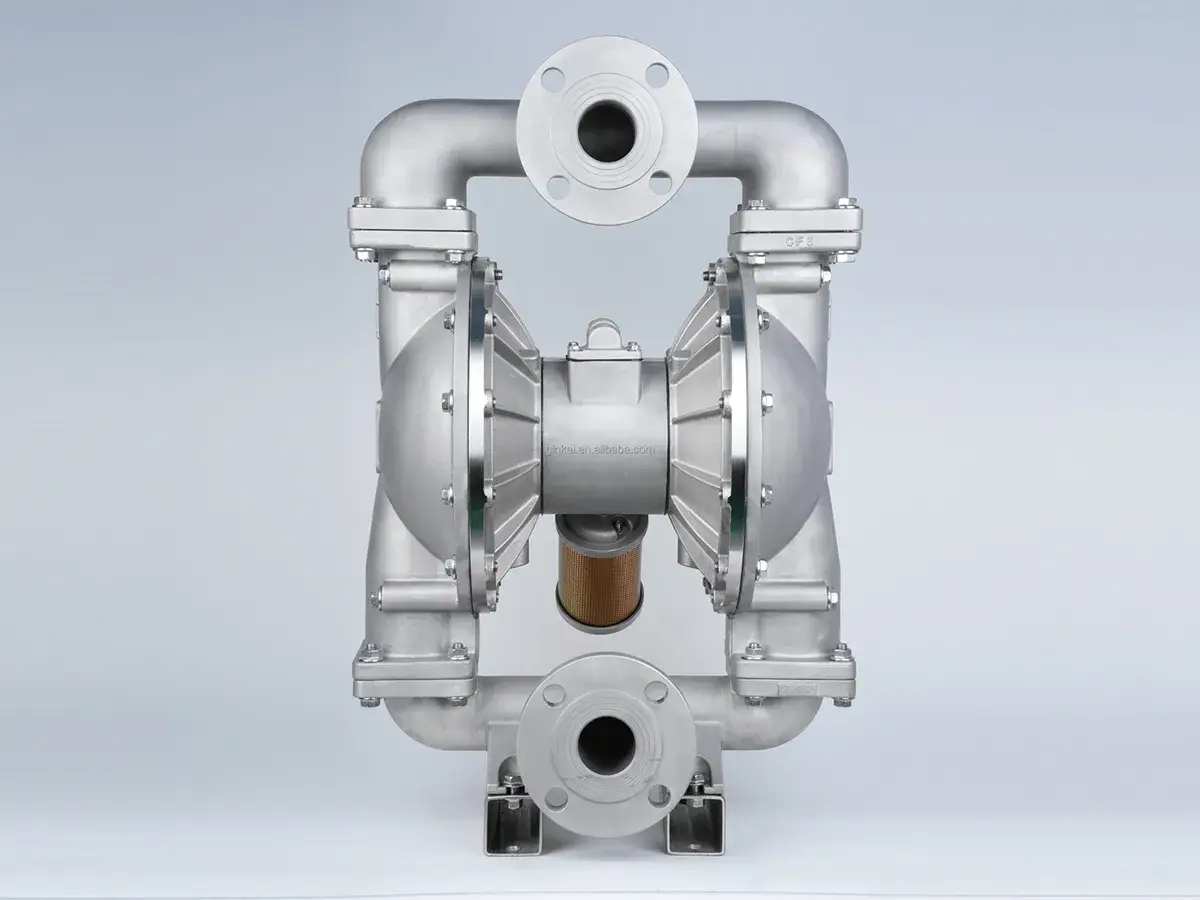

2" All-Stainless Steel Pump with Flanged Connections
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 150 gpm (570 L/min)
- Max. Reciprocating Speed: 145 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.24" (6 mm)
- Max. Air Consumption: 140 scfm (70 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 2"
- Fluid Outlet Size: 2"
- Weight: 48 kg
2" Stainless Steel Pump with Side Threaded Ports
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 150 gpm (570 L/min)
- Max. Reciprocating Speed: 145 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.24" (6 mm)
- Max. Air Consumption: 140 scfm (70 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 2"
- Fluid Outlet Size: 2"
- Weight: 48 kg
2" Stainless Steel Pump with Threaded Ports, Center Outlet, and Aluminum Alloy Intermediate
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 150 gpm (570 L/min)
- Max. Reciprocating Speed: 145 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.24" (6 mm)
- Max. Air Consumption: 140 scfm (70 L/s)
- Air Inlet Size: 1/2"
- Air Outlet Size: 3/4"
- Fluid Inlet Size: 2"
- Fluid Outlet Size: 2"
- Weight: 48 kg

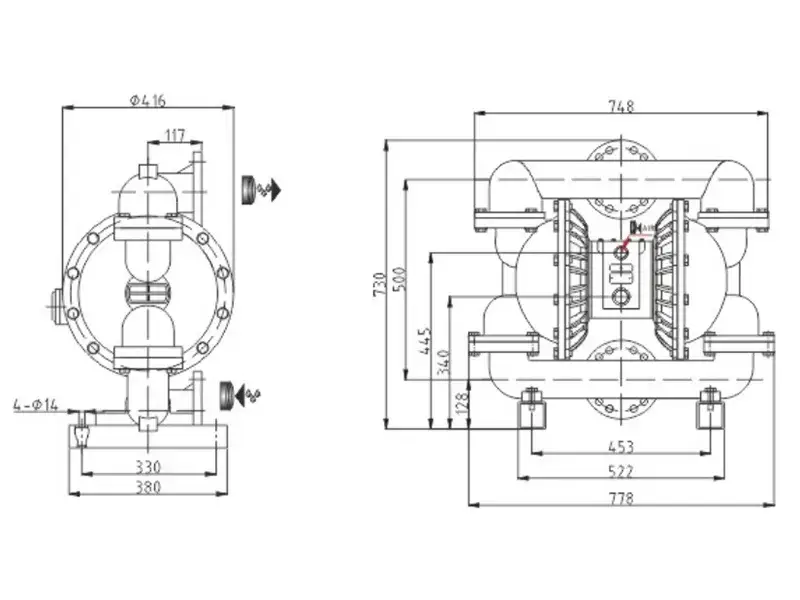

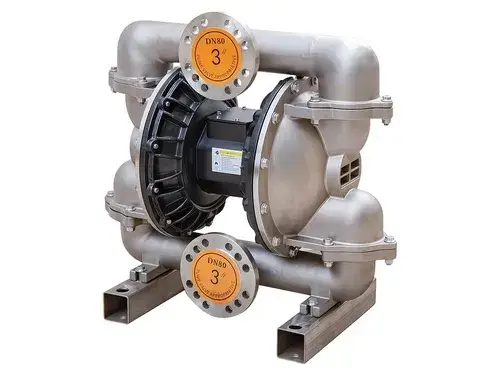

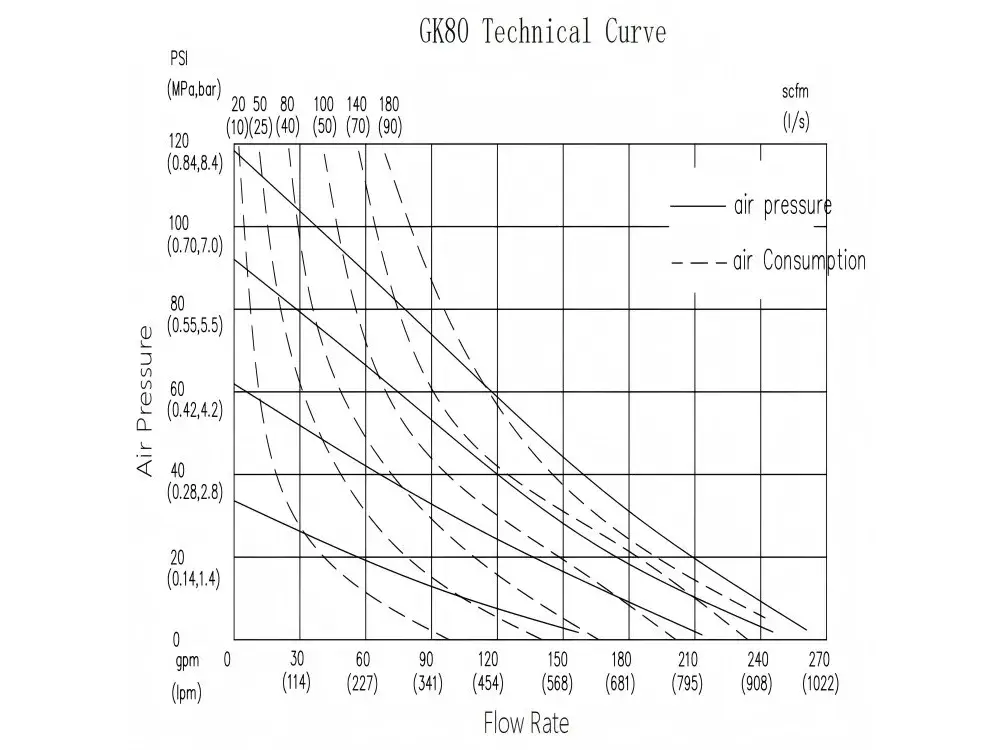

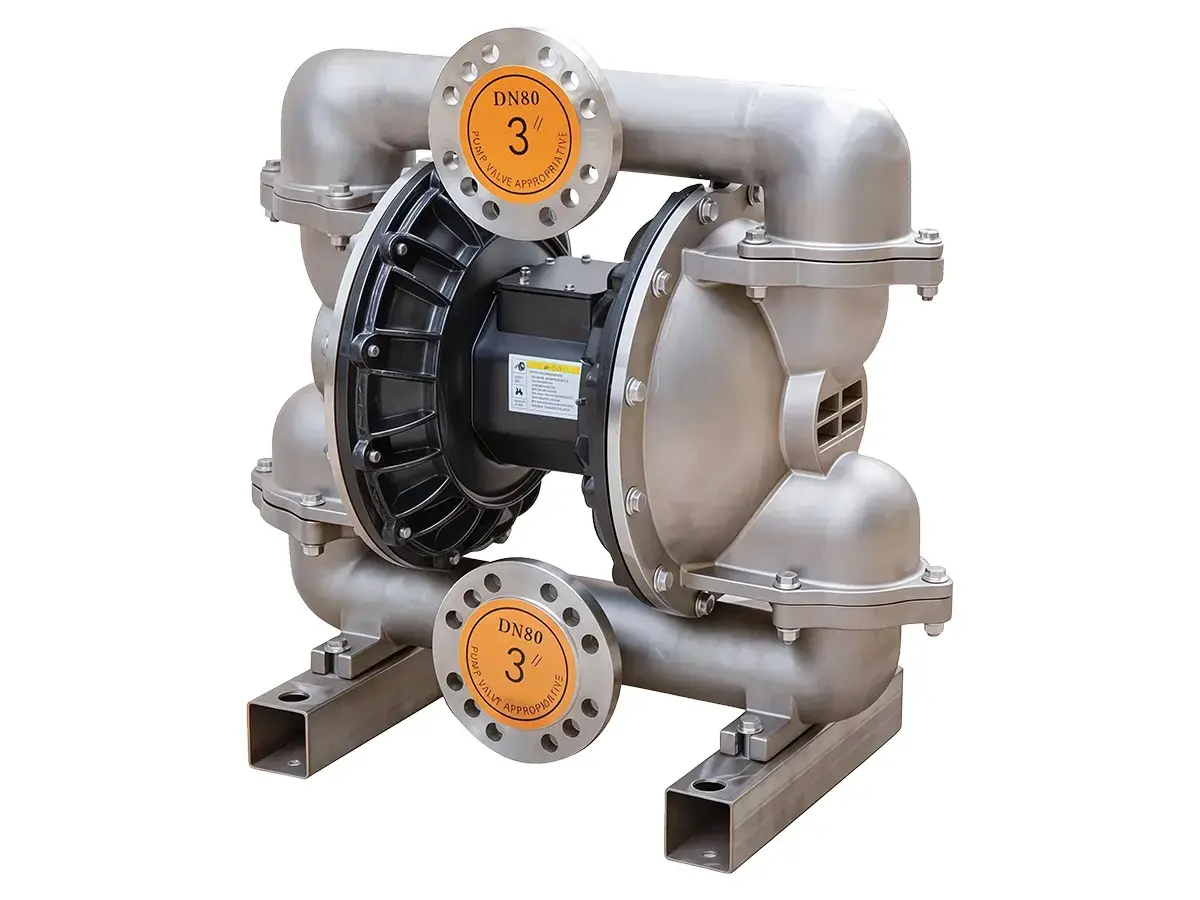

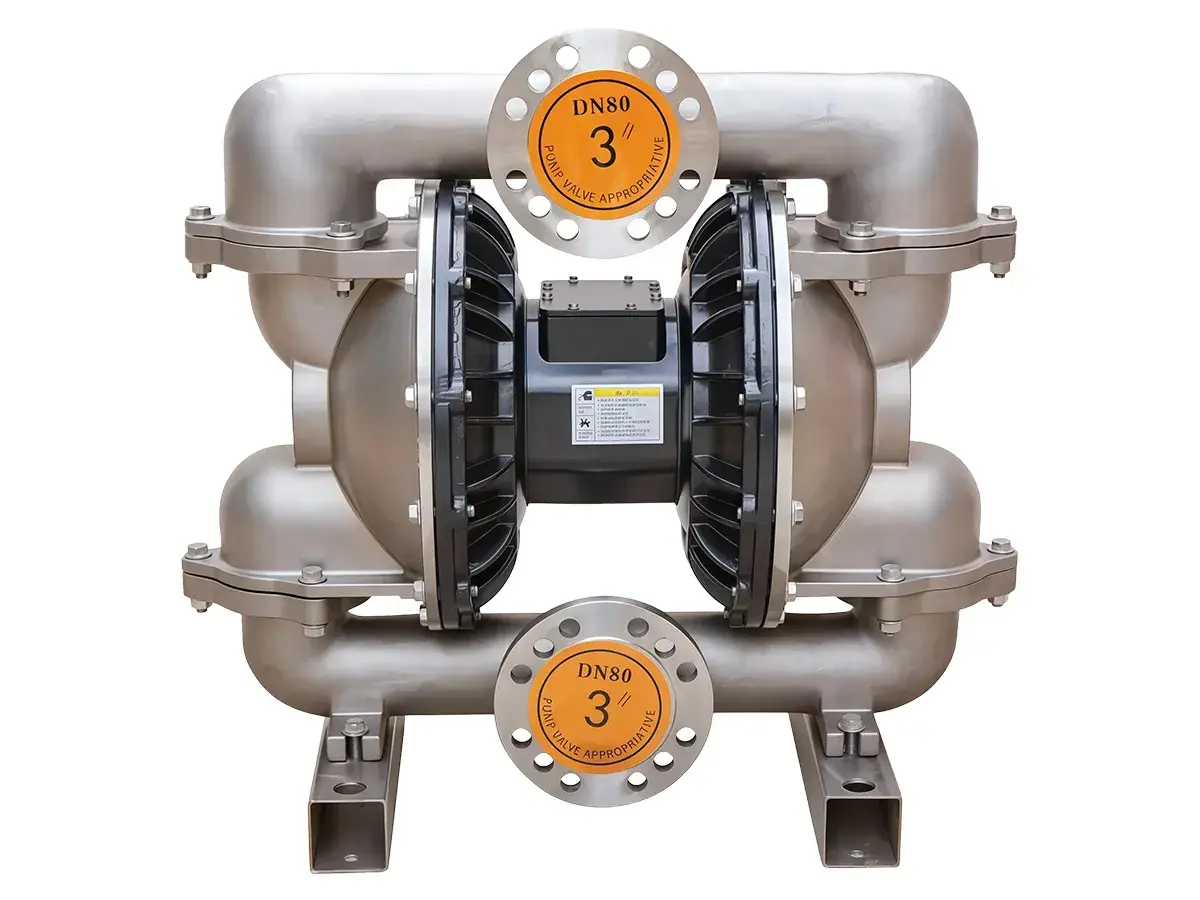

3" SS AODD Pump
- Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
- Max. Flow Rate: 270 gpm (1022 L/min)
- Max. Reciprocating Speed: 135 cpm
- Suction Lift (Dry): 5 m
- Max. Solid Particle Size: 0.37" (9.4 mm)
- Max. Air Consumption: 90 L/s
- Air Inlet Size: 3/4"
- Air Outlet Size: 1"
- Fluid Inlet Size: 3"
- Fluid Outlet Size: 3"
- Weight: 122 kg
