PTFE Air Operated Diaphragm Pumps

PTFE Air Operated Diaphragm Pumps

  • Max. Working Pressure: 100 psi / 0.7 MPa / 7 bar
  • Max. Flow Rate: 36-315 L/min
  • Max. Reciprocating Speed: 200-400 cpm
  • Suction Lift (Dry): 3.5-4.5 m
  • Max. Solid Particle Size: 2.5-5 mm
  • Max. Air Consumption: 8.5-48.6 NL/s
Request a Quote

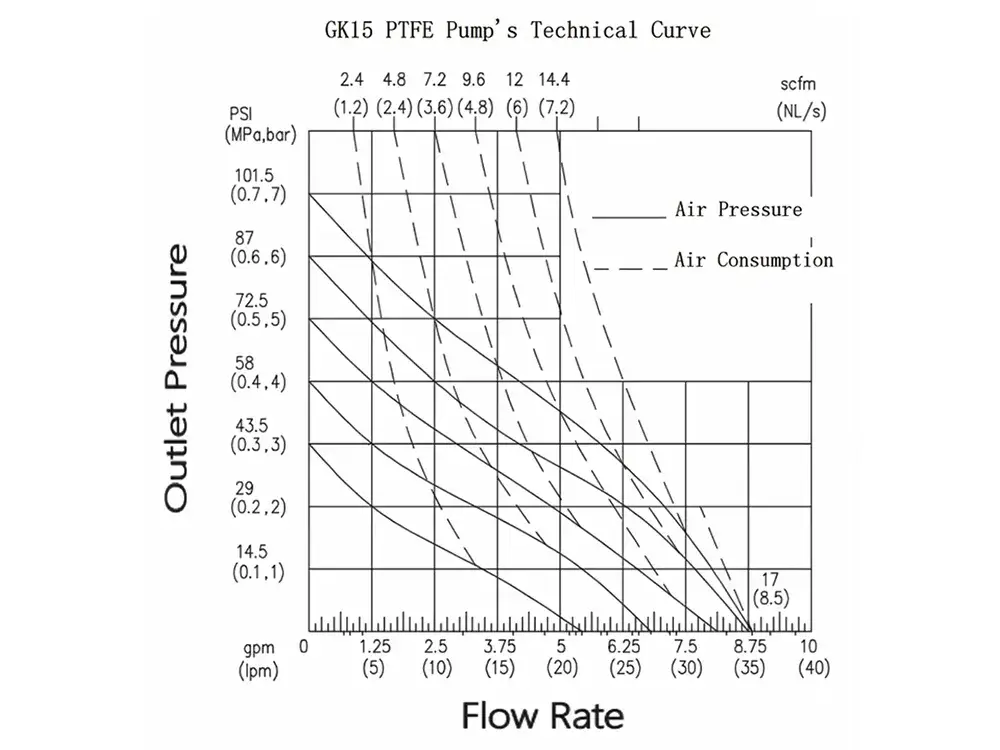

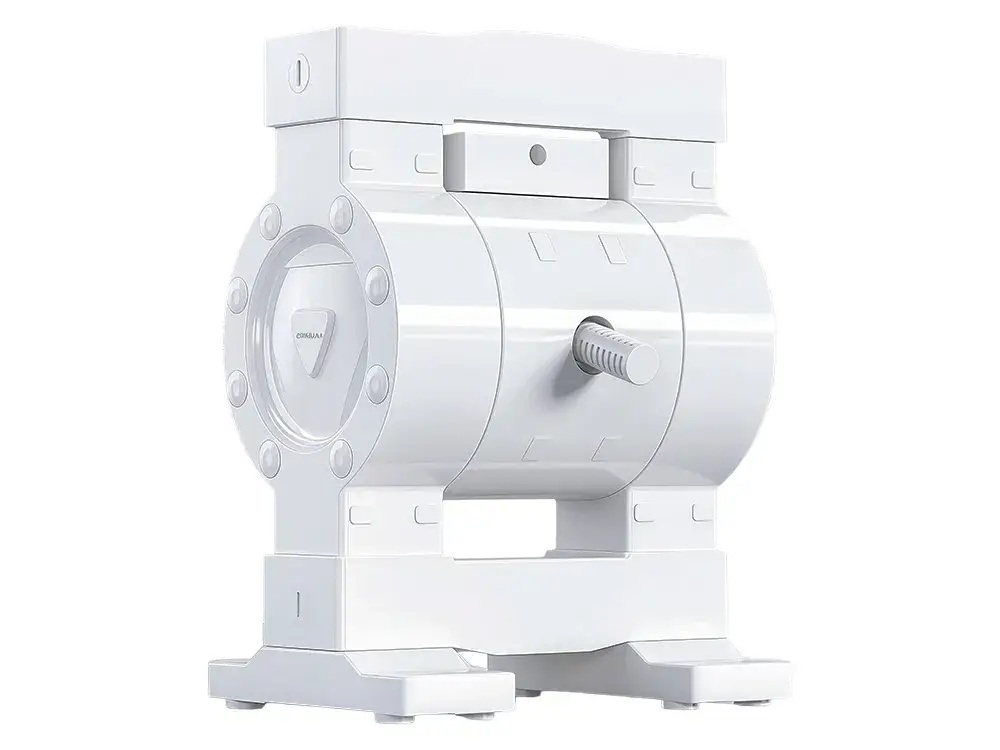

1/2" PTFE AODD Pump
  • 1/2" PTFE AODD Pump
  • 1/2" PTFE AODD Pump
  • 1/2" PTFE AODD Pump
  • 1/2" PTFE AODD Pump
  • 1/2" PTFE AODD Pump
  • 1/2" PTFE AODD Pump

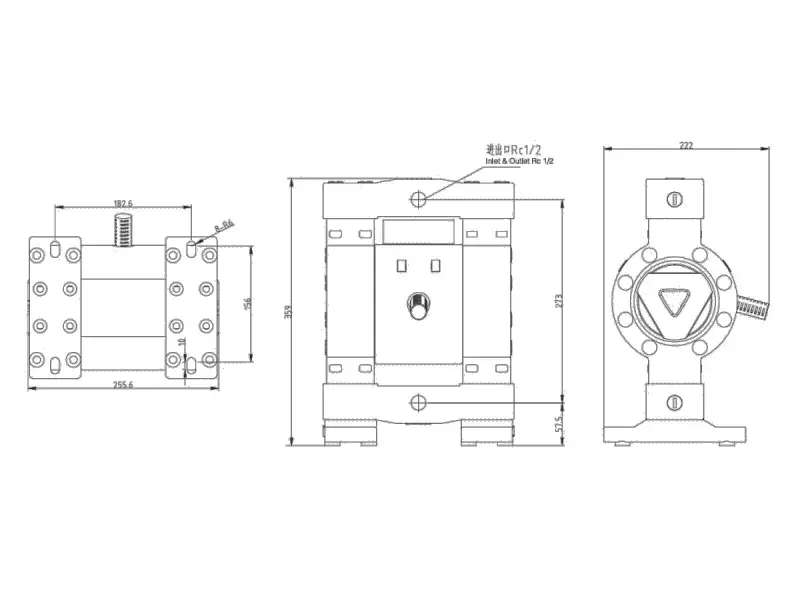

1/2" PTFE AODD Pump

  • Max. Working Pressure: 100 psi / 0.7 MPa / 7 bar
  • Max. Flow Rate: 36 L/min
  • Max. Reciprocating Speed: 400 cpm
  • Suction Lift (Dry): 3.5 m
  • Max. Solid Particle Size: 2.5 mm
  • Max. Air Consumption: 8.5 NL/s
  • Air Inlet Size: 1/4"
  • Air Outlet Size: 3/8"
  • Fluid Inlet Size: 1/2"
  • Fluid Outlet Size: 1/2"
  • Weight: 16 kg
Inquiry
1" PTFE Air Operated Diaphragm Pump
  • 1" PTFE Air Operated Diaphragm Pump
  • 1" PTFE Air Operated Diaphragm Pump
  • 1" PTFE Air Operated Diaphragm Pump
  • 1" PTFE Air Operated Diaphragm Pump

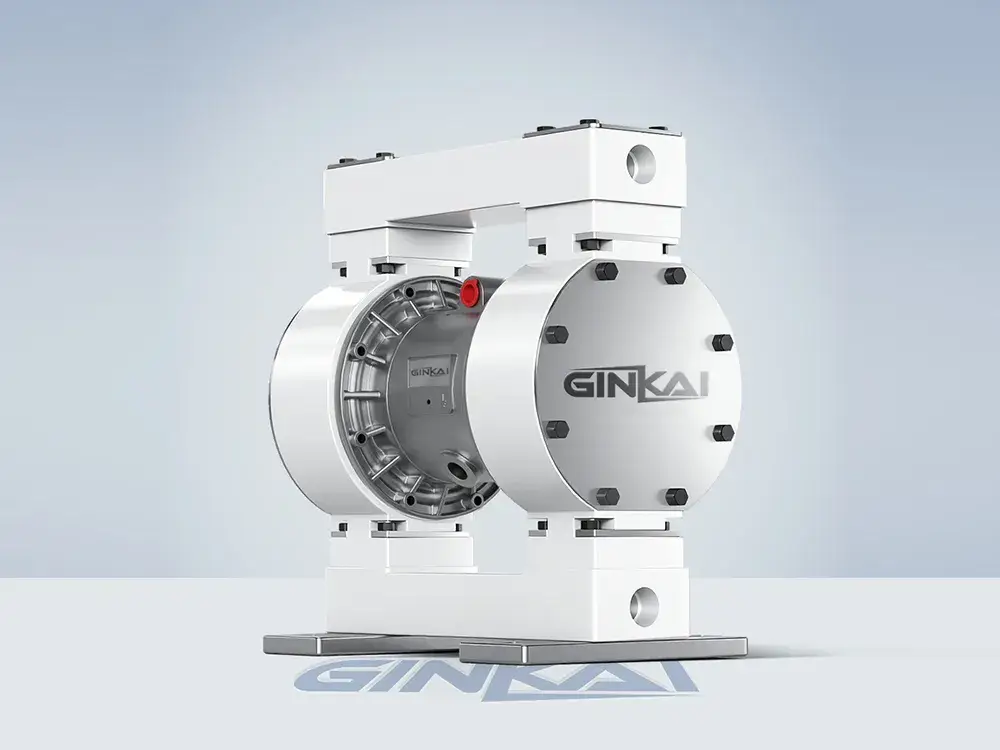

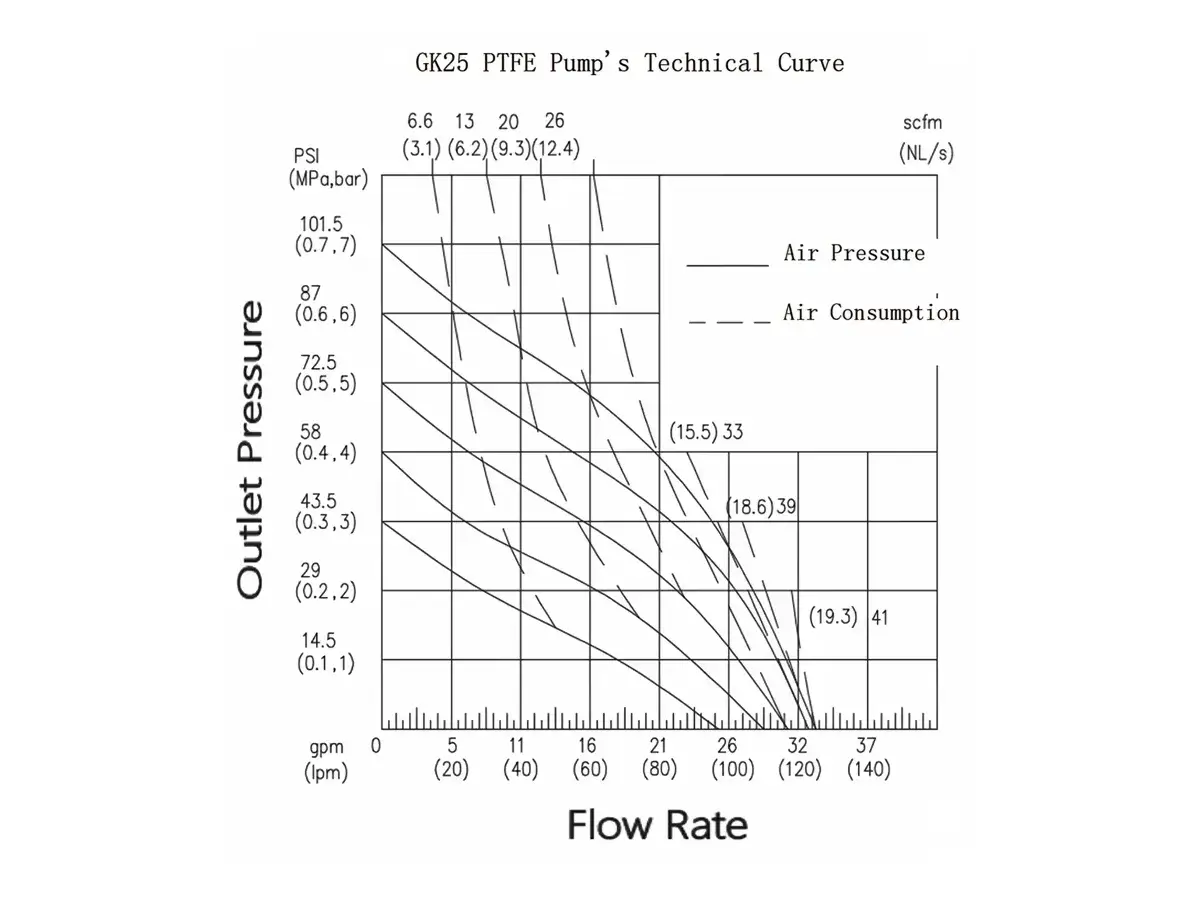

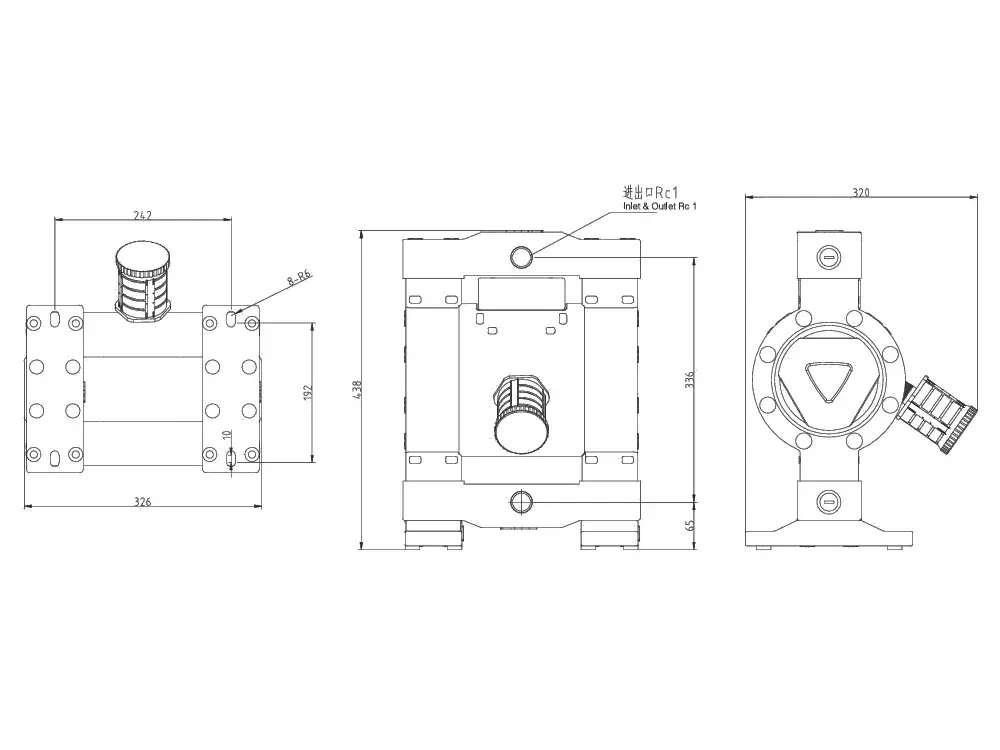

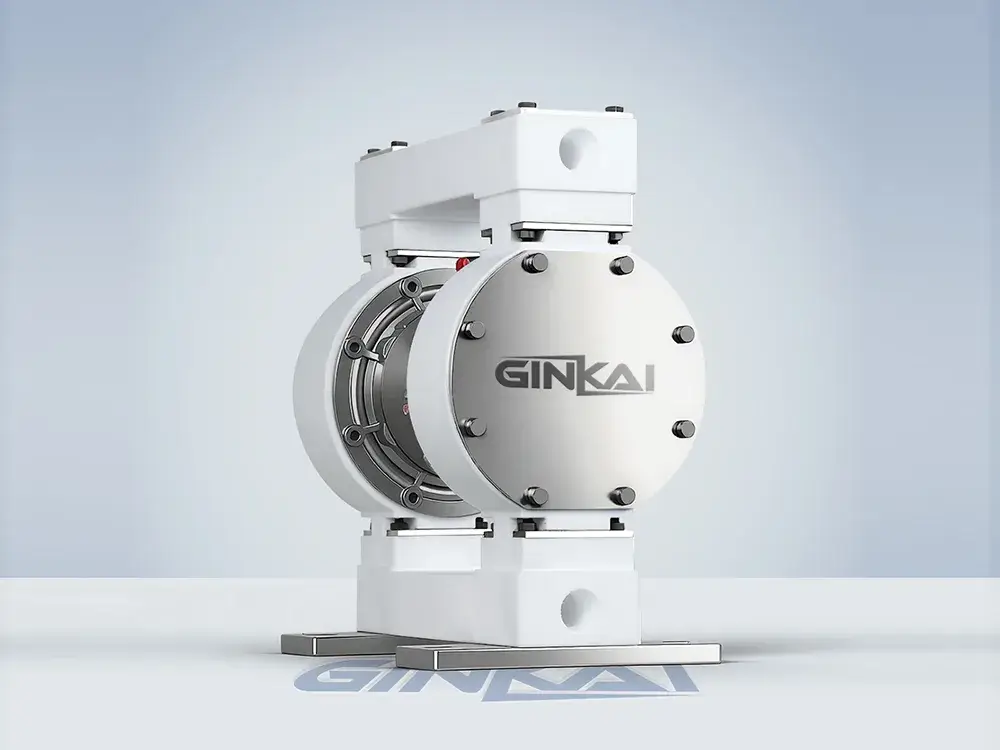

1" PTFE Air Operated Diaphragm Pump (PTFE Body)

  • Max. Working Pressure: 100 psi / 0.7 MPa / 7 bar
  • Max. Flow Rate: 125 L/min
  • Max. Reciprocating Speed: 276 cpm
  • Suction Lift (Dry): 3.5 m
  • Max. Solid Particle Size: 4 mm
  • Max. Air Consumption: 19.3 NL/s
  • Air Inlet Size: 1/2"
  • Air Outlet Size: 3/4"
  • Fluid Inlet Size: 1"
  • Fluid Outlet Size: 1"
  • Weight: 32 kg
Inquiry
1" PTFE Air Operated Diaphragm Pump
  • 1" PTFE Air Operated Diaphragm Pump
  • 1" PTFE Air Operated Diaphragm Pump
  • 1" PTFE Air Operated Diaphragm Pump
  • 1" PTFE Air Operated Diaphragm Pump
  • 1" PTFE Air Operated Diaphragm Pump
  • 1" PTFE Air Operated Diaphragm Pump

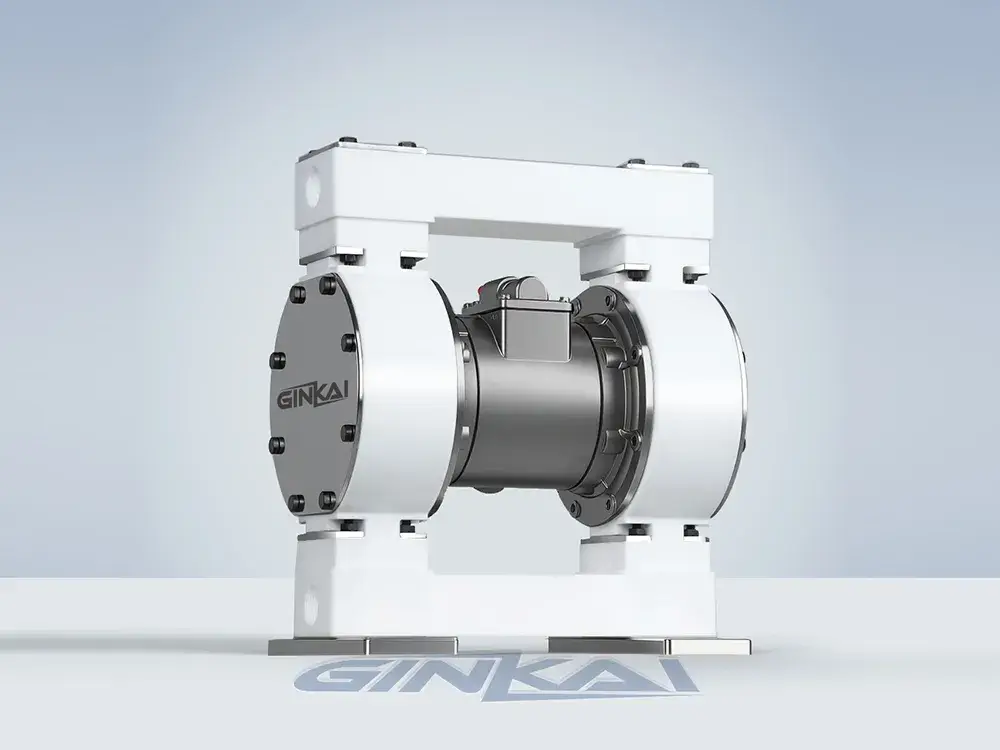

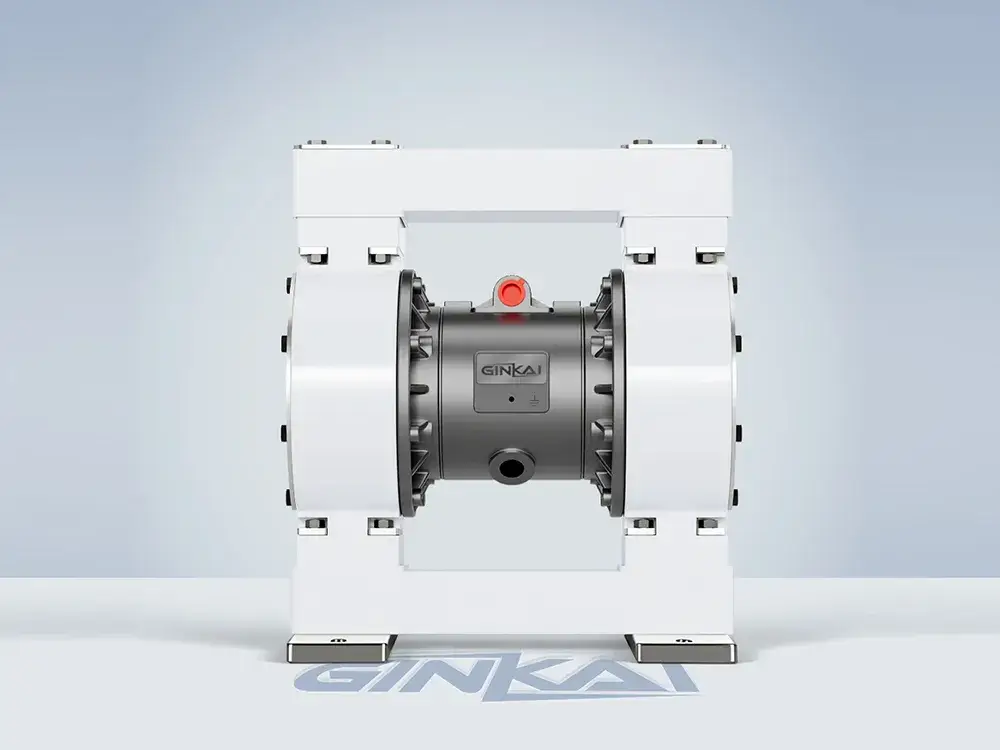

1" PTFE Air Operated Diaphragm Pump (PTFE Pump Body with Stainless Steel Intermediate)

  • Max. Working Pressure: 100 psi / 0.7 MPa / 7 bar
  • Max. Flow Rate: 125 L/min
  • Max. Reciprocating Speed: 276 cpm
  • Suction Lift (Dry): 3.5 m
  • Max. Solid Particle Size: 4 mm
  • Max. Air Consumption: 19.3 NL/s
  • Air Inlet Size: 1/2"
  • Air Outlet Size: 3/4"
  • Fluid Inlet Size: 1"
  • Fluid Outlet Size: 1"
  • Weight: 32 kg
Inquiry
1-1/2" PTFE Pneumatic Diaphragm Pump
  • 1-1/2" PTFE Pneumatic Diaphragm Pump
  • 1-1/2" PTFE Pneumatic Diaphragm Pump
  • 1-1/2" PTFE Pneumatic Diaphragm Pump
  • 1-1/2" PTFE Pneumatic Diaphragm Pump

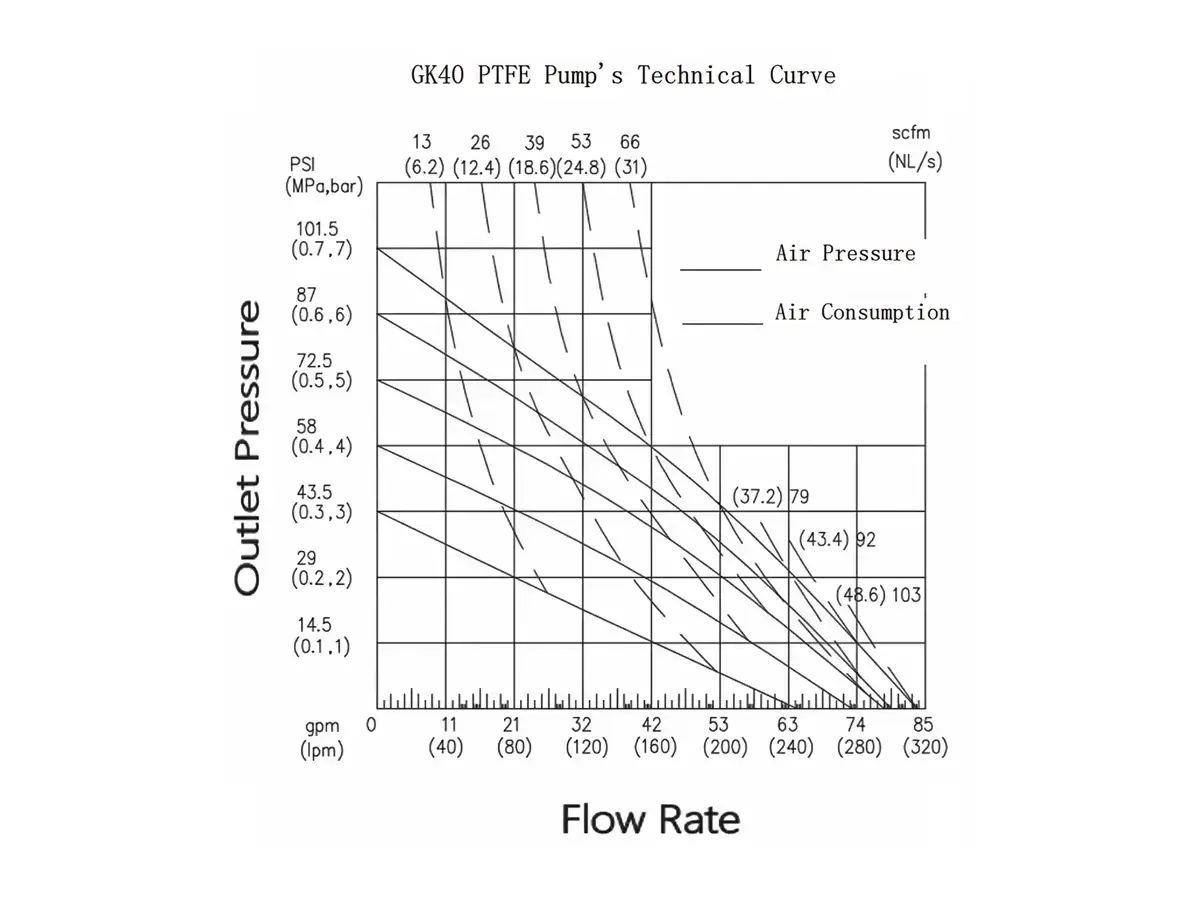

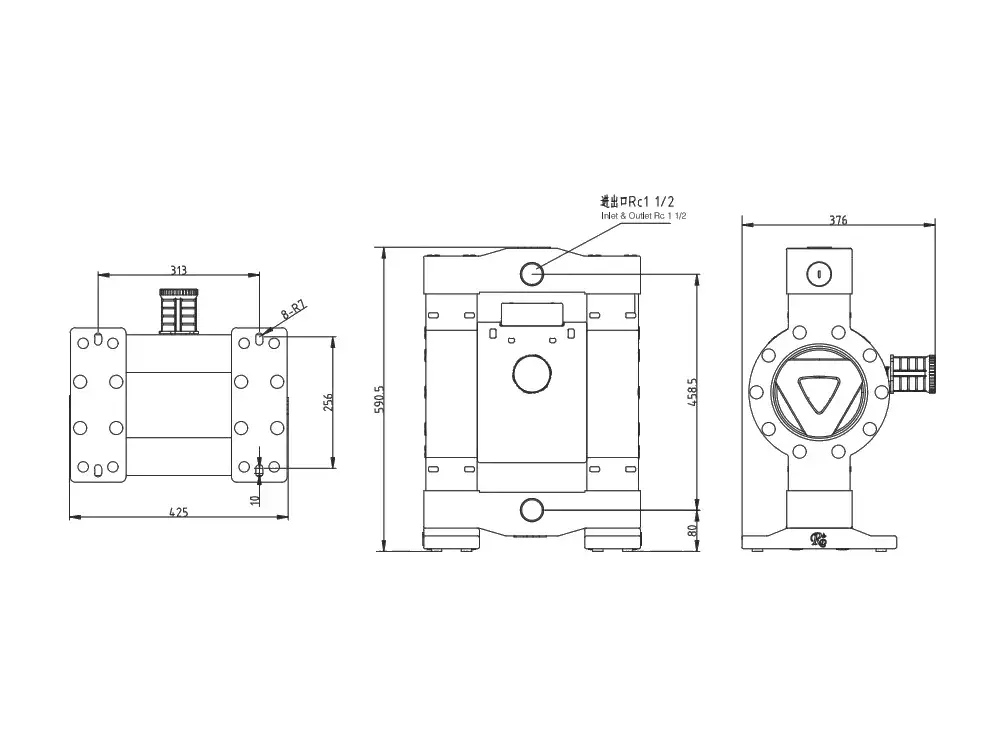

1-1/2" PTFE Pneumatic Diaphragm Pump

  • Max. Working Pressure: 100 psi / 0.7 MPa / 7 bar
  • Max. Flow Rate: 315 L/min
  • Max. Reciprocating Speed: 200 cpm
  • Suction Lift (Dry): 4.5 m
  • Max. Solid Particle Size: 5 mm
  • Max. Air Consumption: 48.6 NL/s
  • Air Inlet Size: 1/2"
  • Air Outlet Size: 3/4"
  • Fluid Inlet Size: 1-1/2"
  • Fluid Outlet Size: 1-1/2"
  • Weight: 70 kg
Inquiry
