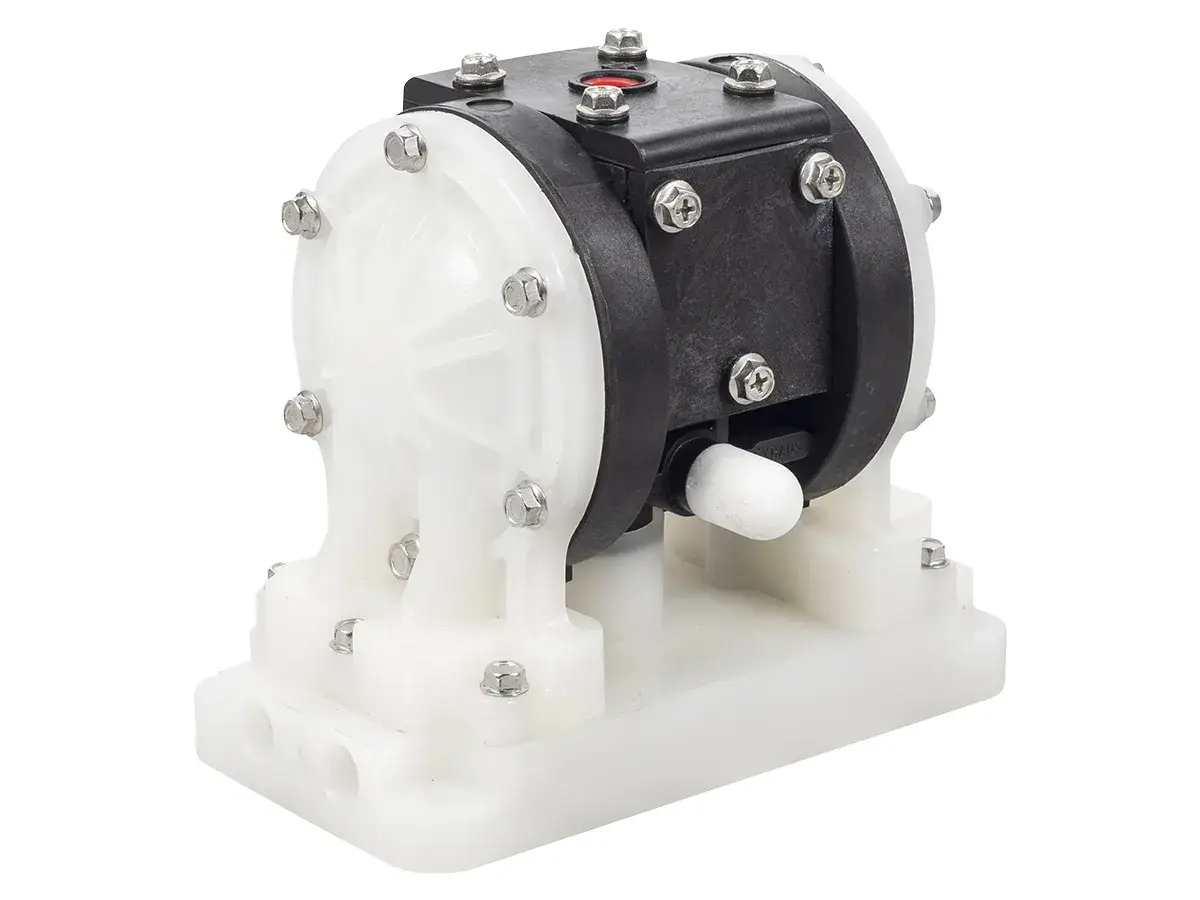

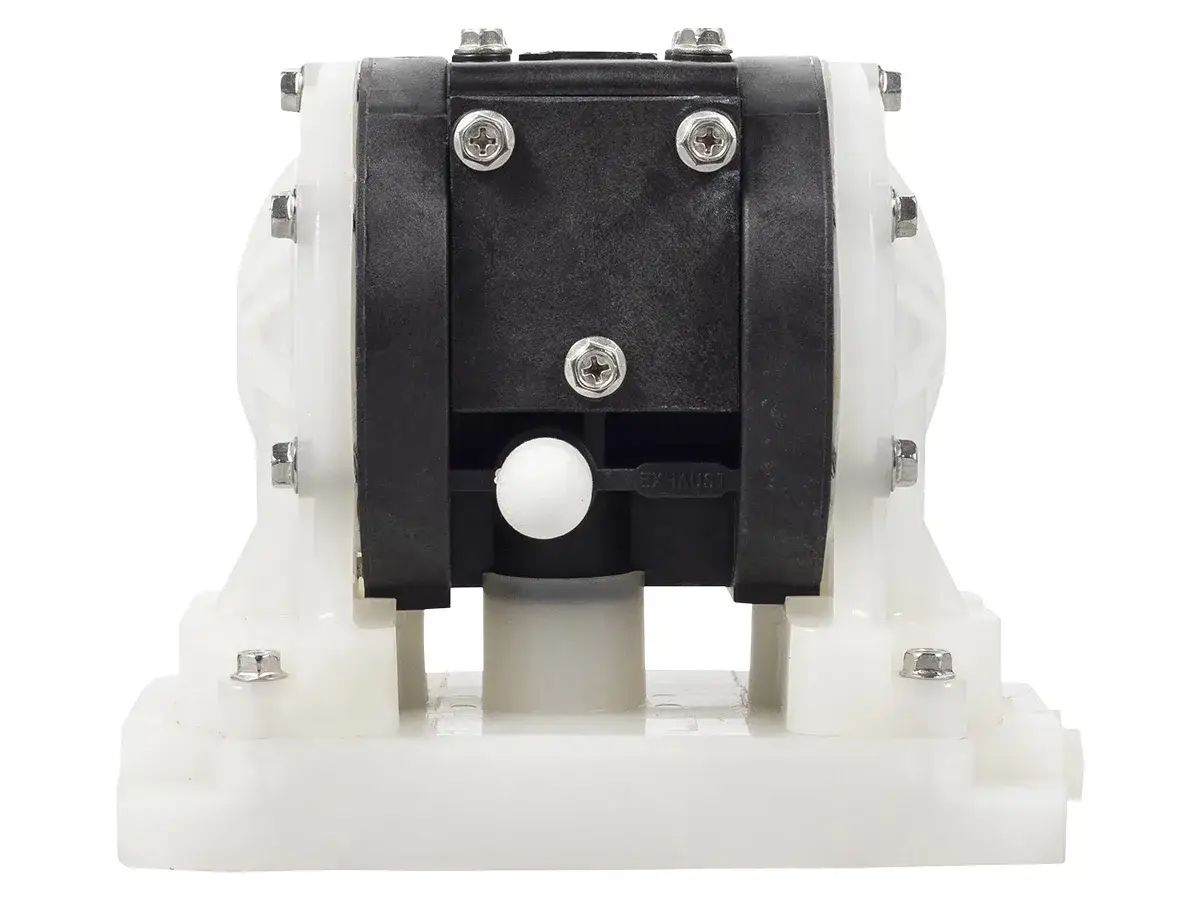

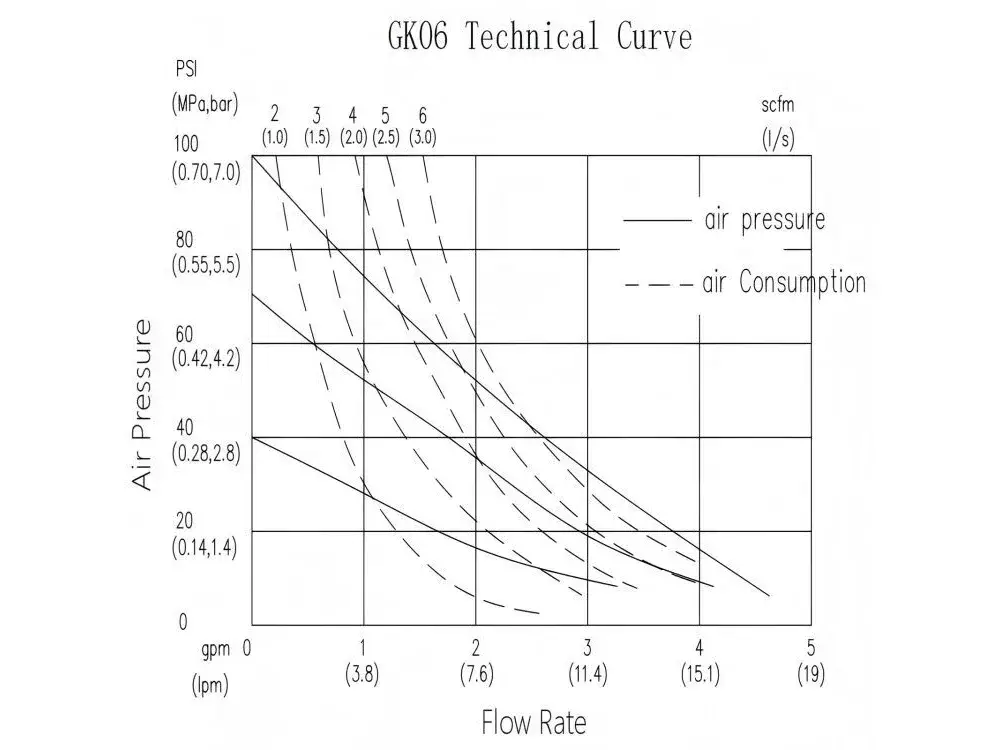

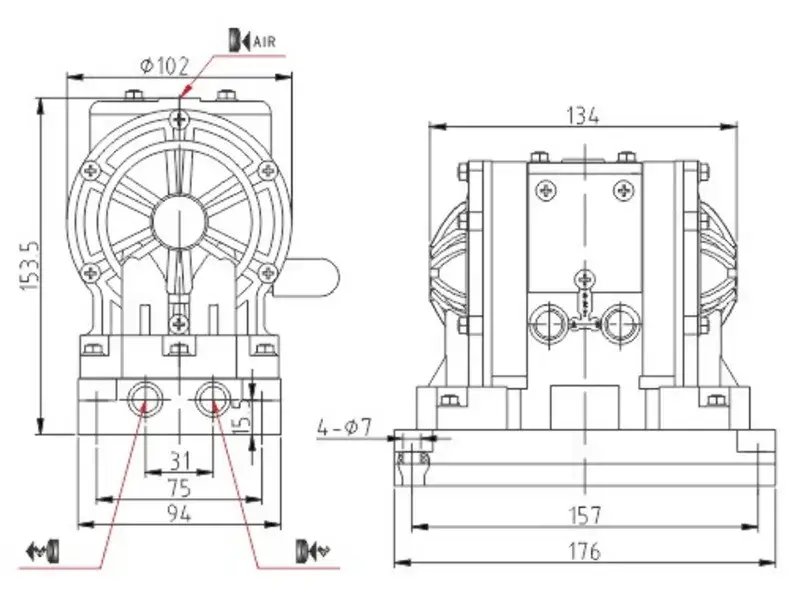

1/4" PVDF AODD Pump

1/4' PVDF Pneumatic Double Diaphragm Pump for Acids, Alkalis, and Corrosive Chemicals

• Max. Working Pressure: 100 psi / 0.70 MPa / 7.0 bar
• Max. Flow Rate: 5.0 gpm (19 L/min)
• Max. Reciprocating Speed: 320 cpm
• Suction Lift (Dry): 3 m
• Max. Solid Particle Size: 0.06" (1.5 mm)
• Max. Air Consumption: 7.0 scfm (3.5 L/s)
• Air Inlet Size: 1/4"
• Air Outlet Size: 1/4"
• Fluid Inlet Size: 1/4"
• Fluid Outlet Size: 1/4"
• Weight: 4.6 kg

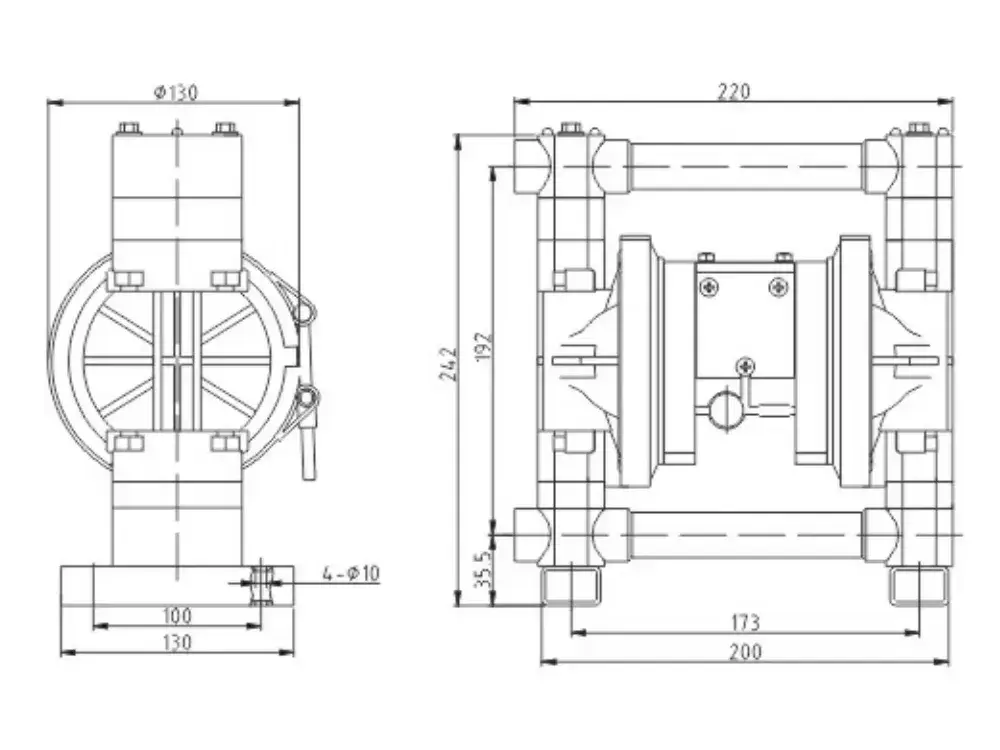

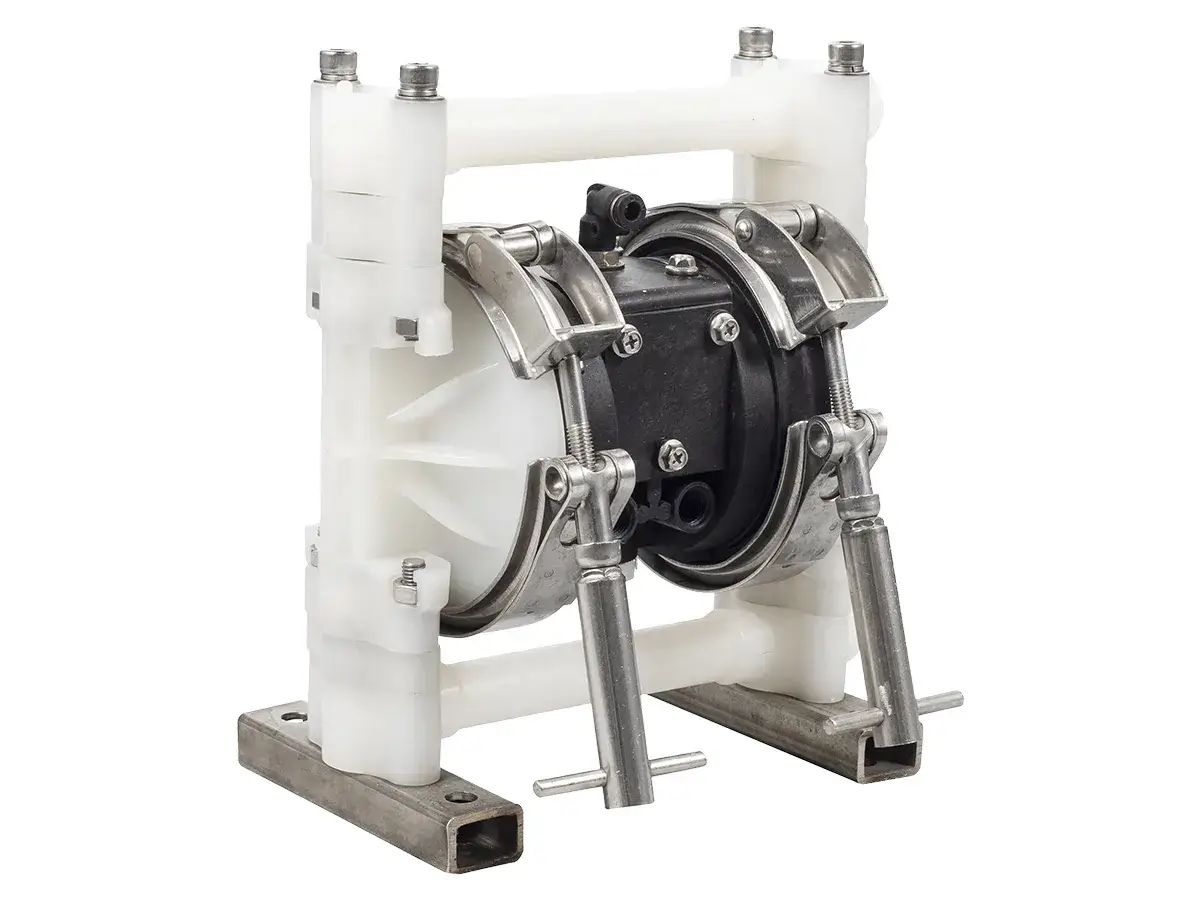

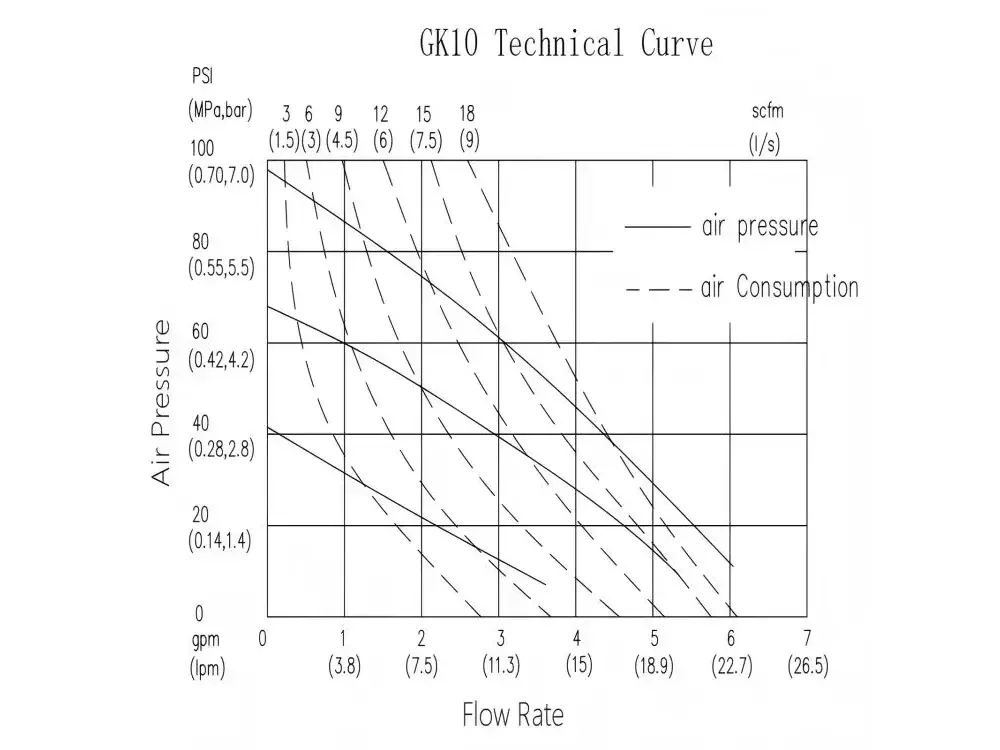

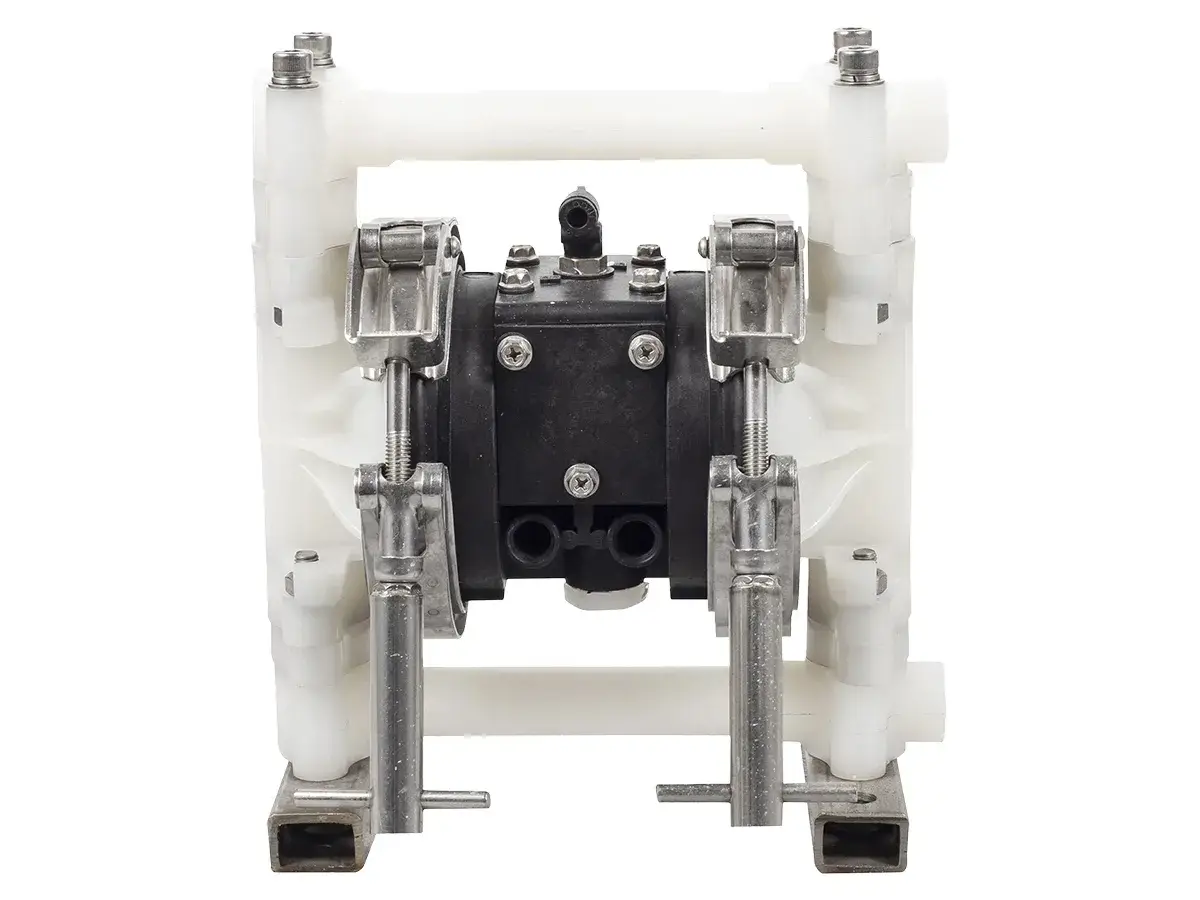

3/8" PVDF Pneumatic Double Diaphragm Pump

• Max. Working Pressure: 100 psi / 0.70 MPa / 7.0 bar
• Max. Flow Rate: 7 gpm (26.5 L/min)
• Max. Reciprocating Speed: 330 cpm
• Suction Lift (Dry): 3.7 m
• Max. Solid Particle Size: 1/16" (1.6 mm)
• Max. Air Consumption: 18 scfm (9 L/s)
• Air Inlet Size: 1/4"
• Air Outlet Size: 1/4"
• Fluid Inlet Size: 3/8"
• Fluid Outlet Size: 3/8"
• Weight: 3.5 kg

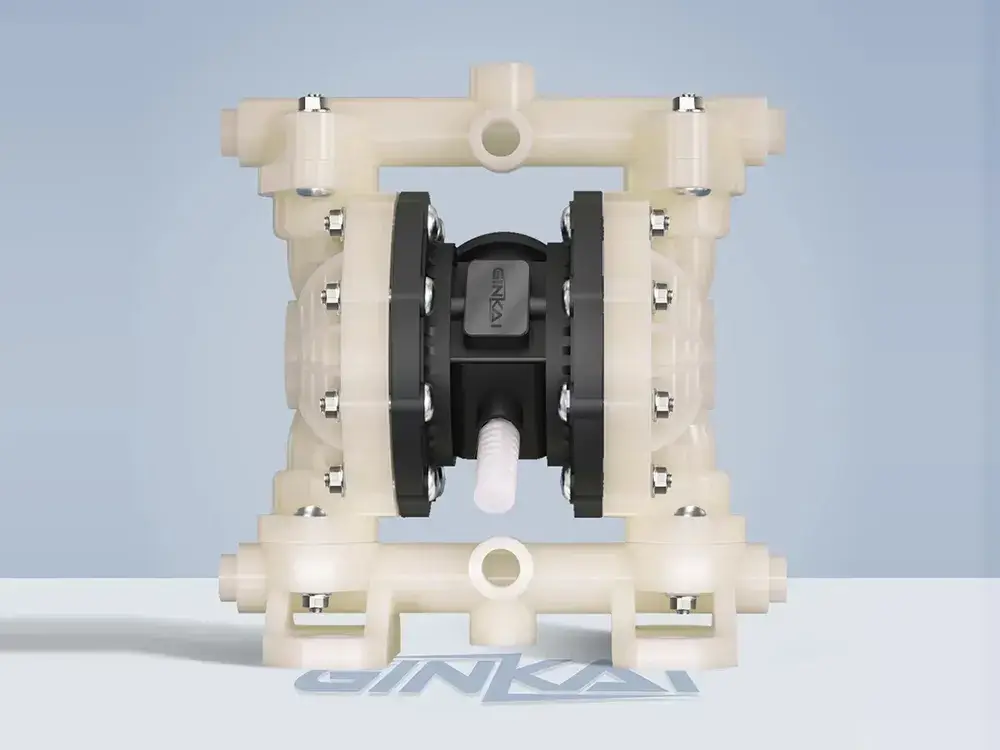

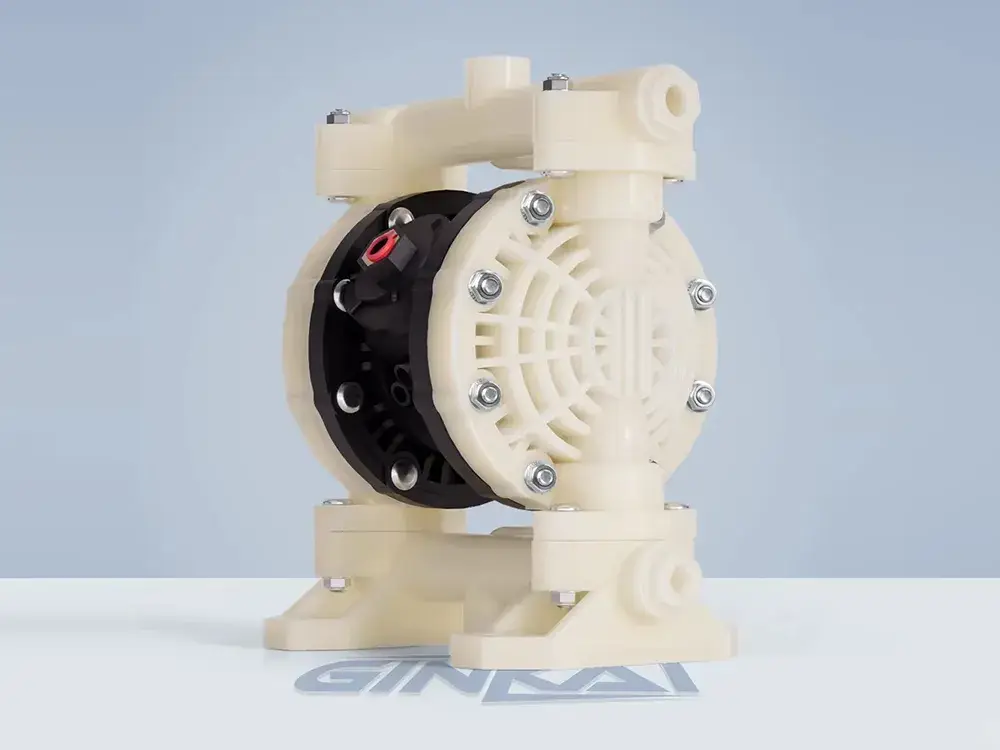

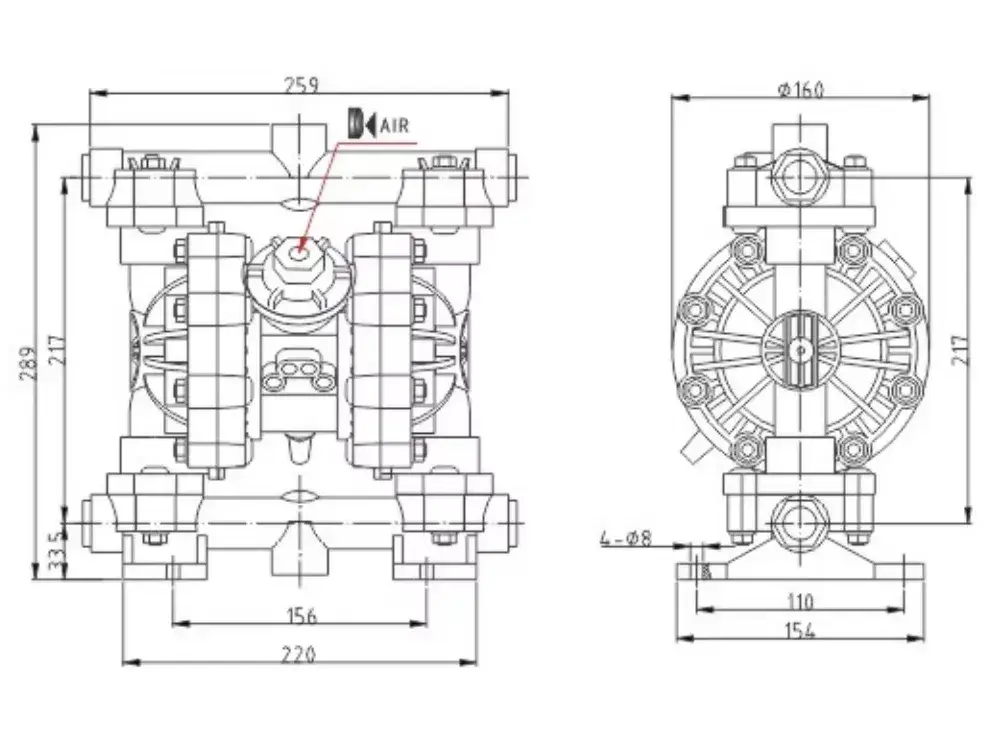

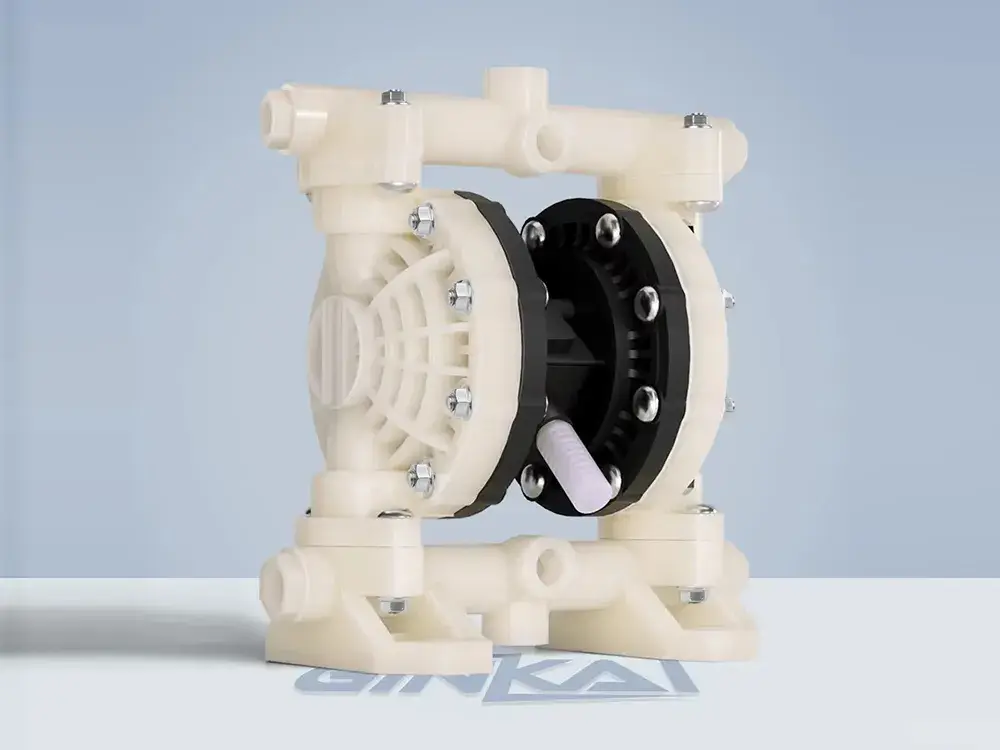

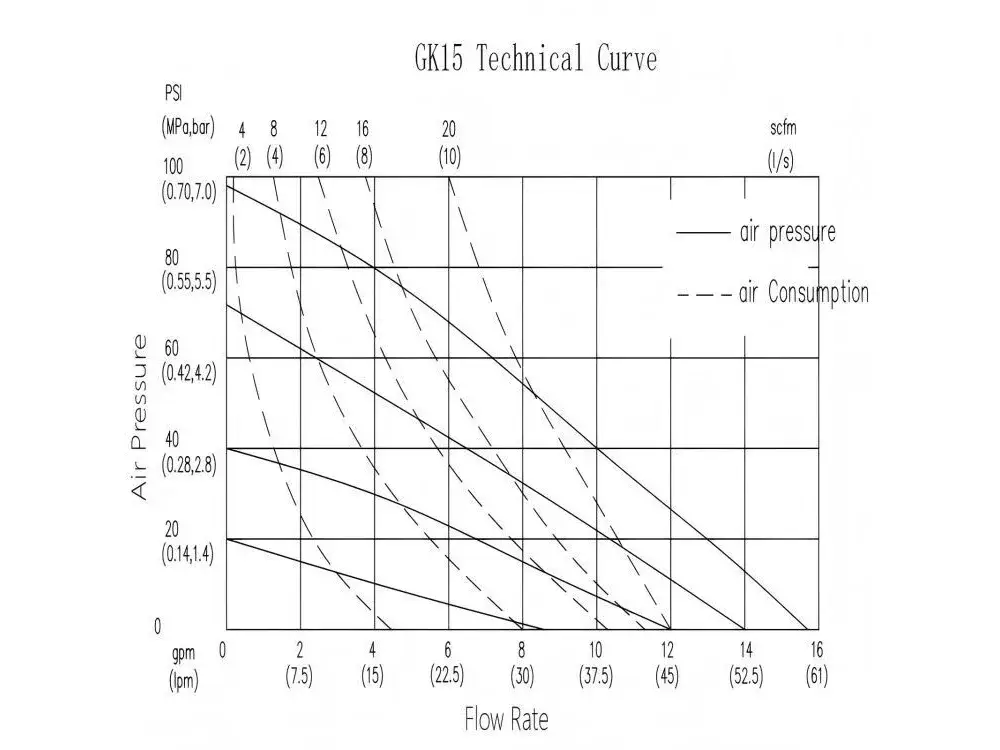

1/2" PVDF Air Operated Double Diaphragm AODD Pump

• Max. Working Pressure: 100 psi / 0.70 MPa / 7.0 bar
• Max. Flow Rate: 15 gpm (57 L/min)
• Max. Reciprocating Speed: 400 cpm
• Suction Lift (Dry): 4.5 m
• Max. Solid Particle Size: 3/32" (2.5 mm)
• Max. Air Consumption: 20 scfm (10 L/s)
• Air Inlet Size: 1/4"
• Air Outlet Size: 3/8"
• Fluid Inlet Size: 1/2"
• Fluid Outlet Size: 1/2"
• Weight: 4.6 kg

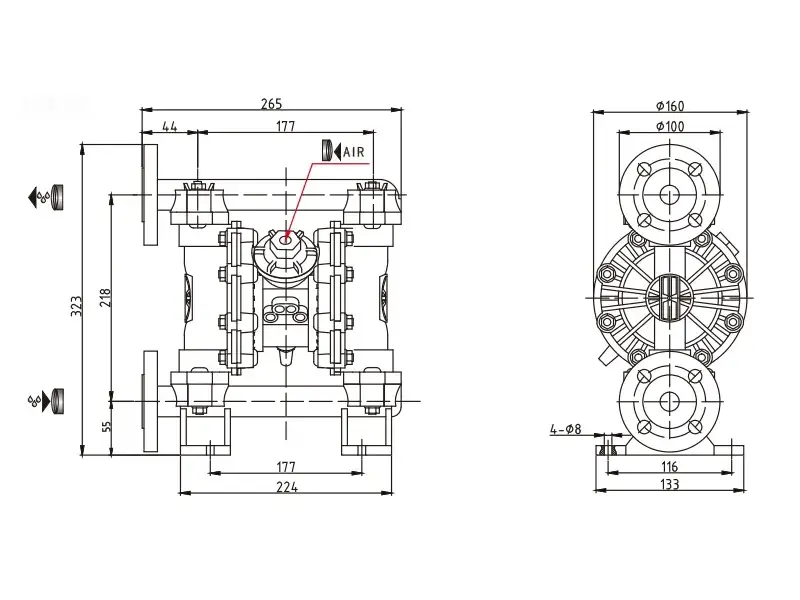

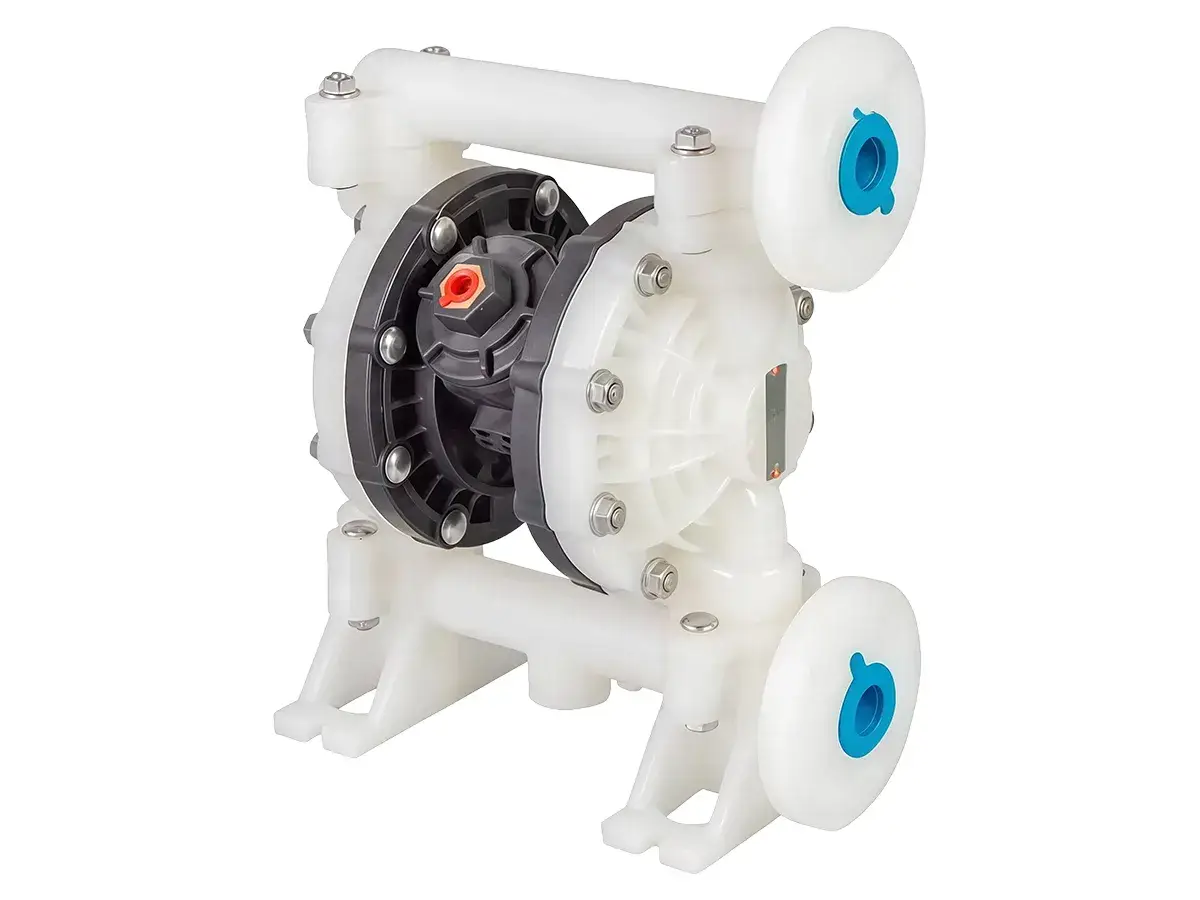

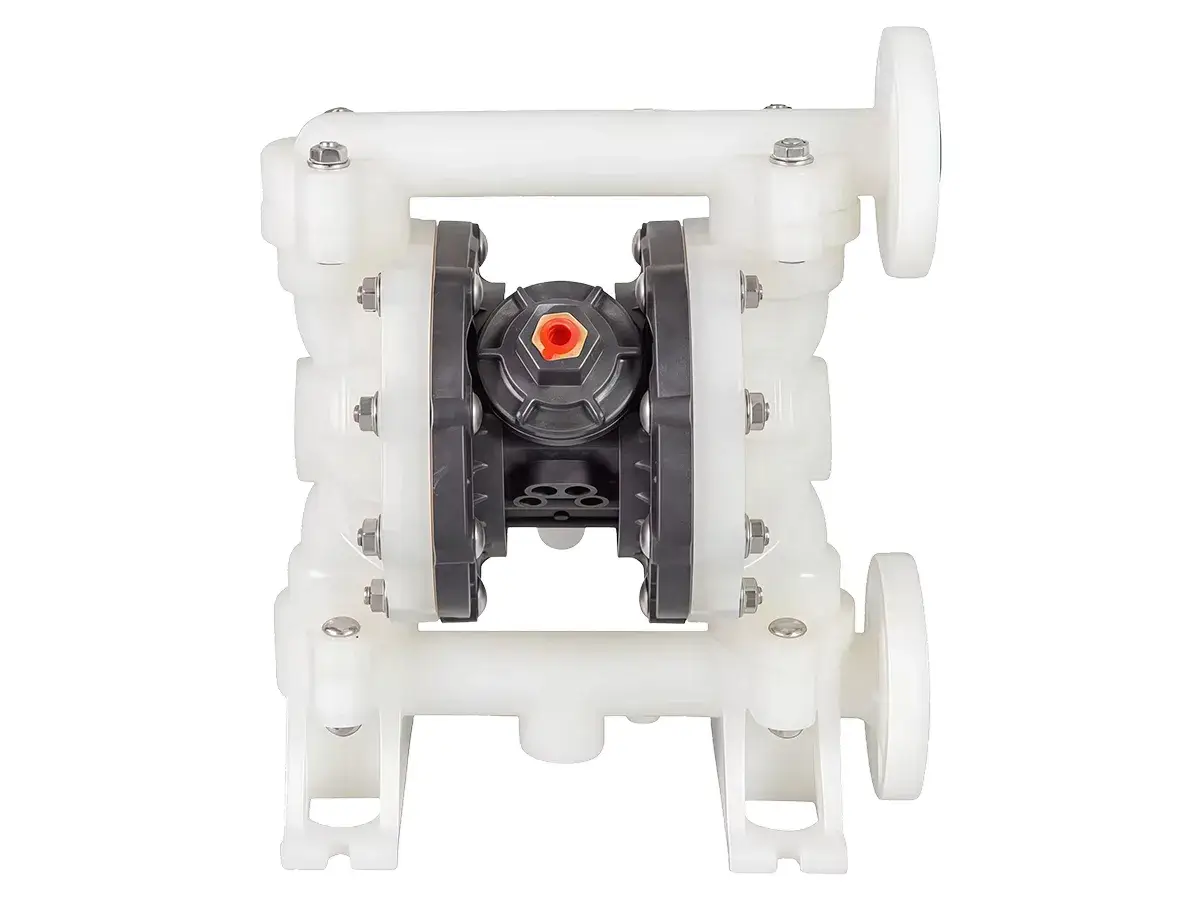

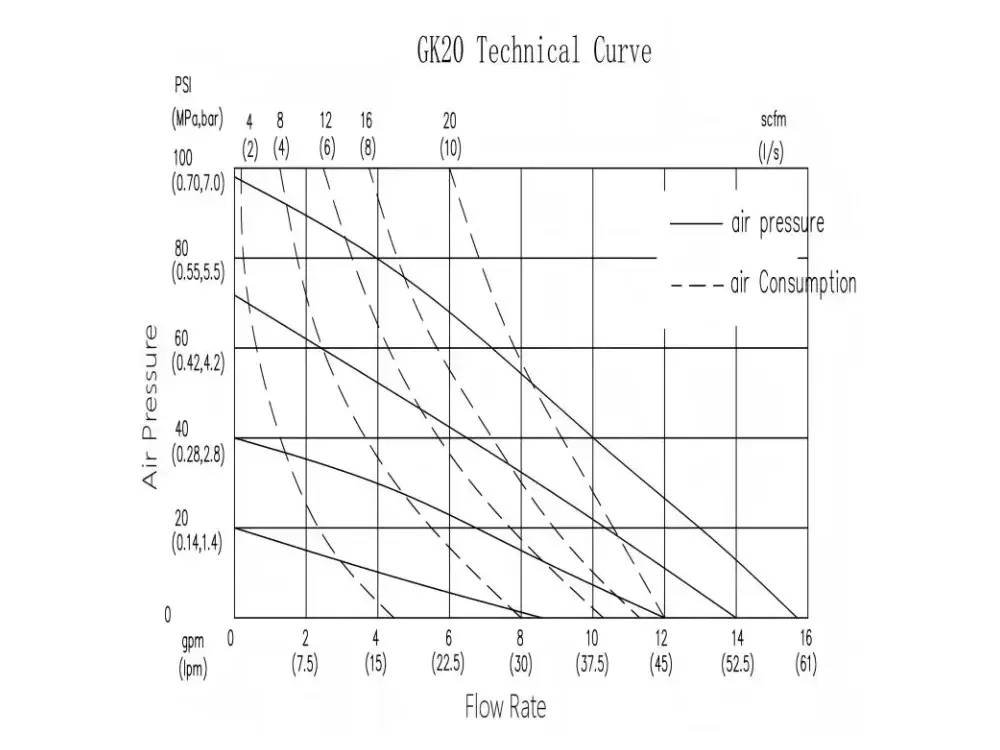

3/4" PVDF Pneumatic Diaphragm Pump

• Max. Working Pressure: 100 psi / 0.7 MPa / 7 bar
• Max. Flow Rate: 16 gpm (61 L/min)
• Max. Reciprocating Speed: 400 cpm
• Suction Lift (Dry): 4.5 m
• Max. Solid Particle Size: 3/32" (2.5 mm)
• Max. Air Consumption: 20 scfm (10 L/s)
• Air Inlet Size: 1/4"
• Air Outlet Size: 3/8"
• Fluid Inlet Size: 3/4"
• Fluid Outlet Size: 3/4"
• Weight: 3.5 kg

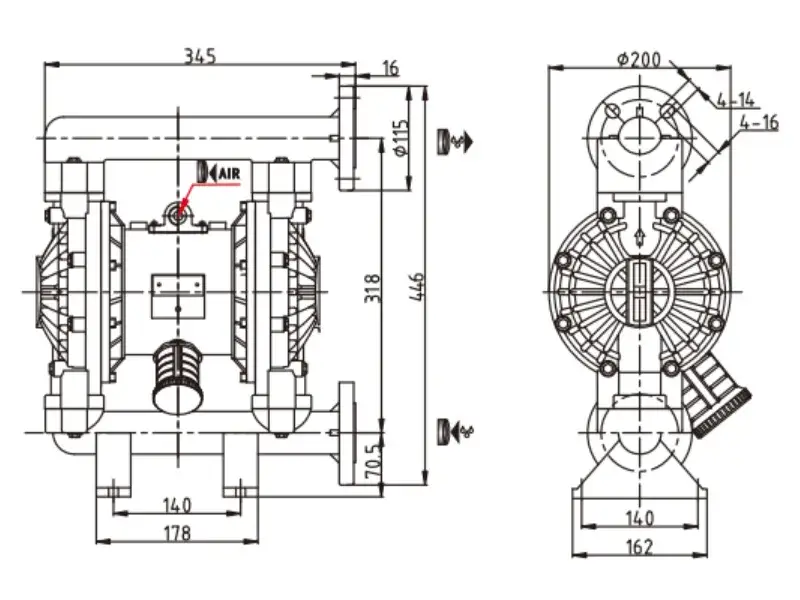

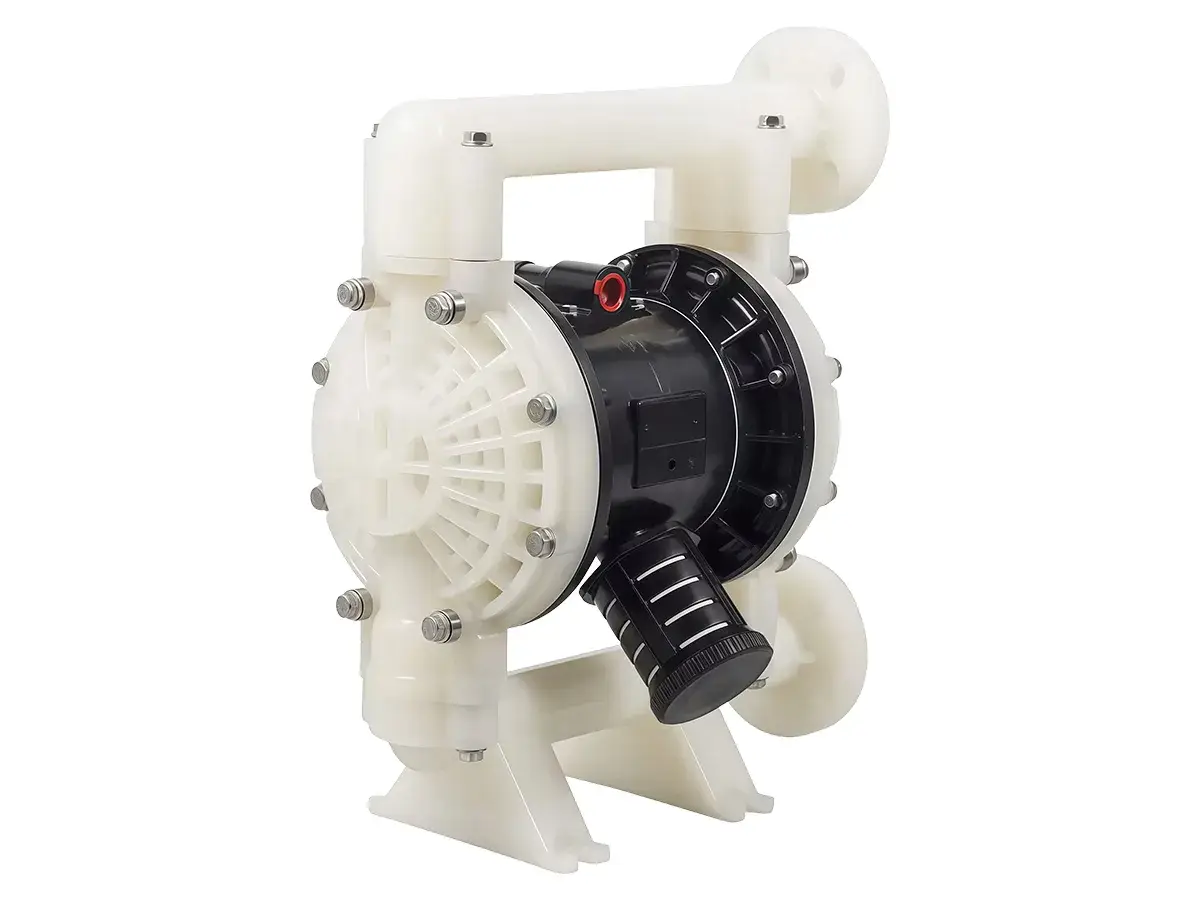

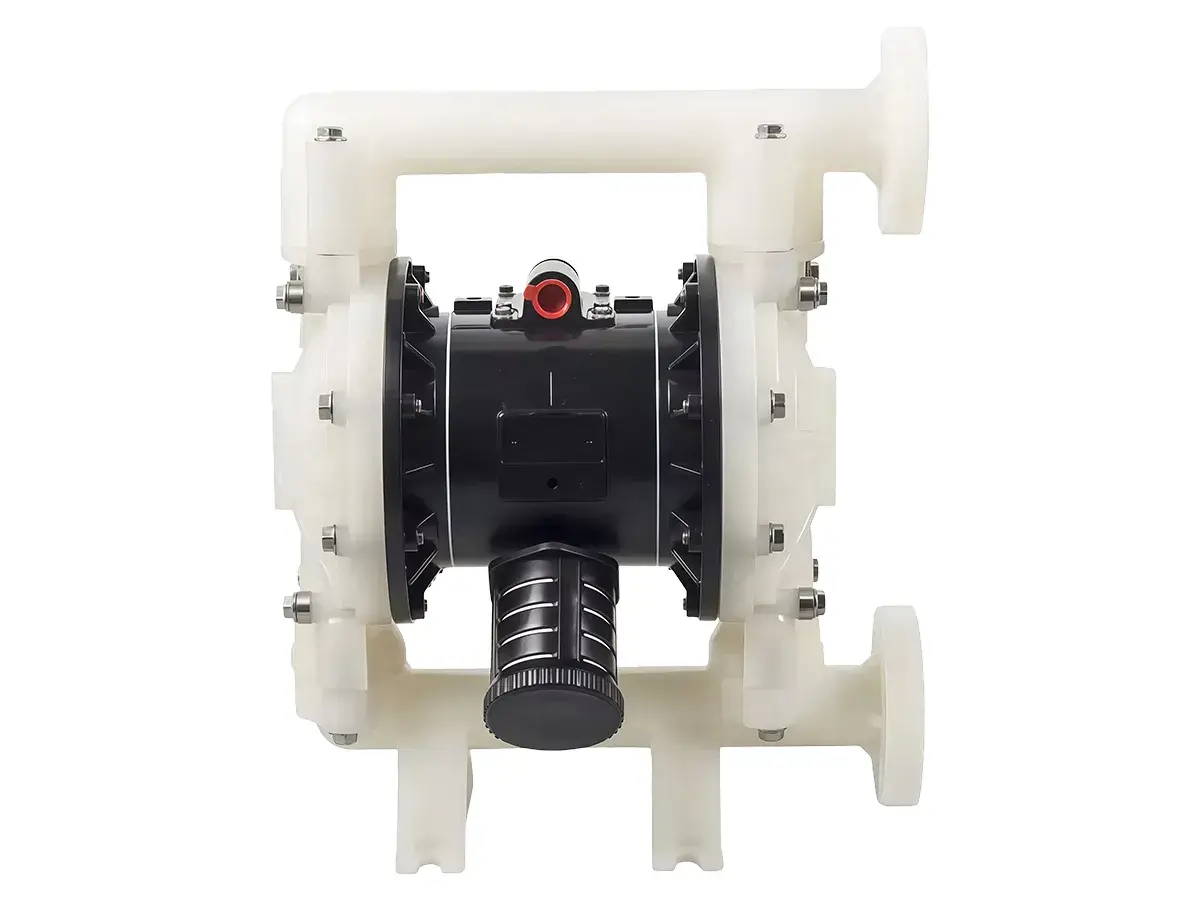

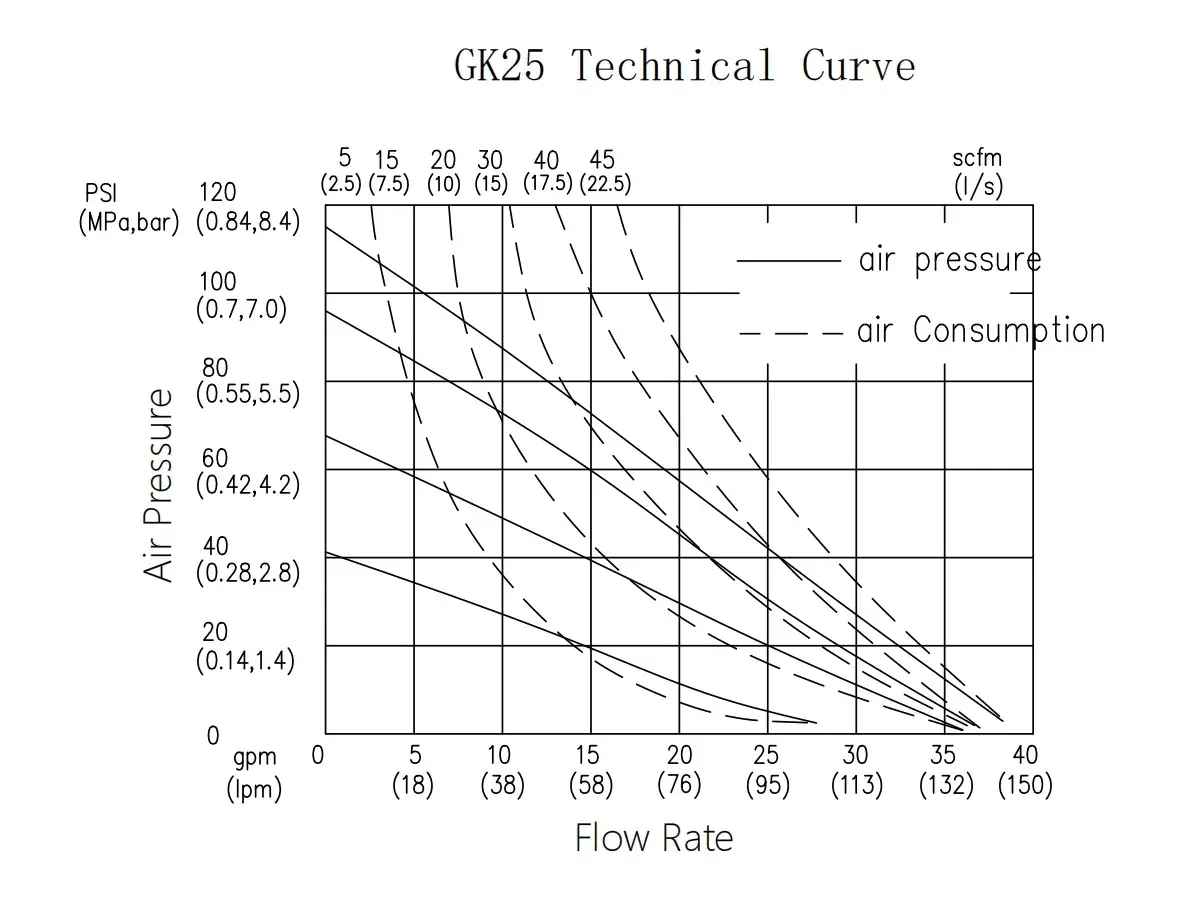

1" PVDF Air Operated Diaphragm Pump

1' PVDF Air Operated Double Diaphragm Pump for Corrosive Chemical Transfer

• Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
• Max. Flow Rate: 40 gpm (150 L/min)
• Max. Reciprocating Speed: 276 cpm
• Suction Lift (Dry): 5 m
• Max. Solid Particle Size: 0.16" (4 mm)
• Max. Air Consumption: 45 scfm (22.5 L/s)
• Air Inlet Size: 1/2"
• Air Outlet Size: 3/4"
• Fluid Inlet Size: 1"
• Fluid Outlet Size: 1"
• Weight: 8.3 kg

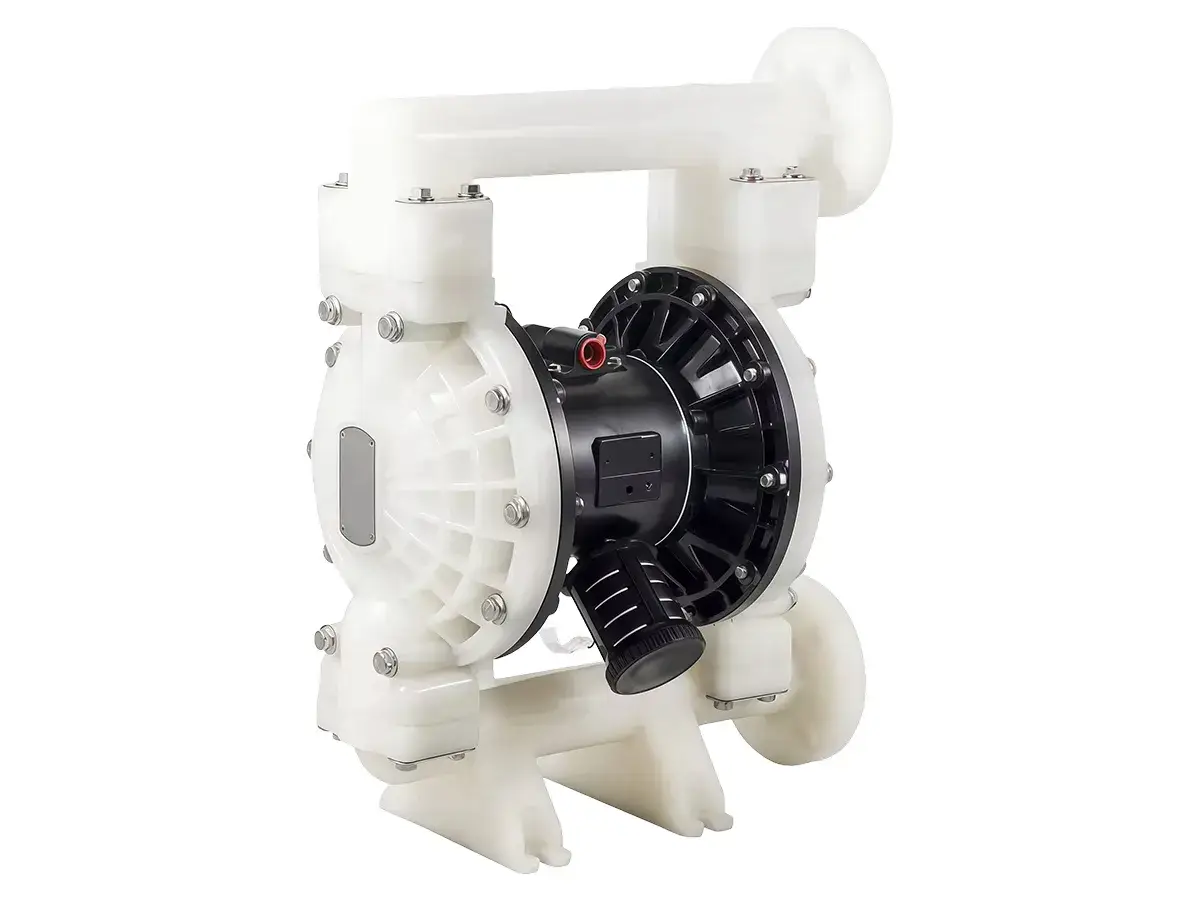

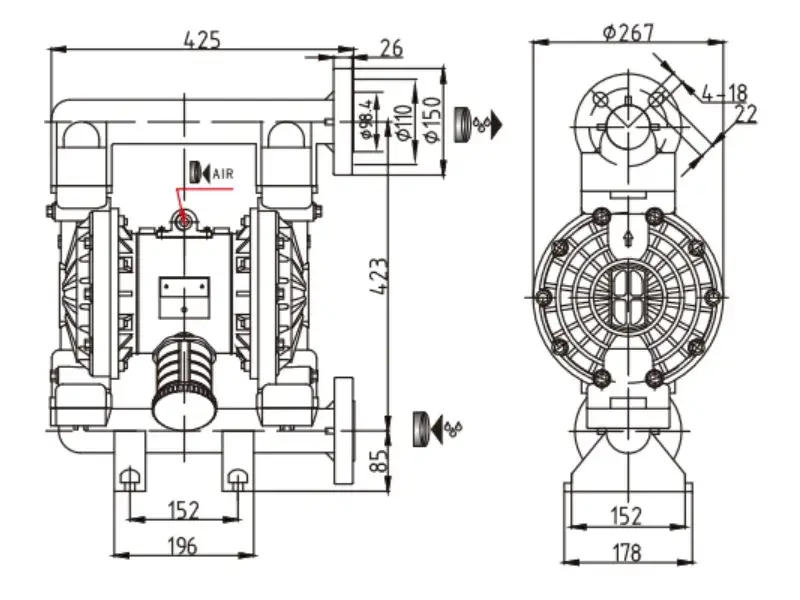

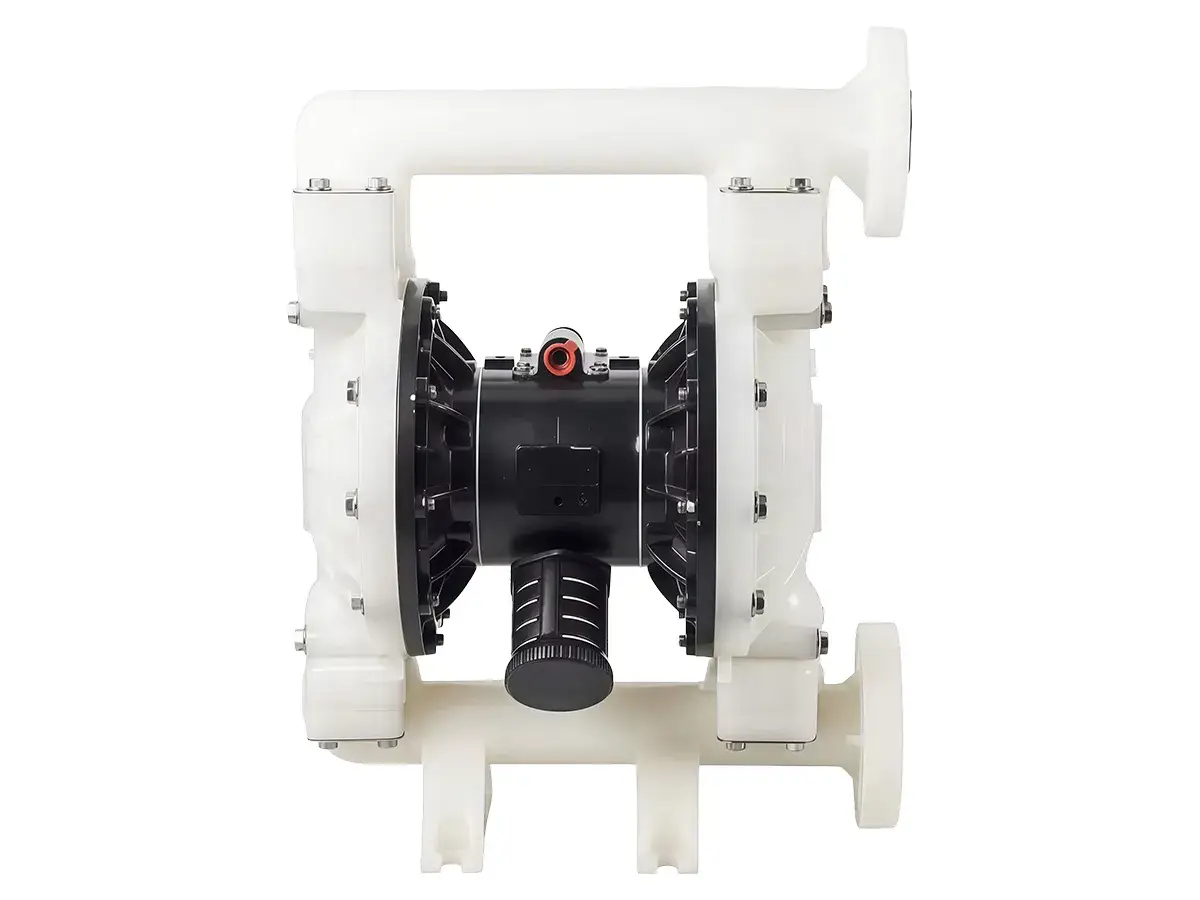

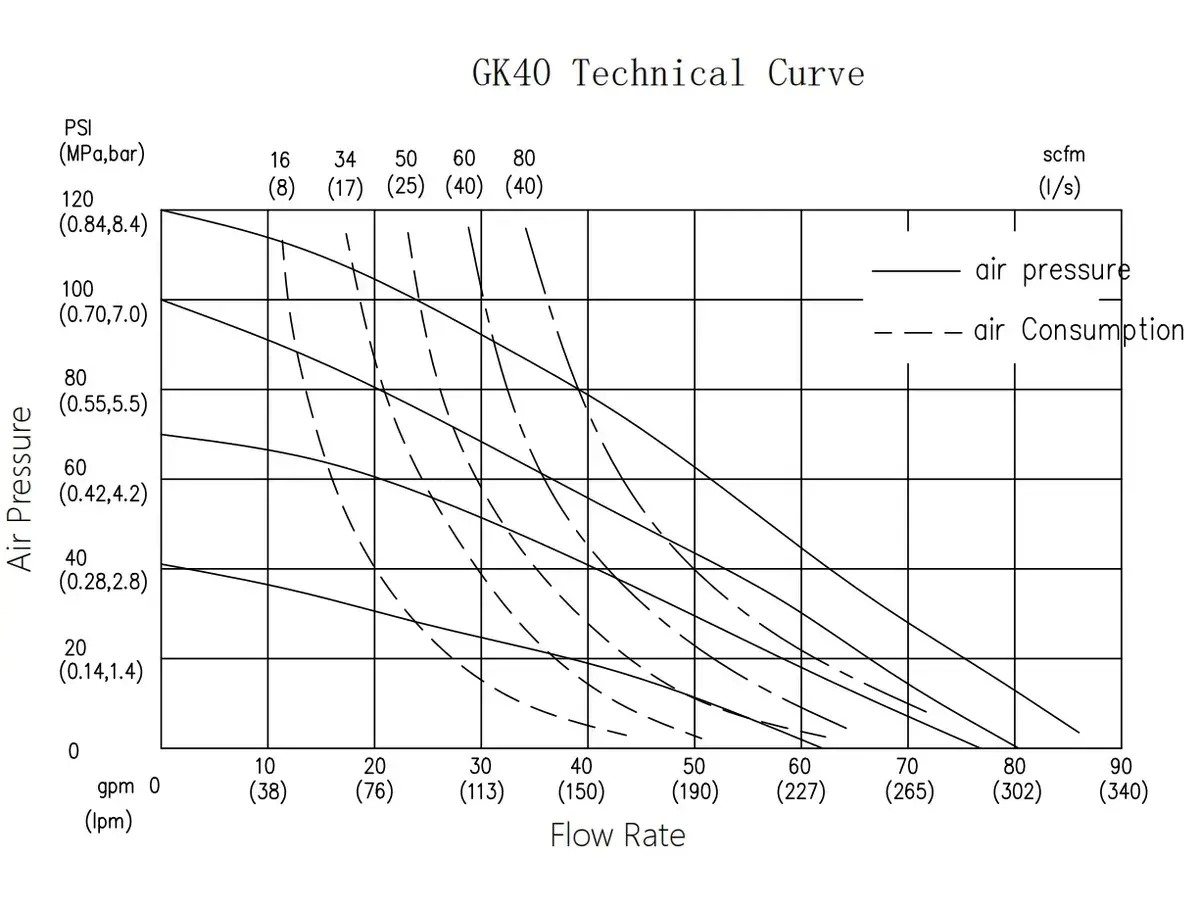

1-1/2" PVDF Pneumatic Diaphragm Pump

• Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
• Max. Flow Rate: 90 gpm (340 L/min)
• Max. Reciprocating Speed: 200 cpm
• Suction Lift (Dry): 5 m
• Max. Solid Particle Size: 0.2" (5 mm)
• Max. Air Consumption: 80 scfm (40 L/s)
• Air Inlet Size: 1/2"
• Air Outlet Size: 3/4"
• Fluid Inlet Size: 1-1/2"
• Fluid Outlet Size: 1-1/2"
• Weight: 15 kg

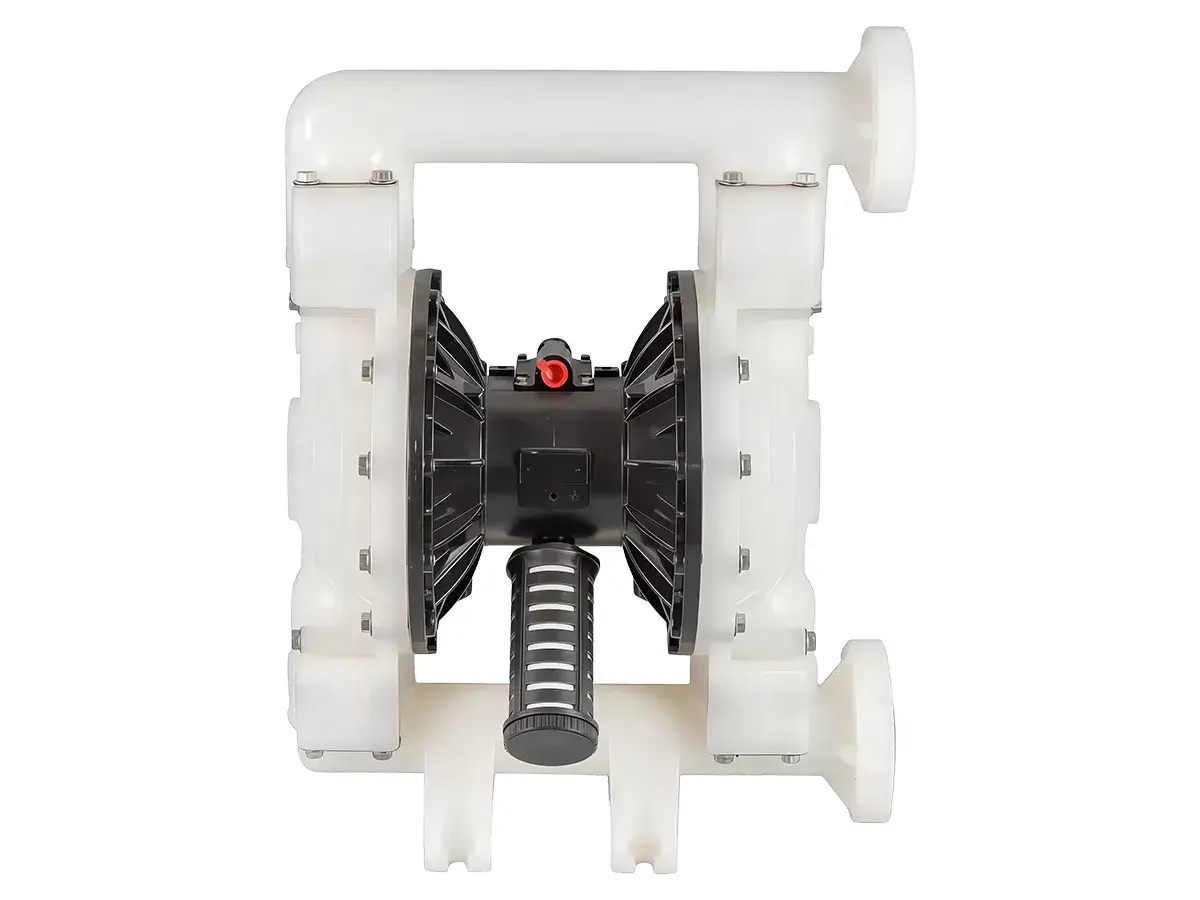

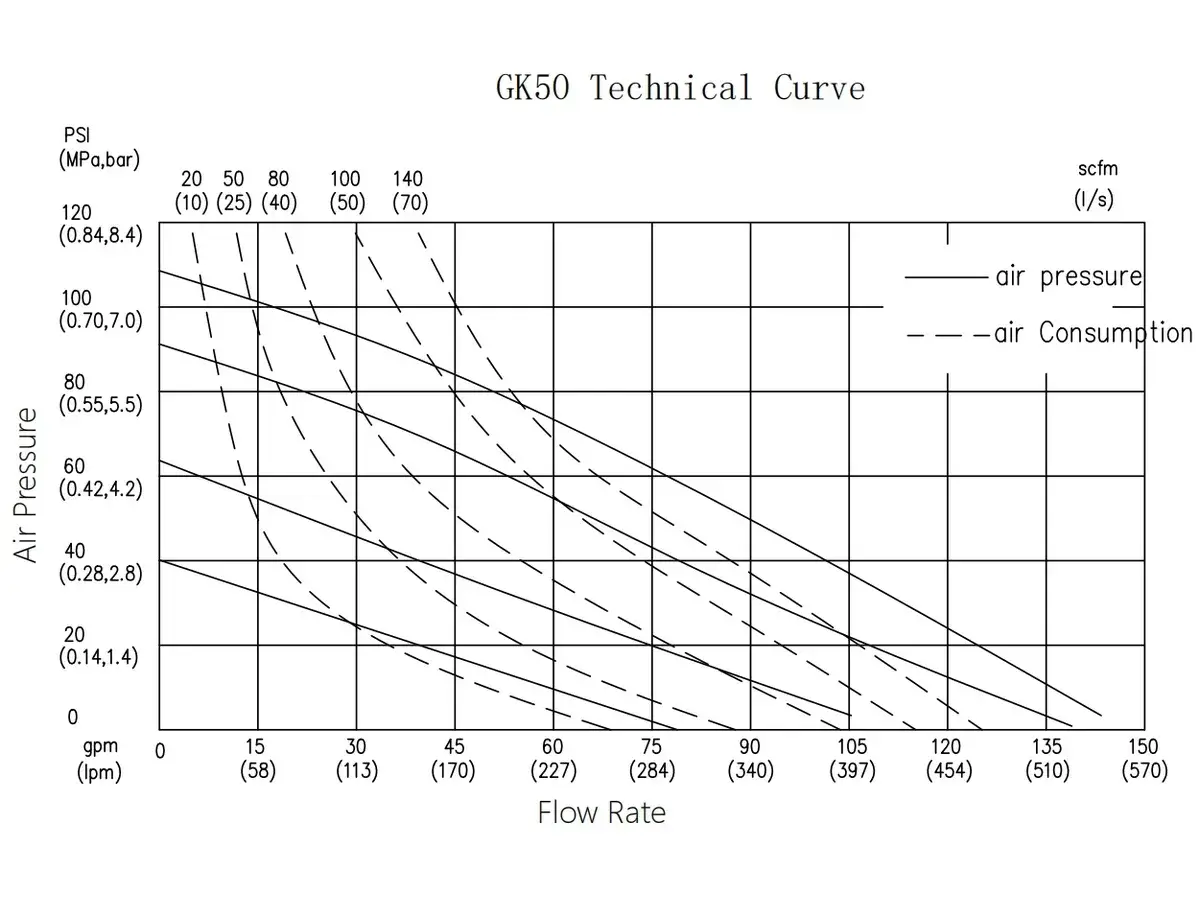

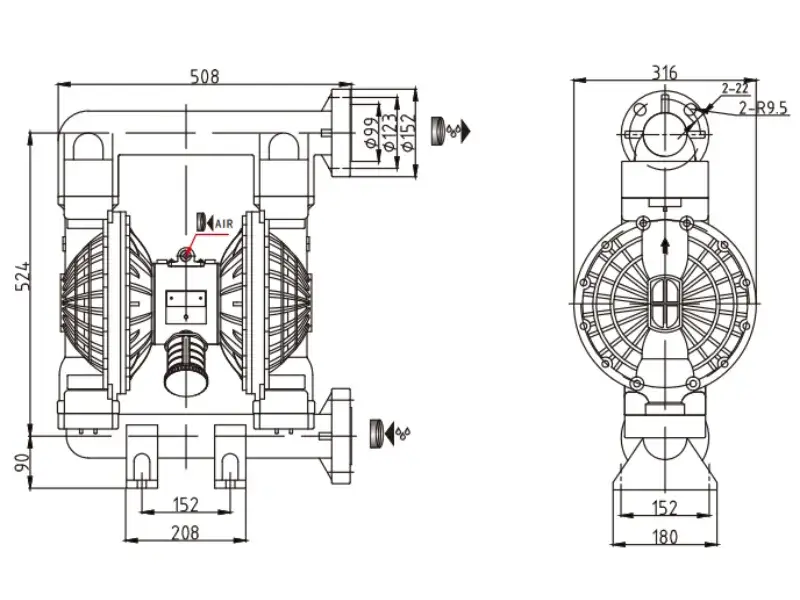

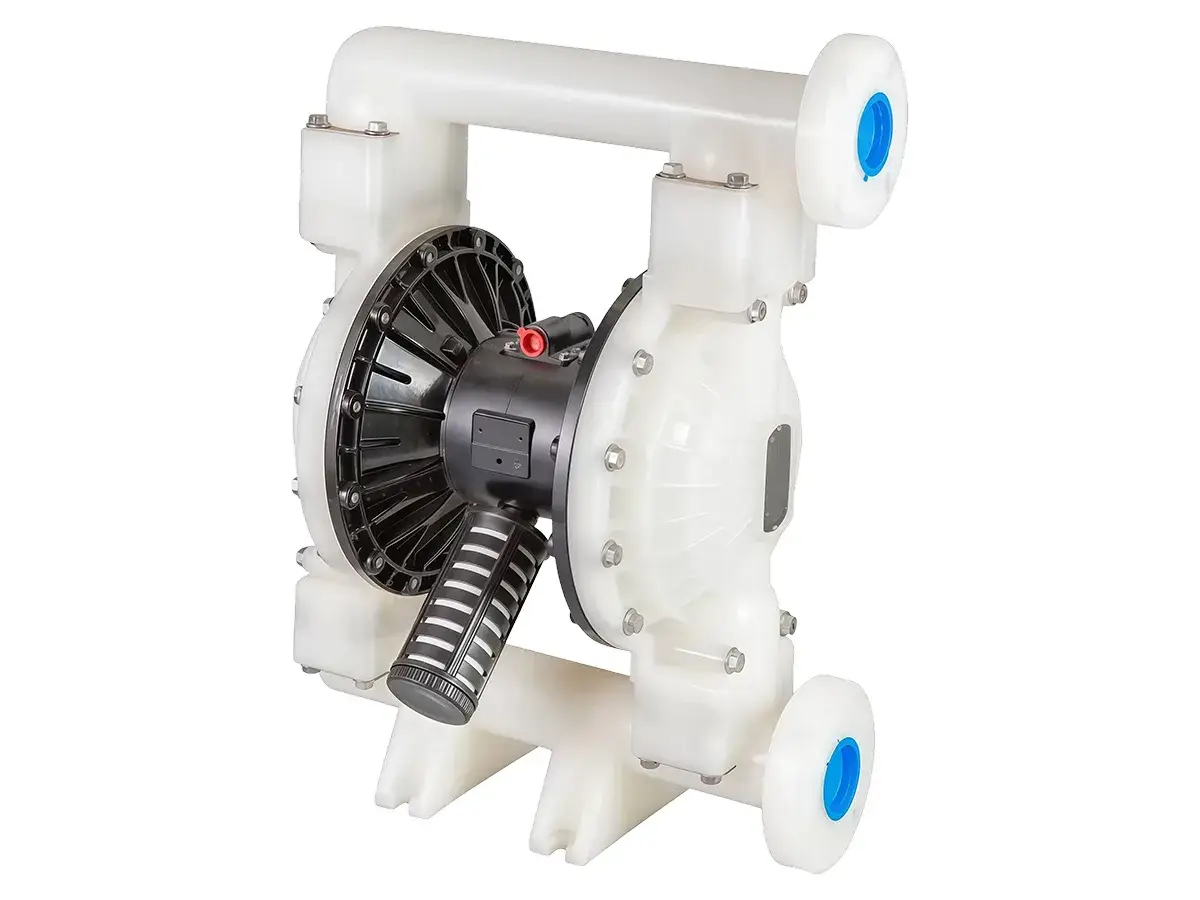

2" PVDF AODD Pump

• Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
• Max. Flow Rate: 150 gpm (570 L/min)
• Max. Reciprocating Speed: 145 cpm
• Suction Lift (Dry): 5 m
• Max. Solid Particle Size: 0.24" (6 mm)
• Max. Air Consumption: 140 scfm (70 L/s)
• Air Inlet Size: 1/2"
• Air Outlet Size: 3/4"
• Fluid Inlet Size: 2"
• Fluid Outlet Size: 2"
• Weight: 22 kg

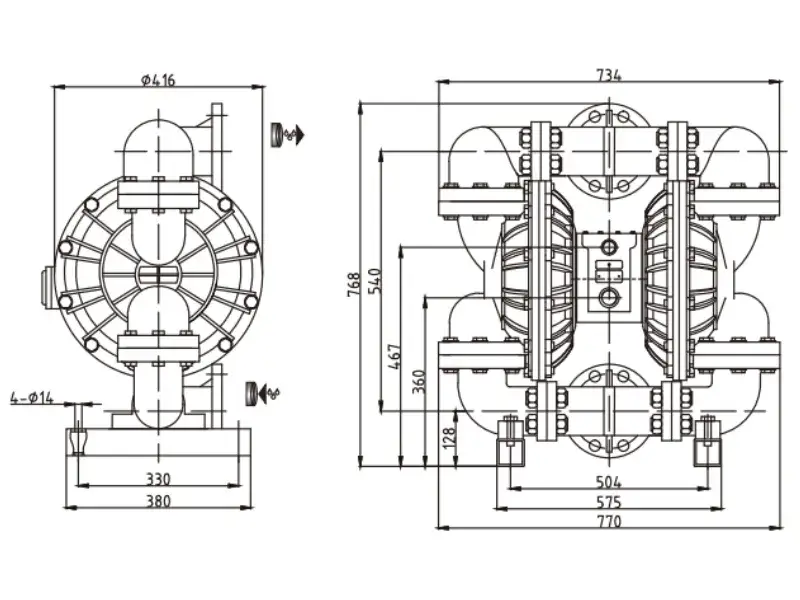

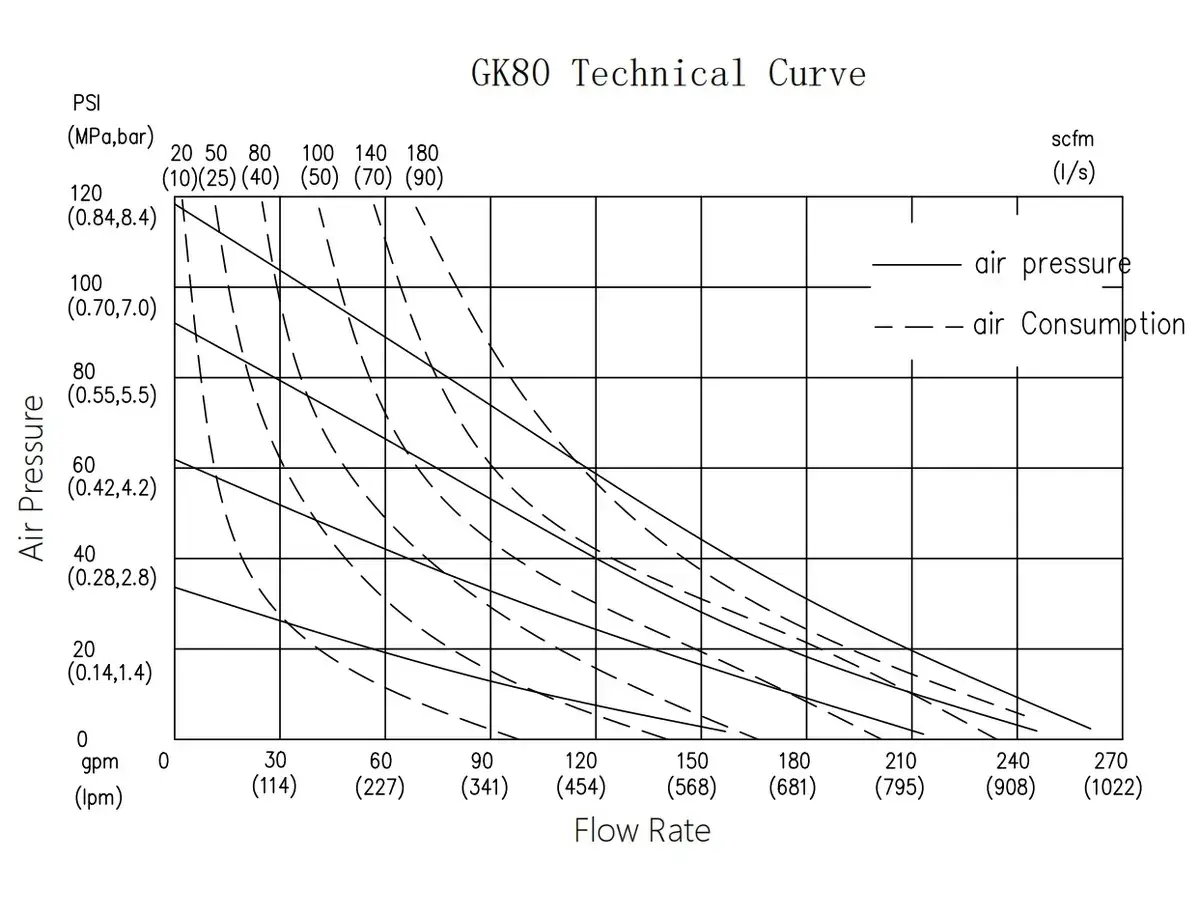

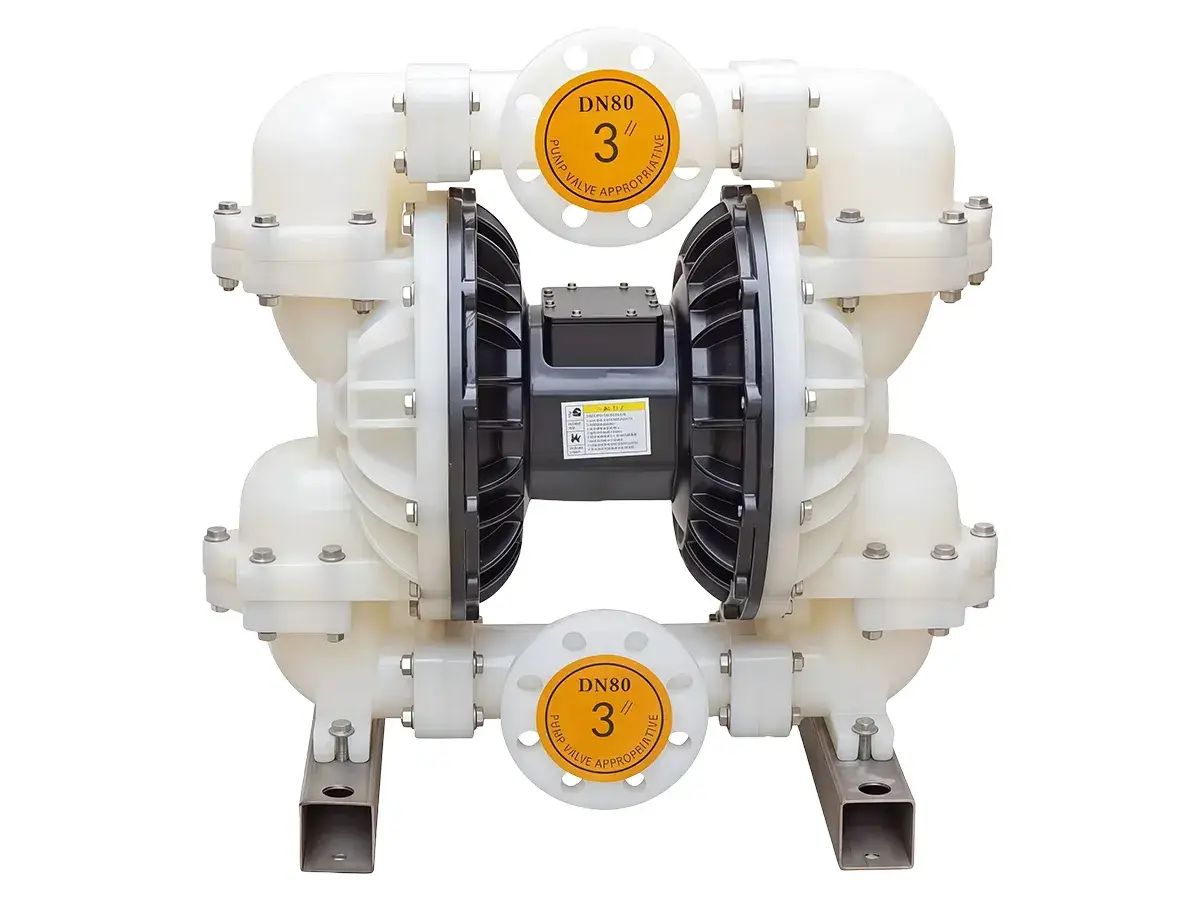

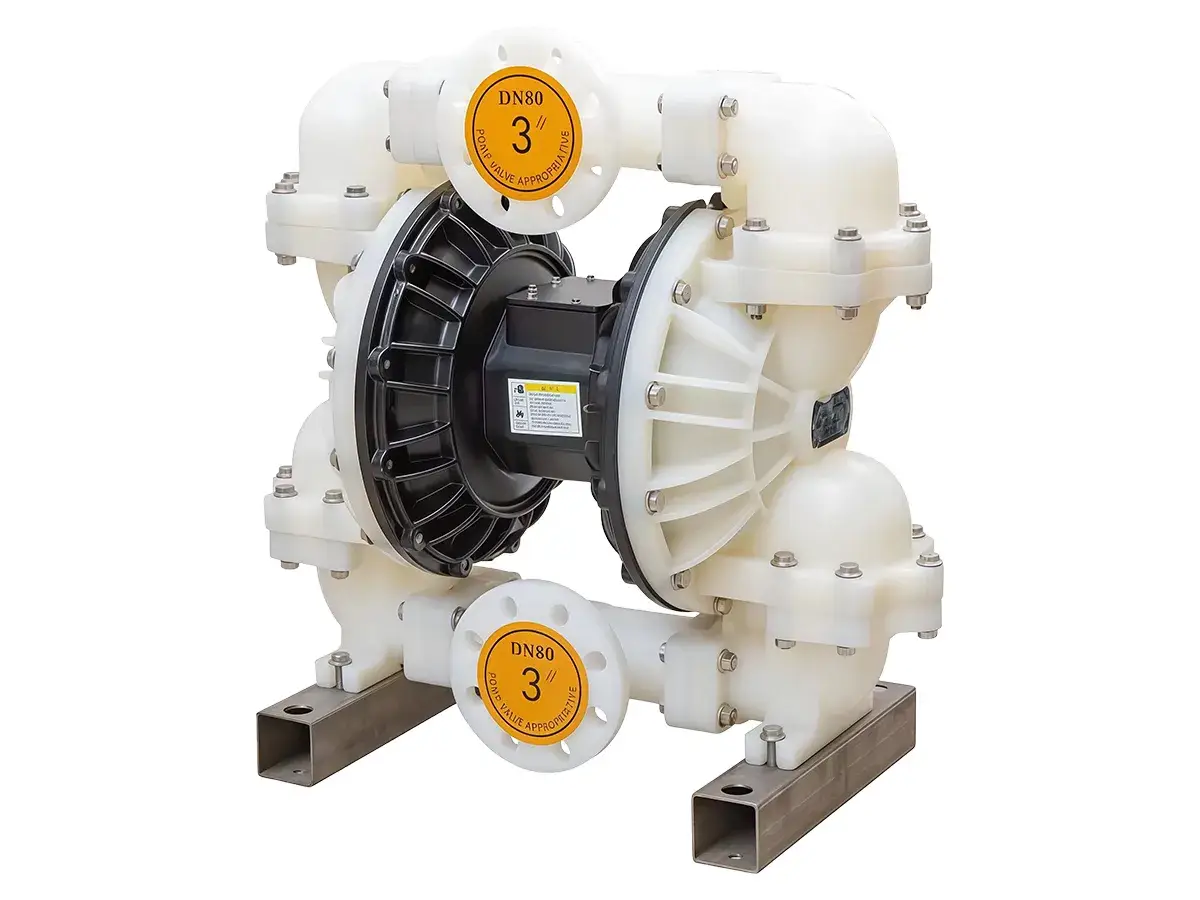

3" PVDF Air Operated Double Diaphragm Pump

• Max. Working Pressure: 120 psi / 0.84 MPa / 8.4 bar
• Max. Flow Rate: 270 gpm (1022 L/min)
• Max. Reciprocating Speed: 135 cpm
• Suction Lift (Dry): 5 m
• Max. Solid Particle Size: 0.37" (9.4 mm)
• Max. Air Consumption: 180 scfm (90 L/s)
• Air Inlet Size: 3/4"
• Air Outlet Size: 1"
• Fluid Inlet Size: 3"
• Fluid Outlet Size: 3"
• Weight: 51 kg
