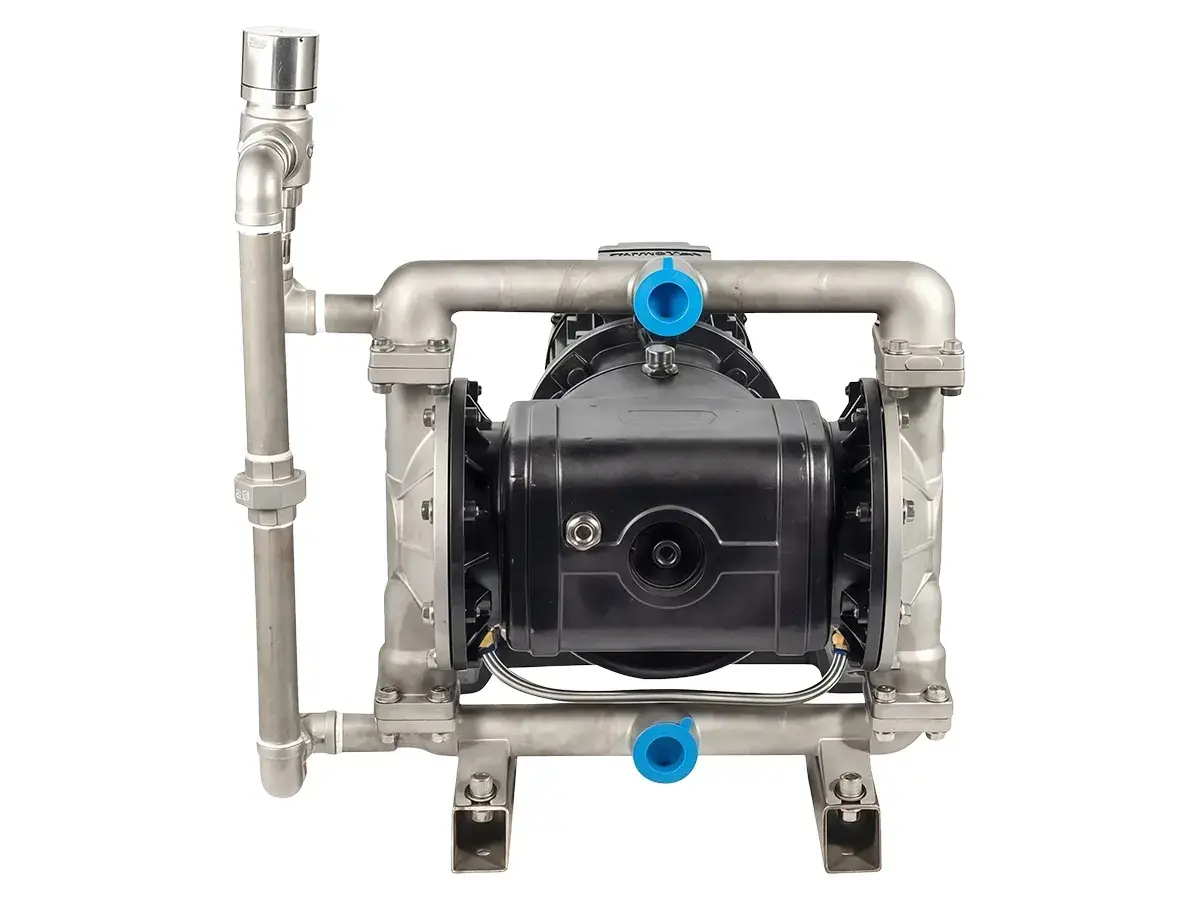

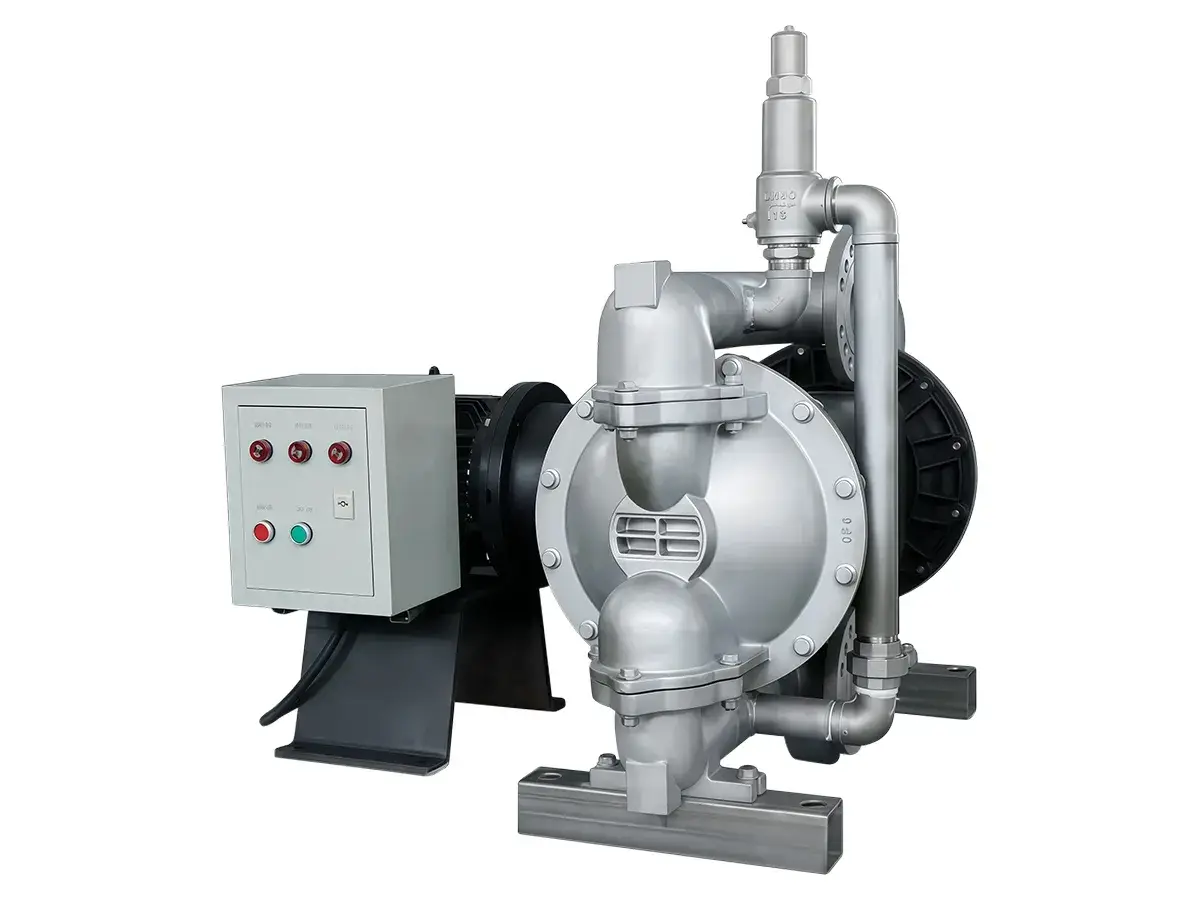

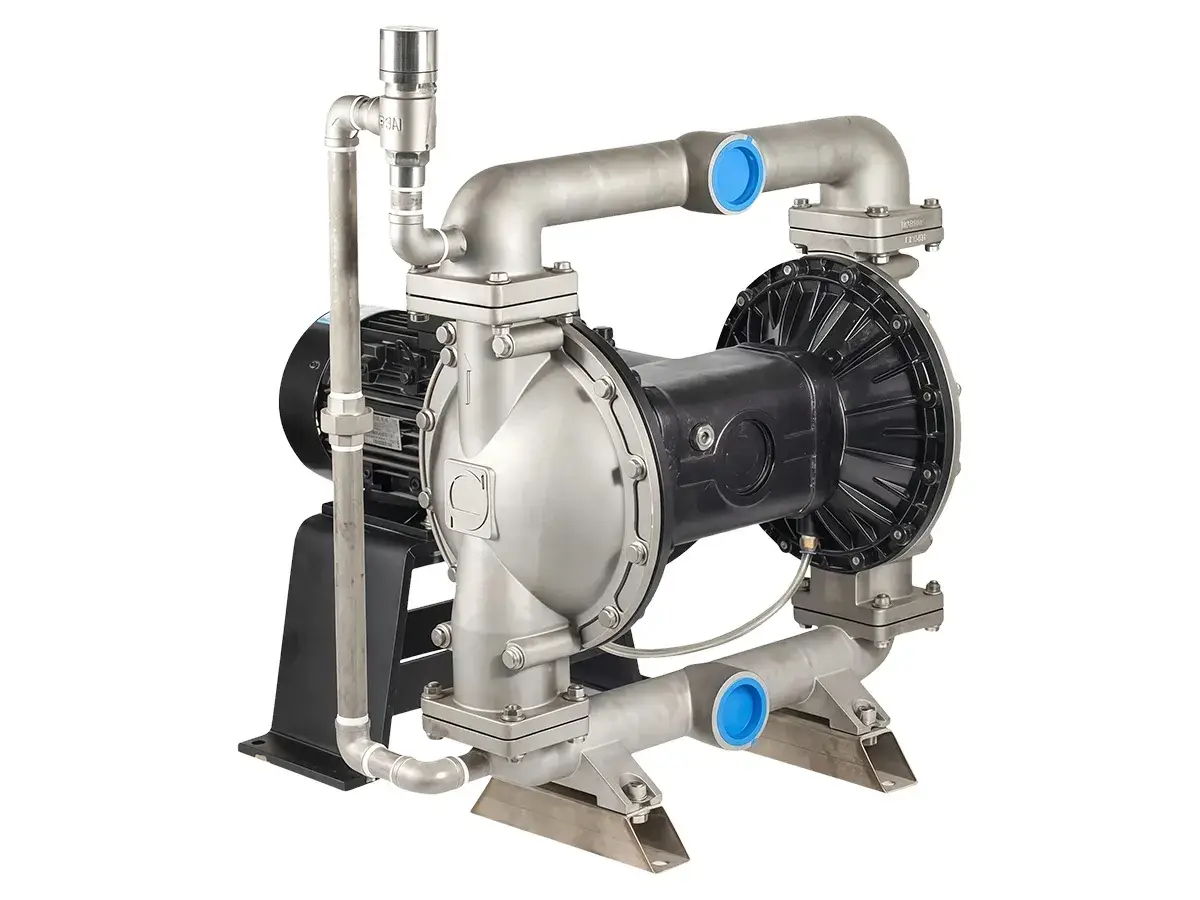

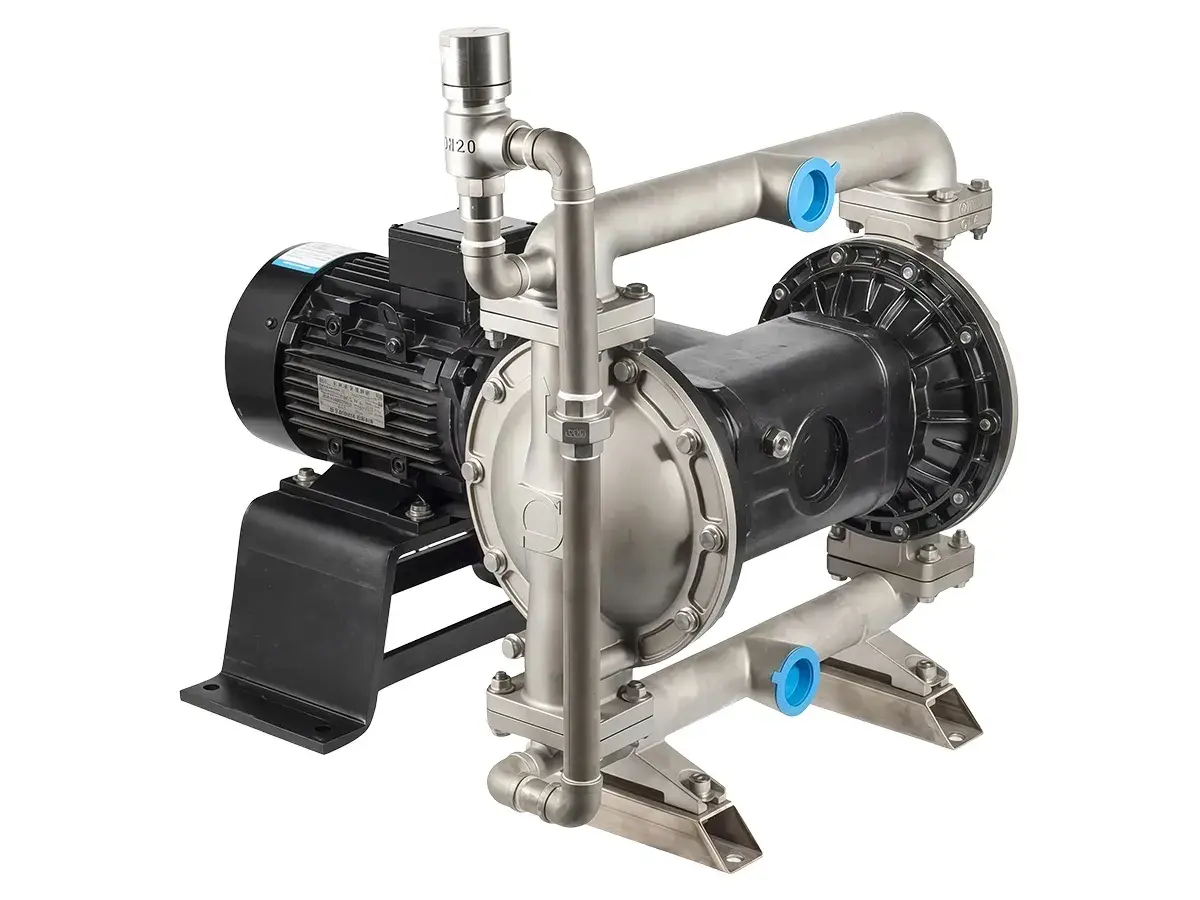

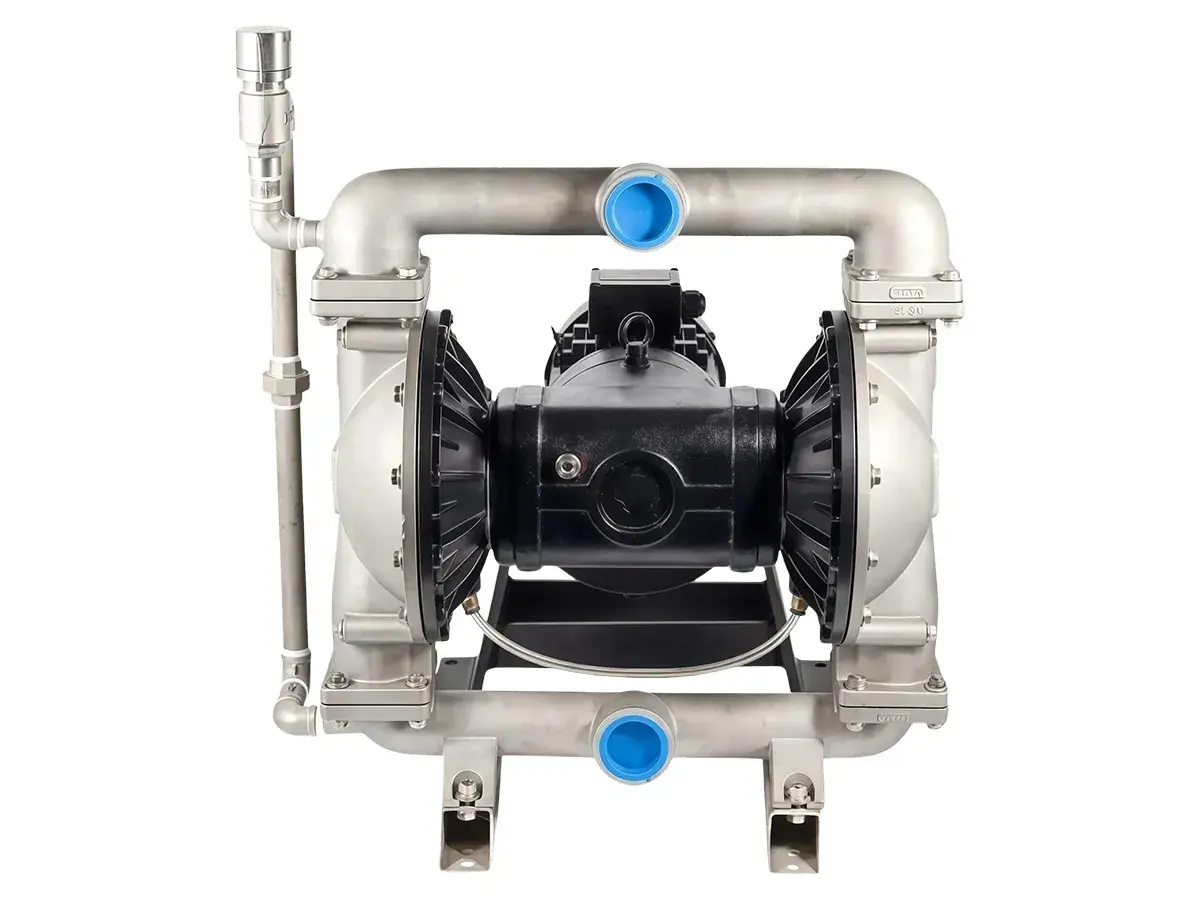

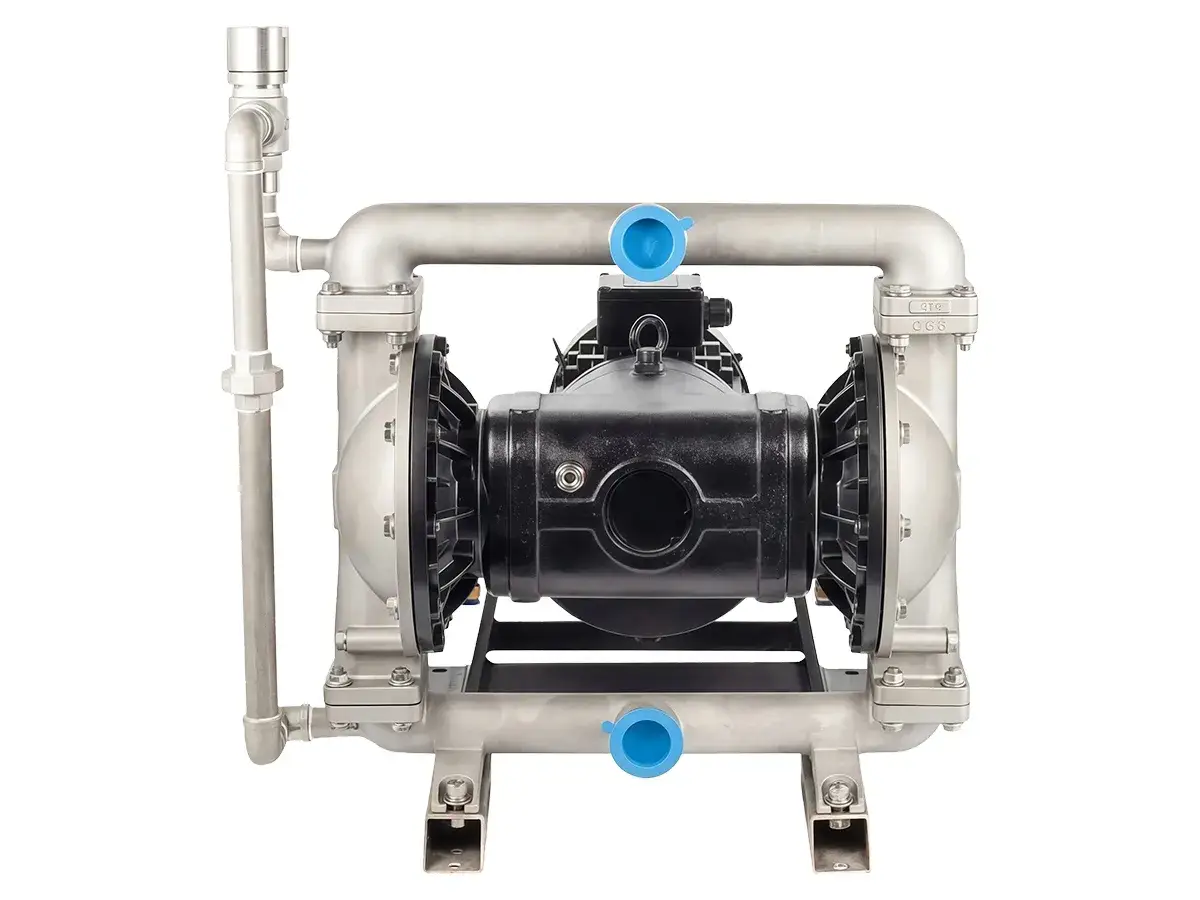

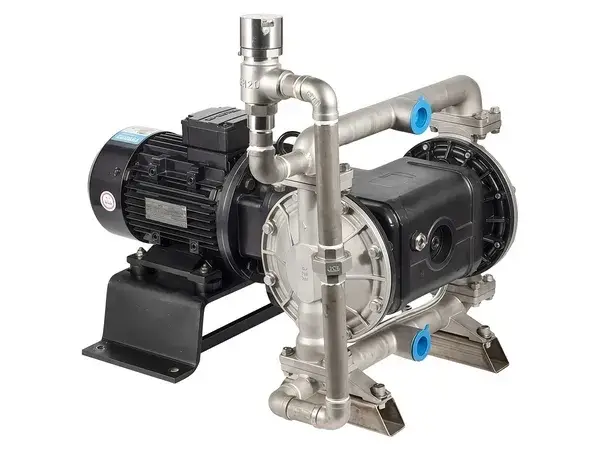

Stainless Steel Electric Diaphragm Pumps
- Max. Outlet Pressure: 0.6-0.7 MPa
- Max. Flow Rate: 3.5-22 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 1.5-5.5 kW standard, 2.2-7.5 kW optional
- Motor Speed: 1450 r/min

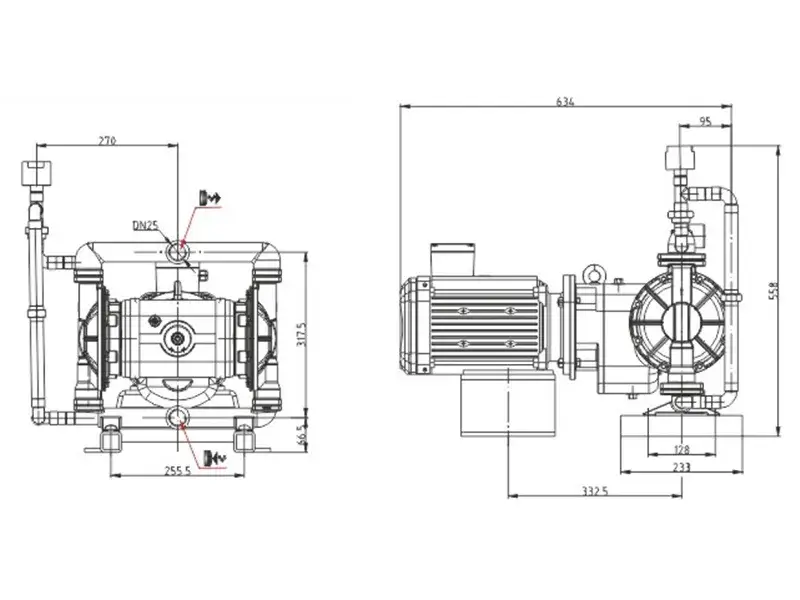

- Max. Outlet Pressure: 0.6 MPa
- Max. Flow Rate: 3.5 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 1.5 kW standard, 2.2 kW optional
- Motor Speed: 1450 r/min
- Inlet/Outlet Size: 1", threaded or flanged connection

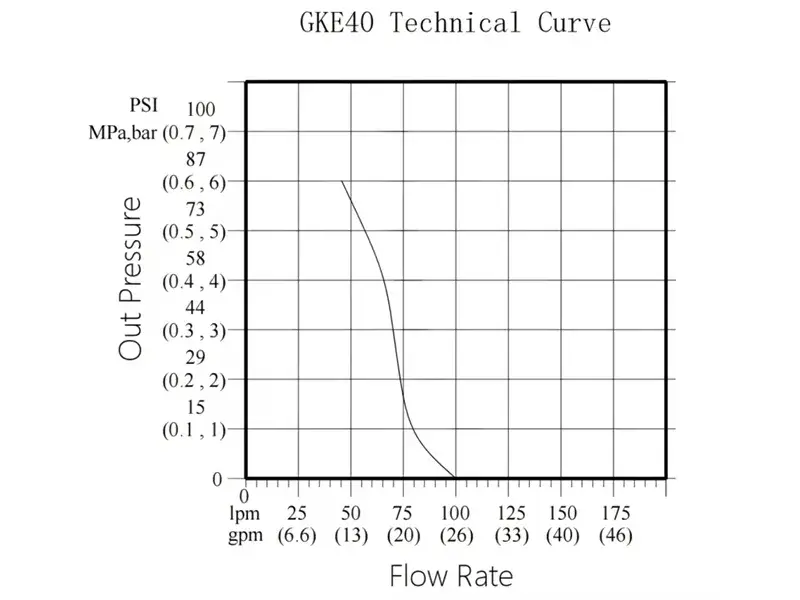

- Max. Outlet Pressure: 0.6 MPa
- Max. Flow Rate: 6 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 2.2 kW standard, 3 kW optional
- Motor Speed: 1450 r/min
- Inlet/Outlet Size: 1-1/2", threaded or flanged connection

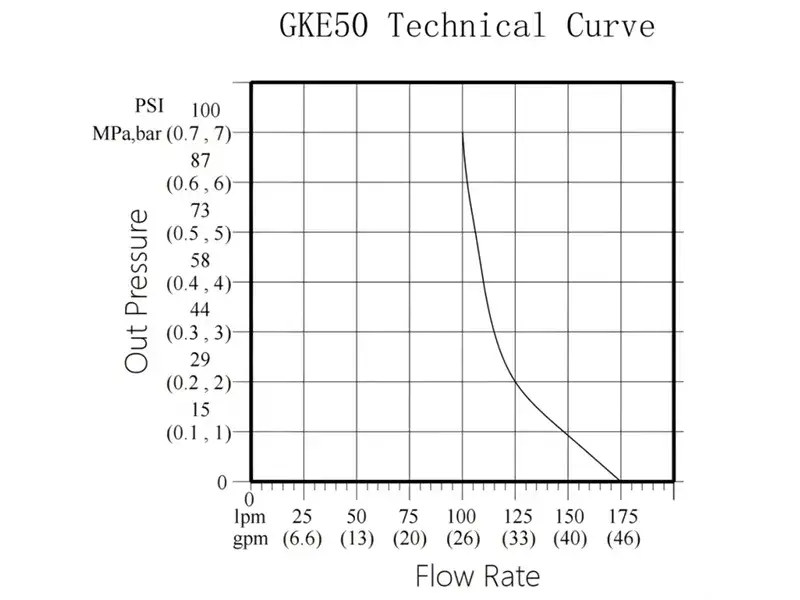

- Max. Outlet Pressure: 0.6 MPa
- Max. Flow Rate: 10.5 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 3 kW standard, 4 kW optional
- Motor Speed: 1450 r/min
- Inlet/Outlet Size: 2", threaded or flanged connection

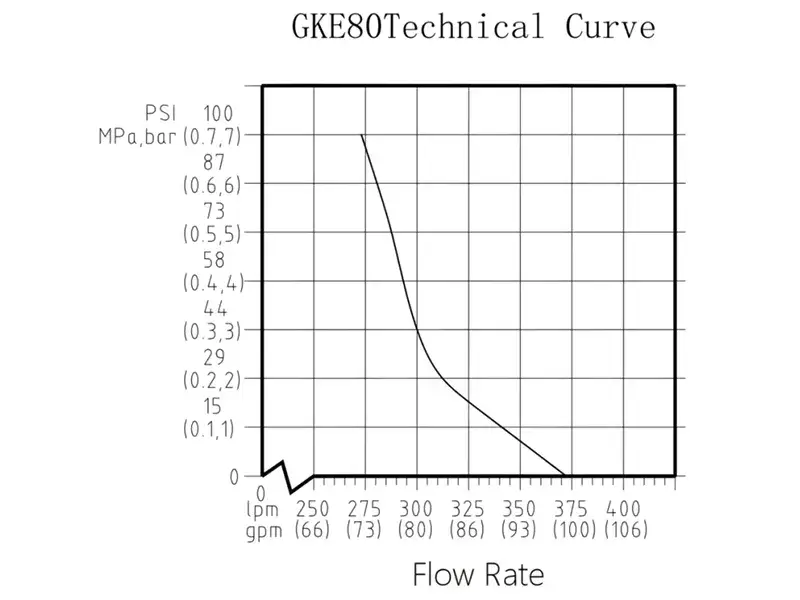

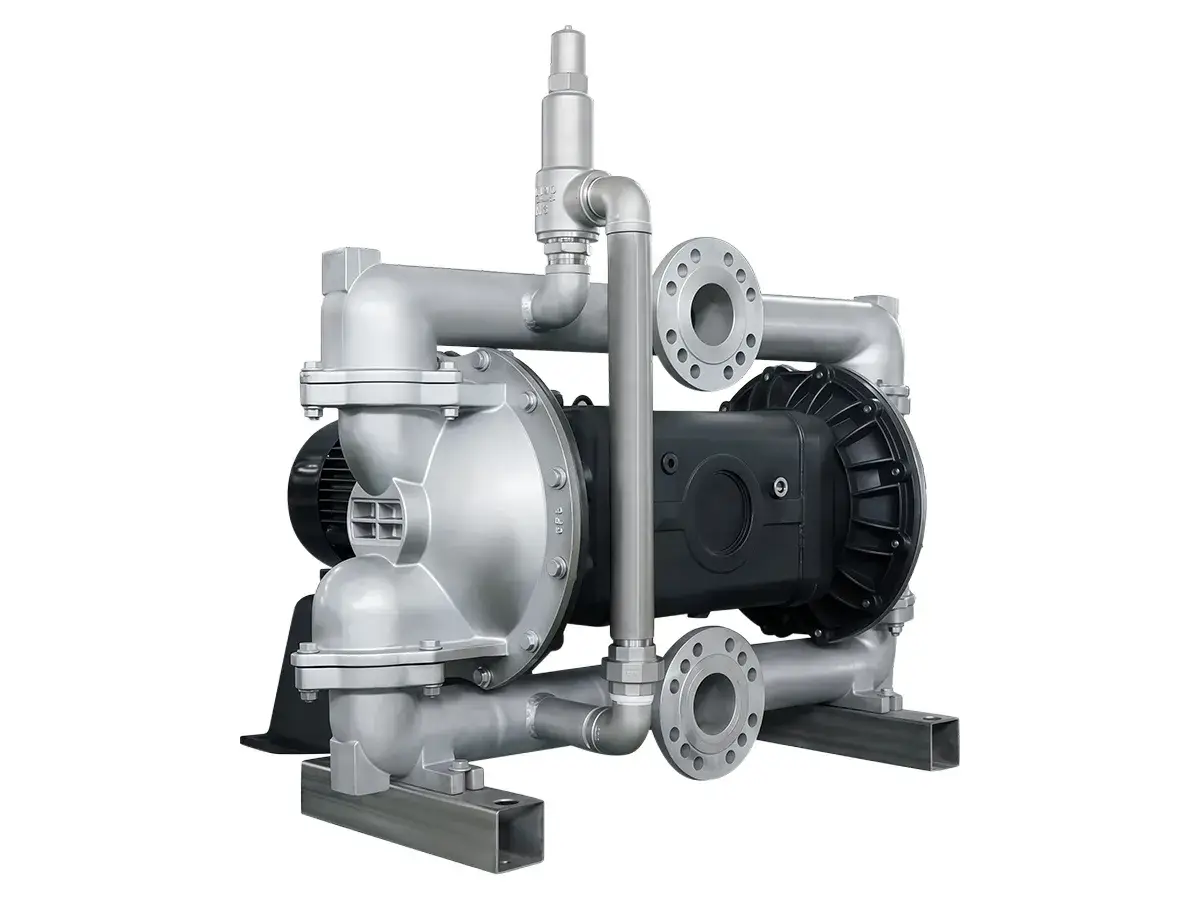

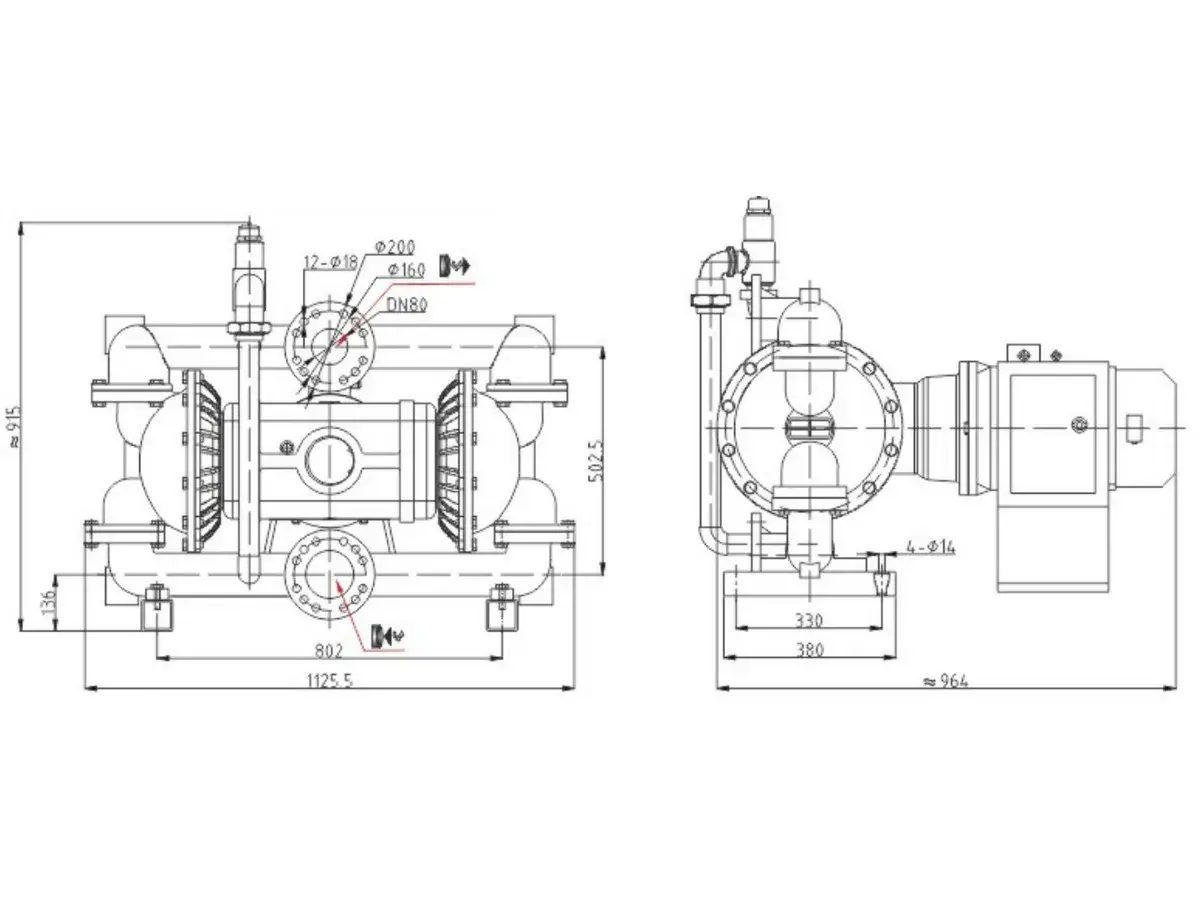

- Max. Outlet Pressure: 0.7 MPa
- Max. Flow Rate: 22 m³/h
- Suction Lift (Dry): 3 m
- Motor Power: 5.5 kW standard, 7.5 kW optional
- Motor Speed: 1450 r/min
- Inlet/Outlet Size: 3", flanged connection
